CABLINE®-SS
高速伝送対応(16Gbps/Lane ）、小スペース高い堅牢性、最大(AWG#34)ケーブル結線可、 0.4 mmピッチ、ライトアングル縦嵌合タイプ細線同軸コネクタ
16Gbps/Laneの高速伝送内部接続に最適
小径ヒンジを通す事を可能にしたスリムなデザイン、最大径のパワー用ケーブルAWG#34が結線可能
I-PEX独自のW-Point による信頼性の高いコンタクト構造
Contact Pitch:
0.4
(mm)
嵌合タイプ:
縦嵌合
Mated Height:
1.85
max.
(mm)
芯数:
10
14
20
30
32
35
40
50
Micro-Coaxial Cable:
AWG 38
AWG 40
AWG 42
AWG 44
AWG 46
Discrete Cable:
AWG 34
AWG 36
AWG 38
AWG 39
AWG 40
AWG 42
AWG 44
AWG 46
ダウンロード
-
製品規格 & テストレポート
-
PCB/FPCデータ
-
シンボル＆フットプリント
シンボル＆フットプリントは外部サイト（SnapMagic）に遷移後ダウンロードいただけます。
-
-
16Gbps/Laneの高速伝送内部接続に最適
|

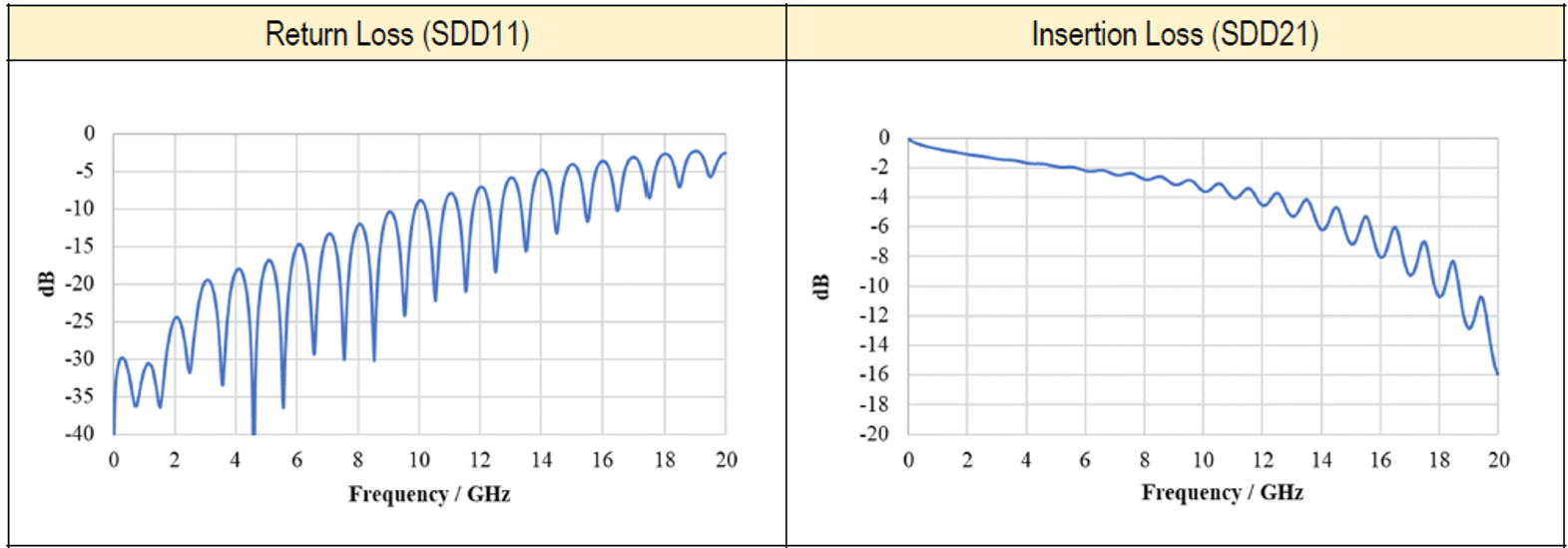

Measurement results |
 |
小径ヒンジを通す事を可能にしたスリムなデザイン、最大径のパワー用ケーブルAWG#34が結線可能

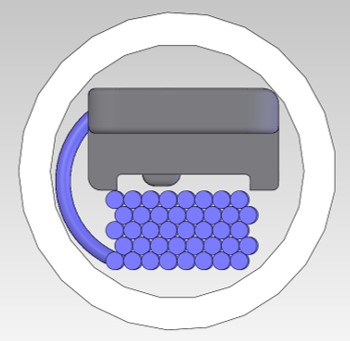

ハーネス加工後に小径ヒンジを通す事が可能
|
1. CABLINE®-SS Plugハーネス |
Side view |
I-PEX独自のW-Point による信頼性の高いコンタクト構造
|

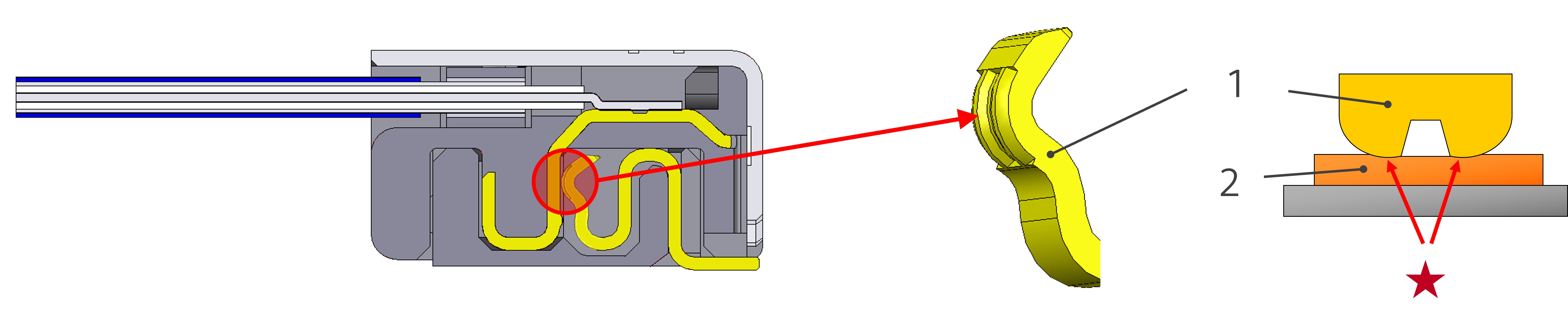

嵌合断面
1. Receptacleコンタクト 2. Plugコンタクト ★ W-pointコンタクト |
W-pointコンタクト技術は、劣悪な接点環境下でもPlugとReceptacleコンタクト間の良好な接触抵抗値を維持が可能です。
一般的な、単接点方式と比較して、より安定的接触抵抗を維持可能です。
| Transmission Speed (Reference Only) | 5 Gbps/Lane NRZ |
| Contact Pitch |
0.4
(mm)
|
| 嵌合タイプ |
縦嵌合
|
| Mated Height |
1.85
max.
(mm)
|
| Available Pin Counts |
10
14
20
30
32
35
40
50
|
| Depth |
3 (mm)
|
| Width Formula |
5.8 + (0.4 x pin count)(mm)
|
| Micro-Coaxial Cable |
AWG 38
AWG 40
AWG 42
AWG 44
AWG 46
|
| Discrete Cable |
AWG 34
AWG 36
AWG 38
AWG 39
AWG 40
AWG 42
AWG 44
AWG 46
|
| Shielded FPC / FFC |
No
|
| Current rating | |
| Applicable Standards (Reference Only) |
USB3.1 Gen1 (5 Gbps/Lane)
eDP HBR3 (8.1 Gbps/Lane)
eDP HBR2 (5.4 Gbps/Lane)
eDP (2.7 Gbps/Lane)
HDMI 2.0 (6 Gbps/Lane)
V-By-One HS 1.4 (4 Gbps/Lane)
MiPi standards
|
| Full EMI Shielding (ZenShield®) |
No
|
| Mechanical lock |
No
|
推奨型番
お探しの品番・仕様がリストにない場合はお問い合わせフォームよりお問い合わせください。
CABLINE-SS RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-SS plug cable assembly 10pin | 20380-R10T-06 | 73.2 |
| CABLINE-SS plug cable assembly 14pin | 20380-R14T-06 | 82.88 |
| CABLINE-SS plug cable assembly 20pin | 20380-R20T-06 | 113.1 |
| CABLINE-SS plug cable assembly 30pin | 20380-R30T-06 | 132.2 |
| CABLINE-SS plug cable assembly 32pin | 20380-R32T-06 | 141.94 |
| CABLINE-SS plug cable assembly 35pin | 20380-R35T-06 | 146.4 |
| CABLINE-SS plug cable assembly 40pin | 20380-R40T-16 | 163.847 |
| CABLINE-SS plug cable assembly 50pin | 20380-R50T-16 | 216.059 |
| CABLINE-SS plug housing 10pin | 20373-R10T-06 | 38.1 |
| CABLINE-SS plug housing 14pin | 20373-R14T-06 | 40.12 |
| CABLINE-SS plug housing 20pin | 20373-R20T-06 | 60.3 |
| CABLINE-SS plug housing 30pin | 20373-R30T-06 | 64.4 |
| CABLINE-SS plug housing 32pin | 20373-R32T-06 | 68.97 |
| CABLINE-SS plug housing 35pin | 20373-R35T-06 | 73.34 |
| CABLINE-SS plug housing 40pin | 20373-R40T-06 | 75.8 |
| CABLINE-SS plug housing 50pin | 20373-R50T-06 | 106 |
| CABLINE-SS plug metal cover 10pin | 2182-010-03 | 35.1 |
| CABLINE-SS plug metal cover 14pin | 2182-014-03 | 42.76 |
| CABLINE-SS plug metal cover 20pin | 2182-020-03 | 52.8 |
| CABLINE-SS plug metal cover 30pin | 2182-030-03 | 67.8 |
| CABLINE-SS plug metal cover 32pin | 2182-032-03 | 72.97 |
| CABLINE-SS plug metal cover 35pin | 2182-035-03 | 73.06 |
| CABLINE-SS plug metal cover 40pin | 2182-040-04 | 88.047 |
| CABLINE-SS plug metal cover 50pin | 2182-050-04 | 110.059 |
| CABLINE-SS receptacle 10pin | 20374-R10E-31 | 43.44 |
| CABLINE-SS receptacle 14pin | 20374-R14E-31 | 47.22 |
| CABLINE-SS receptacle 20pin | 20374-R20E-31 | 59.52 |
| CABLINE-SS receptacle 30pin | 20374-R30E-31 | 69.8 |
| CABLINE-SS receptacle 32pin | 20374-R32E-31 | 72.94 |
| CABLINE-SS receptacle 35pin | 20374-R35E-31 | 74.76 |
| CABLINE-SS receptacle 40pin | 20374-R40E-31 | 83.82 |
| CABLINE-SS receptacle 50pin | 20374-R50E-31 | 96.82 |
CABLINE-SS SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-SS harness 20pin micro-coaxial 40AWG L=200mm | 82069-100B-02-D | - |
| CABLINE-SS harness 30pin micro-coaxial 40AWG L=200mm | 81463-100B-02-D | - |
| CABLINE-SS harness 40pin micro-coaxial 40AWG L=200mm | 81464-100B-02-D | - |
| CABLINE-SS harness 10pin micro-coaxial 40AWG L=200mm 1-N | 82440-100B-02-D | - |
| CABLINE-SS harness 14pin micro-coaxial 40AWG L=200mm 1-N | 82441-100B-02-D | - |
| CABLINE-SS harness 32pin micro-coaxial 40AWG L=200mm 1-N | 82442-100B-02-D | - |
| CABLINE-SS harness 35pin micro-coaxial 40AWG L=200mm 1-N | 82443-100B-02-D | - |
| CABLINE-SS harness 50pin micro-coaxial 40AWG L=200mm 1-N | 82444-100B-02-D | - |
その他の型番
このリストには、サンプルの準備が無い型番や販売終了型番が含まれている場合があります。
新規での採用をご検討のお客様は、ぜひ上記の推奨型番をお選びください。
CABLINE-SS ACCESSORIES PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-SS hand tool extraction 10pin | 90296-110 | 2040 |
| CABLINE-SS hand tool extraction 14pin | 90296-114 | 2270 |
| CABLINE-SS hand tool extraction 20pin | 90296-120 | 2555 |
| CABLINE-SS hand tool extraction 30pin | 90296-130 | 3210 |
| CABLINE-SS hand tool extraction 32pin | 90296-132 | 3324 |
| CABLINE-SS hand tool extraction 35pin | 90296-135 | 3472 |
| CABLINE-SS hand tool extraction 40pin | 90296-140 | 3780 |
| CABLINE-SS hand tool extraction 50pin | 90296-150 | 4208 |
SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) |
| SI Test Board for CABLINE-SS 10pin | 91586-010B-001 | 75868 |
| SI Test Board for CABLINE-SS 14pin | 91586-014B-001 | 83876 |
| SI Test Board for CABLINE-SS 20pin | 91586-020B-001 | 83890 |
| SI Test Board for CABLINE-SS 30pin | 91586-030B-001 | 83912 |
| SI Test Board for CABLINE-SS 32pin | 91586-032B-001 | 83916.2 |
| SI Test Board for CABLINE-SS 35pin | 91586-035B-001 | 83922.8 |
| SI Test Board for CABLINE-SS 40pin | 91586-040B-001 | 83933.2 |
| SI Test Board for CABLINE-SS 50pin | 91586-050B-001 | 83955.2 |
CABLINE-SS Plan to EOL PART NUMBERS
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| CABLINE-SS plug housing 10pin | 20373-010T-03 | 20373-R10T-06 | material, shape |
| CABLINE-SS plug housing 14pin | 20373-014T-00 | 20373-R14T-06 | material, shape |
| CABLINE-SS plug housing 14pin | 20373-014T-03 | 20373-R14T-06 | material, shape |
| CABLINE-SS plug housing 20pin | 20373-020T-00 | 20373-R20T-06 | material, shape |
| CABLINE-SS plug housing 20pin | 20373-020T-03 | 20373-R20T-06 | material, shape |
| CABLINE-SS plug housing 30pin | 20373-030T-00 | 20373-R30T-06 | material, shape |
| CABLINE-SS plug housing 30pin | 20373-030T-03 | 20373-R30T-06 | material, shape |
| CABLINE-SS plug housing 32pin | 20373-032T-00 | 20373-R32T-06 | material, shape |
| CABLINE-SS plug housing 35pin | 20373-035T-00 | 20373-R35T-06 | material, shape |
| CABLINE-SS plug housing 40pin | 20373-040T-01 | 20373-R40T-06 | material, shape |
| CABLINE-SS plug housing 40pin | 20373-040T-03 | 20373-R40T-06 | material, shape |
| CABLINE-SS plug housing 50pin | 20373-050T-00 | 20373-R50T-06 | material, shape |
| CABLINE-SS plug housing 50pin | 20373-050T-03 | 20373-R50T-06 | material, shape |
| CABLINE-SS plug housing 10pin | 20373-R10T-03 | 20373-R10T-06 | shape |
| CABLINE-SS plug housing 10pin | 20373-R10T-06-S | 20373-R10T-06 | MOQ |
| CABLINE-SS plug housing 14pin | 20373-R14T-03 | 20373-R14T-06 | shape |
| CABLINE-SS plug housing 14pin | 20373-R14T-06-S | 20373-R14T-06 | MOQ |
| CABLINE-SS plug housing 20pin | 20373-R20T-00 | 20373-R20T-06 | shape |
| CABLINE-SS plug housing 20pin | 20373-R20T-03 | 20373-R20T-06 | shape |
| CABLINE-SS plug housing 20pin | 20373-R20T-06-S | 20373-R20T-06 | MOQ |
| CABLINE-SS plug housing 30pin | 20373-R30T-00 | 20373-R30T-06 | shape |
| CABLINE-SS plug housing 30pin | 20373-R30T-03 | 20373-R30T-06 | shape |
| CABLINE-SS plug housing 30pin | 20373-R30T-06-S | 20373-R30T-06 | MOQ |
| CABLINE-SS plug housing 32pin | 20373-R32T-00 | 20373-R32T-06 | shape |
| CABLINE-SS plug housing 32pin | 20373-R32T-06-S | 20373-R32T-06 | MOQ |
| CABLINE-SS plug housing 35pin | 20373-R35T-00 | 20373-R35T-06 | shape |
| CABLINE-SS plug housing 35pin | 20373-R35T-06-S | 20373-R35T-06 | MOQ |
| CABLINE-SS plug housing 40pin | 20373-R40T-03 | 20373-R40T-06 | shape |
| CABLINE-SS plug housing 40pin | 20373-R40T-06-S | 20373-R40T-06 | MOQ |
| CABLINE-SS plug housing 50pin | 20373-R50T-03 | 20373-R50T-06 | shape |
| CABLINE-SS plug housing 50pin | 20373-R50T-06-S | 20373-R50T-06 | MOQ |
| CABLINE-SS receptacle 10pin | 20374-010E-30 | 20374-R10E-31 | material, MOQ, vacuum clip |
| CABLINE-SS receptacle 10pin | 20374-010E-31 | 20374-R10E-31 | material |
| CABLINE-SS receptacle 10pin | 20374-010E-61 | 20374-R10E-31 | material, plating |
| CABLINE-SS receptacle 14pin | 20374-014E-20 | 20374-R14E-31 | material, plating, vacuum clip |
| CABLINE-SS receptacle 14pin | 20374-014E-30 | 20374-R14E-31 | material, MOQ, vacuum clip |
| CABLINE-SS receptacle 14pin | 20374-014E-31 | 20374-R14E-31 | material |
| CABLINE-SS receptacle 20pin | 20374-020E-21 | 20374-R20E-31 | material, plating |
| CABLINE-SS receptacle 20pin | 20374-020E-30 | 20374-R20E-31 | material, MOQ, vacuum clip |
| CABLINE-SS receptacle 20pin | 20374-020E-31 | 20374-R20E-31 | material |
| CABLINE-SS receptacle 30pin | 20374-030E-01 | 20374-R30E-31 | shape, material, plating |
| CABLINE-SS receptacle 30pin | 20374-030E-11 | 20374-R30E-31 | material, shape |
| CABLINE-SS receptacle 30pin | 20374-030E-20 | 20374-R30E-31 | material, plating, vacuum clip |
| CABLINE-SS receptacle 30pin | 20374-030E-21 | 20374-R30E-31 | material, plating |
| CABLINE-SS receptacle 30pin | 20374-030E-30 | 20374-R30E-31 | material, MOQ, vacuum clip |
| CABLINE-SS receptacle 30pin | 20374-030E-31 | 20374-R30E-31 | material |
| CABLINE-SS receptacle 32pin | 20374-032E-11 | 20374-R32E-31 | material, shape |
| CABLINE-SS receptacle 32pin | 20374-032E-21 | 20374-R32E-31 | material, plating |
| CABLINE-SS receptacle 32pin | 20374-032E-30 | 20374-R32E-31 | material, MOQ, vacuum clip |
| CABLINE-SS receptacle 32pin | 20374-032E-31 | 20374-R32E-31 | material |
| CABLINE-SS receptacle 35pin | 20374-035E-30 | 20374-R35E-31 | material, MOQ, vacuum clip |
| CABLINE-SS receptacle 35pin | 20374-035E-31 | 20374-R35E-31 | material |
| CABLINE-SS receptacle 35pin | 20374-035E-41 | 20374-R35E-31 | material, plating |
| CABLINE-SS receptacle 40pin | 20374-040E-01 | 20374-R40E-31 | shape, material, plating |
| CABLINE-SS receptacle 40pin | 20374-040E-11 | 20374-R40E-31 | material, shape |
| CABLINE-SS receptacle 40pin | 20374-040E-21 | 20374-R40E-31 | material, plating |
| CABLINE-SS receptacle 40pin | 20374-040E-30 | 20374-R40E-31 | material, MOQ, vacuum clip |
| CABLINE-SS receptacle 40pin | 20374-040E-31 | 20374-R40E-31 | material |
| CABLINE-SS receptacle 40pin | 20374-040E-41 | 20374-R40E-31 | material, plating, vacuum clip |
| CABLINE-SS receptacle 50pin | 20374-050E-01 | 20374-R50E-31 | shape, material, plating |
| CABLINE-SS receptacle 50pin | 20374-050E-11 | 20374-R50E-31 | material, shape |
| CABLINE-SS receptacle 50pin | 20374-050E-30 | 20374-R50E-31 | material, MOQ, vacuum clip |
| CABLINE-SS receptacle 50pin | 20374-050E-31 | 20374-R50E-31 | material |
| CABLINE-SS receptacle 10pin | 20374-R10E-30 | 20374-R10E-31 | MOQ, vacuum clip |
| CABLINE-SS receptacle 10pin | 20374-R10E-31-S | 20374-R10E-31 | MOQ |
| CABLINE-SS receptacle 14pin | 20374-R14E-30 | 20374-R14E-31 | MOQ, vacuum clip |
| CABLINE-SS receptacle 14pin | 20374-R14E-31-S | 20374-R14E-31 | MOQ |
| CABLINE-SS receptacle 20pin | 20374-R20E-30 | 20374-R20E-31 | MOQ, vacuum clip |
| CABLINE-SS receptacle 20pin | 20374-R20E-31-S | 20374-R20E-31 | MOQ |
| CABLINE-SS receptacle 30pin | 20374-R30E-30 | 20374-R30E-31 | MOQ, vacuum clip |
| CABLINE-SS receptacle 30pin | 20374-R30E-31-S | 20374-R30E-31 | MOQ |
| CABLINE-SS receptacle 32pin | 20374-R32E-30 | 20374-R32E-31 | MOQ, vacuum clip |
| CABLINE-SS receptacle 32pin | 20374-R32E-31-S | 20374-R32E-31 | MOQ |
| CABLINE-SS receptacle 35pin | 20374-R35E-30 | 20374-R35E-31 | MOQ, vacuum clip |
| CABLINE-SS receptacle 35pin | 20374-R35E-31-S | 20374-R35E-31 | MOQ |
| CABLINE-SS receptacle 40pin | 20374-R40E-30 | 20374-R40E-31 | MOQ, vacuum clip |
| CABLINE-SS receptacle 40pin | 20374-R40E-31-S | 20374-R40E-31 | MOQ |
| CABLINE-SS receptacle 50pin | 20374-R50E-30 | 20374-R50E-31 | MOQ, vacuum clip |
| CABLINE-SS receptacle 50pin | 20374-R50E-31-S | 20374-R50E-31 | MOQ |
| CABLINE-SS plug cable assembly 14pin | 20380-014T | 20380-R14T-06 | material, shape |
| CABLINE-SS plug cable assembly 20pin | 20380-020T | 20380-R20T-06 | material, shape |
| CABLINE-SS plug cable assembly 20pin | 20380-R20T | 20380-R20T-06 | shape |
| CABLINE-SS plug cable assembly 30pin | 20380-030T | 20380-R30T-06 | material, shape |
| CABLINE-SS plug cable assembly 30pin | 20380-R30T | 20380-R30T-06 | shape |
| CABLINE-SS plug cable assembly 32pin | 20380-032T | 20380-R32T-06 | material, shape |
| CABLINE-SS plug cable assembly 32pin | 20380-R32T | 20380-R32T-06 | shape |
| CABLINE-SS plug cable assembly 35pin | 20380-035T | 20380-R35T-06 | material, shape |
| CABLINE-SS plug cable assembly 35pin | 20380-R35T | 20380-R35T-06 | shape |
| CABLINE-SS plug cable assembly 40pin | 20380-040T | 20380-R40T-16 | material, shape |
| CABLINE-SS plug cable assembly 50pin | 20380-050T | 20380-R50T-16 | material, shape |
| CABLINE-SS plug cable assembly 10pin | 20380-010T-03 | 20380-R10T-06 | material, shape |
| CABLINE-SS plug cable assembly 10pin | 20380-R10T-03 | 20380-R10T-06 | shape |
| CABLINE-SS plug cable assembly 14pin | 20380-014T-03 | 20380-R14T-06 | material, shape |
| CABLINE-SS plug cable assembly 14pin | 20380-R14T-03 | 20380-R14T-06 | shape |
| CABLINE-SS plug cable assembly 20pin | 20380-020T-03 | 20380-R20T-06 | material, shape |
| CABLINE-SS plug cable assembly 20pin | 20380-R20T-03 | 20380-R20T-06 | shape |
| CABLINE-SS plug cable assembly 30pin | 20380-030T-03 | 20380-R20T-06 | material, shape |
| CABLINE-SS plug cable assembly 30pin | 20380-R30T-03 | 20380-R20T-06 | shape |
| CABLINE-SS plug cable assembly 40pin | 20380-040T-03 | 20380-R40T-16 | material, shape |
| CABLINE-SS plug cable assembly 40pin | 20380-R40T-03 | 20380-R40T-16 | shape |
| CABLINE-SS plug cable assembly 50pin | 20380-050T-03 | 20380-R50T-16 | material, shape |
| CABLINE-SS plug cable assembly 50pin | 20380-R50T-03 | 20380-R50T-16 | shape |
| CABLINE-SS plug cable assembly 40pin | 20380-040T-13 | 20380-R40T-16 | material, shape |
| CABLINE-SS plug cable assembly 40pin | 20380-R40T-13 | 20380-R40T-16 | shape |
| CABLINE-SS plug cable assembly 50pin | 20380-050T-13 | 20380-R50T-16 | material, shape |
| CABLINE-SS plug cable assembly 50pin | 20380-R50T-13 | 20380-R50T-16 | shape |
| CABLINE-SS plug metal cover 10pin | 2182-010-03S | 2182-010-03 | MOQ |
| CABLINE-SS plug metal cover 14pin | 2182-014-00 | 2182-014-03 | shape |
| CABLINE-SS plug metal cover 14pin | 2182-014-03S | 2182-014-03 | MOQ |
| CABLINE-SS plug metal cover 20pin | 2182-020-00 | 2182-020-03 | shape |
| CABLINE-SS plug metal cover 20pin | 2182-020-03S | 2182-020-03 | MOQ |
| CABLINE-SS plug metal cover 30pin | 2182-030-00 | 2182-030-03 | shape |
| CABLINE-SS plug metal cover 30pin | 2182-030-03S | 2182-030-03 | MOQ |
| CABLINE-SS plug metal cover 32pin | 2182-032-00 | 2182-032-03 | shape |
| CABLINE-SS plug metal cover 32pin | 2182-032-03S | 2182-032-03 | MOQ |
| CABLINE-SS plug metal cover 35pin | 2182-035-00 | 2182-035-03 | shape |
| CABLINE-SS plug metal cover 35pin | 2182-035-02 | 2182-035-03 | shape, plating |
| CABLINE-SS plug metal cover 35pin | 2182-035-03S | 2182-035-03 | MOQ |
| CABLINE-SS plug metal cover 40pin | 2182-040-00 | 2182-040-04 | shape |
| CABLINE-SS plug metal cover 40pin | 2182-040-02 | 2182-040-04 | shape, plating |
| CABLINE-SS plug metal cover 40pin | 2182-040-03 | 2182-040-04 | shape |
| CABLINE-SS plug metal cover 40pin | 2182-040-03S | 2182-040-04 | shape, MOQ |
| CABLINE-SS plug metal cover 50pin | 2182-050-00 | 2182-050-04 | shape |
| CABLINE-SS plug metal cover 50pin | 2182-050-03 | 2182-050-04 | shape |
| CABLINE-SS plug metal cover 50pin | 2182-050-03S | 2182-050-04 | shape, MOQ |
| CABLINE-SS hand tool extraction 10pin | 90296-010 | 90296-110 | with/without pin count mark |
| CABLINE-SS hand tool extraction 14pin | 90296-014 | 90296-114 | with/without pin count mark |
| CABLINE-SS hand tool extraction 20pin | 90296-020 | 90296-120 | with/without pin count mark |
| CABLINE-SS hand tool extraction 30pin | 90296-030 | 90296-130 | with/without pin count mark |
| CABLINE-SS hand tool extraction 32pin | 90296-032 | 90296-132 | with/without pin count mark |
| CABLINE-SS hand tool extraction 35pin | 90296-035 | 90296-135 | with/without pin count mark |
| CABLINE-SS hand tool extraction 40pin | 90296-040 | 90296-140 | with/without pin count mark |
| CABLINE-SS hand tool extraction 50pin | 90296-050 | 90296-150 | with/without pin count mark |
CABLINE-SS EOL PART NUMBERS
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| CABLINE-SS ground bar A | 2183-040-00 | Contact us | |
| CABLINE-SS ground bar B | 2184-040-00 | Contact us | |
| CABLINE-SS 30pin shell insert hand tool | 90275-030 | Contact us | |
| CABLINE-SS 40pin shell insert hand tool | 90275-040 | Contact us | |
| CABLINE-SS 50pin shell insert hand tool | 90275-050 | Contact us | |
| CABLINE-SS ground cramp hand tool | 90288-040 | Contact us |
Download
