CABLINE®-CA

CABLINE-CA Product Image
高速伝送対応(32 Gbps/Lane ）、メカニカルロック付き、シールド付き、 多点グランド接点、0.4 mmピッチ、水平嵌合タイプ細線同軸コネクタ

    32 Gbps/Laneの高速伝送内部接続に最適

    メカニカルロックバーによる不完全嵌合防止とプラグ抜け防止

    CABLINE®-CAシリーズにおける複数のコネクタ接続オプション

*更に高速64 Gbps PAM4には、CABLINE-CAレセプタクル(20525-#50E-02)に嵌合する CABLINE-CAPハーネス ソリューションをご確認ください。
*コネクタの取り扱いについては「挿抜方法」の動画をご参照ください。
Contact Pitch:
0.4 (mm)
嵌合タイプ:
水平嵌合
Mated Height:
1.1 max. (mm)
芯数:
10 12 20 30 40 50 60
Micro-Coaxial Cable:
AWG 38 AWG 40 AWG 42 AWG 44 AWG 46
Twinaxial Cable:
AWG 40 AWG 42
Discrete Cable:
AWG 34 AWG 36 AWG 38 AWG 39 AWG 40 AWG 42 AWG 44 AWG 46
Current rating:
0.1 A AC/DC [AWG 44] per contact/up to 60 contacts 0.24 A AC/DC [AWG 42] per contact/up to 50 contacts 0.3 A AC/DC [AWG 40] per contact/up to 40 contacts 0.5 A AC/DC [AWG 38] per contact/up to 14 contacts 0.8 A AC/DC [AWG 36] per contact/up to 6 contacts 1.0 A AC/DC [AWG 34] per contact/up to 4 contacts

ダウンロード

32 Gbps/Laneの高速伝送内部接続に最適

Measurement results

Connector : CABLINE-CA 40P
Cable : Micro-coaxial cable
AWG #40,  45ohm , Length : 100 mm
Pin Assignment : GSSGSSG

 FAB1



メカニカルロックバーによる不完全嵌合防止とプラグ抜け防止
Mate
 Locked
プラグがレセプタクルに完全に嵌合されている場合にのみロックが可能

干渉

不完全嵌合
完全嵌合



CABLINE®-CAシリーズにおける複数のコネクタ接続オプション
CABLINE-CAシリーズ (0.4 mm ピッチ, 水平嵌合タイプ) CABLINE-CA_FAB3-1.jpg
CABLINE-CA_FAB3-2.jpg CABLINE-CA_FAB3-3.jpg

CABLINE-CA II receptacle
CABLINE-CA receptacle
CABLINE-CA, CA II receptaclesは
同じPCBレイアウトに実装可能		 CABLINE-CA_FAB3-4.jpg CABLINE-CA_FAB3-5.jpg

CABLINE-CA II plug micro-coaxial
CABLINE-CA II plug shielded FPC
CABLINE-CA plug micro-coaxial
CABLINE-CAF plug shielded/non-shielded FPC
CABLINE-CAP paddle card harnessed with micro-coaxial cable







Transmission Speed (Reference Only) 20 Gbps/Lane NRZ
Contact Pitch
0.4 (mm)
嵌合タイプ
水平嵌合
Mated Height
1.1 max. (mm)
Available Pin Counts
10 12 20 30 40 50 60
Depth
5.73 (mm)
Width Formula
6.95 + (0.4 x pin count)(mm)
Micro-Coaxial Cable
AWG 38 AWG 40 AWG 42 AWG 44 AWG 46
Discrete Cable
AWG 34 AWG 36 AWG 38 AWG 39 AWG 40 AWG 42 AWG 44 AWG 46
Shielded FPC / FFC
No
Current rating
0.1 A AC/DC [AWG 44] per contact/up to 60 contacts 0.24 A AC/DC [AWG 42] per contact/up to 50 contacts 0.3 A AC/DC [AWG 40] per contact/up to 40 contacts 0.5 A AC/DC [AWG 38] per contact/up to 14 contacts 0.8 A AC/DC [AWG 36] per contact/up to 6 contacts 1.0 A AC/DC [AWG 34] per contact/up to 4 contacts
Applicable Standards (Reference Only)
USB4 Gen3 (20 Gbps/lane) USB3.1 Gen2 (10 Gbps/Lane) USB3.1 Gen1 (5 Gbps/Lane) eDP HBR3 (8.1 Gbps/Lane) eDP HBR2 (5.4 Gbps/Lane) eDP (2.7 Gbps/Lane) HDMI 2.0 (6 Gbps/Lane) V-By-One HS 1.4 (4 Gbps/Lane) MiPi standards Thunderbolt 4 (20 Gbps/Lane）
Full EMI Shielding (ZenShield®)
No
Mechanical lock
Yes
Automotive Standards LV214 (60P tested. PG17 Dynamic Loading evaluation passed)

推奨型番

お探しの品番・仕様がリストにない場合はお問い合わせフォームよりお問い合わせください。



DIAGRAMS_CABLINE-CA



CABLINE-CA RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-CA plug cable assembly 10pin 20633-310T-01S 99.18
CABLINE-CA plug cable assembly 12pin 20633-212T-01S 107.414
CABLINE-CA plug cable assembly 20pin 20633-220T-01S 136.894
CABLINE-CA plug cable assembly 30pin 20633-230T-01S 172.762
CABLINE-CA plug cable assembly 40pin 20633-240T-01S 210.513
CABLINE-CA plug cable assembly 50pin 20633-250T-01S 248.038
CABLINE-CA plug cable assembly 60pin 20633-260T-01S 284.326
CABLINE-CA plug housing 10pin 20634-210T-02 29.9
CABLINE-CA plug housing 12pin 20634-112T-02 33.434
CABLINE-CA plug housing 20pin 20634-120T-02 46.874
CABLINE-CA plug housing 30pin 20634-130T-02 64.901
CABLINE-CA plug housing 40pin 20634-140T-02 82.348
CABLINE-CA plug housing 50pin 20634-150T-02 100.185
CABLINE-CA plug housing 60pin 20634-160T-02 116.592
CABLINE-CA plug shell A 10pin 2764-0101-003 27.49
CABLINE-CA plug shell A 12pin 2764-0121-002 30.53
CABLINE-CA plug shell A 20pin 2764-0201-002 40.48
CABLINE-CA plug shell A 30pin 2764-0301-002 53.4
CABLINE-CA plug shell A 40pin 2764-0401-002 66
CABLINE-CA plug shell A 50pin 2764-0501-002 77.4
CABLINE-CA plug shell A 60pin 2764-0601-002 90.828
CABLINE-CA plug pull bar 10pin 2766-0101 41.79
CABLINE-CA plug pull bar 12pin 2766-0121 43.45
CABLINE-CA plug pull bar 20pin 2766-0201 49.54
CABLINE-CA plug pull bar 30pin 2766-0301 54.461
CABLINE-CA plug pull bar 40pin 2766-0401 62.165
CABLINE-CA plug pull bar 50pin 2766-0501 70.453
CABLINE-CA plug pull bar 60pin 2766-0601 76.906
CABLINE-CA receptacle 10pin 20525-210E-02 69.238
CABLINE-CA receptacle 12pin 20525-012E-02 72.936
CABLINE-CA receptacle 20pin 20525-020E-02 94.726
CABLINE-CA receptacle 30pin 20525-030E-02 122.061
CABLINE-CA receptacle 40pin 20525-040E-02 149.684
CABLINE-CA receptacle 50pin 20525-050E-02 174.935
CABLINE-CA receptacle 60pin 20525-060E-02 202.462



CABLINE-CA SAMPLE HARNESS FOR EVALUATION PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-CA harness 20pin micro-coaxial 40AWG L=200mm 81786-100B-02-D 1739
CABLINE-CA harness 30pin micro-coaxial 40AWG L=200mm 81423-100B-02-D 2539
CABLINE-CA harness 40pin micro-coaxial 40AWG L=200mm 81424-100B-02-D 3546
CABLINE-CA harness 50pin micro-coaxial 40AWG L=200mm 82145-100B-02-D -
CABLINE-CA harness 60pin micro-coaxial 40AWG L=200mm 82146-100B-02-D -
CABLINE-CA harness 10pin micro-coaxial 40AWG L=200mm 1-N 82434-100B-02-D -




その他の型番
このリストには、サンプルの準備が無い型番や販売終了型番が含まれている場合があります。
新規での採用をご検討のお客様は、ぜひ上記の推奨型番をお選びください。



CABLINE-CA OTHER PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-CA cable assembly 50pin 20523-050T-01S -
CABLINE-CA cable assembly 20523-0**T-01 -
CABLINE-CA cable assembly 20523-0**T-01S -
CABLINE-CA cable assembly 30pin 20523-230T-01 -
CABLINE-CA cable assembly 20523-2**T-01S -
CABLINE-CA receptacle 12pin 20525-212E-02 73.970
CABLINE-CA receptacle 20pin 20525-220E-02 96.448
CABLINE-CA receptacle 30pin 20525-230E-02 124.644
CABLINE-CA receptacle 40pin 20525-240E-02 153.128
CABLINE-CA receptacle 50pin 20525-250E-02 179.240
CABLINE-CA receptacle 60pin 20525-260E-02 202.892
CABLINE-CA plug cable assembly 12pin 20633-312T-01S -
CABLINE-CA plug cable assembly 20pin 20633-320T-01S -
CABLINE-CA plug cable assembly 30pin 20633-330T-01S -
CABLINE-CA plug cable assembly 40pin 20633-340T-01S -
CABLINE-CA plug cable assembly 50pin 20633-350T-01S -
CABLINE-CA plug cable assembly 60pin 20633-360T-01S -
CABLINE-CA plug housing 12pin 20634-212T-02 34.554
CABLINE-CA plug housing 20pin 20634-220T-02 49.775
CABLINE-CA plug housing 30pin 20634-230T-02 67.700
CABLINE-CA plug housing 40pin 20634-240T-02 86.080
CABLINE-CA plug housing 50pin 20634-250T-02 104.850
CABLINE-CA plug housing 60pin 20634-260T-02 122.190
CABLINE-CA plug shell A 12pin 2764-0121-003 30.530
CABLINE-CA plug shell A 20pin 2764-0201-003 40.480
CABLINE-CA plug shell A 30pin 2764-0301-003 53.400
CABLINE-CA plug shell A 40pin 2764-0401-003 66.000
CABLINE-CA plug shell A 50pin 2764-0501-003 　
CABLINE-CA plug shell A 60pin 2764-0601-003 90.828

SI Test Board with 2.92mm Adapter

Part Number Description PART NUMBERS Weight (mg) 　Image
SI Test Board for CABLINE-CA 10pin 91582-010B-001 75938.48

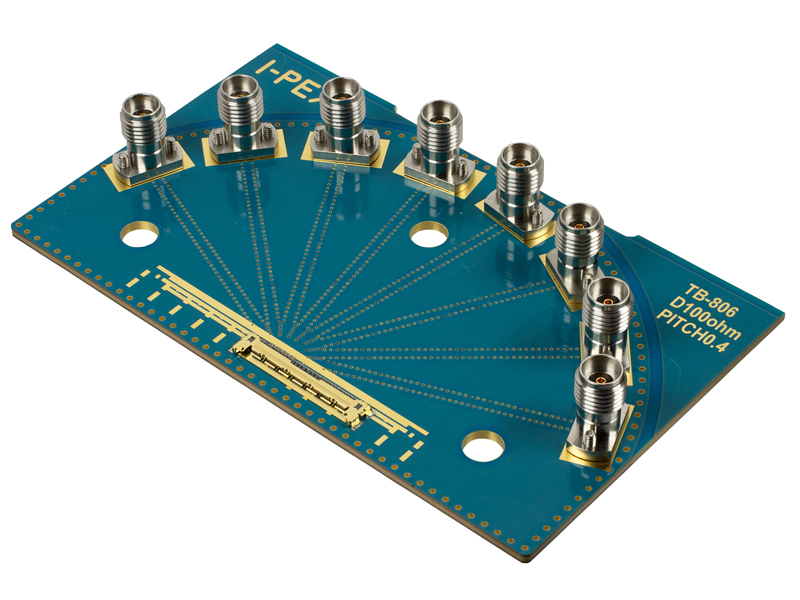

CABLINE-CA_SI_TB-806_Main_(C)

Main Board

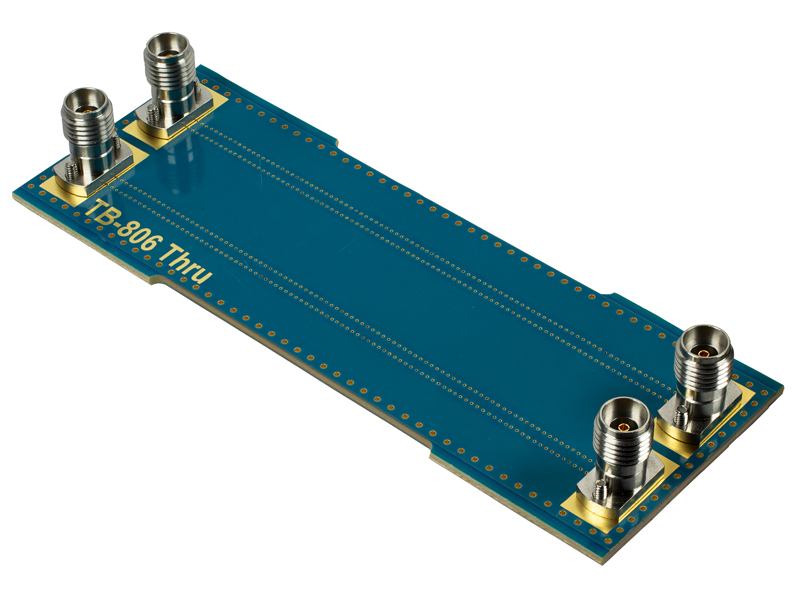

CABLINE-CA_SI_TB-806_Thru_(C)
Thru Board
SI Test Board for CABLINE-CA 12pin 91582-012B-001 83947.94
SI Test Board for CABLINE-CA 20pin 91582-020B-001 83992.9
SI Test Board for CABLINE-CA 30pin 91582-030B-001 84049.3
SI Test Board for CABLINE-CA 40pin 91582-040B-001 84106.26
SI Test Board for CABLINE-CA 50pin 91582-050B-001 84158.48
SI Test Board for CABLINE-CA 60pin 91582-060B-001 84205.78

CABLINE-CA Plan to EOL PART NUMBERS

Part Number Descriptions EOL P/N Alternative I-PEX P/N Differences to alternative item
CABLINE-CA plug housing 30pin 20524-030T-01 20634-130T-02 shape, plating
CABLINE-CA plug housing 40pin 20524-040T-01 20634-140T-02 shape, plating
CABLINE-CA plug housing 50pin 20524-050T-02 20634-150T-02 shape, plating
CABLINE-CA plug housing 60pin 20524-060T-02 20634-160T-02 shape, plating
CABLINE-CA plug housing 12pin 20524-112T-02 20634-112T-02 shape, plating
CABLINE-CA plug housing 20pin 20524-120T-02 20634-120T-02 shape, plating
CABLINE-CA plug housing 30pin 20524-130T-02 20634-130T-02 shape, plating
CABLINE-CA plug housing 40pin 20524-140T-02 20634-140T-02 shape, plating
CABLINE-CA plug housing 60pin 20524-160T-02 20634-160T-02 shape, plating
CABLINE-CA receptacle 10pin 20525-010E-01 20525-210E-02 plating, with/without boss
CABLINE-CA receptacle 10pin 20525-010E-01-S 20525-210E-02 shape, plating, MOQ
CABLINE-CA receptacle 10pin 20525-010E-02 20525-210E-02 plating
CABLINE-CA receptacle 10pin 20525-010E-02-S 20525-210E-02 plating, MOQ
CABLINE-CA receptacle 12pin 20525-012E-01 20525-012E-02 with/without boss
CABLINE-CA receptacle 12pin 20525-012E-01-S 20525-012E-02 shape, MOQ
CABLINE-CA receptacle 12pin 20525-012E-02-S 20525-012E-02 MOQ
CABLINE-CA receptacle 20pin 20525-020E-01 20525-020E-02 with/without boss
CABLINE-CA receptacle 20pin 20525-020E-01-S 20525-020E-02 shape, MOQ
CABLINE-CA receptacle 20pin 20525-020E-02-S 20525-020E-02 MOQ
CABLINE-CA receptacle 30pin 20525-030E-01 20525-030E-02 with/without boss
CABLINE-CA receptacle 30pin 20525-030E-01-S 20525-030E-02 shape, MOQ
CABLINE-CA receptacle 30pin 20525-030E-02-S 20525-030E-02 MOQ
CABLINE-CA receptacle 40pin 20525-040E-01 20525-040E-02 with/without boss
CABLINE-CA receptacle 40pin 20525-040E-01-S 20525-040E-02 shape, MOQ
CABLINE-CA receptacle 40pin 20525-040E-02-S 20525-040E-02 MOQ
CABLINE-CA receptacle 50pin 20525-050E-01 20525-050E-02 with/without boss
CABLINE-CA receptacle 50pin 20525-050E-01-S 20525-050E-02 shape, MOQ
CABLINE-CA receptacle 50pin 20525-050E-02-S 20525-050E-02 MOQ
CABLINE-CA receptacle 60pin 20525-060E-01 20525-060E-02 with/without boss
CABLINE-CA receptacle 60pin 20525-060E-01-S 20525-060E-02 shape, MOQ
CABLINE-CA receptacle 60pin 20525-060E-02-S 20525-060E-02 MOQ
CABLINE-CA receptacle 10pin 20525-210E-01 20525-210E-02 with/without boss
CABLINE-CA receptacle 10pin 20525-210E-01-S 20525-210E-02 shape, plating, MOQ
CABLINE-CA receptacle 10pin 20525-210E-02-S 20525-210E-02 MOQ
CABLINE-CA receptacle 12pin 20525-212E-01 20525-012E-02 plating, with/without boss
CABLINE-CA receptacle 12pin 20525-212E-01-S 20525-012E-02 shape, plating, MOQ
CABLINE-CA receptacle 12pin 20525-212E-02-S 20525-012E-02 MOQ
CABLINE-CA receptacle 20pin 20525-220E-01 20525-020E-02 plating, with/without boss
CABLINE-CA receptacle 20pin 20525-220E-01-S 20525-020E-02 shape, plating, MOQ
CABLINE-CA receptacle 20pin 20525-220E-02-S 20525-020E-02 MOQ
CABLINE-CA receptacle 30pin 20525-230E-01 20525-030E-02 plating, with/without boss
CABLINE-CA receptacle 30pin 20525-230E-01-S 20525-030E-02 shape, plating, MOQ
CABLINE-CA receptacle 30pin 20525-230E-02-S 20525-030E-02 MOQ
CABLINE-CA receptacle 40pin 20525-240E-01 20525-040E-02 plating, with/without boss
CABLINE-CA receptacle 40pin 20525-240E-01-S 20525-040E-02 shape, plating, MOQ
CABLINE-CA receptacle 40pin 20525-240E-02-S 20525-040E-02 MOQ
CABLINE-CA receptacle 50pin 20525-250E-01 20525-050E-02 plating, with/without boss
CABLINE-CA receptacle 50pin 20525-250E-01-S 20525-050E-02 shape, plating, MOQ
CABLINE-CA receptacle 50pin 20525-250E-02-S 20525-050E-02 MOQ
CABLINE-CA receptacle 60pin 20525-260E-01 20525-060E-02 plating, with/without boss
CABLINE-CA receptacle 60pin 20525-260E-01-S 20525-060E-02 shape, plating, MOQ
CABLINE-CA receptacle 60pin 20525-260E-02-S 20525-060E-02 MOQ
CABLINE-CA plug housing 10pin 20634-110T-02 20634-210T-02 plating
CABLINE-CA plug shell A 10pin 2764-0101-002 2764-0101-003 plating
CABLINE-CA plug shell A 12pin 2764-0121-0M2 2764-0121-002 MOQ
CABLINE-CA plug shell A 20pin 2764-0201-0M2 2764-0201-002 MOQ
CABLINE-CA plug shell A 30pin 2764-0301 2764-0301-002 plating
CABLINE-CA plug shell A 30pin 2764-0301-0M2 2764-0301-002 MOQ
CABLINE-CA plug shell A 40pin 2764-0401 2764-0401-002 plating
CABLINE-CA plug shell A 40pin 2764-0401-0M2 2764-0401-002 MOQ
CABLINE-CA plug shell A 50pin 2764-0501-0M2 2764-0501-002 MOQ
CABLINE-CA plug shell A 60pin 2764-0601-0M2 2764-0601-002 MOQ
CABLINE-CA plug pull bar 12pin 2766-0121M 2766-0121 MOQ
CABLINE-CA plug pull bar 20pin 2766-0201M 2766-0201 MOQ
CABLINE-CA plug pull bar 30pin 2766-0301M 2766-0301 MOQ
CABLINE-CA plug pull bar 40pin 2766-0401M 2766-0401 MOQ
CABLINE-CA plug pull bar 50pin 2766-0501M 2766-0501 MOQ
CABLINE-CA plug pull bar 60pin 2766-0601M 2766-0601 MOQ



CABLINE-CA EOL PART NUMBERS

Part Number Descriptions EOL P/N Alternative I-PEX P/N Differences to alternative item
CABLINE-CA receptacle 12pin 20525-012E-01M 20525-012E-02 shape, MOQ
CABLINE-CA receptacle 12pin 20525-012E-02M 20525-012E-02 MOQ
CABLINE-CA receptacle 20pin 20525-020E-01M 20525-020E-02 shape, MOQ
CABLINE-CA receptacle 20pin 20525-020E-02M 20525-020E-02 MOQ
CABLINE-CA receptacle 30pin 20525-030E-01M 20525-030E-02 shape, MOQ
CABLINE-CA receptacle 30pin 20525-030E-02M 20525-030E-02 MOQ
CABLINE-CA receptacle 40pin 20525-040E-01M 20525-040E-02 shape, MOQ
CABLINE-CA receptacle 40pin 20525-040E-02M 20525-040E-02 MOQ
CABLINE-CA receptacle 50pin 20525-050E-01M 20525-050E-02 shape, MOQ
CABLINE-CA receptacle 50pin 20525-050E-02M 20525-050E-02 MOQ
CABLINE-CA receptacle 60pin 20525-060E-01M 20525-060E-02 shape, MOQ
CABLINE-CA receptacle 60pin 20525-060E-02M 20525-060E-02 MOQ
CABLINE-CA plug alignment cover 30pin 3055-0301 Contact us 　
CABLINE-CA plug alignment cover 40pin 3055-0401 Contact us 　
CABLINE-CA plug alignment cover 60pin 3055-0601 Contact us 　
CABLINE-CA plug pull bar 30pin 3056-0301 Contact us 　
CABLINE-CA plug pull bar 40pin 3056-0401 Contact us 　
CABLINE-CA plug pull bar 60pin 3056-0601 Contact us
