CABLINE®-VS II

CABLINE-VS II Product Image
フルシールド＆メカニカルロック付き、高速伝送対応(PCIe Gen5 32 GT/s/lane)、0.5mmピッチ、水平嵌合タイプ細線同軸コネクタ

    ZenShield®フルシールドと多点グランド構造で、EMCソリューションに最適

    メカニカルロックバーによる半嵌合防止とプラグ抜け防止

    PCIe Gen5 (32 GT/s/lane)の高速伝送内部接続に最適

※コネクタの取り扱いについては「挿抜方法」の動画をご参照ください。
Contact Pitch:
0.5 mm
Mating Type / Direction:
Horizontal
Mated Height:
Nom. 0.95 +/- 0.25 mm
Operating Temperature:
-40 to 105℃ (233 to 378 K)
Cable Size (Micro-Coaxial):
AWG 36AWG 38AWG 40AWG 42AWG 44
Cable Size (Twinaxial):
AWG 40
Cable Size (Discrete):
AWG 32AWG 34AWG 36
Current Rating:
[AWG 42] 0.24 A/per contact[AWG 40] 0.3 A/per contact[AWG 38] 0.5 A/per contact[AWG 36] 0.8 A/per contact[AWG 34] 1.0 A/per contact for power[AWG 32] 1.0 A/per contact for power

ダウンロード

ZenShield®フルシールドと多点グランド構造で、EMCソリューションに最適

    一般的なコネクタ ZenShield® コネクタ
CABLINE-VS_II_FAB1-1.jpg CABLINE-VS_II_FAB1-2.jpg CABLINE-VS_II_FAB1-3.jpg


アンテナ付近までコネクタ実装が可能に
下から見たコネクタ
CABLINE-VS_II_FAB1-5.jpgはんだ付け接点部
1. Wi-Fiアンテナ

CABLINE-VS_II_FAB1-6.jpgメカニカル接点部
2. 高速伝送

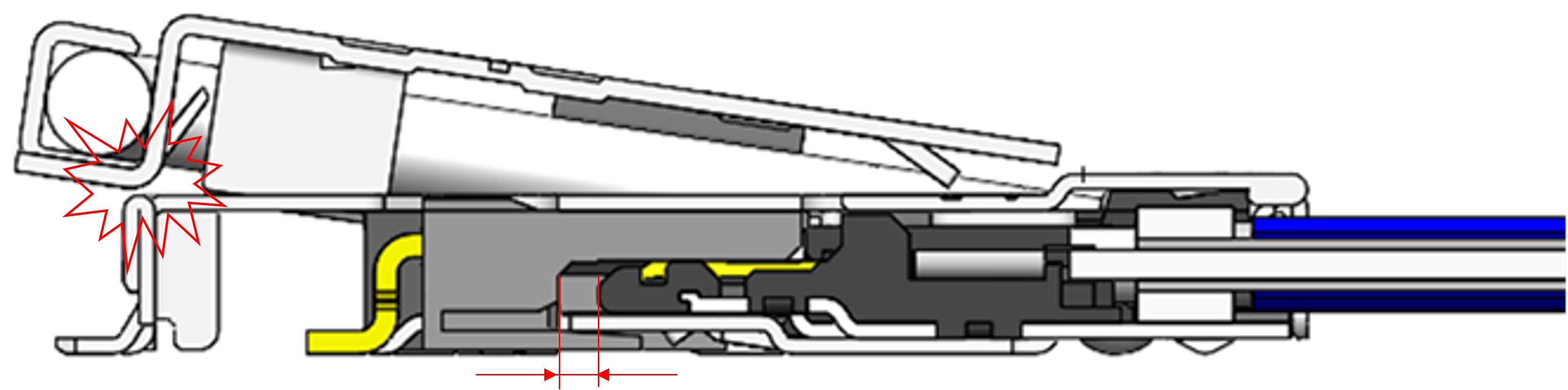

メカニカルロックバーによる半嵌合防止とプラグ抜け防止

プラグがレセプタクルに正常に嵌合されている場合にのみロックが可能

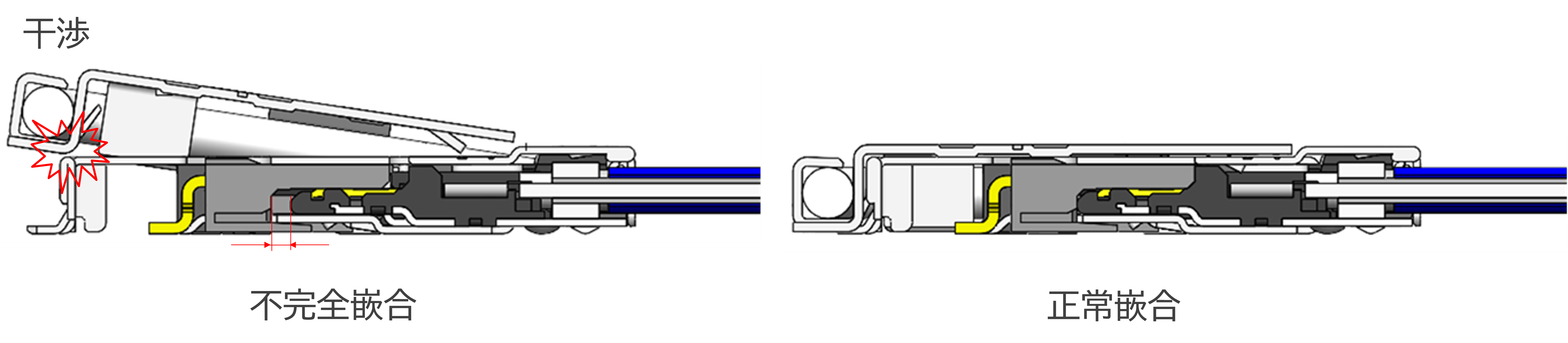

不完全嵌合と完全嵌合


PCIe Gen5 (32 GT/s/lane)の高速伝送内部接続に最適

Measurement results

Connector : CABLINE-VS II 40P
FPC : Micro-coaxial cable
AWG #40, 45 ohm, Length : 100 mm
Pin Assignment : GSSGSSG

 CABLINE-VS II FAB3 ALL







Transmission Speed (Reference Only) 32 GT/s/lane NRZ
Contact Pitch
0.5 mm
Mating Type / Direction
Horizontal
Mated Height
Nom. 0.95 +/- 0.25 mm
Available Pin Count Signal: 20, 30, 40
Depth
6.7 mm
Width
6.85 + (0.5 x pin count) mm
Operating Temperature
-40 to 105℃ (233 to 378 K)
Cable Size (Micro-Coaxial)
AWG 36AWG 38AWG 40AWG 42AWG 44
Cable Size (Twinaxial)
AWG 40
Cable Size (Discrete)
AWG 32AWG 34AWG 36
Current Rating
[AWG 42] 0.24 A/per contact[AWG 40] 0.3 A/per contact[AWG 38] 0.5 A/per contact[AWG 36] 0.8 A/per contact[AWG 34] 1.0 A/per contact for power[AWG 32] 1.0 A/per contact for power
Applicable Standards (Reference Only)
PCIe Gen5 (32 GT/s/lane)USB4 Gen 4 (40 Gbps/lane PAM3)Thunderbolt 5 (40 Gbps/lane PAM3)USB4 Gen 3 (20 Gbps/lane)DisplayPort UHBR20 (20 Gbps/lane)V-By-One US (16 Gbps/lane)HDMI 2.1 (12 Gbps/lane)USB 3.2 Gen 2 (10 Gbps/lane)eDP HBR 3 (8.1 Gbps)eDP HBR 2 (5.4 Gbps/lane)USB 3.1 Gen 1 (5 Gbps/lane)HDMI 2.0 (6 Gbps/lane)V-By-One HS 1.4 (4 Gbps/lane)HDMI 1.3 (3.4 Gbps/lane)eDP (2.7 Gbps/lane)MiPi standards
Full EMI Shielding (ZenShield®)
Yes
Mechanical lock
Yes
Automotive Standards LV214 (40P tested. PG17 Dynamic Loading evaluation passed)

推奨型番

お探しの品番・仕様がリストにない場合はお問い合わせフォームよりお問い合わせください。



DIAGRAMS_CABLINE-VS_II



CABLINE-VS II RECOMMENDED PART NUMBERS

Part Number Description PART NUMBERS Weight (mg)
CABLINE-VS II plug cable assembly 20pin 20846-020T-01 204.100
CABLINE-VS II plug cable assembly 30pin 20846-030T-01 261.407
CABLINE-VS II plug cable assembly 40pin 20846-040T-01 318.752
CABLINE-VS II plug housing 20pin 20847-020T-01 46.25
CABLINE-VS II plug housing 30pin 20847-030T-01 62.931
CABLINE-VS II plug housing 40pin 20847-040T-01 79.488
CABLINE-VS II plug shell A 20pin 3427-0201 27.47
CABLINE-VS II plug shell A 30pin 3427-0301 36.6
CABLINE-VS II plug shell A 40pin 3427-0401 45.801
CABLINE-VS II plug lock bar assembly 20pin 20848-020T-01 130.38
CABLINE-VS II plug lock bar assembly 30pin 20848-030T-01 161.876
CABLINE-VS II plug lock bar assembly 40pin 20848-040T-01 193.463
CABLINE-VS II receptacle 20pin 20849-020E-01 85.23
CABLINE-VS II receptacle 30pin 20849-030E-01 112.322
CABLINE-VS II receptacle 40pin 20849-040E-01 140.232



CABLINE-VS II SAMPLE HARNESS FOR EVALUATION PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-VS II harness 20pin micro-coaxial 40AWG L=100mm 1-N 82912-100B-02-D -
CABLINE-VS II harness 20pin micro-coaxial 40AWG L=200mm 1-N 81619-100B-02-D 1919
CABLINE-VS II harness 20pin micro-coaxial 40AWG L=300mm 1-N 82913-100B-02-D -
CABLINE-VS II harness 30pin micro-coaxial 40AWG L=100mm 1-N 82188-100B-02-D -
CABLINE-VS II harness 30pin micro-coaxial 40AWG L=200mm 1-N 81457-100B-02-D 2756.4
CABLINE-VS II harness 30pin micro-coaxial 40AWG L=300mm 1-N 82291-100B-02-D -
CABLINE-VS II harness 40pin micro-coaxial 40AWG L=100mm 1-N 82660-100B-02-D -
CABLINE-VS II harness 40pin micro-coaxial 40AWG L=200mm 1-N 81458-100B-02-D 3625.5
CABLINE-VS II harness 40pin micro-coaxial 40AWG L=300mm 1-N 82661-100B-02-D -
CABLINE-VS II harness 30pin micro-coaxial 40AWG L=100mm 1-1  82693-100B-01-D -
CABLINE-VS II harness 30pin micro-coaxial 40AWG L=200mm 1-1  82694-100B-01-D -
CABLINE-VS II harness 30pin micro-coaxial 40AWG L=300mm 1-1  82695-100B-01-D -
CABLINE-VS II harness 40pin micro-coaxial 40AWG L=100mm 1-1  82696-100B-01-D -
CABLINE-VS II harness 40pin micro-coaxial 40AWG L=200mm 1-1  82697-100B-01-D -
CABLINE-VS II harness 40pin micro-coaxial 40AWG L=300mm 1-1  82698-100B-01-D -
その他の型番
このリストには、サンプルの準備が無い型番や販売終了型番が含まれている場合があります。
新規での採用をご検討のお客様は、ぜひ上記の推奨型番をお選びください。



CABLINE-VS II OTHER PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-VS II plug housing 20pin 20847-020T-02 46.250
CABLINE-VS II plug housing 30pin 20847-030T-02 62.931
CABLINE-VS II plug housing 40pin 20847-040T-02 -　
CABLINE-VS II plug housing 20pin 21071-020T-01 46.250
CABLINE-VS II plug housing 30pin 21071-030T-01 62.931
CABLINE-VS II plug housing 40pin 21071-040T-01 79.488
CABLINE-VS II plug shell A 20pin 3859-0201 27.470
CABLINE-VS II plug shell A 30pin 3859-0301 36.600
CABLINE-VS II plug shell A 40pin 3859-0401 45.801
CABLINE-VS II lock bar 20pin 21072-020T-01 130.380
CABLINE-VS II lock bar 30pin 21072-030T-01 161.876
CABLINE-VS II lock bar 40pin 21072-040T-01 193.463
CABLINE-VS II receptacle 20pin 20849-020E-02 85.230
CABLINE-VS II receptacle 30pin 20849-030E-02 112.322
CABLINE-VS II receptacle 40pin 20849-040E-02 -　
CABLINE-VS II receptacle 20pin 21073-020E-01 85.230
CABLINE-VS II receptacle 30pin 21073-030E-01 112.322
CABLINE-VS II receptacle 40pin 21073-040E-01 140.232
CABLINE-VS II cable assembly 20pin 21070-020E-01 -
CABLINE-VS II cable assembly 30pin 21070-030E-01 -
CABLINE-VS II cable assembly 40pin 21070-040E-01 -
CABLINE-VS II cable assembly 40pin 21070-060E-01 -

SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for CABLINE-VS II 20pin 91579-020B-001 84766

CABLINE-VS_SI_TB-772_Main_(C)

Main Board
CABLINE-VS_SI_TB-772_Thru_(C)

Thru Board
SI Test Board for CABLINE-VS II 30pin 91579-030B-001 84815.34
SI Test Board for CABLINE-VS II 40pin 91579-040B-001 84872.66

CABLINE-VS II EOL PART NUMBERS

Part Number Description EOL P/N EOL feature Alternative P/N Alternative feature
CABLINE-VS II plug lock bar assembly 20pin 20848-020T-02 with black tape 20848-020T-01 without tape
CABLINE-VS II plug lock bar assembly 20pin 20848-020T-03 with blue tape 20848-020T-01 without tape
CABLINE-VS II plug lock bar assembly 30pin 20848-030T-02 with black tape 20848-030T-01 without tape
CABLINE-VS II plug lock bar assembly 30pin 20848-030T-03 with blue tape 20848-030T-01 without tape
CABLINE-VS II receptacle 20pin 20849-020E-01-S MOQ: 500 20849-020E-01 MOQ: 2,000
CABLINE-VS II receptacle 20pin 20849-020E-02-S contact area 0.38 um min Au plating, MOQ: 500 20849-020E-01 contact area 0.03 um min Au plating, MOQ: 8,000
CABLINE-VS II receptacle 30pin 20849-030E-01-S MOQ: 500 20849-030E-01 MOQ: 2,000
CABLINE-VS II receptacle 30pin 20849-030E-02-S contact area 0.38 um min Au plating, MOQ: 500 20849-030E-01 contact area 0.03 um min Au plating, MOQ: 8,000
CABLINE-VS II receptacle 40pin 20849-040E-01-S MOQ: 500 20849-040E-01 MOQ: 2,000
CABLINE-VS II receptacle 40pin 20849-040E-02-S contact area 0.38 um min Au plating, MOQ: 500 20849-040E-01 contact area 0.03 um min Au plating, MOQ: 8,000
