CABLINE®-UM
フルシールド、多点グランド接点、メカニカルロック付き、高速伝送対応(40 Gbps/lane PAM3)、0.4mmピッチ、ライトアングル縦嵌合タイプ細線同軸コネクタ
ZenShield®フルシールドと多点グランド構造で、EMCソリューションに最適
ロックカバーと0.65mm以上のワイピング長さにより、高い接触信頼性を実現
40 Gbps/lane PAM3 の高速伝送接続に最適
※コネクタの取り扱いについては「挿抜方法」の動画をご参照ください。
Contact Pitch:
0.4
(mm)
嵌合タイプ:
縦嵌合
Mated Height:
2.35
max.
(mm)
芯数:
30
40
50
60
Micro-Coaxial Cable:
AWG 38
AWG 40
AWG 42
AWG 44
AWG 46
Twinaxial Cable:
AWG 40
AWG 42
Discrete Cable:
AWG 34
AWG 36
AWG 38
AWG 39
AWG 40
AWG 42
AWG 44
AWG 46
ダウンロード
-
製品規格 & テストレポート
-
テストレポート
-
PCB/FPCデータ
-
シンボル＆フットプリント
シンボル＆フットプリントは外部サイト（SnapMagic）に遷移後ダウンロードいただけます。
-
-
ZenShield®フルシールドと多点グランド構造で、EMCソリューションに最適
| 一般的なコネクタ | ZenShield®コネクタ | ||
レセプタクル裏側 |
|
 |
|
|
|
1. Wi-Fi Antenna
|
|
グランドSMT点
ロックカバーと0.65mm以上のワイピング長さにより、高い接触信頼性を実現
| Lock Cover付き---嵌合保持力増強 | 有効嵌合長 : 0.65 mm min. |
 |
|
 |
|
40 Gbps/lane PAM3 の高速伝送接続に最適
|
Measurement results |
 |
| Product Type |
Coax. cable connector
|
| Transmission Speed (Reference Only) | 20 Gbps/Lane NRZ |
| Contact Pitch |
0.4
(mm)
|
| 嵌合タイプ |
縦嵌合
|
| Mated Height |
2.35
max.
(mm)
|
| Available Pin Counts |
30
40
50
60
|
| Depth |
5 (mm)
|
| Width Formula |
With Lock Cover : 5.0 + (0.4 * ?p); Without Lock Cover : 4.2 + (0.4 * ?p)
|
| Micro-Coaxial Cable |
AWG 38
AWG 40
AWG 42
AWG 44
AWG 46
|
| Discrete Cable |
AWG 34
AWG 36
AWG 38
AWG 39
AWG 40
AWG 42
AWG 44
AWG 46
|
| Shielded FPC / FFC |
No
|
| Current rating | |
| Applicable Standards (Reference Only) |
USB4 (20 Gbps/Lane)
USB3.1 Gen2 (10 Gbps/Lane)
USB3.1 Gen1 (5 Gbps/Lane)
eDP HBR3 (8.1 Gbps/Lane)
eDP HBR2 (5.4 Gbps/Lane)
eDP (2.7 Gbps/Lane)
HDMI 2.0 (6 Gbps/Lane)
V-By-One HS 1.4 (4 Gbps/Lane)
MiPi standards
|
| Full EMI Shielding (ZenShield®) |
Yes
|
| Mechanical lock |
Yes
|
推奨型番
お探しの品番・仕様がリストにない場合はお問い合わせフォームよりお問い合わせください。
CABLINE-UM RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-UM plug housing 40pin | 20878-040T-11 | 122.680 |
| CABLINE-UM plug housing 60pin | 20878-060T-11 | 178.788 |
| CABLINE-UM plug housing 30pin | 21075-030T-01 | 100.590 |
| CABLINE-UM plug housing 40pin | 21075-040T-01 | 122.680 |
| CABLINE-UM plug housing 50pin | 21075-050T-01 | - |
| CABLINE-UM plug housing 60pin | 21075-060T-01 | 178.788 |
| CABLINE-UM receptacle 30pin | 20879-030E-02 | 116.780 |
| CABLINE-UM receptacle 30pin | 20879-030E-11 | |
| CABLINE-UM receptacle 40pin | 20879-040E-02 | 146.430 |
| CABLINE-UM receptacle 40pin | 20879-040E-11 | 146.430 |
| CABLINE-UM receptacle 50pin | 20879-050E-02 | |
| CABLINE-UM receptacle 50pin | 20879-050E-11 | 174.664 |
| CABLINE-UM receptacle 60pin | 20879-060E-02 | 207.018 |
| CABLINE-UM receptacle 60pin | 20879-060E-11 | 207.018 |
| CABLINE-UM receptacle 30pin | 21076-030E-01 | 116.780 |
| CABLINE-UM receptacle 40pin | 21076-040E-01 | 146.430 |
| CABLINE-UM receptacle 50pin | 21076-050E-01 | 174.664 |
| CABLINE-UM receptacle 60pin | 21076-060E-01 | 207.018 |
| CABLINE-UM cable assembly lock cover 30pin | 21074-030E-01 | - |
| CABLINE-UM cable assembly lock cover 40pin | 21074-040E-01 | - |
| CABLINE-UM cable assembly lock cover 50pin | 21074-050E-01 | - |
| CABLINE-UM cable assembly lock cover 60pin | 21074-060E-01 | - |
CABLINE-UM SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-UM harness 30pin micro-coaxial 40AWG L=100mm | 82187-100B-02-D | - |
| CABLINE-UM harness 30pin micro-coaxial 40AWG L=200mm | 81465-100B-02-D | 2687.7 |
| CABLINE-UM harness 30pin micro-coaxial 40AWG L=300mm | 82286-100B-02-D | - |
| CABLINE-UM harness 40pin micro-coaxial 40AWG L=200mm | 81466-100B-02-D | 3524.1 |
| CABLINE-UM harness 50pin micro-coaxial 40AWG L=200mm | 82285-100B-02-D | 4865 |
| CABLINE-UM harness 60pin micro-coaxial 40AWG L=200mm | 82147-100B-02-D | - |
| CABLINE-UM harness 40pin micro-coaxial 40AWG L=100mm 1-N | 82451-100B-02-D | - |
| CABLINE-UM harness 40pin micro-coaxial 40AWG L=300mm 1-N | 82452-100B-02-D | - |
その他の型番
このリストには、サンプルの準備が無い型番や販売終了型番が含まれている場合があります。
新規での採用をご検討のお客様は、ぜひ上記の推奨型番をお選びください。
CABLINE-UM OTHER PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-UM plug housing 40pin | 20878-040T-11 | 122.680 |
| CABLINE-UM plug housing 60pin | 20878-060T-11 | 178.788 |
| CABLINE-UM plug housing 30pin | 21075-030T-01 | 100.590 |
| CABLINE-UM plug housing 40pin | 21075-040T-01 | 122.680 |
| CABLINE-UM plug housing 50pin | 21075-050T-01 | - |
| CABLINE-UM plug housing 60pin | 21075-060T-01 | 178.788 |
| CABLINE-UM plug shell A 30pin | 3860-0301 | 64.810 |
| CABLINE-UM plug shell A 40pin | 3860-0401 | 84.100 |
| CABLINE-UM plug shell A 50pin | 3860-0501 | - |
| CABLINE-UM plug shell A 60pin | 3860-0601 | 122.075 |
| CABLINE-UM plug lock cover 30pin | 3861-0301 | 77.880 |
| CABLINE-UM plug lock cover 40pin | 3861-0401 | 88.140 |
| CABLINE-UM plug lock cover 50pin | 3861-0501 | - |
| CABLINE-UM plug lock cover 60pin | 3861-0601 | 112.876 |
| CABLINE-UM receptacle 30pin | 20879-030E-02 | 116.780 |
| CABLINE-UM receptacle 30pin | 20879-030E-11 | - |
| CABLINE-UM receptacle 40pin | 20879-040E-02 | 146.430 |
| CABLINE-UM receptacle 40pin | 20879-040E-11 | 146.430 |
| CABLINE-UM receptacle 50pin | 20879-050E-02 | - |
| CABLINE-UM receptacle 50pin | 20879-050E-11 | 174.664 |
| CABLINE-UM receptacle 60pin | 20879-060E-02 | 207.018 |
| CABLINE-UM receptacle 60pin | 20879-060E-11 | 207.018 |
| CABLINE-UM receptacle 30pin | 21076-030E-01 | 116.780 |
| CABLINE-UM receptacle 40pin | 21076-040E-01 | 146.430 |
| CABLINE-UM receptacle 50pin | 21076-050E-01 | 174.664 |
| CABLINE-UM receptacle 60pin | 21076-060E-01 | 207.018 |
| CABLINE-UM cable assembly lock cover 30pin | 21074-030E-01 | - |
| CABLINE-UM cable assembly lock cover 40pin | 21074-040E-01 | - |
| CABLINE-UM cable assembly lock cover 50pin | 21074-050E-01 | - |
| CABLINE-UM cable assembly lock cover 60pin | 21074-060E-01 | - |

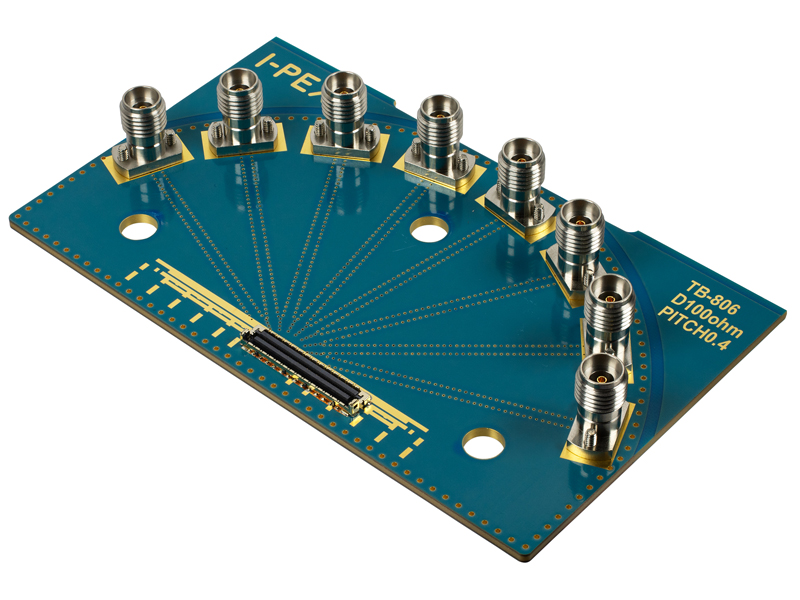

SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) | Image |
| SI Test Board for CABLINE-UM 30pin | 91580-030B-001 | 84028.6 |  Main Board |
| SI Test Board for CABLINE-UM 40pin | 91580-040B-001 | 84084 | |
| SI Test Board for CABLINE-UM 60pin | 91580-060B-001 | 84202 |
