CABLINE®-CA
고속 데이터 전송(32Gbps/Lane), Mechanical Lock 및 Shield가 있는 Multi Ground 접점을 갖춘 0.4mm Pitch 수평 결합형 Micro 동축 Connector
32Gbps/Lane Application에 이상적인 고속 데이터 전송
기계식 Locking bar에 의한 불완전 결합 방지와 Plug 이탈 방지
CABLINE®-CA 시리즈의 다양한 커넥터 접속 옵션
*더욱 고속 64 Gbps PAM4에는 CABLINE-CA리셉터클(20525-#50E-02)과 결합하는 CABLINE-CAP하네스 솔루션을 확인하십시오.
*Connector의 취급 방법은‘삽입 방법’ 동영상을 참조 부탁 드립니다.
Contact Pitch:
0.4
(mm)
결합타입:
Horizontal
Mated Height:
1.1
max.
(mm)
유효핀수:
10
12
20
30
40
50
60
Micro-Coaxial Cable:
AWG 38
AWG 40
AWG 42
AWG 44
AWG 46
Twinaxial Cable:
AWG 40
AWG 42
Discrete Cable:
AWG 34
AWG 36
AWG 38
AWG 39
AWG 40
AWG 42
AWG 44
AWG 46
다운로드
-
카탈로그
-
2D Drawing (제품도면)
-
Receptacles
-
Cable Assemblies
-
Plugs
-
-
3D Models
-
제품 규격&테스트 레포트
-
PCB/FPC데이터
-
Symbols & Footprints
-
-
SI 테스트 보드
-

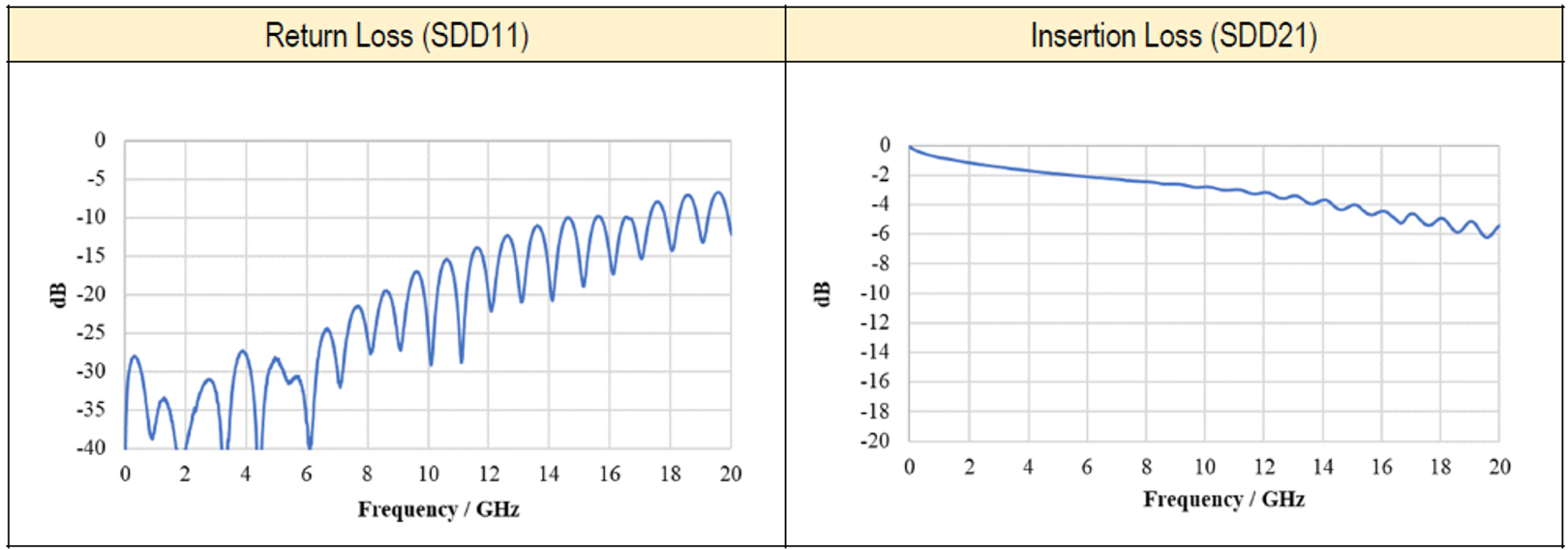

32Gbps/Lane Application에 이상적인 고속 데이터 전송
|
Measurement results |
 |

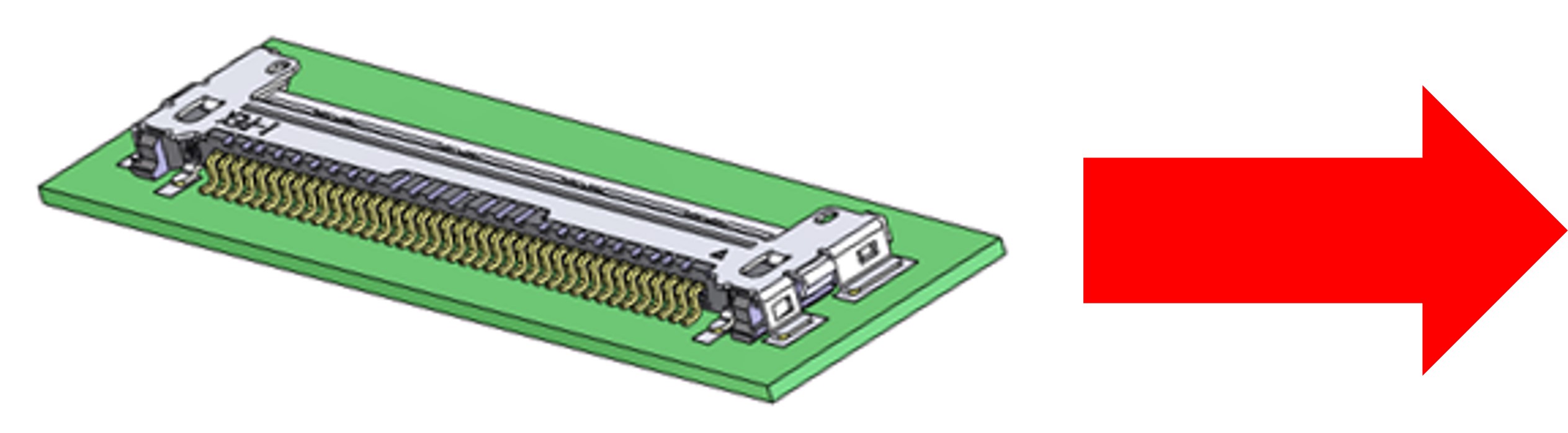

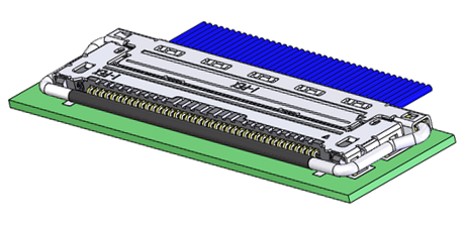

기계식 Locking bar에 의한 불완전 결합 방지와 Plug 이탈 방지
체결 |
잠김 |
 |
|||
| 잠금 Bar는 플러그가 리셉터클에 완전히 체결된 경우에만 잠글 수 있습니다. | |||||
|

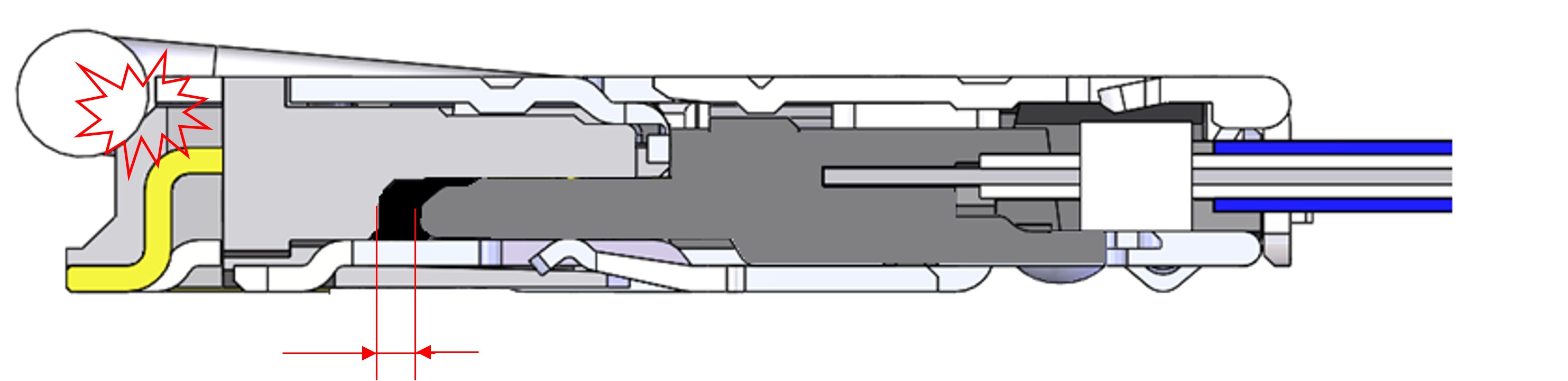

간섭
불완전한 체결 |

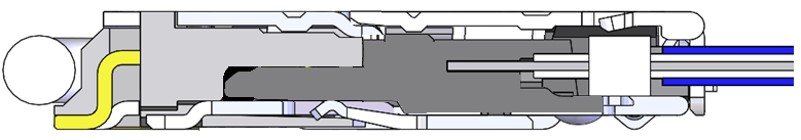

완전한 체결 |
||||
CABLINE®-CA 시리즈의 다양한 커넥터 접속 옵션
| CABLINE-CA 시리즈(0.4 mm 피치, 수평 메이팅 유형) |  |
||||
 |
 |
||||

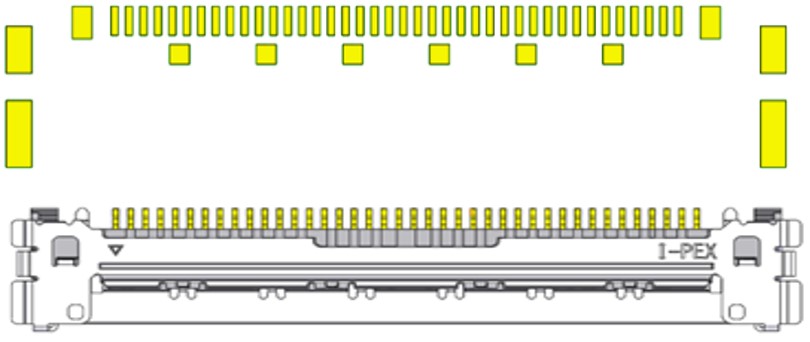

CABLINE-CA II receptacle |

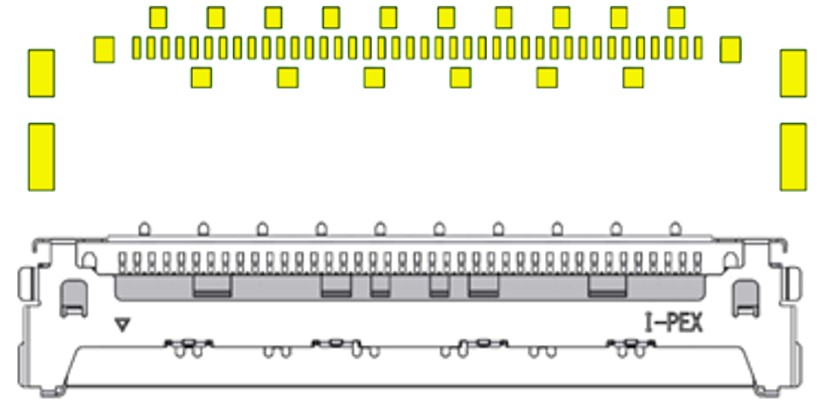

CABLINE-CA receptacle |
||||

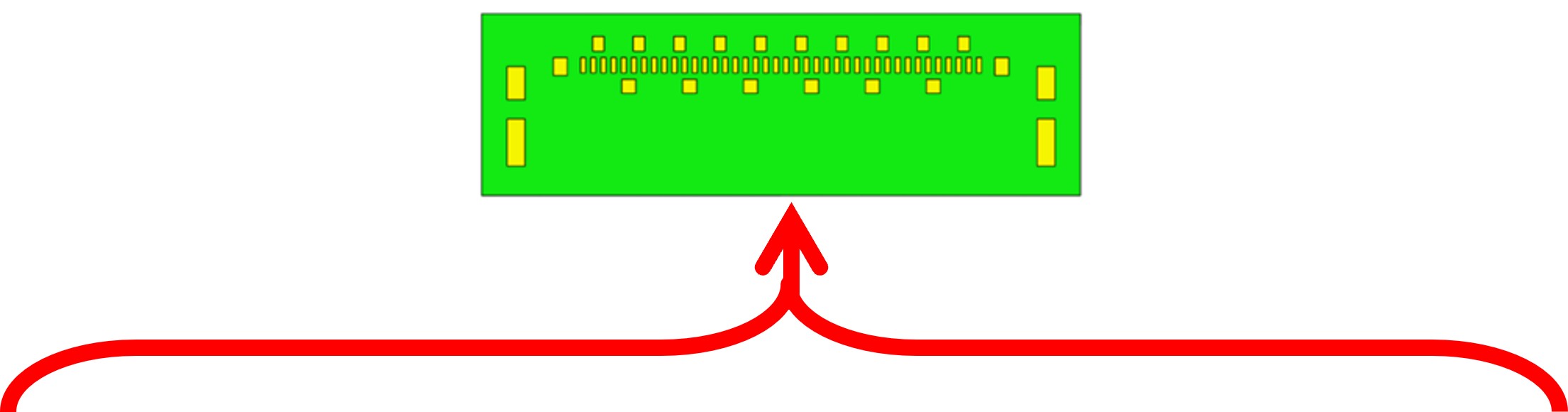

| CABLINE-CA 및 CA II 리셉터클은 동일PCB 레이아웃을 사용 가능. |
 |
 |
|||

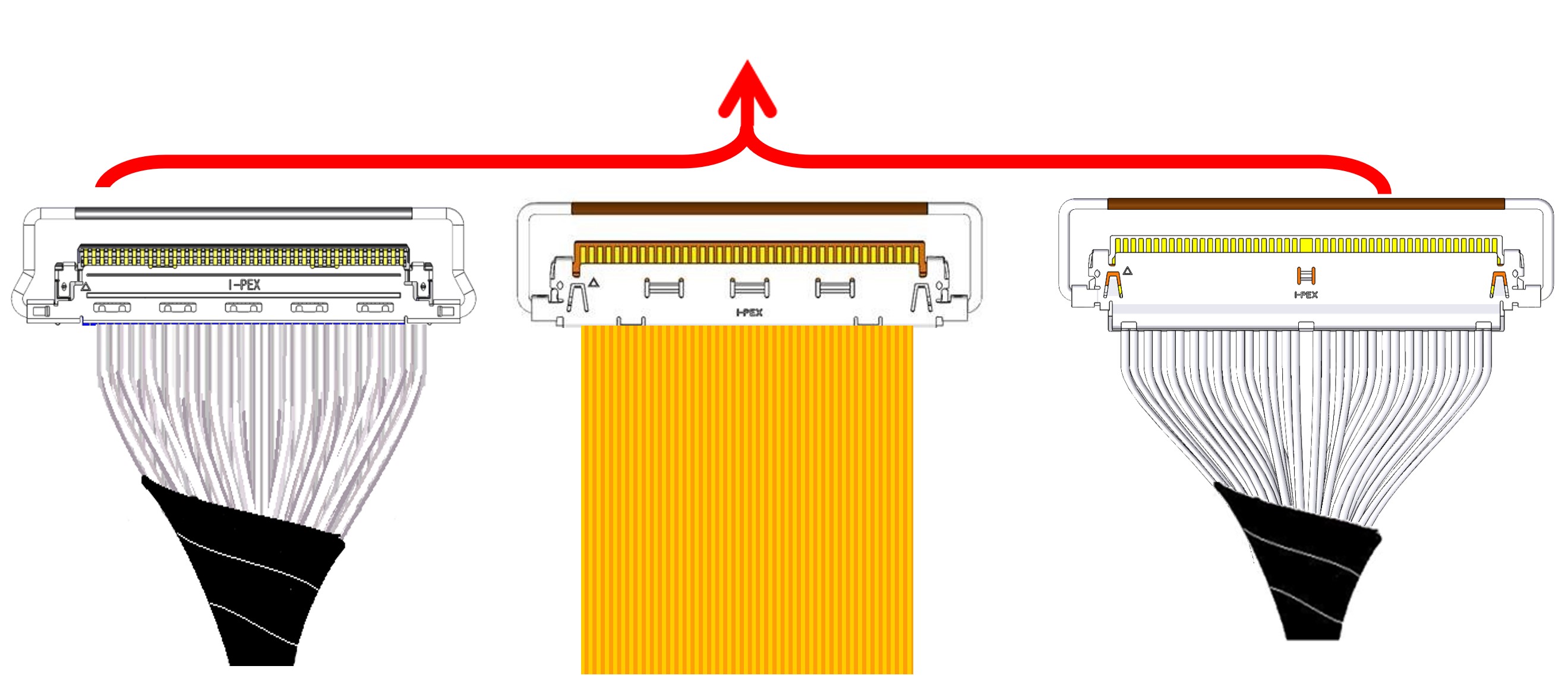

CABLINE-CA II plug micro-coaxial |
CABLINE-CA II plug shielded FPC |

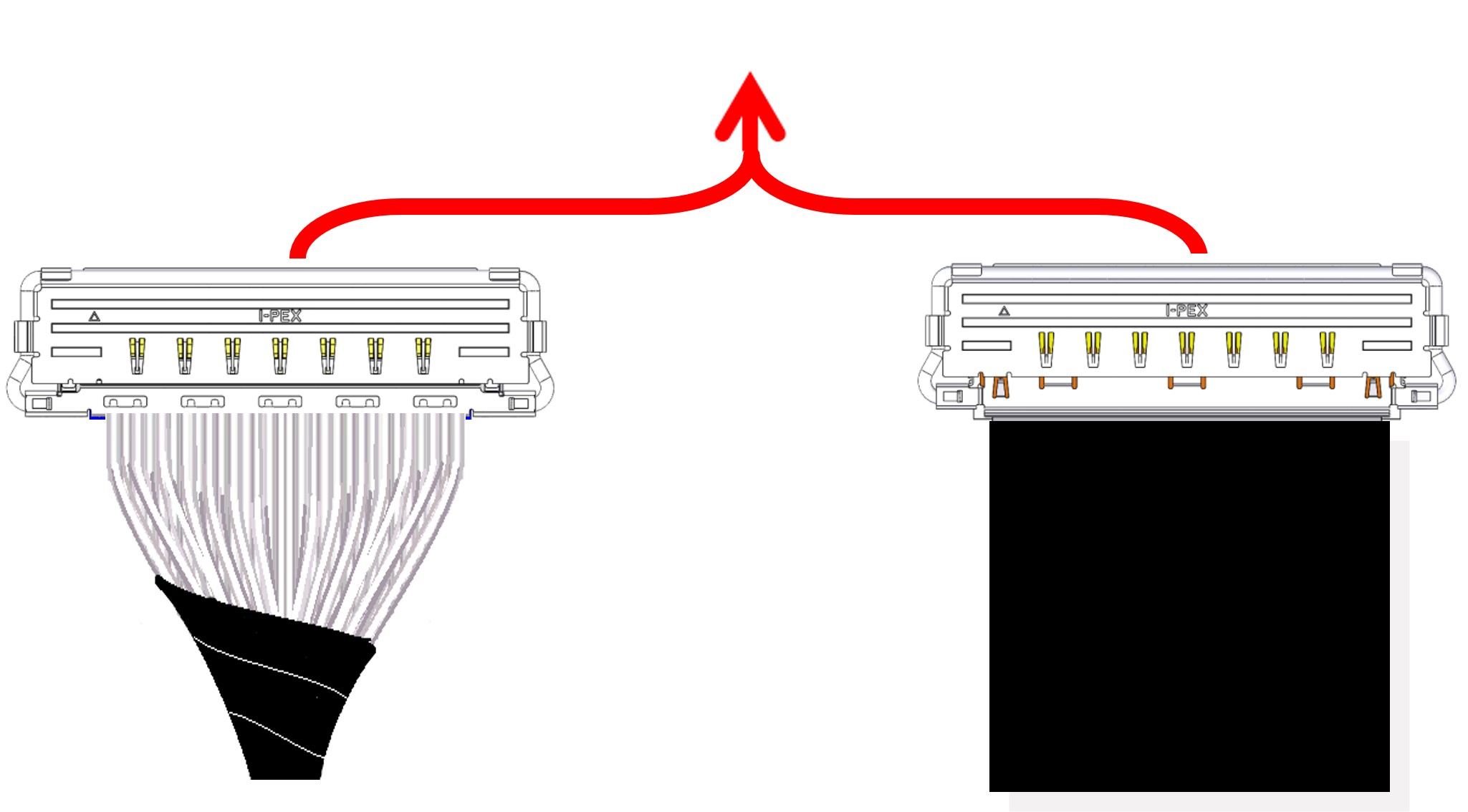

CABLINE-CA plug micro-coaxial |
CABLINE-CAF plug shielded/non-shielded FPC |
CABLINE-CAP paddle card harnessed with micro-coaxial cable |
|
| Transmission Speed (Reference Only) | 20 Gbps/Lane NRZ |
| Contact Pitch |
0.4
(mm)
|
| 결합타입 |
Horizontal
|
| Mated Height |
1.1
max.
(mm)
|
| Available Pin Counts |
10
12
20
30
40
50
60
|
| Depth |
5.73 (mm)
|
| Width Formula |
6.95+(0.4*?p)
|
| Micro-Coaxial Cable |
AWG 38
AWG 40
AWG 42
AWG 44
AWG 46
|
| Discrete Cable |
AWG 34
AWG 36
AWG 38
AWG 39
AWG 40
AWG 42
AWG 44
AWG 46
|
| Shielded FPC / FFC |
No
|
| Current rating | |
| Applicable Standards (Reference Only) |
USB4 Gen3 (20 Gbps/lane)
USB3.1 Gen2 (10 Gbps/Lane)
USB3.1 Gen1 (5 Gbps/Lane)
eDP HBR3 (8.1 Gbps/Lane)
eDP HBR2 (5.4 Gbps/Lane)
eDP (2.7 Gbps/Lane)
HDMI 2.0 (6 Gbps/Lane)
V-By-One HS 1.4 (4 Gbps/Lane)
MiPi standards
Thunderbolt 4 (20Gbps/Lane）
|
| Full EMI Shielding (ZenShield®) |
No
|
| Mechanical lock |
Yes
|
| Automotive Standards | LV214 (60P tested. PG17 Dynamic Loading evaluation passed) |
추천품번
찾으시는 품번 사양이 리스트에 없는 경우 문의폼을 통해 연락 주십시오.
CABLINE-CA RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-CA plug cable assembly 10pin | 20633-310T-01S | 99.18 |
| CABLINE-CA plug cable assembly 12pin | 20633-212T-01S | 107.414 |
| CABLINE-CA plug cable assembly 20pin | 20633-220T-01S | 136.894 |
| CABLINE-CA plug cable assembly 30pin | 20633-230T-01S | 172.762 |
| CABLINE-CA plug cable assembly 40pin | 20633-240T-01S | 210.513 |
| CABLINE-CA plug cable assembly 50pin | 20633-250T-01S | 248.038 |
| CABLINE-CA plug cable assembly 60pin | 20633-260T-01S | 284.326 |
| CABLINE-CA plug housing 10pin | 20634-210T-02 | 29.9 |
| CABLINE-CA plug housing 12pin | 20634-112T-02 | 33.434 |
| CABLINE-CA plug housing 20pin | 20634-120T-02 | 46.874 |
| CABLINE-CA plug housing 30pin | 20634-130T-02 | 64.901 |
| CABLINE-CA plug housing 40pin | 20634-140T-02 | 82.348 |
| CABLINE-CA plug housing 50pin | 20634-150T-02 | 100.185 |
| CABLINE-CA plug housing 60pin | 20634-160T-02 | 116.592 |
| CABLINE-CA plug shell A 10pin | 2764-0101-003 | 27.49 |
| CABLINE-CA plug shell A 12pin | 2764-0121-002 | 30.53 |
| CABLINE-CA plug shell A 20pin | 2764-0201-002 | 40.48 |
| CABLINE-CA plug shell A 30pin | 2764-0301-002 | 53.4 |
| CABLINE-CA plug shell A 40pin | 2764-0401-002 | 66 |
| CABLINE-CA plug shell A 50pin | 2764-0501-002 | 77.4 |
| CABLINE-CA plug shell A 60pin | 2764-0601-002 | 90.828 |
| CABLINE-CA plug pull bar 10pin | 2766-0101 | 41.79 |
| CABLINE-CA plug pull bar 12pin | 2766-0121 | 43.45 |
| CABLINE-CA plug pull bar 20pin | 2766-0201 | 49.54 |
| CABLINE-CA plug pull bar 30pin | 2766-0301 | 54.461 |
| CABLINE-CA plug pull bar 40pin | 2766-0401 | 62.165 |
| CABLINE-CA plug pull bar 50pin | 2766-0501 | 70.453 |
| CABLINE-CA plug pull bar 60pin | 2766-0601 | 76.906 |
| CABLINE-CA receptacle 10pin | 20525-210E-02 | 69.238 |
| CABLINE-CA receptacle 12pin | 20525-012E-02 | 72.936 |
| CABLINE-CA receptacle 20pin | 20525-020E-02 | 94.726 |
| CABLINE-CA receptacle 30pin | 20525-030E-02 | 122.061 |
| CABLINE-CA receptacle 40pin | 20525-040E-02 | 149.684 |
| CABLINE-CA receptacle 50pin | 20525-050E-02 | 174.935 |
| CABLINE-CA receptacle 60pin | 20525-060E-02 | 202.462 |
CABLINE-CA SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-CA harness 20pin micro-coaxial 40AWG L=200mm | 81786-100B-02-D | 1739 |
| CABLINE-CA harness 30pin micro-coaxial 40AWG L=200mm | 81423-100B-02-D | 2539 |
| CABLINE-CA harness 40pin micro-coaxial 40AWG L=200mm | 81424-100B-02-D | 3546 |
| CABLINE-CA harness 50pin micro-coaxial 40AWG L=200mm | 82145-100B-02-D | - |
| CABLINE-CA harness 60pin micro-coaxial 40AWG L=200mm | 82146-100B-02-D | - |
| CABLINE-CA harness 10pin micro-coaxial 40AWG L=200mm 1-N | 82434-100B-02-D | - |
다른 형번
이 리스트에는 샘플 준비가 안되는 형번과 판매종료된 형번이 포함되어 있을 수 있습니다.
신규로 채용을 검토하시는 고객께서는 아무쪼록 상기의 추천 형번을 검토해 주시기 바랍니다.
CABLINE-CA OTHER PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-CA cable assembly 50pin | 20523-050T-01S | - |
| CABLINE-CA cable assembly | 20523-0**T-01 | - |
| CABLINE-CA cable assembly | 20523-0**T-01S | - |
| CABLINE-CA cable assembly 30pin | 20523-230T-01 | - |
| CABLINE-CA cable assembly | 20523-2**T-01S | - |
| CABLINE-CA receptacle 12pin | 20525-212E-02 | 73.970 |
| CABLINE-CA receptacle 20pin | 20525-220E-02 | 96.448 |
| CABLINE-CA receptacle 30pin | 20525-230E-02 | 124.644 |
| CABLINE-CA receptacle 40pin | 20525-240E-02 | 153.128 |
| CABLINE-CA receptacle 50pin | 20525-250E-02 | 179.240 |
| CABLINE-CA receptacle 60pin | 20525-260E-02 | 202.892 |
| CABLINE-CA plug cable assembly 12pin | 20633-312T-01S | - |
| CABLINE-CA plug cable assembly 20pin | 20633-320T-01S | - |
| CABLINE-CA plug cable assembly 30pin | 20633-330T-01S | - |
| CABLINE-CA plug cable assembly 40pin | 20633-340T-01S | - |
| CABLINE-CA plug cable assembly 50pin | 20633-350T-01S | - |
| CABLINE-CA plug cable assembly 60pin | 20633-360T-01S | - |
| CABLINE-CA plug housing 12pin | 20634-212T-02 | 34.554 |
| CABLINE-CA plug housing 20pin | 20634-220T-02 | 49.775 |
| CABLINE-CA plug housing 30pin | 20634-230T-02 | 67.700 |
| CABLINE-CA plug housing 40pin | 20634-240T-02 | 86.080 |
| CABLINE-CA plug housing 50pin | 20634-250T-02 | 104.850 |
| CABLINE-CA plug housing 60pin | 20634-260T-02 | 122.190 |
| CABLINE-CA plug shell A 12pin | 2764-0121-003 | 30.530 |
| CABLINE-CA plug shell A 20pin | 2764-0201-003 | 40.480 |
| CABLINE-CA plug shell A 30pin | 2764-0301-003 | 53.400 |
| CABLINE-CA plug shell A 40pin | 2764-0401-003 | 66.000 |
| CABLINE-CA plug shell A 50pin | 2764-0501-003 | |
| CABLINE-CA plug shell A 60pin | 2764-0601-003 | 90.828 |
SI Test Board with 2.92mm Adapter
| Part Number Description | PART NUMBERS | Weight (mg) | Image |
| SI Test Board for CABLINE-CA 10pin | 91582-010B-001 | 75938.48 |
Main Board
|
| SI Test Board for CABLINE-CA 12pin | 91582-012B-001 | 83947.94 | |
| SI Test Board for CABLINE-CA 20pin | 91582-020B-001 | 83992.9 | |
| SI Test Board for CABLINE-CA 30pin | 91582-030B-001 | 84049.3 | |
| SI Test Board for CABLINE-CA 40pin | 91582-040B-001 | 84106.26 | |
| SI Test Board for CABLINE-CA 50pin | 91582-050B-001 | 84158.48 | |
| SI Test Board for CABLINE-CA 60pin | 91582-060B-001 | 84205.78 |
CABLINE-CA Plan to EOL PART NUMBERS
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| CABLINE-CA plug housing 30pin | 20524-030T-01 | 20634-130T-02 | shape, plating |
| CABLINE-CA plug housing 40pin | 20524-040T-01 | 20634-140T-02 | shape, plating |
| CABLINE-CA plug housing 50pin | 20524-050T-02 | 20634-150T-02 | shape, plating |
| CABLINE-CA plug housing 60pin | 20524-060T-02 | 20634-160T-02 | shape, plating |
| CABLINE-CA plug housing 12pin | 20524-112T-02 | 20634-112T-02 | shape, plating |
| CABLINE-CA plug housing 20pin | 20524-120T-02 | 20634-120T-02 | shape, plating |
| CABLINE-CA plug housing 30pin | 20524-130T-02 | 20634-130T-02 | shape, plating |
| CABLINE-CA plug housing 40pin | 20524-140T-02 | 20634-140T-02 | shape, plating |
| CABLINE-CA plug housing 60pin | 20524-160T-02 | 20634-160T-02 | shape, plating |
| CABLINE-CA receptacle 10pin | 20525-010E-01 | 20525-210E-02 | plating, with/without boss |
| CABLINE-CA receptacle 10pin | 20525-010E-01-S | 20525-210E-02 | shape, plating, MOQ |
| CABLINE-CA receptacle 10pin | 20525-010E-02 | 20525-210E-02 | plating |
| CABLINE-CA receptacle 10pin | 20525-010E-02-S | 20525-210E-02 | plating, MOQ |
| CABLINE-CA receptacle 12pin | 20525-012E-01 | 20525-012E-02 | with/without boss |
| CABLINE-CA receptacle 12pin | 20525-012E-01-S | 20525-012E-02 | shape, MOQ |
| CABLINE-CA receptacle 12pin | 20525-012E-02-S | 20525-012E-02 | MOQ |
| CABLINE-CA receptacle 20pin | 20525-020E-01 | 20525-020E-02 | with/without boss |
| CABLINE-CA receptacle 20pin | 20525-020E-01-S | 20525-020E-02 | shape, MOQ |
| CABLINE-CA receptacle 20pin | 20525-020E-02-S | 20525-020E-02 | MOQ |
| CABLINE-CA receptacle 30pin | 20525-030E-01 | 20525-030E-02 | with/without boss |
| CABLINE-CA receptacle 30pin | 20525-030E-01-S | 20525-030E-02 | shape, MOQ |
| CABLINE-CA receptacle 30pin | 20525-030E-02-S | 20525-030E-02 | MOQ |
| CABLINE-CA receptacle 40pin | 20525-040E-01 | 20525-040E-02 | with/without boss |
| CABLINE-CA receptacle 40pin | 20525-040E-01-S | 20525-040E-02 | shape, MOQ |
| CABLINE-CA receptacle 40pin | 20525-040E-02-S | 20525-040E-02 | MOQ |
| CABLINE-CA receptacle 50pin | 20525-050E-01 | 20525-050E-02 | with/without boss |
| CABLINE-CA receptacle 50pin | 20525-050E-01-S | 20525-050E-02 | shape, MOQ |
| CABLINE-CA receptacle 50pin | 20525-050E-02-S | 20525-050E-02 | MOQ |
| CABLINE-CA receptacle 60pin | 20525-060E-01 | 20525-060E-02 | with/without boss |
| CABLINE-CA receptacle 60pin | 20525-060E-01-S | 20525-060E-02 | shape, MOQ |
| CABLINE-CA receptacle 60pin | 20525-060E-02-S | 20525-060E-02 | MOQ |
| CABLINE-CA receptacle 10pin | 20525-210E-01 | 20525-210E-02 | with/without boss |
| CABLINE-CA receptacle 10pin | 20525-210E-01-S | 20525-210E-02 | shape, plating, MOQ |
| CABLINE-CA receptacle 10pin | 20525-210E-02-S | 20525-210E-02 | MOQ |
| CABLINE-CA receptacle 12pin | 20525-212E-01 | 20525-012E-02 | plating, with/without boss |
| CABLINE-CA receptacle 12pin | 20525-212E-01-S | 20525-012E-02 | shape, plating, MOQ |
| CABLINE-CA receptacle 12pin | 20525-212E-02-S | 20525-012E-02 | MOQ |
| CABLINE-CA receptacle 20pin | 20525-220E-01 | 20525-020E-02 | plating, with/without boss |
| CABLINE-CA receptacle 20pin | 20525-220E-01-S | 20525-020E-02 | shape, plating, MOQ |
| CABLINE-CA receptacle 20pin | 20525-220E-02-S | 20525-020E-02 | MOQ |
| CABLINE-CA receptacle 30pin | 20525-230E-01 | 20525-030E-02 | plating, with/without boss |
| CABLINE-CA receptacle 30pin | 20525-230E-01-S | 20525-030E-02 | shape, plating, MOQ |
| CABLINE-CA receptacle 30pin | 20525-230E-02-S | 20525-030E-02 | MOQ |
| CABLINE-CA receptacle 40pin | 20525-240E-01 | 20525-040E-02 | plating, with/without boss |
| CABLINE-CA receptacle 40pin | 20525-240E-01-S | 20525-040E-02 | shape, plating, MOQ |
| CABLINE-CA receptacle 40pin | 20525-240E-02-S | 20525-040E-02 | MOQ |
| CABLINE-CA receptacle 50pin | 20525-250E-01 | 20525-050E-02 | plating, with/without boss |
| CABLINE-CA receptacle 50pin | 20525-250E-01-S | 20525-050E-02 | shape, plating, MOQ |
| CABLINE-CA receptacle 50pin | 20525-250E-02-S | 20525-050E-02 | MOQ |
| CABLINE-CA receptacle 60pin | 20525-260E-01 | 20525-060E-02 | plating, with/without boss |
| CABLINE-CA receptacle 60pin | 20525-260E-01-S | 20525-060E-02 | shape, plating, MOQ |
| CABLINE-CA receptacle 60pin | 20525-260E-02-S | 20525-060E-02 | MOQ |
| CABLINE-CA plug housing 10pin | 20634-110T-02 | 20634-210T-02 | plating |
| CABLINE-CA plug shell A 10pin | 2764-0101-002 | 2764-0101-003 | plating |
| CABLINE-CA plug shell A 12pin | 2764-0121-0M2 | 2764-0121-002 | MOQ |
| CABLINE-CA plug shell A 20pin | 2764-0201-0M2 | 2764-0201-002 | MOQ |
| CABLINE-CA plug shell A 30pin | 2764-0301 | 2764-0301-002 | plating |
| CABLINE-CA plug shell A 30pin | 2764-0301-0M2 | 2764-0301-002 | MOQ |
| CABLINE-CA plug shell A 40pin | 2764-0401 | 2764-0401-002 | plating |
| CABLINE-CA plug shell A 40pin | 2764-0401-0M2 | 2764-0401-002 | MOQ |
| CABLINE-CA plug shell A 50pin | 2764-0501-0M2 | 2764-0501-002 | MOQ |
| CABLINE-CA plug shell A 60pin | 2764-0601-0M2 | 2764-0601-002 | MOQ |
| CABLINE-CA plug pull bar 12pin | 2766-0121M | 2766-0121 | MOQ |
| CABLINE-CA plug pull bar 20pin | 2766-0201M | 2766-0201 | MOQ |
| CABLINE-CA plug pull bar 30pin | 2766-0301M | 2766-0301 | MOQ |
| CABLINE-CA plug pull bar 40pin | 2766-0401M | 2766-0401 | MOQ |
| CABLINE-CA plug pull bar 50pin | 2766-0501M | 2766-0501 | MOQ |
| CABLINE-CA plug pull bar 60pin | 2766-0601M | 2766-0601 | MOQ |
CABLINE-CA EOL PART NUMBERS
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| CABLINE-CA receptacle 12pin | 20525-012E-01M | 20525-012E-02 | shape, MOQ |
| CABLINE-CA receptacle 12pin | 20525-012E-02M | 20525-012E-02 | MOQ |
| CABLINE-CA receptacle 20pin | 20525-020E-01M | 20525-020E-02 | shape, MOQ |
| CABLINE-CA receptacle 20pin | 20525-020E-02M | 20525-020E-02 | MOQ |
| CABLINE-CA receptacle 30pin | 20525-030E-01M | 20525-030E-02 | shape, MOQ |
| CABLINE-CA receptacle 30pin | 20525-030E-02M | 20525-030E-02 | MOQ |
| CABLINE-CA receptacle 40pin | 20525-040E-01M | 20525-040E-02 | shape, MOQ |
| CABLINE-CA receptacle 40pin | 20525-040E-02M | 20525-040E-02 | MOQ |
| CABLINE-CA receptacle 50pin | 20525-050E-01M | 20525-050E-02 | shape, MOQ |
| CABLINE-CA receptacle 50pin | 20525-050E-02M | 20525-050E-02 | MOQ |
| CABLINE-CA receptacle 60pin | 20525-060E-01M | 20525-060E-02 | shape, MOQ |
| CABLINE-CA receptacle 60pin | 20525-060E-02M | 20525-060E-02 | MOQ |
| CABLINE-CA plug alignment cover 30pin | 3055-0301 | Contact us | |
| CABLINE-CA plug alignment cover 40pin | 3055-0401 | Contact us | |
| CABLINE-CA plug alignment cover 60pin | 3055-0601 | Contact us | |
| CABLINE-CA plug pull bar 30pin | 3056-0301 | Contact us | |
| CABLINE-CA plug pull bar 40pin | 3056-0401 | Contact us | |
| CABLINE-CA plug pull bar 60pin | 3056-0601 | Contact us |
Download
