CABLINE®-VS

CABLINE-VS Product Image
규격 표준 Connector, 고속 전송 대응(32Gbps/lane), Mechanical Lock 기능 포함, 0.5mm Pitch, 수평 결합 타입 세선 동축 Connector

    32Gbps/Lane Application에 이상적인 고속 데이터 전송

    Mechanical Lock bar에 의한 불완전 결합 방지와 Plug 이탈 방지

    I-PEX VS 시리즈의 다양한 Connector 접속 옵션
Contact Pitch:
0.5 (mm)
결합타입:
Horizontal
Mated Height:
1.1 max. (mm)
유효핀수:
20 30 40 50
Micro-Coaxial Cable:
AWG 36 AWG 38 AWG 40 AWG 42 AWG 44 AWG 46
Twinaxial Cable:
AWG 40
Discrete Cable:
AWG 32 AWG 34 AWG 36 AWG 38 AWG 39 AWG 40 AWG 42 AWG 44 AWG 46
Current rating:
0.1 A AC/DC [AWG 44] per contact/up to 50 contacts 0.24 A AC/DC [AWG 42] per contact/up to 50 contacts 0.3 A AC/DC [AWG 40] per contact/up to 50 contacts 0.5 A AC/DC [AWG 38] per contact/up to 14 contacts 0.8 A AC/DC [AWG 36] per contact/up to 10 contacts 1.0 A AC/DC [AWG 34] per contact/up to 6 contacts 1.0 A AC/DC [AWG 32] per contact/up to 6 contacts

다운로드

32Gbps/Lane Application에 이상적인 고속 데이터 전송

Measurement results

Connector : CABLINE-VS 40P
Cable : Micro-coaxial cable
AWG #40, 45 ohm, Length : 100 mm
Pin Assignment : GSSGSSG

 CABLINE-VS FAB1 ALL

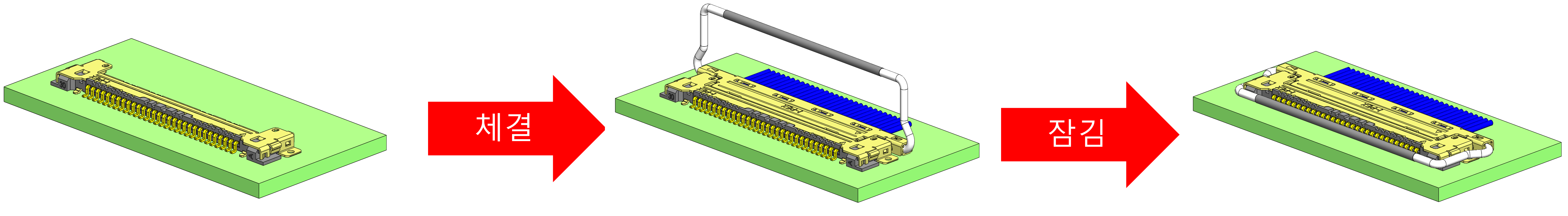

Mechanical Lock bar에 의한 불완전 결합 방지와 Plug 이탈 방지
CABLINE-VS_FAB2-1_ALL체결
CABLINE-VS_FAB2-2_ALL 잠김
 CABLINE-VS_FAB2-3_ALL

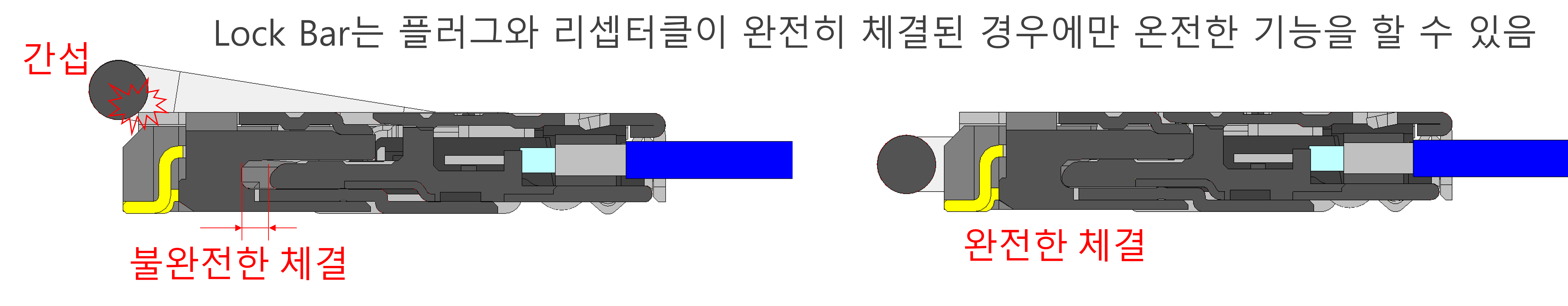

Lock Bar는 플러그와 리셉터클이 완전히 체결된 경우에만 온전한 기능을 할 수 있음

 간섭

불완전한 체결
완전한 체결



I-PEX VS 시리즈의 다양한 Connector 접속 옵션



I-PEX VS 시리즈(0.5 mm 피치, 수평 메이팅 유형)
CABLINE-VS, VS II 리셉터클 및 EVAFLEX® 5-VS는 동일 PCB 레이아웃을 사용가능 합니다.
 CABLINE-VS_FAB3-2.jpg CABLINE-VS_FAB3-1_ALL CABLINE-VS_FAB3-4.jpg

CABLINE-VS II receptacle
CABLINE-VS receptacle
EVAFLEX 5-VS
CABLINE-VS 리셉터클:
노트북 PC 패널 VESA 표준 커넥터
점유율 1위.
 CABLINE-VS_FAB3-5.jpg CABLINE-VS_FAB3-2_ALL CABLINE-VS_FAB3-7.jpg

CABLINE-VS II plug micro-coaxial
CABLINE-VS IIF plug shielded FPC
CABLINE-VS
plug
micro-coaxial
CABLINE-VSF
plug
shielded/non-shielded FPC
EVAFLEX 5-VS
Shielded/Non-shielded
FPC/FFC



Transmission Speed (Reference Only) 20 Gbps/Lane NRZ
Contact Pitch
0.5 (mm)
결합타입
Horizontal
Mated Height
1.1 max. (mm)
Available Pin Counts
20 30 40 50
Depth
5.8 (mm)
Width Formula
7.55 + (0.5 x pin count)(mm)
Micro-Coaxial Cable
AWG 36 AWG 38 AWG 40 AWG 42 AWG 44 AWG 46
Discrete Cable
AWG 32 AWG 34 AWG 36 AWG 38 AWG 39 AWG 40 AWG 42 AWG 44 AWG 46
Shielded FPC / FFC
No
Current rating
0.1 A AC/DC [AWG 44] per contact/up to 50 contacts 0.24 A AC/DC [AWG 42] per contact/up to 50 contacts 0.3 A AC/DC [AWG 40] per contact/up to 50 contacts 0.5 A AC/DC [AWG 38] per contact/up to 14 contacts 0.8 A AC/DC [AWG 36] per contact/up to 10 contacts 1.0 A AC/DC [AWG 34] per contact/up to 6 contacts 1.0 A AC/DC [AWG 32] per contact/up to 6 contacts
Applicable Standards (Reference Only)
USB4 Gen3 (20 Gbps/lane) USB3.1 Gen2 (10 Gbps/Lane) USB3.1 Gen1 (5 Gbps/Lane) eDP HBR3 (8.1 Gbps/Lane) eDP HBR2 (5.4 Gbps/Lane) eDP (2.7 Gbps/Lane) HDMI 2.0 (6 Gbps/Lane) V-By-One HS 1.4 (4 Gbps/Lane) MiPi standards Thunderbolt 4 (20 Gbps/Lane）
Full EMI Shielding (ZenShield®)
No
Mechanical lock
Yes
Automotive Standards LV214 (50P tested. PG17 Dynamic Loading evaluation passed)

추천품번

찾으시는 품번 사양이 리스트에 없는 경우 문의폼을 통해 연락 주십시오.



DIAGRAMS_CABLINE-VS



CABLINE-VS RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-VS plug cable assembly 20pin 20453-220T-03 156.425
CABLINE-VS plug cable assembly 30pin 20453-230T-03 209.764
CABLINE-VS plug cable assembly 40pin 20453-240T-03 259.32
CABLINE-VS plug cable assembly 50pin 20453-250T-03S 314.562
CABLINE-VS plug housing 20pin 20454-220T 54
CABLINE-VS plug housing 30pin 20454-230T 76.907
CABLINE-VS plug housing 40pin 20454-240T 98
CABLINE-VS plug housing 50pin 20454-250T-01 127
CABLINE-VS plug shell 20pin 2574-0202 45
CABLINE-VS plug shell 30pin 2574-0302 63.799
CABLINE-VS plug shell 40pin 2574-0402 81.32
CABLINE-VS plug shell 50pin 2574-0502 95
CABLINE-VS plug pull bar 20pin 2576-120-00 57.425
CABLINE-VS plug pull bar 30pin 2576-130-00 69.058
CABLINE-VS plug pull bar 40pin 2576-140-00 80
CABLINE-VS plug pull bar 50pin 2576-150-00 92.562
CABLINE-VS receptacle 20pin 20455-A20E-76 116.34
CABLINE-VS receptacle 30pin 20455-030E-76 148.718
CABLINE-VS receptacle 40pin 20455-040E-76 183.771
CABLINE-VS receptacle 50pin 20455-050E-76 218.824



CABLINE-VS SAMPLE HARNESS FOR EVALUATION PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-VS harness 30pin micro-coaxial 40AWG L=100mm 1-N 82189-100B-02-D -
CABLINE-VS harness 30pin micro-coaxial 40AWG L=200mm 1-N 81421-100B-02-D 2636
CABLINE-VS harness 30pin micro-coaxial 40AWG L=300mm 1-N 82289-100B-02-D -
CABLINE-VS harness 40pin micro-coaxial 40AWG L=100mm 1-N 82190-100B-02-D -
CABLINE-VS harness 40pin micro-coaxial 40AWG L=200mm 1-N 81422-100B-02-D 3556
CABLINE-VS harness 40pin micro-coaxial 40AWG L=300mm 1-N 82290-100B-02-D -
CABLINE-VS harness 20pin micro-coaxial 40AWG L=200mm 1-N 82067-100B-02-D -
CABLINE-VS harness 50pin micro-coaxial 40AWG L=200mm 1-N 82450-100B-02-D -


다른 형번
이 리스트에는 샘플 준비가 안되는 형번과 판매종료된 형번이 포함되어 있을 수 있습니다.
신규로 채용을 검토하시는 고객께서는 아무쪼록 상기의 추천 형번을 검토해 주시기 바랍니다.



CABLINE-VS OTHER PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-VS cable assembly 20453-0**T-01 -
CABLINE-VS cable assembly 20453-0**T-11 -
CABLINE-VS cable assembly 20453-050T-01S -
CABLINE-VS cable assembly 20453-050T-11S -
CABLINE-VS cable assembly 20453-2**T-01 -
CABLINE-VS cable assembly 20453-2**T-11 -
CABLINE-VS plug cable assembly 50pin 20453-250T-01S -
CABLINE-VS plug cable assembly 50pin 20453-250T-11S -
CABLINE-VS plug housing 20pin 20454-020T 54.000
CABLINE-VS plug housing 30pin 20454-030T 76.907
CABLINE-VS plug housing 40pin 20454-040T 98.000
CABLINE-VS plug housing 50pin 20454-050T-01 127.000
CABLINE-VS plug housing 30pin 20454-130T 76.907
CABLINE-VS plug housing 40pin 20454-140T 98.000
CABLINE-VS receptacle 20pin 20455-020E-02 116.340
CABLINE-VS receptacle 20pin 20455-020E-12 116.340
CABLINE-VS receptacle 30pin 20455-030E-02 148.718
CABLINE-VS receptacle 30pin 20455-030E-12 148.718
CABLINE-VS receptacle 30pin 20455-030E-14 148.718
CABLINE-VS receptacle 30pin 20455-030E-66 148.718
CABLINE-VS receptacle 40pin 20455-040E-02 183.771
CABLINE-VS receptacle 40pin 20455-040E-12 183.771
CABLINE-VS receptacle 40pin 20455-040E-14 183.771
CABLINE-VS receptacle 40pin 20455-040E-66 183.771
CABLINE-VS receptacle 50pin 20455-050E-02 218.824
CABLINE-VS receptacle 50pin 20455-050E-12 218.824
CABLINE-VS receptacle 50pin 20455-050E-66 218.824
CABLINE-VS receptacle 20pin 20455-A20E-02 116.340
CABLINE-VS receptacle 20pin 20455-A20E-12 116.340
CABLINE-VS receptacle 20pin 20455-A20E-66 116.340
CABLINE-VS receptacle 20pin 20765-A20E-11 116.340
CABLINE-VS plug shell 20pin 2574-020 45.000
CABLINE-VS plug shell 30pin 2574-030 63.799
CABLINE-VS plug shell 40pin 2574-040 81.320
CABLINE-VS plug shell 50pin 2574-050 95.000
CABLINE-VS plug shell 20pin 2574-120 45.000
CABLINE-VS plug shell 20pin 2574-1202 45.000
CABLINE-VS plug shell 30pin 2574-130 63.799
CABLINE-VS plug shell 30pin 2574-1302 63.799
CABLINE-VS plug shell 40pin 2574-140 81.320
CABLINE-VS plug shell 40pin 2574-1402 81.320
CABLINE-VS plug shell 50pin 2574-150 95.000
CABLINE-VS plug shell 50pin 2574-1502 69.000
CABLINE-VS plug pull bar 20pin 2576-020-00 54.000
CABLINE-VS plug pull bar 30pin 2576-030-00 63.920
CABLINE-VS plug pull bar 40pin 2576-040-00 73.150
CABLINE-VS plug pull bar 50pin 2576-050-00 84.000
CABLINE-VS plug shell 30pin for inspection 2657-130 -
CABLINE-VS plug shell 40pin for inspection 2657-140 　

SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for CABLINE-VS 20pin 91575-020B-001 84823.6

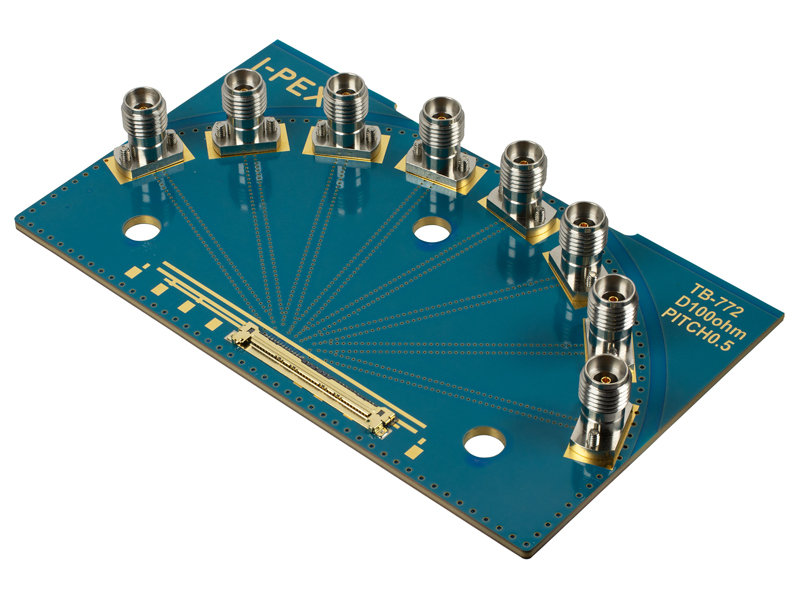

CABLINE-VS_SI_TB-772_Main_(C)

Main Board

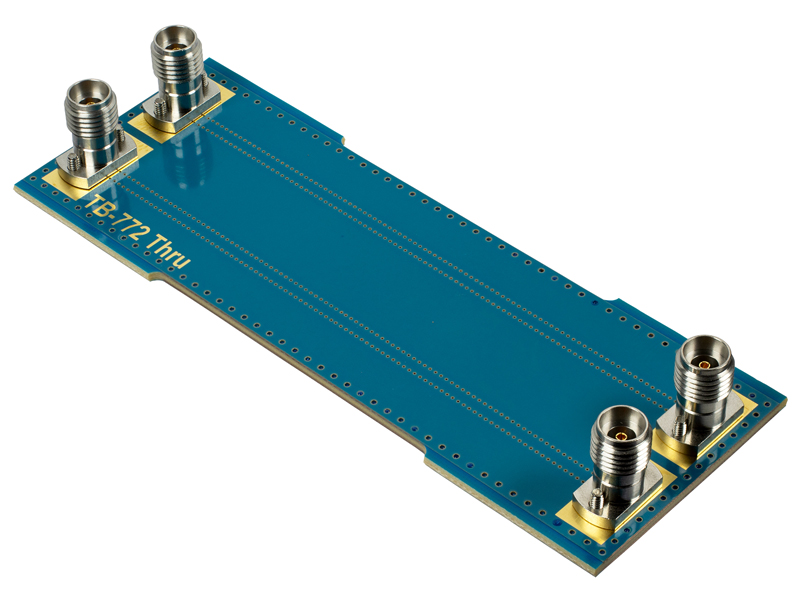

CABLINE-VS_SI_TB-772_Thru_(C)
Thru Board
SI Test Board for CABLINE-VS 30pin 91575-030B-001 84888
SI Test Board for CABLINE-VS 40pin 91575-040B-001 84956
SI Test Board for CABLINE-VS 50pin 91575-050B-001 85029.6

CABLINE-VS Plan to EOL PART NUMBERS

Part Number Descriptions EOL P/N Alternative I-PEX P/N Differences to alternative item
CABLINE-VS cable assembly 20pin 20453-320T-13 20453-220T-03 plating, with/without datum mark
CABLINE-VS cable assembly 30pin 20453-330T-13 20453-230T-03 plating, with/without datum mark
CABLINE-VS cable assembly 40pin 20453-340T-13 20453-240T-03 plating, with/without datum mark
CABLINE-VS cable assembly 50pin 20453-350T-13S 220453-250T-03S plating, with/without datum mark
CABLINE-VS plug housing 20pin 20454-320T 20454-220T plating
CABLINE-VS plug housing 30pin 20454-330T 20454-230T plating
CABLINE-VS plug housing 40pin 20454-340T 20454-240T plating
CABLINE-VS plug housing 50pin 20454-350T-01 20454-250T-01 plating
CABLINE-VS receptacle 30pin 20455-030E-02-S 20455-030E-76 plating, MOQ, without datum mark
CABLINE-VS receptacle 30pin 20455-030E-12-S 20455-030E-76 plating, MOQ
CABLINE-VS receptacle 30pin 20455-030E-66-S 20455-030E-76 MOQ, without datum mark
CABLINE-VS receptacle 30pin 20455-030E-68 20455-030E-76 plating, without datum mark
CABLINE-VS receptacle 30pin 20455-030E-76-S 20455-030E-76 MOQ
CABLINE-VS receptacle 30pin 20455-030E-78 20455-030E-76 plating
CABLINE-VS receptacle 30pin 20455-030E-89 20455-030E-76 plating, without datum mark
CABLINE-VS receptacle 30pin 20455-030E-89-S 20455-030E-76 plating, MOQ, without datum mark
CABLINE-VS receptacle 30pin 20455-030E-99 20455-030E-76 plating
CABLINE-VS receptacle 30pin 20455-030E-99-S 20455-030E-76 plating, MOQ
CABLINE-VS receptacle 40pin 20455-040E-02-S 20455-040E-76 plating, MOQ, without datum mark
CABLINE-VS receptacle 40pin 20455-040E-12-S 20455-040E-76 plating, MOQ
CABLINE-VS receptacle 40pin 20455-040E-66-S 20455-040E-76 MOQ, datum mark
CABLINE-VS receptacle 40pin 20455-040E-68 20455-040E-76 plating, without datum mark
CABLINE-VS receptacle 40pin 20455-040E-76-S 20455-040E-76 MOQ
CABLINE-VS receptacle 40pin 20455-040E-78 20455-040E-76 plating
CABLINE-VS receptacle 40pin 20455-040E-89 20455-040E-76 plating, without datum mark
CABLINE-VS receptacle 40pin 20455-040E-89-S 20455-040E-76 plating, MOQ, without datum mark
CABLINE-VS receptacle 40pin 20455-040E-99 20455-040E-76 plating
CABLINE-VS receptacle 40pin 20455-040E-99-S 20455-040E-76 plating, MOQ
CABLINE-VS receptacle 50pin 20455-050E-02-S 20455-050E-76 plating, MOQ, without datum mark
CABLINE-VS receptacle 50pin 20455-050E-12-S 20455-050E-76 plating, MOQ
CABLINE-VS receptacle 50pin 20455-050E-66-S 20455-050E-76 MOQ, without datum mark
CABLINE-VS receptacle 50pin 20455-050E-68 20455-050E-76 plating, without datum mark
CABLINE-VS receptacle 50pin 20455-050E-76-S 20455-050E-76 MOQ
CABLINE-VS receptacle 50pin 20455-050E-78 20455-050E-76 plating
CABLINE-VS receptacle 50pin 20455-050E-89 20455-050E-76 plating, without datum mark
CABLINE-VS receptacle 50pin 20455-050E-89-S 20455-050E-76 plating, MOQ, without datum mark
CABLINE-VS receptacle 50pin 20455-050E-99 20455-050E-76 plating
CABLINE-VS receptacle 50pin 20455-050E-99-S 20455-050E-76 plating, MOQ
CABLINE-VS receptacle 20pin 20455-A20E-02-S 20455-A20E-76 plating, MOQ, without datum mark
CABLINE-VS receptacle 20pin 20455-A20E-12-S 20455-A20E-76 plating, MOQ
CABLINE-VS receptacle 20pin 20455-A20E-22 20455-A20E-76 plating, without datum mark
CABLINE-VS receptacle 20pin 20455-A20E-66-S 20455-A20E-76 MOQ, without datum mark
CABLINE-VS receptacle 20pin 20455-A20E-76-S 20455-A20E-76 MOQ
CABLINE-VS receptacle 20pin 20455-A20E-89-S 20455-A20E-76 plating, MOQ, without datum mark
CABLINE-VS receptacle 20pin 20455-A20E-99 20455-A20E-76 shape, without datum mark
CABLINE-VS receptacle 20pin 20455-A20E-99-S 20455-A20E-76 plating, MOQ
CABLINE-VS cable assembly 20pin 20704-020T-01 20453-220T-03 plating, with/without datum mark
CABLINE-VS cable assembly 30pin 20704-030T-01 20453-230T-03 plating, with/without datum mark
CABLINE-VS cable assembly 30pin 20704-040T-01 20453-240T-03 plating, with/without datum mark
CABLINE-VS cable assembly 20pin 20704-020T-11 20453-220T-03 plating, with/without datum mark
CABLINE-VS cable assembly 30pin 20704-030T-11 20453-230T-03 plating, with/without datum mark
CABLINE-VS cable assembly 30pin 20704-040T-11 20453-240T-03 plating, with/without datum mark
CABLINE-VS cable assembly 50pin 20704-050T-01S 20453-250T-03S plating, with/without datum mark
CABLINE-VS cable assembly 50pin 20704-050T-11S 20453-250T-03S plating, with/without datum mark
CABLINE-VS receptacle 20pin 20765-A20E-01 20455-A20E-76 plating, without datum mark
CABLINE-VS plug shell 20pin 2574-0203 2574-0202 plating
CABLINE-VS plug shell 30pin 2574-0303 2574-0302 plating
CABLINE-VS plug shell 40pin 2574-0403 2574-0402 plating
CABLINE-VS plug shell 50pin 2574-0503 2574-0502 plating
CABLINE-VS plug shell 20pin 2574-1203 2574-0202 with/without datum mark
CABLINE-VS plug shell 30pin 2574-1303 2574-0302 with/without datum mark
CABLINE-VS plug shell 40pin 2574-1403 2574-0402 with/without datum mark
CABLINE-VS plug shell 50pin 2574-1503 2574-0502 with/without datum mark
CABLINE-VS plug alignment cover 30pin 3273-0301 Contact us 　
CABLINE-VS plug alignment cover 40pin 3273-0401 Contact us 　
CABLINE-VS plug alignment cover 50pin 3273-0501 Contact us 　
CABLINE-VS plug lock bar for alignment cover 30pin 3274-0301 Contact us 　
CABLINE-VS plug lock bar for alignment cover 40pin 3274-0401 Contact us 　
CABLINE-VS plug lock bar for alignment cover 50pin 3274-0501 Contact us 　
CABLINE-VS shell 40pin 2699-040 2574-0402 shape
CABLINE-VS shell 40pin 2699-040L 2574-0402 shape
CABLINE-VS shell 40pin 2699-140 2574-0402 shape
CABLINE-VS shell 40pin 2699-140L 2574-0402 shape



CABLINE-VS EOL PART NUMBERS

Part Number Descriptions EOL P/N Alternative I-PEX P/N Differences to alternative item
CABLINE-VS receptacle 20pin 20455-020E-66 20455-A20E-76 shape, without datum mark
CABLINE-VS receptacle 20pin 20455-020E-76 20455-A20E-76 shape, without datum mark
CABLINE-VS receptacle type 20pin 20765-020E-01 20455-A20E-76 shape, plating, without datum mark
CABLINE-VS receptacle type 20pin 20765-020E-11 20455-A20E-76 shape, plating
CABLINE-VS plug pull bar 20pin 2576-020 2576-120-00 MOQ, with insulation
CABLINE-VS plug pull bar 30pin 2576-030 2576-130-00 MOQ, with insulation
CABLINE-VS plug pull bar 40pin 2576-040 2576-140-00 MOQ, with insulation
CABLINE-VS plug pull bar 50pin 2576-050 2576-150-00 MOQ, with insulation
CABLINE-VS plug pull bar 20pin 2576-120 2576-120-00 MOQ
CABLINE-VS plug pull bar 30pin 2576-130 2576-130-00 MOQ
CABLINE-VS plug pull bar 40pin 2576-140 2576-140-00 MOQ
CABLINE-VS plug pull bar 50pin 2576-150 2576-150-00 MOQ
CABLINE-VS plug alignment cover 30pin 2658-030 Contact us 　
CABLINE-VS plug alignment cover 40pin 2658-040 Contact us
