CABLINE®-SS
高速率傳輸（16Gbps/Lane）窄型，堅固，支持大電流傳輸（AWG#34）,間距0.4 mm，垂直插拔，水平出線的極細同軸線連接器
高速率傳輸,16Gbps/Lane應用的理想之選
窄小型設計適於穿孔，電源供電用途用最大可配合AWG#34線纜使用
獨特W-Point雙觸點設計，實現高接觸可靠性
Contact Pitch:
0.4
(mm)
嵌合類型:
垂直
Mated Height:
1.85
max.
(mm)
可提供Pin數:
10
14
20
30
32
35
40
50
Micro-Coaxial Cable:
AWG 38
AWG 40
AWG 42
AWG 44
AWG 46
Discrete Cable:
AWG 34
AWG 36
AWG 38
AWG 39
AWG 40
AWG 42
AWG 44
AWG 46
下載
高速率傳輸,16Gbps/Lane應用的理想之選
|
Measurement results |
 |
窄小型設計適於穿孔，電源供電用途用最大可配合AWG#34線纜使用
窄小型公座的線束可以穿過小型轉軸
|
1. CABLINE®-SS 公座結合極細同軸線的線束 |
側視圖 |
獨特W-Point雙觸點設計，實現高接觸可靠性
|
公座和母座嵌合後的橫截面
1. 母座端子 2. 公座端子 ★ W型雙接觸點設計 |
W-Point接點技術，能夠在惡劣環境下維持公座端子與母座端子見的良好接觸品質，
相較單點接觸方式，具有更好的而接觸可靠度。
| Transmission Speed (Reference Only) | 5 Gbps/Lane NRZ |
| Contact Pitch |
0.4
(mm)
|
| 嵌合類型 |
垂直
|
| Mated Height |
1.85
max.
(mm)
|
| Available Pin Counts |
10
14
20
30
32
35
40
50
|
| Depth |
3 (mm)
|
| Width Formula |
5.80+(0.4*?p)
|
| Micro-Coaxial Cable |
AWG 38
AWG 40
AWG 42
AWG 44
AWG 46
|
| Discrete Cable |
AWG 34
AWG 36
AWG 38
AWG 39
AWG 40
AWG 42
AWG 44
AWG 46
|
| Shielded FPC / FFC |
No
|
| Current rating | |
| Applicable Standards (Reference Only) |
USB3.1 Gen1 (5 Gbps/Lane)
eDP HBR3 (8.1 Gbps/Lane)
eDP HBR2 (5.4 Gbps/Lane)
eDP (2.7 Gbps/Lane)
HDMI 2.0 (6 Gbps/Lane)
V-By-One HS 1.4 (4 Gbps/Lane)
MiPi standards
|
| Full EMI Shielding (ZenShield®) |
No
|
| Mechanical lock |
No
|
推薦料號
若清單中查詢不到您要找的料號，請使用調查表詢問。
CABLINE-SS RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-SS plug cable assembly 10pin | 20380-R10T-06 | 73.2 |
| CABLINE-SS plug cable assembly 14pin | 20380-R14T-06 | 82.88 |
| CABLINE-SS plug cable assembly 20pin | 20380-R20T-06 | 113.1 |
| CABLINE-SS plug cable assembly 30pin | 20380-R30T-06 | 132.2 |
| CABLINE-SS plug cable assembly 32pin | 20380-R32T-06 | 141.94 |
| CABLINE-SS plug cable assembly 35pin | 20380-R35T-06 | 146.4 |
| CABLINE-SS plug cable assembly 40pin | 20380-R40T-16 | 163.847 |
| CABLINE-SS plug cable assembly 50pin | 20380-R50T-16 | 216.059 |
| CABLINE-SS plug housing 10pin | 20373-R10T-06 | 38.1 |
| CABLINE-SS plug housing 14pin | 20373-R14T-06 | 40.12 |
| CABLINE-SS plug housing 20pin | 20373-R20T-06 | 60.3 |
| CABLINE-SS plug housing 30pin | 20373-R30T-06 | 64.4 |
| CABLINE-SS plug housing 32pin | 20373-R32T-06 | 68.97 |
| CABLINE-SS plug housing 35pin | 20373-R35T-06 | 73.34 |
| CABLINE-SS plug housing 40pin | 20373-R40T-06 | 75.8 |
| CABLINE-SS plug housing 50pin | 20373-R50T-06 | 106 |
| CABLINE-SS plug metal cover 10pin | 2182-010-03 | 35.1 |
| CABLINE-SS plug metal cover 14pin | 2182-014-03 | 42.76 |
| CABLINE-SS plug metal cover 20pin | 2182-020-03 | 52.8 |
| CABLINE-SS plug metal cover 30pin | 2182-030-03 | 67.8 |
| CABLINE-SS plug metal cover 32pin | 2182-032-03 | 72.97 |
| CABLINE-SS plug metal cover 35pin | 2182-035-03 | 73.06 |
| CABLINE-SS plug metal cover 40pin | 2182-040-04 | 88.047 |
| CABLINE-SS plug metal cover 50pin | 2182-050-04 | 110.059 |
| CABLINE-SS receptacle 10pin | 20374-R10E-31 | 43.44 |
| CABLINE-SS receptacle 14pin | 20374-R14E-31 | 47.22 |
| CABLINE-SS receptacle 20pin | 20374-R20E-31 | 59.52 |
| CABLINE-SS receptacle 30pin | 20374-R30E-31 | 69.8 |
| CABLINE-SS receptacle 32pin | 20374-R32E-31 | 72.94 |
| CABLINE-SS receptacle 35pin | 20374-R35E-31 | 74.76 |
| CABLINE-SS receptacle 40pin | 20374-R40E-31 | 83.82 |
| CABLINE-SS receptacle 50pin | 20374-R50E-31 | 96.82 |
CABLINE-SS SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-SS harness 20pin micro-coaxial 40AWG L=200mm | 82069-100B-02-D | - |
| CABLINE-SS harness 30pin micro-coaxial 40AWG L=200mm | 81463-100B-02-D | - |
| CABLINE-SS harness 40pin micro-coaxial 40AWG L=200mm | 81464-100B-02-D | - |
| CABLINE-SS harness 10pin micro-coaxial 40AWG L=200mm 1-N | 82440-100B-02-D | - |
| CABLINE-SS harness 14pin micro-coaxial 40AWG L=200mm 1-N | 82441-100B-02-D | - |
| CABLINE-SS harness 32pin micro-coaxial 40AWG L=200mm 1-N | 82442-100B-02-D | - |
| CABLINE-SS harness 35pin micro-coaxial 40AWG L=200mm 1-N | 82443-100B-02-D | - |
| CABLINE-SS harness 50pin micro-coaxial 40AWG L=200mm 1-N | 82444-100B-02-D | - |
其他料號
請注意:此清單可能包含了暫時還沒有可用樣品的產品和不再銷售的型號。
如您有新的詢價，請參考上述推薦的料號。
CABLINE-SS ACCESSORIES PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |

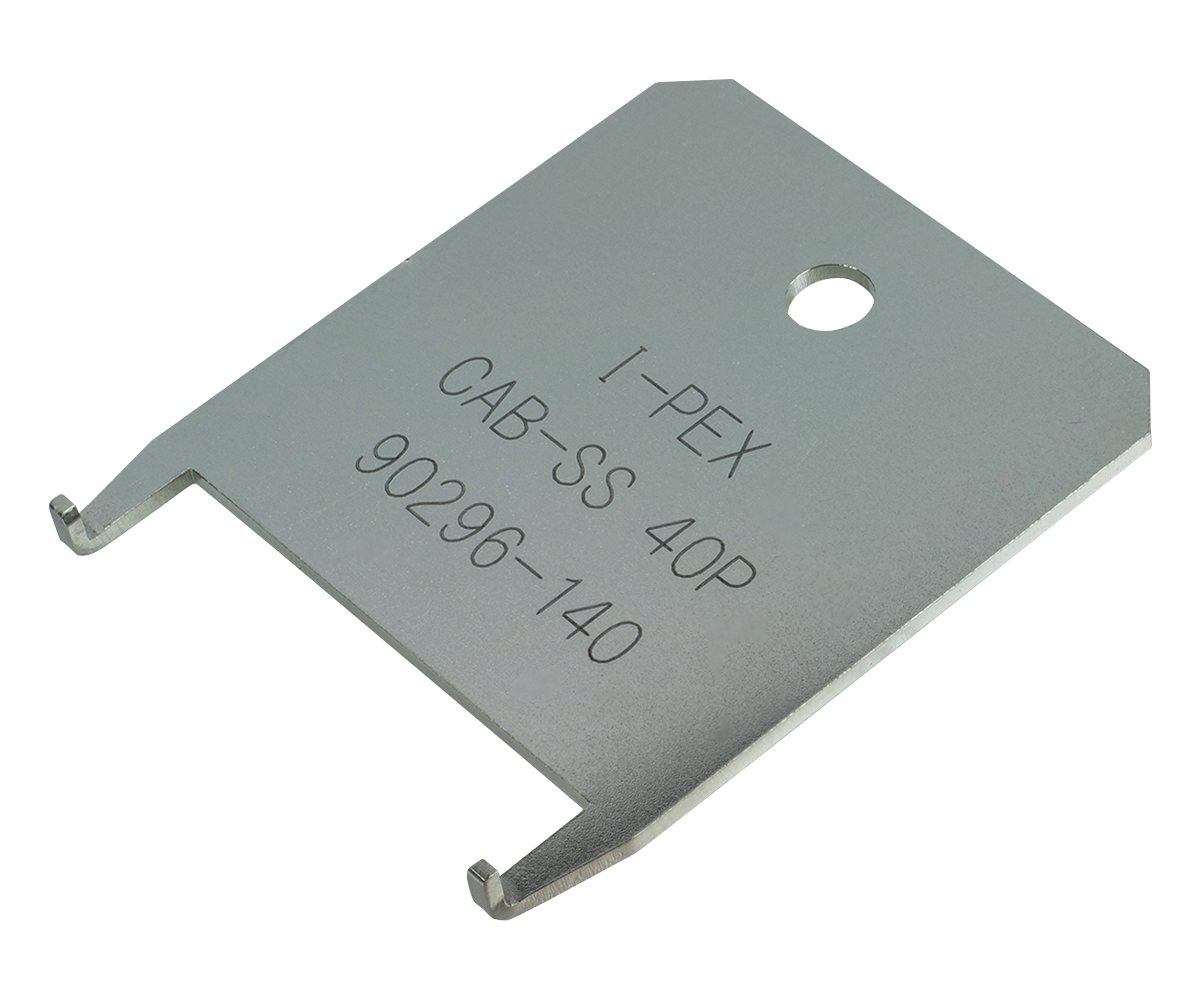

| CABLINE-SS hand tool extraction 10pin | 90296-110 | 2040 |
| CABLINE-SS hand tool extraction 14pin | 90296-114 | 2270 |
| CABLINE-SS hand tool extraction 20pin | 90296-120 | 2555 |
| CABLINE-SS hand tool extraction 30pin | 90296-130 | 3210 |
| CABLINE-SS hand tool extraction 32pin | 90296-132 | 3324 |
| CABLINE-SS hand tool extraction 35pin | 90296-135 | 3472 |
| CABLINE-SS hand tool extraction 40pin | 90296-140 | 3780 |
| CABLINE-SS hand tool extraction 50pin | 90296-150 | 4208 |
SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) |
| SI Test Board for CABLINE-SS 10pin | 91586-010B-001 | 75868 |
| SI Test Board for CABLINE-SS 14pin | 91586-014B-001 | 83876 |
| SI Test Board for CABLINE-SS 20pin | 91586-020B-001 | 83890 |
| SI Test Board for CABLINE-SS 30pin | 91586-030B-001 | 83912 |
| SI Test Board for CABLINE-SS 32pin | 91586-032B-001 | 83916.2 |
| SI Test Board for CABLINE-SS 35pin | 91586-035B-001 | 83922.8 |
| SI Test Board for CABLINE-SS 40pin | 91586-040B-001 | 83933.2 |
| SI Test Board for CABLINE-SS 50pin | 91586-050B-001 | 83955.2 |
CABLINE-SS Plan to EOL PART NUMBERS
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| CABLINE-SS plug housing 10pin | 20373-010T-03 | 20373-R10T-06 | material, shape |
| CABLINE-SS plug housing 14pin | 20373-014T-00 | 20373-R14T-06 | material, shape |
| CABLINE-SS plug housing 14pin | 20373-014T-03 | 20373-R14T-06 | material, shape |
| CABLINE-SS plug housing 20pin | 20373-020T-00 | 20373-R20T-06 | material, shape |
| CABLINE-SS plug housing 20pin | 20373-020T-03 | 20373-R20T-06 | material, shape |
| CABLINE-SS plug housing 30pin | 20373-030T-00 | 20373-R30T-06 | material, shape |
| CABLINE-SS plug housing 30pin | 20373-030T-03 | 20373-R30T-06 | material, shape |
| CABLINE-SS plug housing 32pin | 20373-032T-00 | 20373-R32T-06 | material, shape |
| CABLINE-SS plug housing 35pin | 20373-035T-00 | 20373-R35T-06 | material, shape |
| CABLINE-SS plug housing 40pin | 20373-040T-01 | 20373-R40T-06 | material, shape |
| CABLINE-SS plug housing 40pin | 20373-040T-03 | 20373-R40T-06 | material, shape |
| CABLINE-SS plug housing 50pin | 20373-050T-00 | 20373-R50T-06 | material, shape |
| CABLINE-SS plug housing 50pin | 20373-050T-03 | 20373-R50T-06 | material, shape |
| CABLINE-SS plug housing 10pin | 20373-R10T-03 | 20373-R10T-06 | shape |
| CABLINE-SS plug housing 10pin | 20373-R10T-06-S | 20373-R10T-06 | MOQ |
| CABLINE-SS plug housing 14pin | 20373-R14T-03 | 20373-R14T-06 | shape |
| CABLINE-SS plug housing 14pin | 20373-R14T-06-S | 20373-R14T-06 | MOQ |
| CABLINE-SS plug housing 20pin | 20373-R20T-00 | 20373-R20T-06 | shape |
| CABLINE-SS plug housing 20pin | 20373-R20T-03 | 20373-R20T-06 | shape |
| CABLINE-SS plug housing 20pin | 20373-R20T-06-S | 20373-R20T-06 | MOQ |
| CABLINE-SS plug housing 30pin | 20373-R30T-00 | 20373-R30T-06 | shape |
| CABLINE-SS plug housing 30pin | 20373-R30T-03 | 20373-R30T-06 | shape |
| CABLINE-SS plug housing 30pin | 20373-R30T-06-S | 20373-R30T-06 | MOQ |
| CABLINE-SS plug housing 32pin | 20373-R32T-00 | 20373-R32T-06 | shape |
| CABLINE-SS plug housing 32pin | 20373-R32T-06-S | 20373-R32T-06 | MOQ |
| CABLINE-SS plug housing 35pin | 20373-R35T-00 | 20373-R35T-06 | shape |
| CABLINE-SS plug housing 35pin | 20373-R35T-06-S | 20373-R35T-06 | MOQ |
| CABLINE-SS plug housing 40pin | 20373-R40T-03 | 20373-R40T-06 | shape |
| CABLINE-SS plug housing 40pin | 20373-R40T-06-S | 20373-R40T-06 | MOQ |
| CABLINE-SS plug housing 50pin | 20373-R50T-03 | 20373-R50T-06 | shape |
| CABLINE-SS plug housing 50pin | 20373-R50T-06-S | 20373-R50T-06 | MOQ |
| CABLINE-SS receptacle 10pin | 20374-010E-30 | 20374-R10E-31 | material, MOQ, vacuum clip |
| CABLINE-SS receptacle 10pin | 20374-010E-31 | 20374-R10E-31 | material |
| CABLINE-SS receptacle 10pin | 20374-010E-61 | 20374-R10E-31 | material, plating |
| CABLINE-SS receptacle 14pin | 20374-014E-20 | 20374-R14E-31 | material, plating, vacuum clip |
| CABLINE-SS receptacle 14pin | 20374-014E-30 | 20374-R14E-31 | material, MOQ, vacuum clip |
| CABLINE-SS receptacle 14pin | 20374-014E-31 | 20374-R14E-31 | material |
| CABLINE-SS receptacle 20pin | 20374-020E-21 | 20374-R20E-31 | material, plating |
| CABLINE-SS receptacle 20pin | 20374-020E-30 | 20374-R20E-31 | material, MOQ, vacuum clip |
| CABLINE-SS receptacle 20pin | 20374-020E-31 | 20374-R20E-31 | material |
| CABLINE-SS receptacle 30pin | 20374-030E-01 | 20374-R30E-31 | shape, material, plating |
| CABLINE-SS receptacle 30pin | 20374-030E-11 | 20374-R30E-31 | material, shape |
| CABLINE-SS receptacle 30pin | 20374-030E-20 | 20374-R30E-31 | material, plating, vacuum clip |
| CABLINE-SS receptacle 30pin | 20374-030E-21 | 20374-R30E-31 | material, plating |
| CABLINE-SS receptacle 30pin | 20374-030E-30 | 20374-R30E-31 | material, MOQ, vacuum clip |
| CABLINE-SS receptacle 30pin | 20374-030E-31 | 20374-R30E-31 | material |
| CABLINE-SS receptacle 32pin | 20374-032E-11 | 20374-R32E-31 | material, shape |
| CABLINE-SS receptacle 32pin | 20374-032E-21 | 20374-R32E-31 | material, plating |
| CABLINE-SS receptacle 32pin | 20374-032E-30 | 20374-R32E-31 | material, MOQ, vacuum clip |
| CABLINE-SS receptacle 32pin | 20374-032E-31 | 20374-R32E-31 | material |
| CABLINE-SS receptacle 35pin | 20374-035E-30 | 20374-R35E-31 | material, MOQ, vacuum clip |
| CABLINE-SS receptacle 35pin | 20374-035E-31 | 20374-R35E-31 | material |
| CABLINE-SS receptacle 35pin | 20374-035E-41 | 20374-R35E-31 | material, plating |
| CABLINE-SS receptacle 40pin | 20374-040E-01 | 20374-R40E-31 | shape, material, plating |
| CABLINE-SS receptacle 40pin | 20374-040E-11 | 20374-R40E-31 | material, shape |
| CABLINE-SS receptacle 40pin | 20374-040E-21 | 20374-R40E-31 | material, plating |
| CABLINE-SS receptacle 40pin | 20374-040E-30 | 20374-R40E-31 | material, MOQ, vacuum clip |
| CABLINE-SS receptacle 40pin | 20374-040E-31 | 20374-R40E-31 | material |
| CABLINE-SS receptacle 40pin | 20374-040E-41 | 20374-R40E-31 | material, plating, vacuum clip |
| CABLINE-SS receptacle 50pin | 20374-050E-01 | 20374-R50E-31 | shape, material, plating |
| CABLINE-SS receptacle 50pin | 20374-050E-11 | 20374-R50E-31 | material, shape |
| CABLINE-SS receptacle 50pin | 20374-050E-30 | 20374-R50E-31 | material, MOQ, vacuum clip |
| CABLINE-SS receptacle 50pin | 20374-050E-31 | 20374-R50E-31 | material |
| CABLINE-SS receptacle 10pin | 20374-R10E-30 | 20374-R10E-31 | MOQ, vacuum clip |
| CABLINE-SS receptacle 10pin | 20374-R10E-31-S | 20374-R10E-31 | MOQ |
| CABLINE-SS receptacle 14pin | 20374-R14E-30 | 20374-R14E-31 | MOQ, vacuum clip |
| CABLINE-SS receptacle 14pin | 20374-R14E-31-S | 20374-R14E-31 | MOQ |
| CABLINE-SS receptacle 20pin | 20374-R20E-30 | 20374-R20E-31 | MOQ, vacuum clip |
| CABLINE-SS receptacle 20pin | 20374-R20E-31-S | 20374-R20E-31 | MOQ |
| CABLINE-SS receptacle 30pin | 20374-R30E-30 | 20374-R30E-31 | MOQ, vacuum clip |
| CABLINE-SS receptacle 30pin | 20374-R30E-31-S | 20374-R30E-31 | MOQ |
| CABLINE-SS receptacle 32pin | 20374-R32E-30 | 20374-R32E-31 | MOQ, vacuum clip |
| CABLINE-SS receptacle 32pin | 20374-R32E-31-S | 20374-R32E-31 | MOQ |
| CABLINE-SS receptacle 35pin | 20374-R35E-30 | 20374-R35E-31 | MOQ, vacuum clip |
| CABLINE-SS receptacle 35pin | 20374-R35E-31-S | 20374-R35E-31 | MOQ |
| CABLINE-SS receptacle 40pin | 20374-R40E-30 | 20374-R40E-31 | MOQ, vacuum clip |
| CABLINE-SS receptacle 40pin | 20374-R40E-31-S | 20374-R40E-31 | MOQ |
| CABLINE-SS receptacle 50pin | 20374-R50E-30 | 20374-R50E-31 | MOQ, vacuum clip |
| CABLINE-SS receptacle 50pin | 20374-R50E-31-S | 20374-R50E-31 | MOQ |
| CABLINE-SS plug cable assembly 14pin | 20380-014T | 20380-R14T-06 | material, shape |
| CABLINE-SS plug cable assembly 20pin | 20380-020T | 20380-R20T-06 | material, shape |
| CABLINE-SS plug cable assembly 20pin | 20380-R20T | 20380-R20T-06 | shape |
| CABLINE-SS plug cable assembly 30pin | 20380-030T | 20380-R30T-06 | material, shape |
| CABLINE-SS plug cable assembly 30pin | 20380-R30T | 20380-R30T-06 | shape |
| CABLINE-SS plug cable assembly 32pin | 20380-032T | 20380-R32T-06 | material, shape |
| CABLINE-SS plug cable assembly 32pin | 20380-R32T | 20380-R32T-06 | shape |
| CABLINE-SS plug cable assembly 35pin | 20380-035T | 20380-R35T-06 | material, shape |
| CABLINE-SS plug cable assembly 35pin | 20380-R35T | 20380-R35T-06 | shape |
| CABLINE-SS plug cable assembly 40pin | 20380-040T | 20380-R40T-16 | material, shape |
| CABLINE-SS plug cable assembly 50pin | 20380-050T | 20380-R50T-16 | material, shape |
| CABLINE-SS plug cable assembly 10pin | 20380-010T-03 | 20380-R10T-06 | material, shape |
| CABLINE-SS plug cable assembly 10pin | 20380-R10T-03 | 20380-R10T-06 | shape |
| CABLINE-SS plug cable assembly 14pin | 20380-014T-03 | 20380-R14T-06 | material, shape |
| CABLINE-SS plug cable assembly 14pin | 20380-R14T-03 | 20380-R14T-06 | shape |
| CABLINE-SS plug cable assembly 20pin | 20380-020T-03 | 20380-R20T-06 | material, shape |
| CABLINE-SS plug cable assembly 20pin | 20380-R20T-03 | 20380-R20T-06 | shape |
| CABLINE-SS plug cable assembly 30pin | 20380-030T-03 | 20380-R20T-06 | material, shape |
| CABLINE-SS plug cable assembly 30pin | 20380-R30T-03 | 20380-R20T-06 | shape |
| CABLINE-SS plug cable assembly 40pin | 20380-040T-03 | 20380-R40T-16 | material, shape |
| CABLINE-SS plug cable assembly 40pin | 20380-R40T-03 | 20380-R40T-16 | shape |
| CABLINE-SS plug cable assembly 50pin | 20380-050T-03 | 20380-R50T-16 | material, shape |
| CABLINE-SS plug cable assembly 50pin | 20380-R50T-03 | 20380-R50T-16 | shape |
| CABLINE-SS plug cable assembly 40pin | 20380-040T-13 | 20380-R40T-16 | material, shape |
| CABLINE-SS plug cable assembly 40pin | 20380-R40T-13 | 20380-R40T-16 | shape |
| CABLINE-SS plug cable assembly 50pin | 20380-050T-13 | 20380-R50T-16 | material, shape |
| CABLINE-SS plug cable assembly 50pin | 20380-R50T-13 | 20380-R50T-16 | shape |
| CABLINE-SS plug metal cover 10pin | 2182-010-03S | 2182-010-03 | MOQ |
| CABLINE-SS plug metal cover 14pin | 2182-014-00 | 2182-014-03 | shape |
| CABLINE-SS plug metal cover 14pin | 2182-014-03S | 2182-014-03 | MOQ |
| CABLINE-SS plug metal cover 20pin | 2182-020-00 | 2182-020-03 | shape |
| CABLINE-SS plug metal cover 20pin | 2182-020-03S | 2182-020-03 | MOQ |
| CABLINE-SS plug metal cover 30pin | 2182-030-00 | 2182-030-03 | shape |
| CABLINE-SS plug metal cover 30pin | 2182-030-03S | 2182-030-03 | MOQ |
| CABLINE-SS plug metal cover 32pin | 2182-032-00 | 2182-032-03 | shape |
| CABLINE-SS plug metal cover 32pin | 2182-032-03S | 2182-032-03 | MOQ |
| CABLINE-SS plug metal cover 35pin | 2182-035-00 | 2182-035-03 | shape |
| CABLINE-SS plug metal cover 35pin | 2182-035-02 | 2182-035-03 | shape, plating |
| CABLINE-SS plug metal cover 35pin | 2182-035-03S | 2182-035-03 | MOQ |
| CABLINE-SS plug metal cover 40pin | 2182-040-00 | 2182-040-04 | shape |
| CABLINE-SS plug metal cover 40pin | 2182-040-02 | 2182-040-04 | shape, plating |
| CABLINE-SS plug metal cover 40pin | 2182-040-03 | 2182-040-04 | shape |
| CABLINE-SS plug metal cover 40pin | 2182-040-03S | 2182-040-04 | shape, MOQ |
| CABLINE-SS plug metal cover 50pin | 2182-050-00 | 2182-050-04 | shape |
| CABLINE-SS plug metal cover 50pin | 2182-050-03 | 2182-050-04 | shape |
| CABLINE-SS plug metal cover 50pin | 2182-050-03S | 2182-050-04 | shape, MOQ |
| CABLINE-SS hand tool extraction 10pin | 90296-010 | 90296-110 | with/without pin count mark |
| CABLINE-SS hand tool extraction 14pin | 90296-014 | 90296-114 | with/without pin count mark |
| CABLINE-SS hand tool extraction 20pin | 90296-020 | 90296-120 | with/without pin count mark |
| CABLINE-SS hand tool extraction 30pin | 90296-030 | 90296-130 | with/without pin count mark |
| CABLINE-SS hand tool extraction 32pin | 90296-032 | 90296-132 | with/without pin count mark |
| CABLINE-SS hand tool extraction 35pin | 90296-035 | 90296-135 | with/without pin count mark |
| CABLINE-SS hand tool extraction 40pin | 90296-040 | 90296-140 | with/without pin count mark |
| CABLINE-SS hand tool extraction 50pin | 90296-050 | 90296-150 | with/without pin count mark |
CABLINE-SS EOL PART NUMBERS
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| CABLINE-SS ground bar A | 2183-040-00 | Contact us | |
| CABLINE-SS ground bar B | 2184-040-00 | Contact us | |
| CABLINE-SS 30pin shell insert hand tool | 90275-030 | Contact us | |
| CABLINE-SS 40pin shell insert hand tool | 90275-040 | Contact us | |
| CABLINE-SS 50pin shell insert hand tool | 90275-050 | Contact us | |
| CABLINE-SS ground cramp hand tool | 90288-040 | Contact us |
Download
