CABLINE®-CA

CABLINE-CA Product Image
高速數據傳輸，機械鎖扣，帶屏蔽和多點接地設計，0.4 mm 間距,水平對插款式的極細同軸線連接器

  • 高速率傳輸, USB4 / Thunderbolt 4 (20+ Gbps/lane)應用的理想之選

  • 機械鎖扣防止連接器不完全嵌合及脫落/未嵌合

  • CABLINE®-CA 系列多款連接器可選

接點間距(mm):
0.400
Height:
1.10 Max (1.00 Nom.) ,
可提供Pin數:
10 12 20 30 40 50 60
極細同軸線(AWG):
#38 #40 #42 #44 #46
Discrete Cable (AWG):
#34 #36 #38 #39 #40 #42 #44 #46
嵌合類型:
水平
  • Ipex icon halogen free
  • Ipex icon REACH
  • Ipex icon RoHS

下載

  • 產品目錄

  • 2D圖面

  • 技術參數

  • 3D圖面(IGES)

  • 3D圖面(STEP)

  • Symbols(腳位圖)和Footprints(封裝圖)

  • 測試報告

  • 操作手冊

  • 包裝標準

  • 認證

    • 高速率傳輸, USB4 / Thunderbolt 4 (20+ Gbps/lane)應用的理想之選

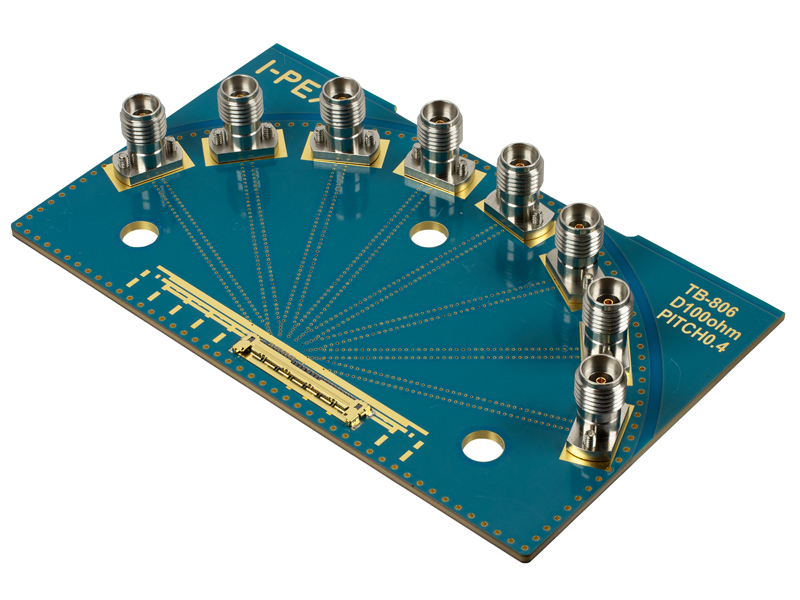

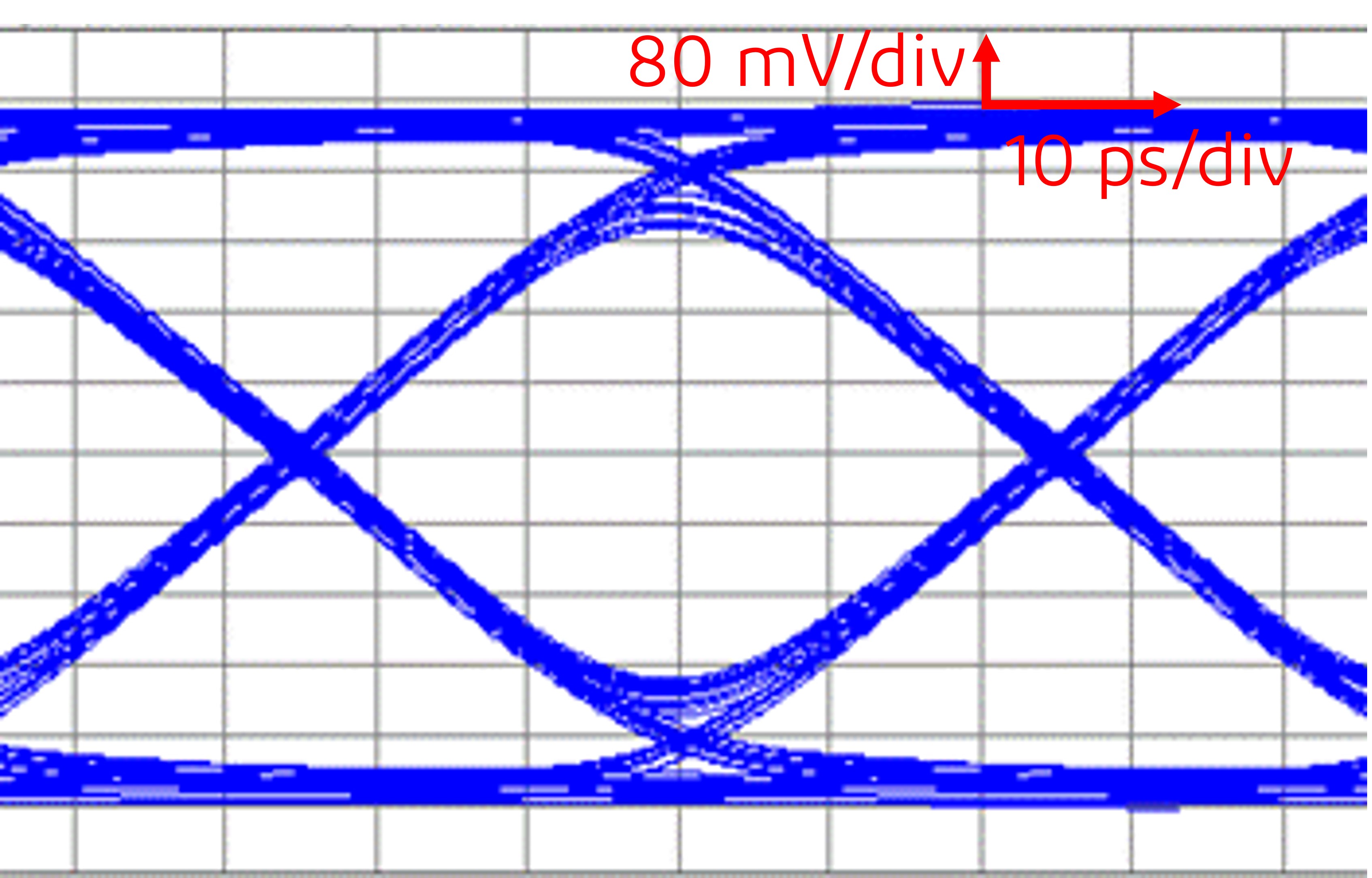

    CABLINE-CA 高速率傳輸, USB4 / Thunderbolt 4 (20+ Gbps/lane)應用的理想之選

    機械鎖扣防止連接器不完全嵌合及脫落/未嵌合
    CABLINE-CA 機械鎖扣防止不完全嵌合和彈回/未嵌合

    CABLINE®-CA 系列多款連接器可選
    CABLINE-CA CABLINE®-CA 系列多款連接器可選

    嵌合類型
    水平
    Contact pitch
    0.40 mm
    Height
    1.10 Max (1.00 Nom.) ,
    Depth
    5.73 mm
    Width Formula
    6.95+(0.4*?p) mm
    Pin count
    10 12 20 30 40 50 60
    Micro-Coaxial Cable (AWG)
    #38 #40 #42 #44 #46
    Discrete Cable (AWG)
    #34 #36 #38 #39 #40 #42 #44 #46
    Current rating
    0.1A AC/DC [AWG #44] per contact/up to 60 contacts 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.3A AC/DC [AWG #40] per contact/up to 40 contacts 0.5A AC/DC [AWG #38] per contact/up to 14 contacts 0.8A AC/DC [AWG #36] per contact/up to 6 contacts 1.0A AC/DC [AWG #34] per contact/up to 4 contacts
    Applicable Standards (Reference Only)
    USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps) eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0 (6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards
    Full shielding (ZenShield®)
    No
    Mechanical lock
    Yes



    DIAGRAMS_CABLINE-CA

    CABLINE-CA RECOMMENDED PART NUMBERS

    Part Number Description Pin count Part Number
    PLUG FOR CABLE ASSEMBLY 10 20633-310T-01S
    12 20633-212T-01S
    20 20633-220T-01S
    30 20633-230T-01S
    40 20633-240T-01S
    50 20633-250T-01S
    60 20633-260T-01S
    Plug parts PLUG HOUSING 10 20634-210T-02
    12 20634-112T-02
    20 20634-120T-02
    30 20634-130T-02
    40 20634-140T-02
    50 20634-150T-02
    60 20634-160T-02
    PLUG SHELL 10 2764-0101-003
    12 2764-0121-002
    20 2764-0201-002
    30 2764-0301-002
    40 2764-0401-002
    50 2764-0501-002
    60 2764-0601-002
    PLUG PULL BAR 10 2766-0101
    12 2766-0121
    20 2766-0201
    30 2766-0301
    40 2766-0401
    50 2766-0501
    60 2766-0601
    RECEPTACLE 10 20525-210E-02
    12 20525-012E-02
    20 20525-020E-02
    30 20525-030E-02
    40 20525-040E-02
    50 20525-050E-02
    60 20525-060E-02
    其他料號
    請注意:此清單可能包含了暫時還沒有可用樣品的產品和不再銷售的型號。
    如您有新的詢價，請參考上述推薦的料號。

    OTHER CABLINE-CA PART NUMBERS

    Part Number Description Pin count Part Number
    PLUG FOR CABLE ASSEMBLY 10 20633-210T-01S
    10 20633-210T-02S
    10 20633-310T-02S
    12 20633-212T-02S
    12 20633-312T-01S
    12 20633-312T-02S
    20 20633-220T-02S
    20 20633-320T-01S
    20 20633-320T-02S
    30 20633-230T-02S
    30 20633-330T-01S
    30 20633-330T-02S
    40 20633-240T-02S
    40 20633-340T-01S
    40 20633-340T-02S
    50 20633-250T-02S
    50 20633-350T-01S
    50 20633-350T-02S
    60 20633-260T-02S
    60 20633-360T-01S
    60 20633-360T-02S
    Plug parts PLUG HOUSING 10 20634-110T-02
    10 20737-010T-02
    12 20524-112T-02
    12 20634-212T-02
    12 20737-012T-02
    20 20524-120T-02
    20 20634-220T-02
    20 20737-020T-02
    30 20524-030T-01
    30 20524-130T-02
    30 20634-230T-02
    30 20737-030T-02
    40 20524-040T-01
    40 20524-140T-02
    40 20634-240T-02
    40 20737-040T-02
    50 20524-050T-02
    50 20634-250T-02
    50 20737-050T-02
    60 20524-060T-02
    60 20524-160T-02
    60 20634-260T-02
    60 20737-060T-02
    PLUG SHELL 10 2764-0101-002
    10 3277-0101
    12 2764-0121-003
    12 3277-0121
    20 2764-0201-003
    20 3277-0201
    30 2764-0301
    30 2764-0301-003
    30 3277-0301
    12 2764-0121-0M2
    40 2764-0401
    40 2764-0401-003
    20 2764-0201-0M2
    40 3277-0401
    50 2764-0501-003
    50 3277-0501
    30 2764-0301-0M2
    60 2764-0601-003
    60 3277-0601
    40 2764-0401-0M2
    50 2764-0501-0M2
    60 2764-0601-0M2
    RECEPTACLE 12 2766-0121M
    20 2766-0201M
    30 2766-0301M
    30 3056-0301
    40 2766-0401M
    40 3056-0401
    50 2766-0501M
    60 2766-0601M
    60 3056-0601
    10 20525-010E-01
    10 20525-010E-02
    10 20525-210E-01
    10 20738-010E-01
    10 20738-010E-02
    12 20525-012E-01
    12 20525-212E-01
    12 20525-212E-02
    10 20525-010E-01-S
    10 20525-010E-02-S
    12 20738-012E-01
    10 20525-210E-01-S
    12 20738-012E-02
    10 20525-210E-02-S
    20 20525-020E-01
    20 20525-220E-02
    20 20525-220E-01
    12 20525-012E-01M
    12 20525-012E-01-S
    12 20525-012E-02M
    12 20525-012E-02-S
    20 20738-020E-01
    12 20525-212E-01-S
    20 20738-020E-02
    12 20525-212E-02-S
    30 20525-030E-01
    30 20525-230E-02
    30 20525-230E-01
    20 20525-020E-01M
    20 20525-020E-01-S
    20 20525-020E-02M
    20 20525-020E-02-S
    30 20738-030E-01
    20 20525-220E-01-S
    30 20738-030E-02
    20 20525-220E-02-S
    40 20525-040E-01
    40 20525-240E-02
    40 20525-240E-01
    30 20525-030E-01M
    30 20525-030E-01-S
    30 20525-030E-02M
    30 20525-030E-02-S
    40 20738-040E-01
    30 20525-230E-01-S
    40 20738-040E-02
    30 20525-230E-02-S
    50 20525-050E-01
    50 20525-250E-02
    50 20525-250E-01
    40 20525-040E-01M
    40 20525-040E-01-S
    40 20525-040E-02M
    40 20525-040E-02-S
    50 20738-050E-01
    40 20525-240E-01-S
    50 20738-050E-02
    40 20525-240E-02-S
    60 20525-060E-01
    60 20525-260E-02
    60 20525-260E-01
    50 20525-050E-01M
    50 20525-050E-01-S
    50 20525-050E-02M
    50 20525-050E-02-S
    60 20738-060E-01
    50 20525-250E-01-S
    60 20738-060E-02
    50 20525-250E-02-S
    60 20525-060E-01M
    60 20525-060E-01-S
    60 20525-060E-02M
    60 20525-060E-02-S
    60 20525-260E-01-S
    60 20525-260E-02-S
