CABLINE®-VS II
全屏蔽，自帶機械式鎖扣，適用於高速數據傳輸 (PCIe Gen5 32 GT/s/lane ),0.5 mm間距，水平插拔式極細同軸線連接器
ZenShield®的全屏蔽設計和多點接地結構, EMC 解決方案的理想選擇
機械式鎖扣罩防止連接器不完全嵌合及脫落
高速率傳輸, PCIe Gen5 32 GT/s/lane應用的理想選擇
*操作方法請參考「如何嵌合和解除」的影片來處理。
Contact Pitch:
0.5
(mm)
嵌合類型:
水平
Mated Height:
1.2
max.
(mm)
可提供Pin數:
20
30
40
Micro-Coaxial Cable:
AWG 36
AWG 38
AWG 40
AWG 42
AWG 44
Twinaxial Cable:
AWG 40
Discrete Cable:
AWG 32
AWG 34
AWG 36
下載
ZenShield®的全屏蔽設計和多點接地結構, EMC 解決方案的理想選擇
| 一般連接器 | ZenShield® 全屏蔽式連接器 | ||
 |
 |
 |
連接器可以放置於
|
|
|
1. Wi-Fi 天線 |
|
|
|
|
2. 高速訊號傳送 |
|
焊接點
機械式觸點

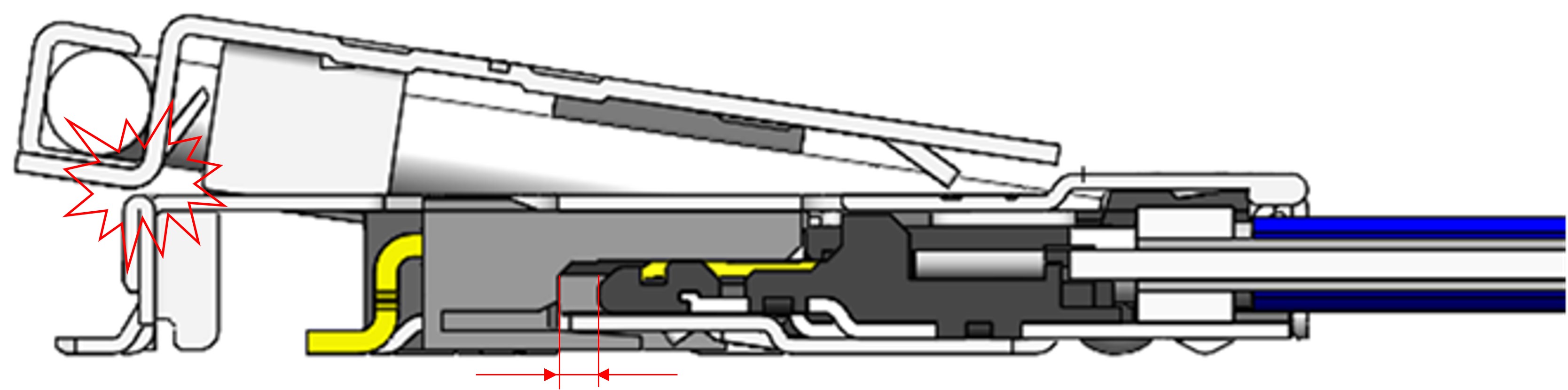

機械式鎖扣罩防止連接器不完全嵌合及脫落
插入 |
上鎖 |
 |
|||

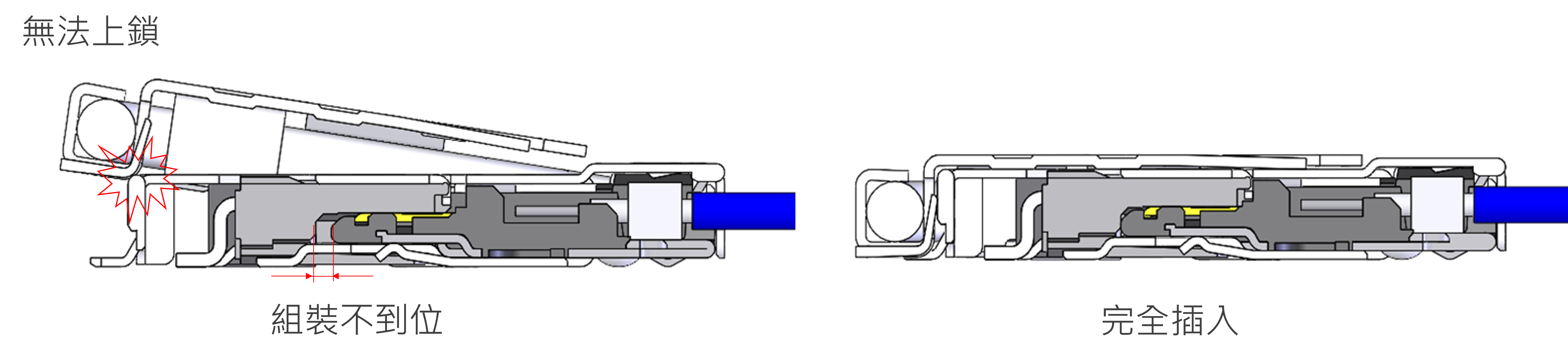

| 無法上鎖 | 只有當完全插入後，SHELL才能上鎖 | ||||
組裝不到位 |
完全插入 |
||||
高速率傳輸, PCIe Gen5 32 GT/s/lane應用的理想選擇
|
Measurement results |
 |
| Transmission Speed (Reference Only) | 2.7 Gbps/Lane NRZ |
| Contact Pitch |
0.5
(mm)
|
| 嵌合類型 |
水平
|
| Mated Height |
1.2
max.
(mm)
|
| Available Pin Counts |
20
30
40
|
| Depth |
6.7 (mm)
|
| Width Formula |
6.85 + (0.5 x pin count)(mm)
|
| Micro-Coaxial Cable |
AWG 36
AWG 38
AWG 40
AWG 42
AWG 44
|
| Discrete Cable |
AWG 32
AWG 34
AWG 36
|
| Shielded FPC / FFC |
No
|
| Current rating | |
| Applicable Standards (Reference Only) |
USB4 Gen4 (40 Gbps/Lane PAM3)
Thunderbolt 5 (40 Gbps/Lane PAM3)
USB4 Gen3 (20 Gbps/lane)
DisplayPort UHBR20 (20 Gbps/Lane）
V-By-One US (16 Gbps/Lane)
HDMI 2.1 (12 Gbps/Lane)
USB3.1 Gen2 (10 Gbps/Lane)
USB3.1 Gen1 (5 Gbps/Lane)
eDP HBR3 (8.1 Gbps/Lane)
eDP HBR2 (5.4 Gbps/Lane)
USB3.1 Gen1 (5 Gbps/Lane)
HDMI 2.0 (6 Gbps/Lane)
V-By-One HS 1.4 (4 Gbps/Lane)
eDP (2.7 Gbps/Lane)
MiPi standards
PCIe 5.0 (32 Gbps/Lane)
|
| Full EMI Shielding (ZenShield®) |
Yes
|
| Mechanical lock |
Yes
|
| Automotive Standards | LV214 (40P tested. PG17 Dynamic Loading evaluation passed) |
推薦料號
若清單中查詢不到您要找的料號，請使用調查表詢問。
CABLINE-VS II RECOMMENDED PART NUMBERS
| Part Number Description | PART NUMBERS | Weight (mg) |
| CABLINE-VS II plug cable assembly 20pin | 20846-020T-01 | 204.100 |
| CABLINE-VS II plug cable assembly 30pin | 20846-030T-01 | 261.407 |
| CABLINE-VS II plug cable assembly 40pin | 20846-040T-01 | 318.752 |
| CABLINE-VS II plug housing 20pin | 20847-020T-01 | 46.25 |
| CABLINE-VS II plug housing 30pin | 20847-030T-01 | 62.931 |
| CABLINE-VS II plug housing 40pin | 20847-040T-01 | 79.488 |
| CABLINE-VS II plug shell A 20pin | 3427-0201 | 27.47 |
| CABLINE-VS II plug shell A 30pin | 3427-0301 | 36.6 |
| CABLINE-VS II plug shell A 40pin | 3427-0401 | 45.801 |
| CABLINE-VS II plug lock bar assembly 20pin | 20848-020T-01 | 130.38 |
| CABLINE-VS II plug lock bar assembly 30pin | 20848-030T-01 | 161.876 |
| CABLINE-VS II plug lock bar assembly 40pin | 20848-040T-01 | 193.463 |
| CABLINE-VS II receptacle 20pin | 20849-020E-01 | 85.23 |
| CABLINE-VS II receptacle 30pin | 20849-030E-01 | 112.322 |
| CABLINE-VS II receptacle 40pin | 20849-040E-01 | 140.232 |
CABLINE-VS II SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-VS II harness 20pin micro-coaxial 40AWG L=200mm | 81619-100B-02-D | 1919 |
| CABLINE-VS II harness 30pin micro-coaxial 40AWG L=200mm | 81457-100B-02-D | 2756.4 |
| CABLINE-VS II harness 40pin micro-coaxial 40AWG L=200mm | 81458-100B-02-D | 3625.5 |
其他料號
請注意:此清單可能包含了暫時還沒有可用樣品的產品和不再銷售的型號。
如您有新的詢價，請參考上述推薦的料號。
CABLINE-VS II OTHER PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-VS II plug housing 20pin | 20847-020T-02 | 46.250 |
| CABLINE-VS II plug housing 30pin | 20847-030T-02 | 62.931 |
| CABLINE-VS II plug housing 40pin | 20847-040T-02 | |
| CABLINE-VS II plug housing 20pin | 21071-020T-01 | 46.250 |
| CABLINE-VS II plug housing 30pin | 21071-030T-01 | 62.931 |
| CABLINE-VS II plug housing 40pin | 21071-040T-01 | 79.488 |
| CABLINE-VS II plug shell A 20pin | 3859-0201 | 27.470 |
| CABLINE-VS II plug shell A 30pin | 3859-0301 | 36.600 |
| CABLINE-VS II plug shell A 40pin | 3859-0401 | 45.801 |
| CABLINE-VS II lock bar 20pin | 21072-020T-01 | 130.380 |
| CABLINE-VS II lock bar 30pin | 21072-030T-01 | 161.876 |
| CABLINE-VS II lock bar 40pin | 21072-040T-01 | 193.463 |
| CABLINE-VS II receptacle 20pin | 20849-020E-02 | 85.230 |
| CABLINE-VS II receptacle 30pin | 20849-030E-02 | 112.322 |
| CABLINE-VS II receptacle 40pin | 20849-040E-02 | |
| CABLINE-VS II receptacle 20pin | 21073-020E-01 | 85.230 |
| CABLINE-VS II receptacle 30pin | 21073-030E-01 | 112.322 |
| CABLINE-VS II receptacle 40pin | 21073-040E-01 | 140.232 |
| CABLINE-VS II cable assembly 20pin | 21070-020E-01 | - |
| CABLINE-VS II cable assembly 30pin | 21070-030E-01 | - |
| CABLINE-VS II cable assembly 40pin | 21070-040E-01 | - |
| CABLINE-VS II cable assembly 40pin | 21070-060E-01 | - |
SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) |
| SI Test Board for CABLINE-VS II 20pin | 91579-020B-001 | 84766 |
| SI Test Board for CABLINE-VS II 30pin | 91579-030B-001 | 84815.34 |
| SI Test Board for CABLINE-VS II 40pin | 91579-040B-001 | 84872.66 |
CABLINE-VS II Plan to EOL PART NUMBERS
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| CABLINE-VS II receptacle 20pin | 20849-020E-01-S | 20849-020E-01 | MOQ |
| CABLINE-VS II receptacle 20pin | 20849-020E-02-S | 20849-020E-01 | plating, MOQ |
| CABLINE-VS II receptacle 30pin | 20849-030E-01-S | 20849-030E-01 | MOQ |
| CABLINE-VS II receptacle 30pin | 20849-030E-02-S | 20849-030E-01 | plating, MOQ |
| CABLINE-VS II receptacle 40pin | 20849-040E-01-S | 20849-040E-01 | MOQ |
| CABLINE-VS II receptacle 40pin | 20849-040E-02-S | 20849-040E-01 | plating, MOQ |
CABLINE-VS II EOL PART NUMBERS
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| CABLINE-VS II plug lock bar assembly 20pin | 20848-020T-02 | 20848-020T-01 | without tape |
| CABLINE-VS II plug lock bar assembly 20pin | 20848-020T-03 | 20848-020T-01 | without tape |
| CABLINE-VS II plug lock bar assembly 30pin | 20848-030T-02 | 20848-030T-01 | without tape |
| CABLINE-VS II plug lock bar assembly 30pin | 20848-030T-03 | 20848-030T-01 | without tape |
