64Gbps PAM4, 0.4mm pitch, 水平插拔款極細同軸線連接器

    高速傳輸 64Gbps/通道 PAM4,採用Paddle Card技術

    薄款(低背)設計 H=1.15mm ,非常適合空間受限的應用

    極細同軸電纜的LEAPWIRE®跳線解決方案

此纜線組件與 CABLINE®-CA 母座 (20525-050E-02).CABLINE®-CAP

CABLINE-CAP

CABLINECAP

CAP

Contact Pitch:
0.4 (mm)
嵌合類型:
水平
Height:
1.35 max. (mm)
可提供Pin數:
50
Micro-Coaxial Cable:
AWG 38
Current rating:
0.4 A/Signal pin

下載

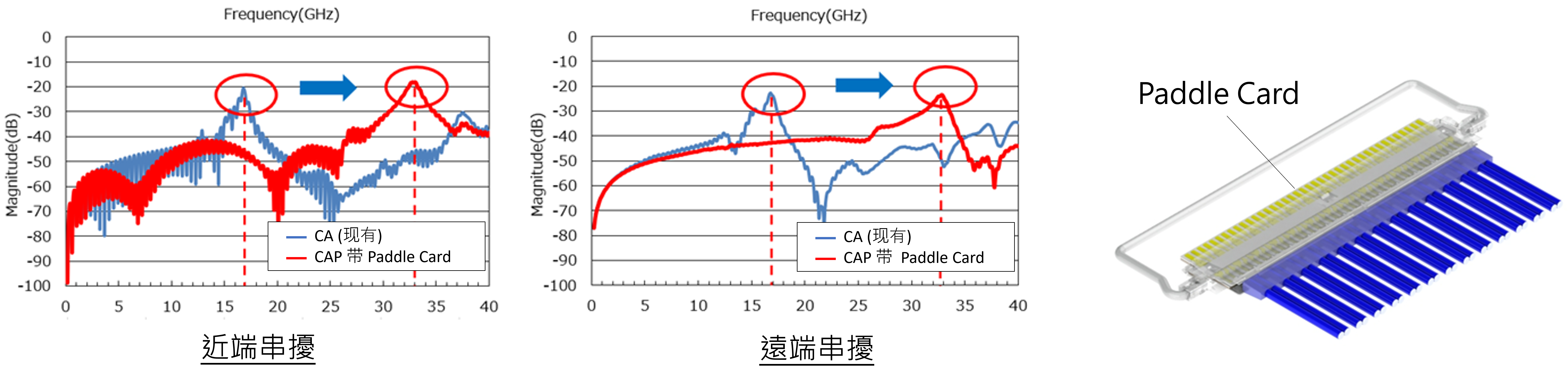

高速傳輸 64Gbps/通道 PAM4,採用Paddle Card技術

Signal quality is improved by adopting a paddle card in the cable plug section.
This enables even faster transmission from the existing CABLINE series.



CABLINE-CAP_FAB1-1_all CABLINE-CAP_FAB1-2_all CABLINE-CAP_FAB1-3_all
Near End Cross Talk
            Far End Cross Talk

Technical page of paddle card: https://www.i-pex.com/library/white-papers/paddle-card-technology

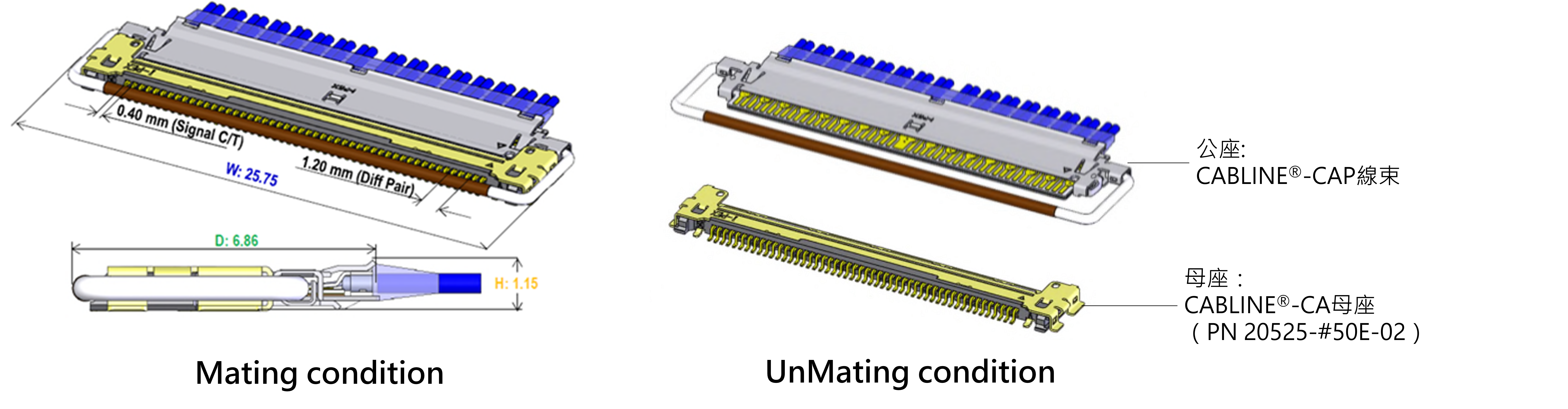

薄款(低背)設計 H=1.15mm ,非常適合空間受限的應用

CABLINE-CAP_FAB2-1_all
CABLINE-CAP_FAB2-2_all
Plug: CABLINE®-CAP harness
CABLINE-CAP_FAB2-3_all
Receptacle: CABLINE®-CA receptacle
(PN 20525-#50E-02)
Mating Condition
Un-Mating condition



極細同軸電纜的LEAPWIRE®跳線解決方案

Cable Jumper Harnesses are more advantageous than PCB in terms of transmission.
Transmission distance comparison of Low-Loss PCB (Dk3.7) vs CABLINE-CAP® harness (Micro-coaxial cable)
Micro-coaxial Cable can transmit approximately 2.3 times farther in the 16 GHz band than Low-Loss PCB (Dk3.7)

CABLINE-CAP_FAB3_all






CABLINE®-CAP

CABLINE-CAP

CABLINECAP

CAP

Transmission Speed (Reference Only) 2.7 Gbps/Lane NRZ
Contact Pitch
0.4 (mm)
嵌合類型
水平
Height
1.35 max. (mm)
Available Pin Counts
50
Depth
6.86 (mm)
Width Formula
25.75
Micro-Coaxial Cable
AWG 38
Shielded FPC / FFC
No
Current rating
0.4 A/Signal pin
Full EMI Shielding (ZenShield®)
No
Mechanical lock
Yes

推薦料號

若清單中查詢不到您要找的料號,請使用調查表詢問



CABLINE-CAP RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-CAP harness 50p micro-coaxial 38AWG L=250mm 81863-100B-01 5310
CABLINE-CAP harness 50p micro-coaxial 38AWG L=500mm 81863-100B-02 9790
CABLINE-CA receptacle 50p 20525-050E-02 174.935

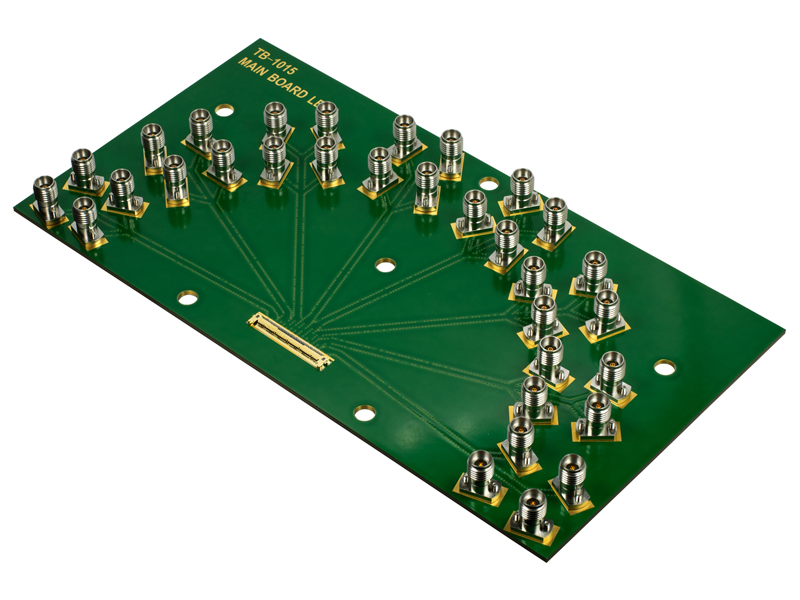

SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg)
SI Test Board for CABLINE-CAP 50pin 91566-050B-001 286052 CABLINE-CAP SI TB-1015 Main(C)
