CABLINE-UM
全屏蔽设计和多点接地设计,机械锁扣,高速数据传输(40 Gbps/lane PAM3), 0.4mm间距, 90度出线垂直插拔款的极细同轴线连接器

    ZenShield® 的全屏蔽设计和多点接地结构,EMC 解决方案的理想选择

    拥有鎖蓋以及0.65毫米以上的有效嵌合长度,提供超高接觸可靠性

    高速率传输, 40 Gbps/lane PAM3应用的理想之选

*操作方法请参考"如何嵌合和拔出"视频。

Contact Pitch:
0.4 (mm)
嵌合类型:
垂直
Height:
2.35 max. (mm)
可提供Pin数:
30 40 50 60
Micro-Coaxial Cable:
AWG 38 AWG 40 AWG 42 AWG 44 AWG 46
Twinaxial Cable:
AWG 40 AWG 42
Discrete Cable:
AWG 34 AWG 36 AWG 38 AWG 39 AWG 40 AWG 42 AWG 44 AWG 46
Current rating:
0.1A AC/DC [AWG #44] Per Contact 0.24A AC/DC [AWG #42] Per Contact 0.3A AC/DC [AWG #40] Per Contact 0.5A AC/DC [AWG #38] Per Contact 0.8A AC/DC [AWG #36] Per Contact 1.0A AC/DC [AWG #34] Per Contact

下载


ZenShield® 的全屏蔽设计和多点接地结构,EMC 解决方案的理想选择

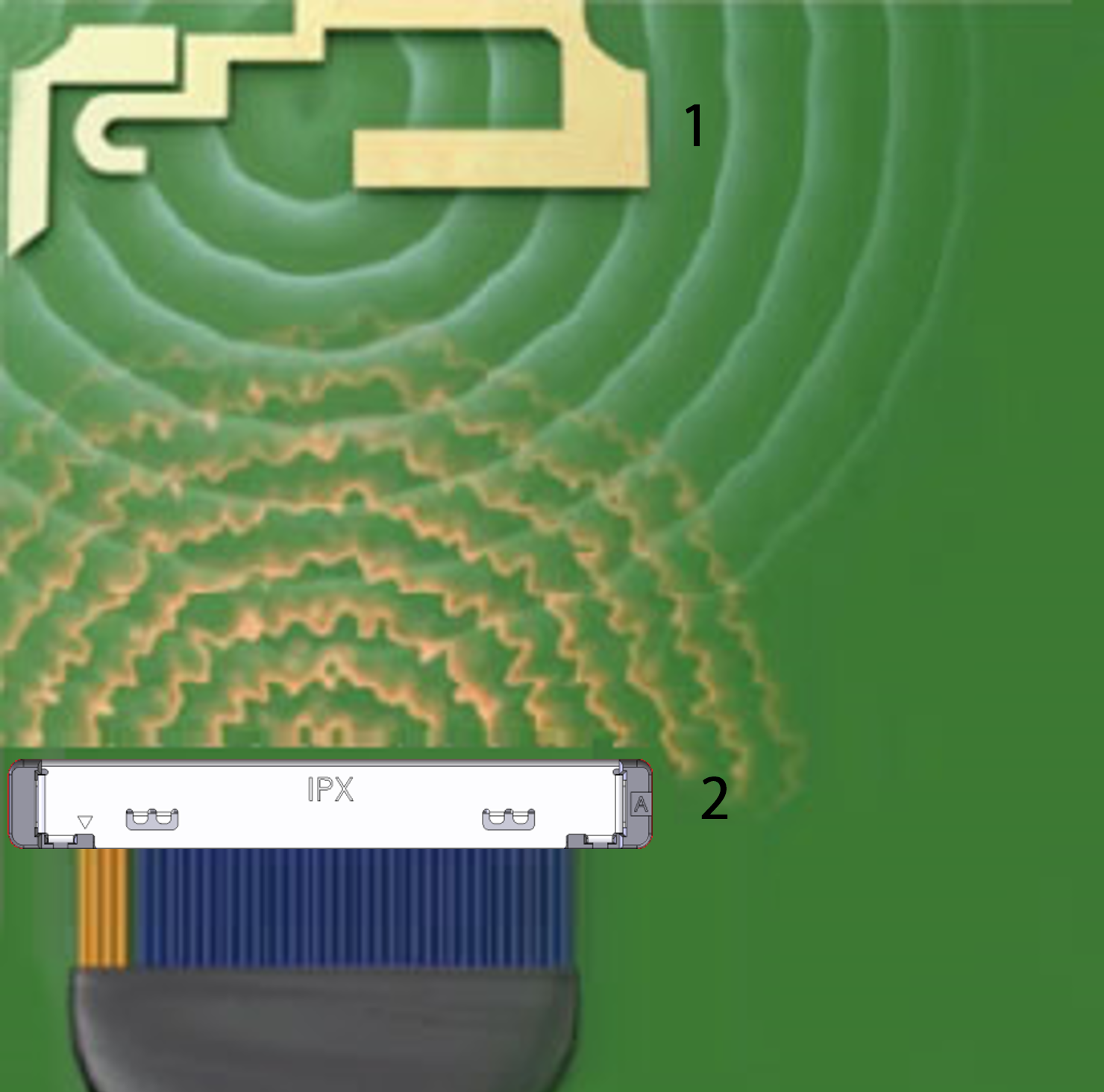

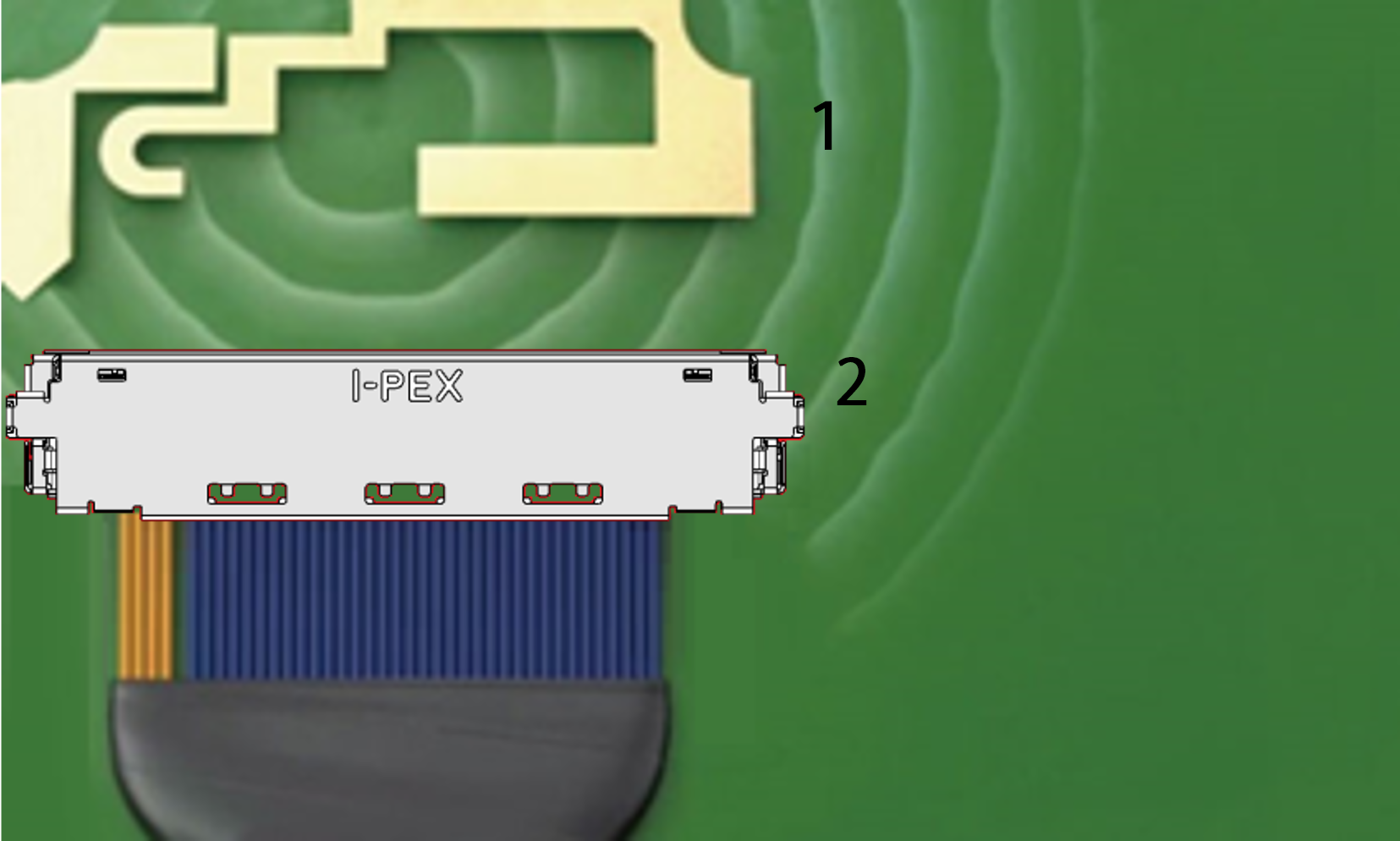

    普通型连接器 ZenShield® 全屏蔽式连接器
底部视图

CABLINE-UM FAB1-2 ALL
CABLINE-UM FAB1-3 ALL
CABLINE-UM_FAB1-2.jpgGround SMT points

1. Wi-Fi 天线
2. 高速数据传输


连接器可以放置于更靠近天线的位置

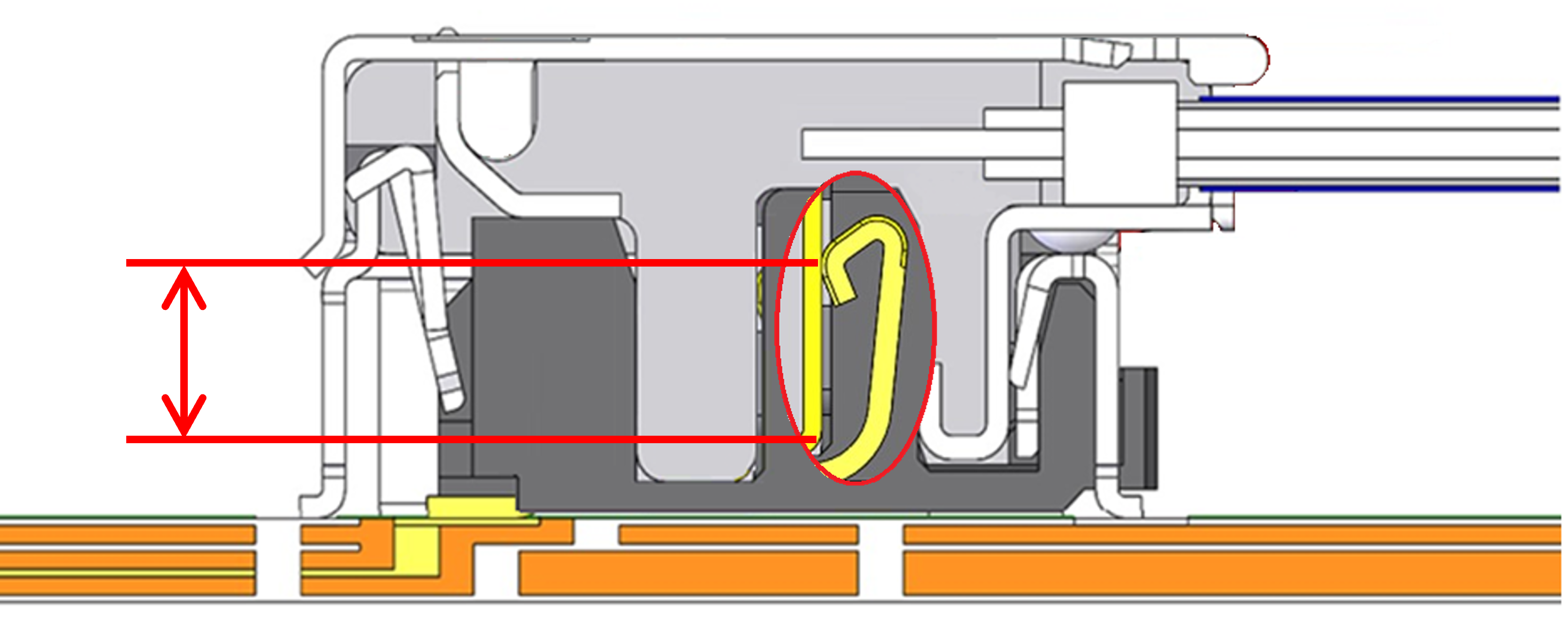

拥有鎖蓋以及0.65毫米以上的有效嵌合长度,提供超高接觸可靠性

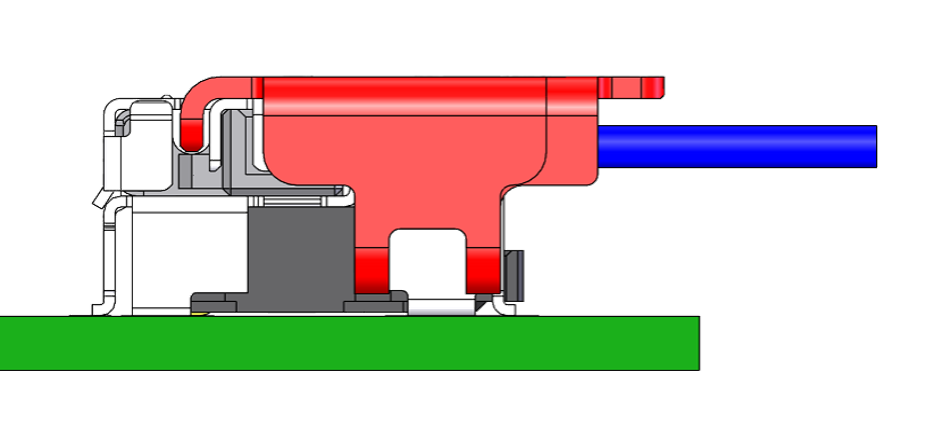

搭配金属铁盖—增强连接器保持力 有效嵌合长度:0.65mm Min.

CABLINE-UM FAB2-1 ALL
CABLINE-UM FAB2-2 ALL

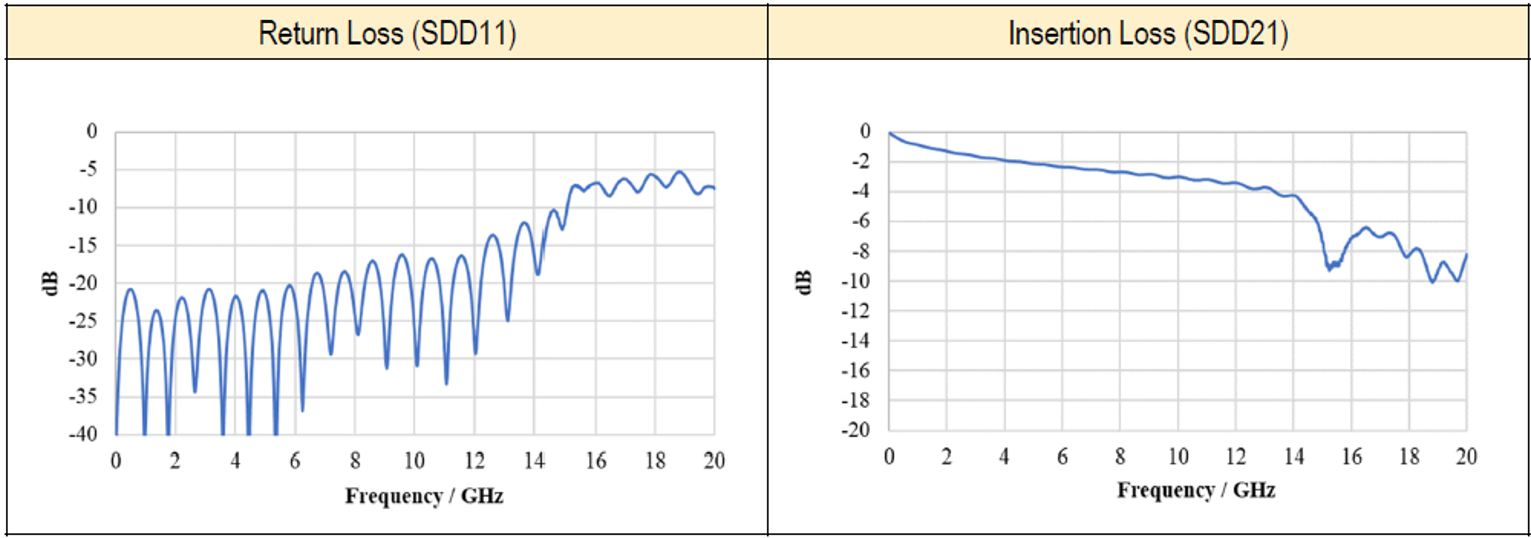

高速率传输, 40 Gbps/lane PAM3应用的理想之选

Measurement results

Connector
: CABLINE-UM 40P
Cable : Micro-coaxial cable
AWG #40, 45ohm , Length : 100 mm
Pin Assignment : GSSGSSG

CABLINE-UM FAB3 ALL







Product Type
Coax. cable connector
Transmission Speed(Reference Only) 20 Gbps/Lane NRZ
Contact Pitch
0.4 (mm)
嵌合类型
垂直
Height
2.35 max. (mm)
Available Pin Counts
30 40 50 60
Depth
5 mm
Width Formula
With Lock Cover : 5.0 + (0.4 * ?p); Without Lock Cover : 4.2 + (0.4 * ?p)
Micro-Coaxial Cable
AWG 38 AWG 40 AWG 42 AWG 44 AWG 46
Discrete Cable
AWG 34 AWG 36 AWG 38 AWG 39 AWG 40 AWG 42 AWG 44 AWG 46
Shielded FPC / FFC
No
Current rating
0.1A AC/DC [AWG #44] Per Contact 0.24A AC/DC [AWG #42] Per Contact 0.3A AC/DC [AWG #40] Per Contact 0.5A AC/DC [AWG #38] Per Contact 0.8A AC/DC [AWG #36] Per Contact 1.0A AC/DC [AWG #34] Per Contact
Applicable Standards (Reference Only)
USB4 (20 Gbps/Lane) USB3.1 Gen2 (10 Gbps/Lane) USB3.1 Gen1 (5 Gbps/Lane) eDP HBR3 (8.1 Gbps/Lane) eDP HBR2 (5.4 Gbps/Lane) eDP (2.7 Gbps/Lane) HDMI 2.0 (6 Gbps/Lane) V-By-One HS 1.4 (4 Gbps/Lane) MiPi standards
Full EMI Shielding (ZenShield®)
Yes
Mechanical lock
Yes

推荐料号

若列表中查询不到您要查找的料号,请使用调查表询问



DIAGRAMS_CABLINE-UM



CABLINE-UM RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-UM plug housing 40pin 20878-040T-11 122.680
CABLINE-UM plug housing 60pin 20878-060T-11 178.788
CABLINE-UM plug housing 30pin 21075-030T-01 100.590
CABLINE-UM plug housing 40pin 21075-040T-01 122.680
CABLINE-UM plug housing 50pin 21075-050T-01 -
CABLINE-UM plug housing 60pin 21075-060T-01 178.788
CABLINE-UM receptacle 30pin 20879-030E-02 116.780
CABLINE-UM receptacle 30pin 20879-030E-11
CABLINE-UM receptacle 40pin 20879-040E-02 146.430
CABLINE-UM receptacle 40pin 20879-040E-11 146.430
CABLINE-UM receptacle 50pin 20879-050E-02
CABLINE-UM receptacle 50pin 20879-050E-11 174.664
CABLINE-UM receptacle 60pin 20879-060E-02 207.018
CABLINE-UM receptacle 60pin 20879-060E-11 207.018
CABLINE-UM receptacle 30pin 21076-030E-01 116.780
CABLINE-UM receptacle 40pin 21076-040E-01 146.430
CABLINE-UM receptacle 50pin 21076-050E-01 174.664
CABLINE-UM receptacle 60pin 21076-060E-01 207.018
CABLINE-UM cable assembly lock cover 30pin 21074-030E-01 -
CABLINE-UM cable assembly lock cover 40pin 21074-040E-01 -
CABLINE-UM cable assembly lock cover 50pin 21074-050E-01 -
CABLINE-UM cable assembly lock cover 60pin 21074-060E-01 -



CABLINE-UM SAMPLE HARNESS FOR EVALUATION PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-UM harness 30pin micro-coaxial 40AWG L=100mm 82187-100B-02-D -
CABLINE-UM harness 30pin micro-coaxial 40AWG L=200mm 81465-100B-02-D 2687.7
CABLINE-UM harness 30pin micro-coaxial 40AWG L=300mm 82286-100B-02-D -
CABLINE-UM harness 40pin micro-coaxial 40AWG L=200mm 81466-100B-02-D 3524.1
CABLINE-UM harness 50pin micro-coaxial 40AWG L=200mm 82285-100B-02-D 4865
CABLINE-UM harness 60pin micro-coaxial 40AWG L=200mm 82147-100B-02-D -
CABLINE-UM harness 40pin micro-coaxial 40AWG L=100mm 1-N 82451-100B-02-D -
CABLINE-UM harness 40pin micro-coaxial 40AWG L=300mm 1-N 82452-100B-02-D -



其他料号
请注意:此列表可能包含了暂时还没有可用样品的产品和不再销售的型号。
如您有新的询价,请参考上述推荐的料号。



CABLINE-UM OTHER PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-UM plug housing 40pin 20878-040T-11 122.680
CABLINE-UM plug housing 60pin 20878-060T-11 178.788
CABLINE-UM plug housing 30pin 21075-030T-01 100.590
CABLINE-UM plug housing 40pin 21075-040T-01 122.680
CABLINE-UM plug housing 50pin 21075-050T-01 -
CABLINE-UM plug housing 60pin 21075-060T-01 178.788
CABLINE-UM plug shell A 30pin 3860-0301 64.810
CABLINE-UM plug shell A 40pin 3860-0401 84.100
CABLINE-UM plug shell A 50pin 3860-0501 -
CABLINE-UM plug shell A 60pin 3860-0601 122.075
CABLINE-UM plug lock cover 30pin 3861-0301 77.880
CABLINE-UM plug lock cover 40pin 3861-0401 88.140
CABLINE-UM plug lock cover 50pin 3861-0501 -
CABLINE-UM plug lock cover 60pin 3861-0601 112.876
CABLINE-UM receptacle 30pin 20879-030E-02 116.780
CABLINE-UM receptacle 30pin 20879-030E-11 -
CABLINE-UM receptacle 40pin 20879-040E-02 146.430
CABLINE-UM receptacle 40pin 20879-040E-11 146.430
CABLINE-UM receptacle 50pin 20879-050E-02 -
CABLINE-UM receptacle 50pin 20879-050E-11 174.664
CABLINE-UM receptacle 60pin 20879-060E-02 207.018
CABLINE-UM receptacle 60pin 20879-060E-11 207.018
CABLINE-UM receptacle 30pin 21076-030E-01 116.780
CABLINE-UM receptacle 40pin 21076-040E-01 146.430
CABLINE-UM receptacle 50pin 21076-050E-01 174.664
CABLINE-UM receptacle 60pin 21076-060E-01 207.018
CABLINE-UM cable assembly lock cover 30pin 21074-030E-01 -
CABLINE-UM cable assembly lock cover 40pin 21074-040E-01 -
CABLINE-UM cable assembly lock cover 50pin 21074-050E-01 -
CABLINE-UM cable assembly lock cover 60pin 21074-060E-01 -

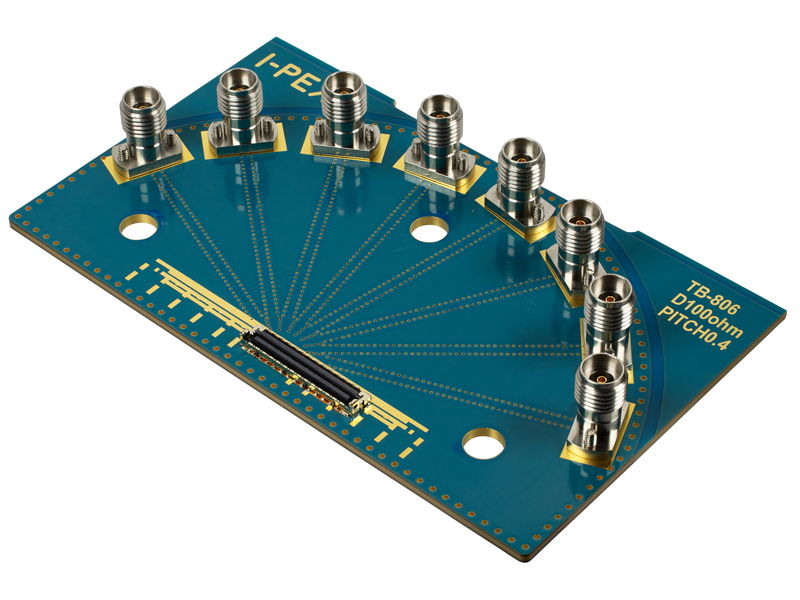

SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg)
SI Test Board for CABLINE-UM 30pin 91580-030B-001 84028.6
SI Test Board for CABLINE-UM 40pin 91580-040B-001 84084
SI Test Board for CABLINE-UM 60pin 91580-060B-001 84202
