CABLINE®-VS II

CABLINE-VS II Product Image
全屏蔽，自带机械式锁扣，适用于高速数据传输 (PCIe Gen5 32 GT/s/lane ),0.5 mm间距，水平插拔式极细同轴线连接器

    ZenShield®的全屏蔽设计和多点接地结构，EMC 解决方案的理想选择

    机械式锁扣罩防止连接器不完全嵌合及脱落

    高速率传输, PCIe Gen5 32 GT/s/lane应用的理想之选

*操作方法请参考"如何嵌合和拔出"视频。
Contact Pitch:
0.5 mm
Mating Type / Direction:
Horizontal
Mated Height:
Nom. 0.95 +/- 0.25 mm
Operating Temperature:
-40 to 105℃ (233 to 378 K)
Cable Size (Micro-Coaxial):
AWG 36AWG 38AWG 40AWG 42AWG 44
Cable Size (Twinaxial):
AWG 40
Cable Size (Discrete):
AWG 32AWG 34AWG 36
Current Rating:
[AWG 42] 0.24 A/per contact[AWG 40] 0.3 A/per contact[AWG 38] 0.5 A/per contact[AWG 36] 0.8 A/per contact[AWG 34] 1.0 A/per contact for power[AWG 32] 1.0 A/per contact for power

下载

*SI测试板数据位于二维图纸中

ZenShield®的全屏蔽设计和多点接地结构，EMC 解决方案的理想选择

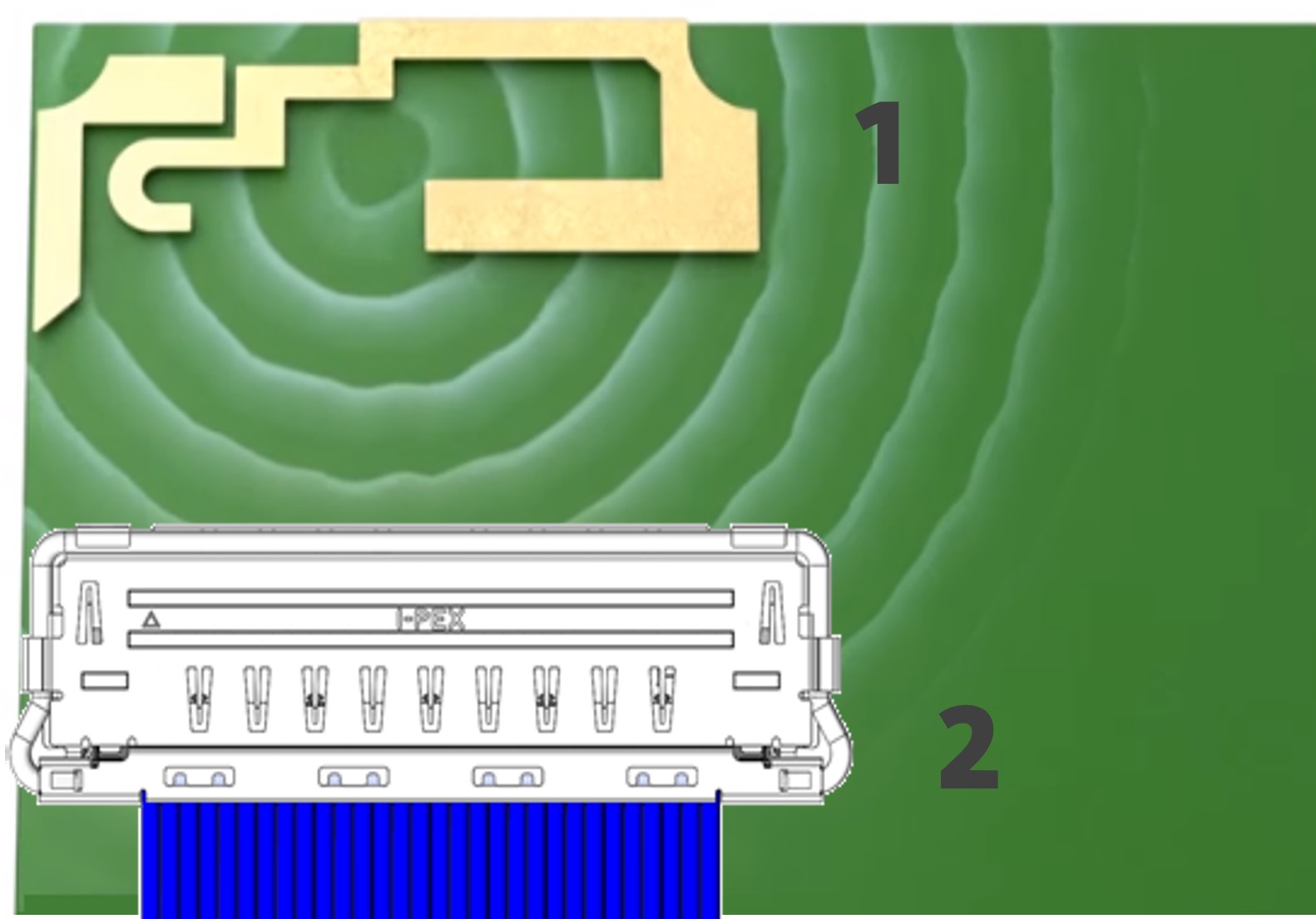

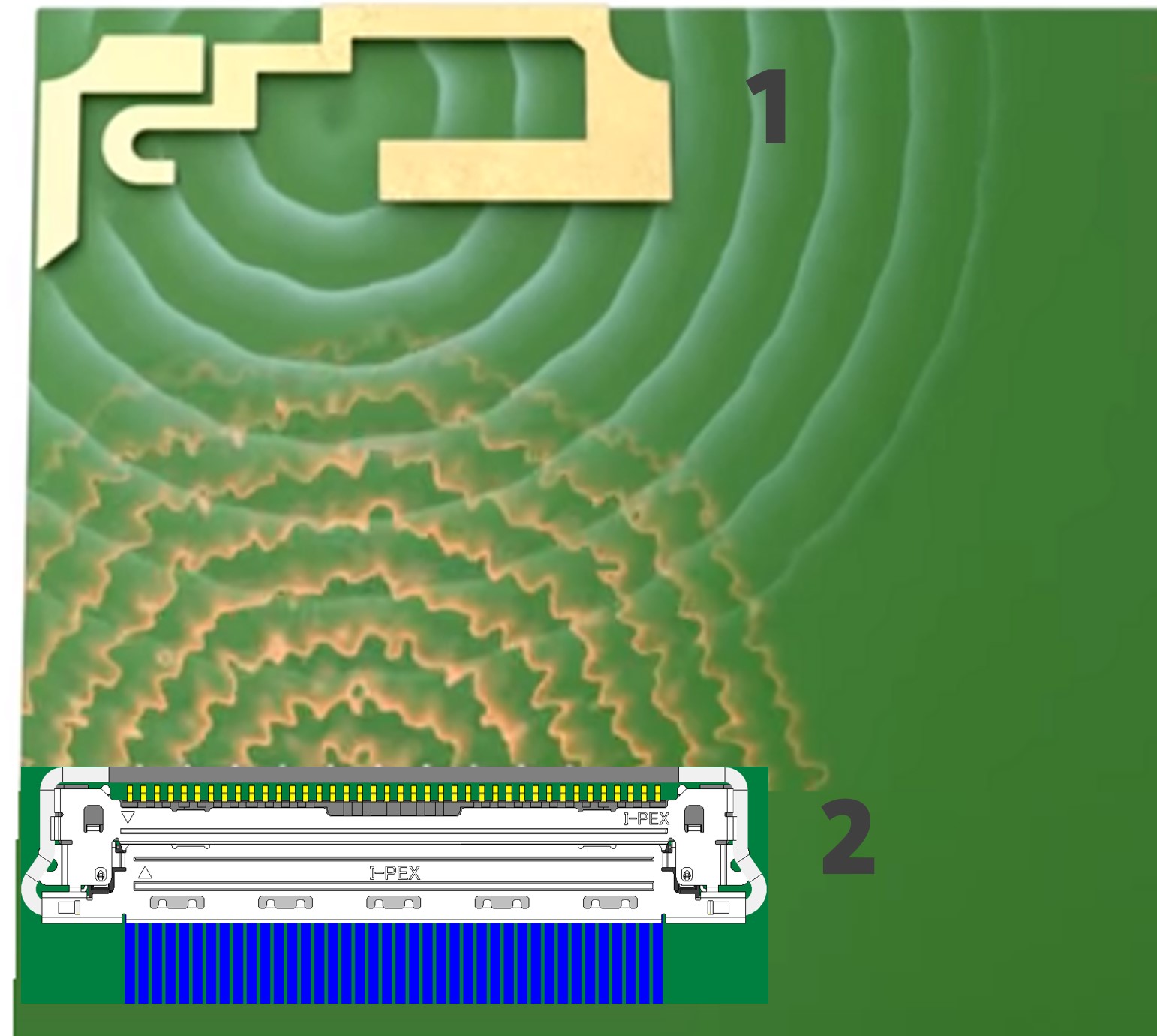

    普通型连接器 ZenShield® 全屏蔽式连接器

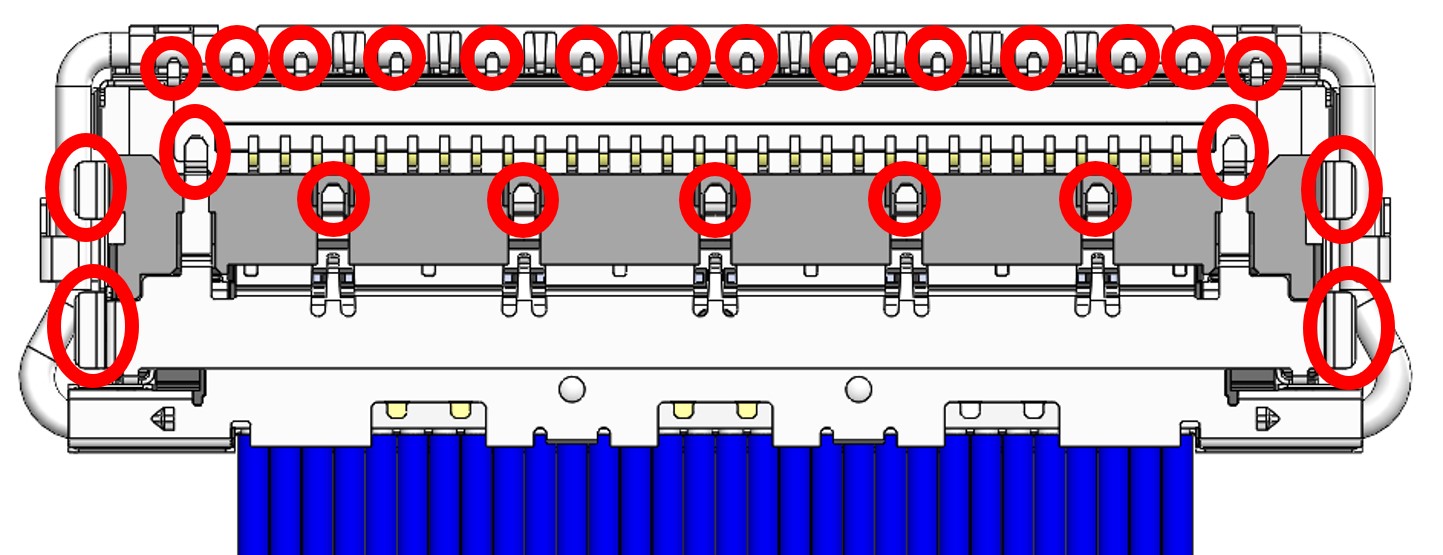

CABLINE-VS_II_FAB1-1.jpg CABLINE-VS_II_FAB1-2.jpg CABLINE-VS_II_FAB1-3.jpg


连接器可以放置于
更靠近天线的位置
底部视图

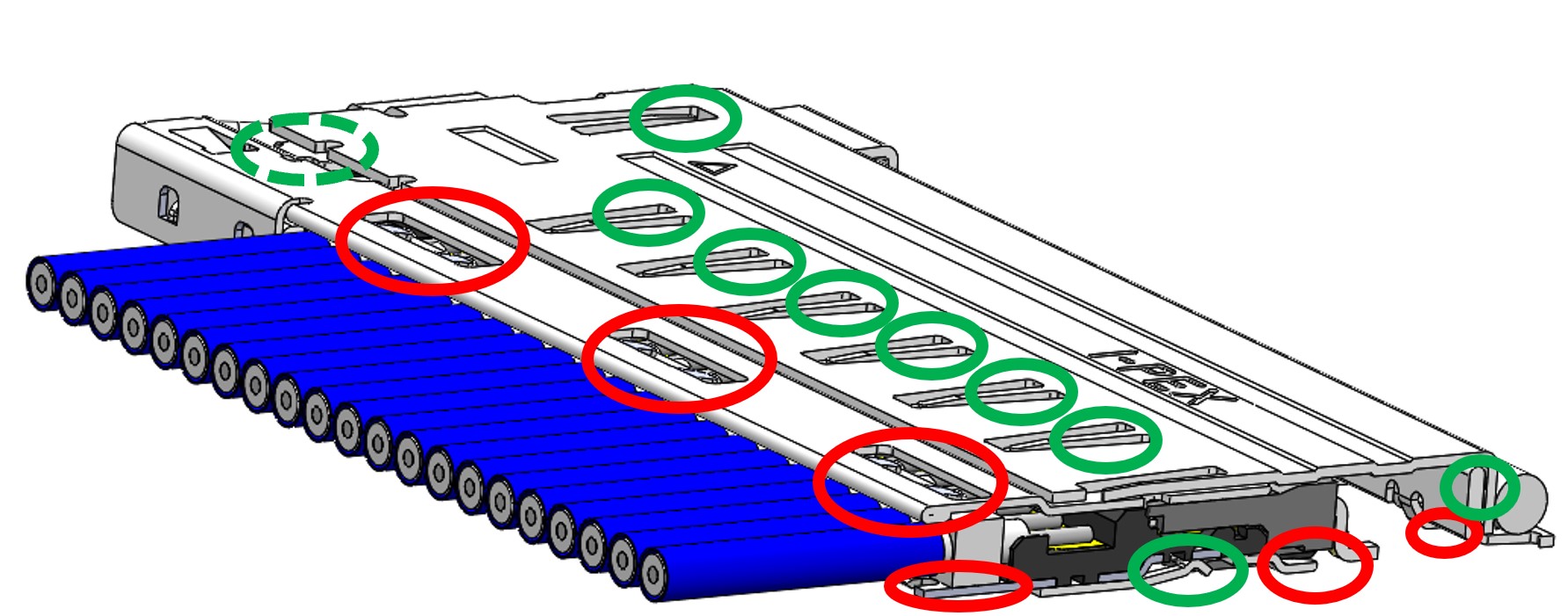

CABLINE-VS_II_FAB1-5.jpg焊接点
1. Wi-Fi 天线

CABLINE-VS_II_FAB1-6.jpg机械式触点
2. 高速数据传输

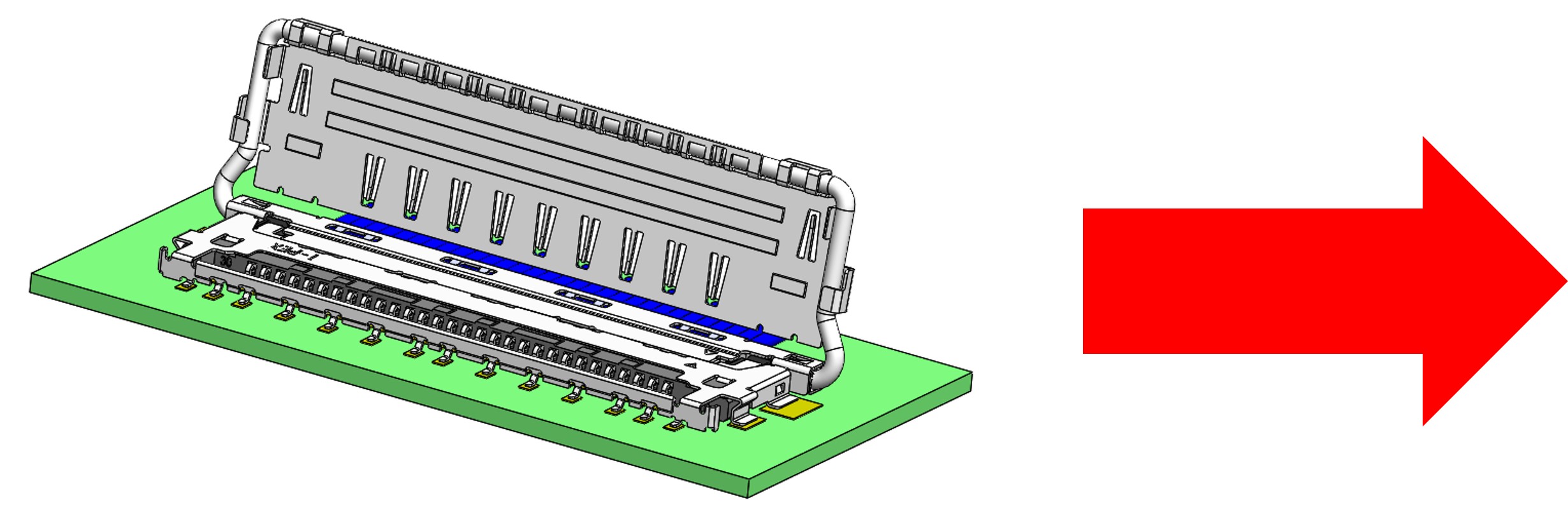

机械式锁扣罩防止连接器不完全嵌合及脱落

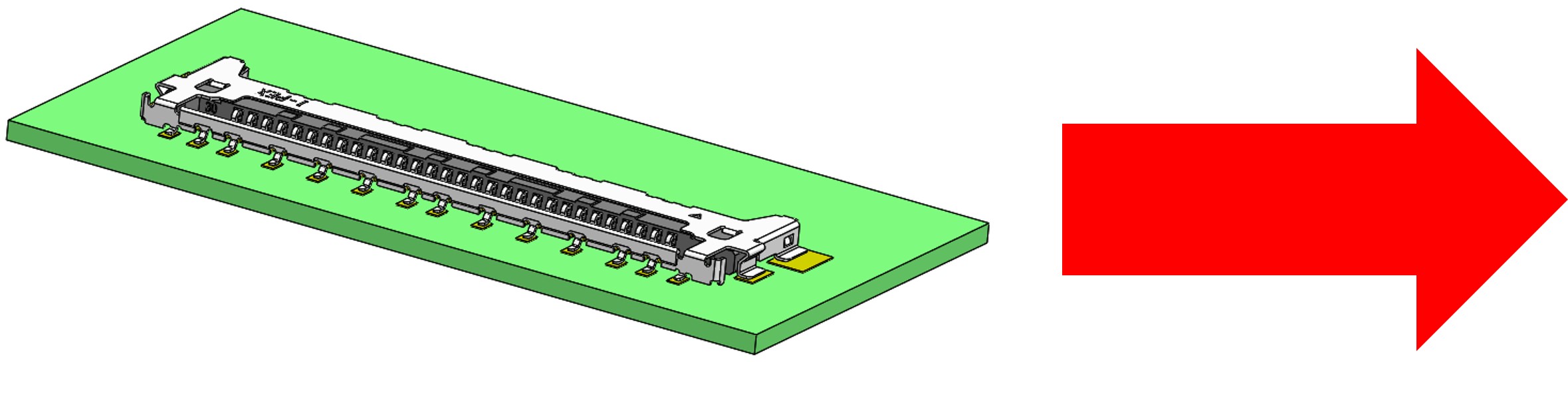

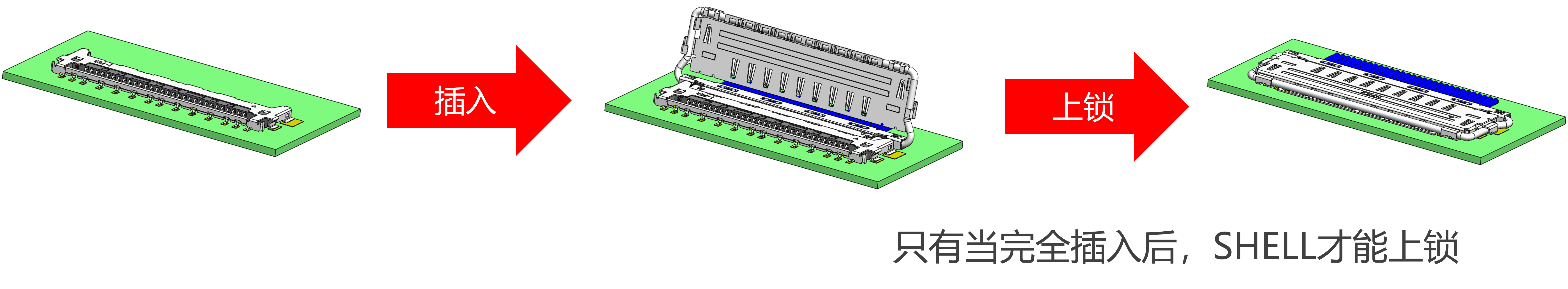

只有当完全插入后，SHELL才能上锁

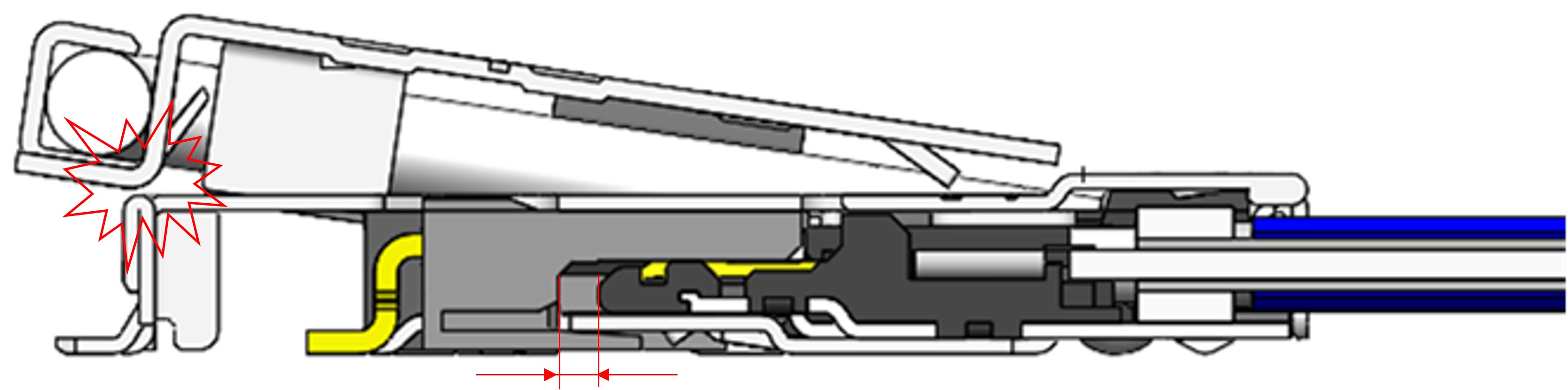

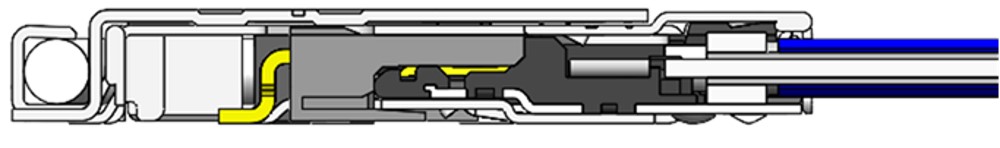

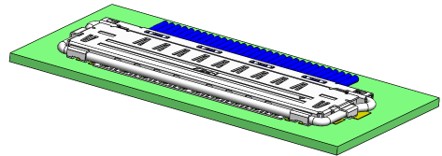

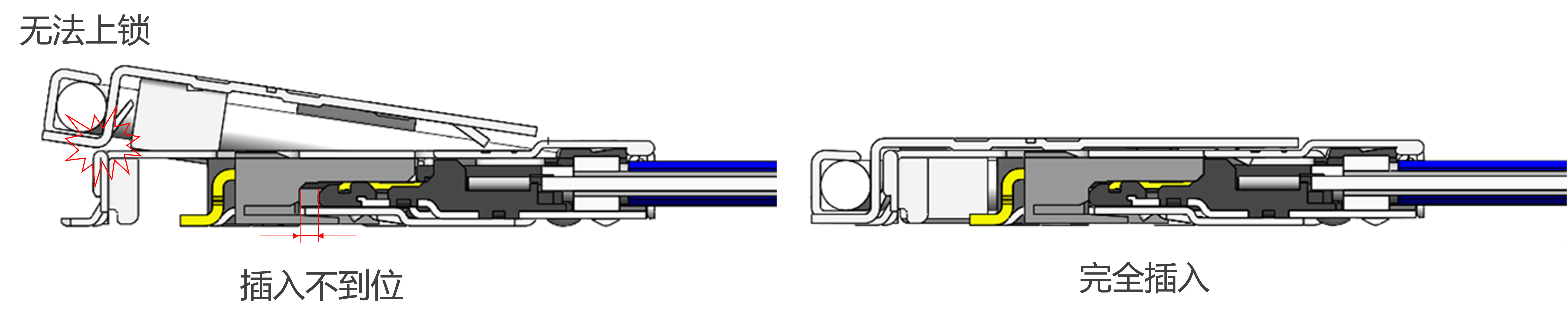

插入不到位, 完全插入



高速率传输, PCIe Gen5 32 GT/s/lane应用的理想之选

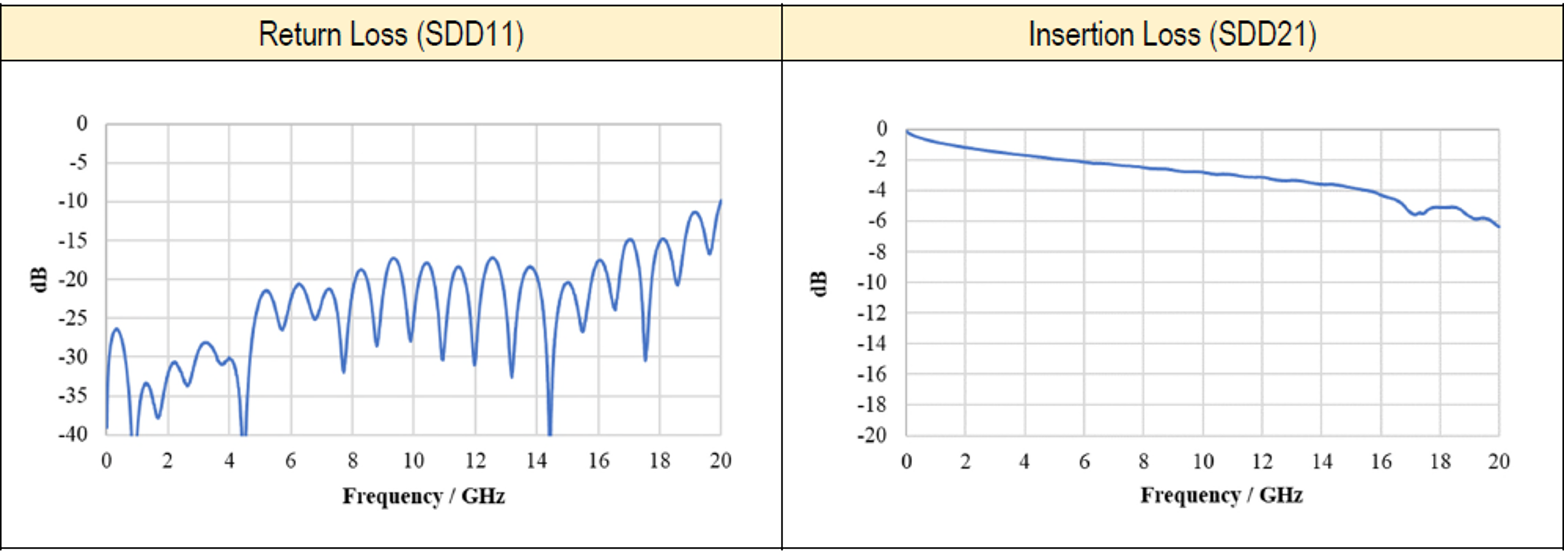

Measurement results

Connector : CABLINE-VS II 40P
FPC : Micro-coaxial cable
AWG #40, 45 ohm, Length : 100 mm
Pin Assignment : GSSGSSG

 CABLINE-VS II FAB3 ALL





Transmission Speed (Reference Only) 32 GT/s/lane NRZ
Contact Pitch
0.5 mm
Mating Type / Direction
Horizontal
Mated Height
Nom. 0.95 +/- 0.25 mm
Available Pin Count Signal: 20, 30, 40
Depth
6.7 mm
Width
6.85 + (0.5 x pin count) mm
Operating Temperature
-40 to 105℃ (233 to 378 K)
Cable Size (Micro-Coaxial)
AWG 36AWG 38AWG 40AWG 42AWG 44
Cable Size (Twinaxial)
AWG 40
Cable Size (Discrete)
AWG 32AWG 34AWG 36
Current Rating
[AWG 42] 0.24 A/per contact[AWG 40] 0.3 A/per contact[AWG 38] 0.5 A/per contact[AWG 36] 0.8 A/per contact[AWG 34] 1.0 A/per contact for power[AWG 32] 1.0 A/per contact for power
Applicable Standards (Reference Only)
PCIe Gen5 (32 GT/s/lane)USB4 Gen 4 (40 Gbps/lane PAM3)Thunderbolt 5 (40 Gbps/lane PAM3)USB4 Gen 3 (20 Gbps/lane)DisplayPort UHBR20 (20 Gbps/lane)V-By-One US (16 Gbps/lane)HDMI 2.1 (12 Gbps/lane)USB 3.2 Gen 2 (10 Gbps/lane)eDP HBR 3 (8.1 Gbps)eDP HBR 2 (5.4 Gbps/lane)USB 3.1 Gen 1 (5 Gbps/lane)HDMI 2.0 (6 Gbps/lane)V-By-One HS 1.4 (4 Gbps/lane)HDMI 1.3 (3.4 Gbps/lane)eDP (2.7 Gbps/lane)MiPi standards
Full EMI Shielding (ZenShield®)
Yes
Mechanical lock
Yes
Automotive Standards LV214 (40P tested. PG17 Dynamic Loading evaluation passed)

推荐料号

若列表中查询不到您要查找的料号，请使用调查表询问。



DIAGRAMS_CABLINE-VS_II



CABLINE-VS II RECOMMENDED PART NUMBERS

Part Number Description PART NUMBERS Weight (mg)
CABLINE-VS II plug cable assembly 20pin 20846-020T-01 204.100
CABLINE-VS II plug cable assembly 30pin 20846-030T-01 261.407
CABLINE-VS II plug cable assembly 40pin 20846-040T-01 318.752
CABLINE-VS II plug housing 20pin 20847-020T-01 46.25
CABLINE-VS II plug housing 30pin 20847-030T-01 62.931
CABLINE-VS II plug housing 40pin 20847-040T-01 79.488
CABLINE-VS II plug shell A 20pin 3427-0201 27.47
CABLINE-VS II plug shell A 30pin 3427-0301 36.6
CABLINE-VS II plug shell A 40pin 3427-0401 45.801
CABLINE-VS II plug lock bar assembly 20pin 20848-020T-01 130.38
CABLINE-VS II plug lock bar assembly 30pin 20848-030T-01 161.876
CABLINE-VS II plug lock bar assembly 40pin 20848-040T-01 193.463
CABLINE-VS II receptacle 20pin 20849-020E-01 85.23
CABLINE-VS II receptacle 30pin 20849-030E-01 112.322
CABLINE-VS II receptacle 40pin 20849-040E-01 140.232



CABLINE-VS II SAMPLE HARNESS FOR EVALUATION PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-VS II harness 20pin micro-coaxial 40AWG L=200mm 1-N 81619-100B-02-D 1919
CABLINE-VS II harness 30pin micro-coaxial 40AWG L=100mm 1-N 82188-100B-02-D -
CABLINE-VS II harness 30pin micro-coaxial 40AWG L=200mm 1-N 81457-100B-02-D 2756.4
CABLINE-VS II harness 30pin micro-coaxial 40AWG L=300mm 1-N 82291-100B-02-D -
CABLINE-VS II harness 40pin micro-coaxial 40AWG L=100mm 1-N 82660-100B-02-D -
CABLINE-VS II harness 40pin micro-coaxial 40AWG L=200mm 1-N 81458-100B-02-D 3625.5
CABLINE-VS II harness 40pin micro-coaxial 40AWG L=300mm 1-N 82661-100B-02-D -
CABLINE-VS II harness 30pin micro-coaxial 40AWG L=100mm 1-1  82693-100B-01-D -
CABLINE-VS II harness 30pin micro-coaxial 40AWG L=200mm 1-1  82694-100B-01-D -
CABLINE-VS II harness 30pin micro-coaxial 40AWG L=300mm 1-1  82695-100B-01-D -
CABLINE-VS II harness 40pin micro-coaxial 40AWG L=100mm 1-1  82696-100B-01-D -
CABLINE-VS II harness 40pin micro-coaxial 40AWG L=200mm 1-1  82697-100B-01-D -
CABLINE-VS II harness 40pin micro-coaxial 40AWG L=300mm 1-1  82698-100B-01-D -



其他料号
请注意:此列表可能包含了暂时还没有可用样品的产品和不再销售的型号。
如您有新的询价，请参考上述推荐的料号。



CABLINE-VS II OTHER PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-VS II plug housing 20pin 20847-020T-02 46.250
CABLINE-VS II plug housing 30pin 20847-030T-02 62.931
CABLINE-VS II plug housing 40pin 20847-040T-02 　
CABLINE-VS II plug housing 20pin 21071-020T-01 46.250
CABLINE-VS II plug housing 30pin 21071-030T-01 62.931
CABLINE-VS II plug housing 40pin 21071-040T-01 79.488
CABLINE-VS II plug shell A 20pin 3859-0201 27.470
CABLINE-VS II plug shell A 30pin 3859-0301 36.600
CABLINE-VS II plug shell A 40pin 3859-0401 45.801
CABLINE-VS II lock bar 20pin 21072-020T-01 130.380
CABLINE-VS II lock bar 30pin 21072-030T-01 161.876
CABLINE-VS II lock bar 40pin 21072-040T-01 193.463
CABLINE-VS II receptacle 20pin 20849-020E-02 85.230
CABLINE-VS II receptacle 30pin 20849-030E-02 112.322
CABLINE-VS II receptacle 40pin 20849-040E-02 　
CABLINE-VS II receptacle 20pin 21073-020E-01 85.230
CABLINE-VS II receptacle 30pin 21073-030E-01 112.322
CABLINE-VS II receptacle 40pin 21073-040E-01 140.232
CABLINE-VS II cable assembly 20pin 21070-020E-01 -
CABLINE-VS II cable assembly 30pin 21070-030E-01 -
CABLINE-VS II cable assembly 40pin 21070-040E-01 -
CABLINE-VS II cable assembly 40pin 21070-060E-01 -

SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for CABLINE-VS II 20pin 91579-020B-001 84766 CABLINE-VS_SI_TB-772_Main_(C)

Main Board


CABLINE-VS_SI_TB-772_Thru_(C)
SI Test Board for CABLINE-VS II 30pin 91579-030B-001 84815.34
SI Test Board for CABLINE-VS II 40pin 91579-040B-001 84872.66

CABLINE-VS II EOL PART NUMBERS

Part Number Description EOL P/N EOL feature Alternative P/N Alternative feature
CABLINE-VS II plug lock bar assembly 20pin 20848-020T-02 with black tape 20848-020T-01 without tape
CABLINE-VS II plug lock bar assembly 20pin 20848-020T-03 with blue tape 20848-020T-01 without tape
CABLINE-VS II plug lock bar assembly 30pin 20848-030T-02 with black tape 20848-030T-01 without tape
CABLINE-VS II plug lock bar assembly 30pin 20848-030T-03 with blue tape 20848-030T-01 without tape
CABLINE-VS II receptacle 20pin 20849-020E-01-S MOQ: 500 20849-020E-01 MOQ: 2,000
CABLINE-VS II receptacle 20pin 20849-020E-02-S contact area 0.38 um min Au plating, MOQ: 500 20849-020E-01 contact area 0.03 um min Au plating, MOQ: 8,000
CABLINE-VS II receptacle 30pin 20849-030E-01-S MOQ: 500 20849-030E-01 MOQ: 2,000
CABLINE-VS II receptacle 30pin 20849-030E-02-S contact area 0.38 um min Au plating, MOQ: 500 20849-030E-01 contact area 0.03 um min Au plating, MOQ: 8,000
CABLINE-VS II receptacle 40pin 20849-040E-01-S MOQ: 500 20849-040E-01 MOQ: 2,000
CABLINE-VS II receptacle 40pin 20849-040E-02-S contact area 0.38 um min Au plating, MOQ: 500 20849-040E-01 contact area 0.03 um min Au plating, MOQ: 8,000
