CABLINE®-VS IIF
全屏蔽设计和机械锁扣，适用于高速数据传输 (32 Gbps/lane)，0.5mm 间距, 水平对插款的FPC 型公头连接器
ZenShield® 的全屏蔽设计和多点接地结构，EMC 解决方案的理想选择
机械式锁扣罩防止连接器不完全嵌合及脱落
高速率传输, 32Gbps/lane应用的理想之选
该公座连接器与 CABLINE®-VS II 母座 (20849-0**E-0#) 相匹配。
Contact Pitch:
0.5 mm
Mating Type / Direction:
Horizontal
Mated Height:
Nom. 0.95 +0.25/-0.1 mm
FPC / FFC Thickness:
Contact Area: 0.25 +0.02/-0.03 mmGround Area: 0.37 +0.04/-0.06 mm
下载
-
Specs & Test Reports
-
PCB/FPC Data
-
Symbols(脚位图)和Footprints(封装图)
-
-
-
操作手册
*SI测试板数据位于二维图纸中
ZenShield® 的全屏蔽设计和多点接地结构，EMC 解决方案的理想选择
机械式锁扣罩防止连接器不完全嵌合及脱落
高速率传输, 32Gbps/lane应用的理想之选
|

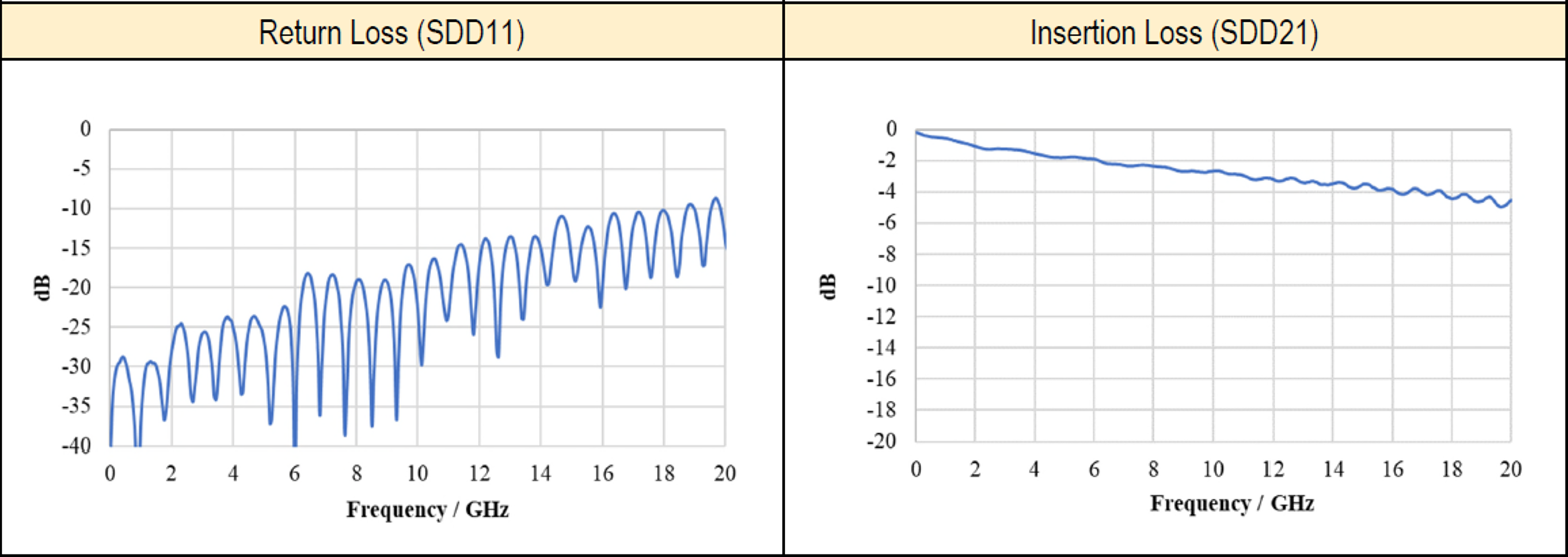

Measurement results |
 |
| Transmission Speed (Reference Only) | 32 Gbps/lane NRZ |
| Contact Pitch | 0.5 mm
|
| Mating Type / Direction | Horizontal
|
| Mated Height | Nom. 0.95 +0.25/-0.1 mm
|
| Available Pin Count | Signal: 30, 40 |
| Depth | 7.27 mm
|
| Width | 6.85 + (0.5 x pin count) mm
|
| Operating Temperature | |
| FPC / FFC Thickness | Contact Area: 0.25 +0.02/-0.03 mmGround Area: 0.37 +0.04/-0.06 mm
|
| FPC Type | Shielded FPC
|
| Current Rating | |
| Applicable Standards (Reference Only) | 32 Gbps/LaneUSB4 Gen 4 (40 Gbps/Lane PAM3)Thunderbolt 5 (40 Gbps/Lane PAM3)USB4 Gen 3 (20 Gbps/Lane)DisplayPort UHBR20 (20 Gbps/Lane)V-By-One US (16 Gbps/Lane)HDMI 2.1 (12 Gbps/Lane)USB 3.2 Gen 2 (10 Gbps/Lane)DisplayPort UHBR3 (8.1 Gbps/Lane)HDMI 2.0 (6 Gbps/Lane)eDP HBR 2 (5.4 Gbps/Lane)USB 3.1 Gen 1 (5 Gbps/Lane)V-By-One HS 1.4 (4 Gbps/Lane)HDMI 1.3 (3.4 Gbps/Lane)eDP (2.7 Gbps/Lane)MiPi standards
|
| Full EMI Shielding (ZenShield®) | Yes
|
| Mechanical lock | Yes
|
| Other Features | 高保持力机械锁扣
|
| FPC | 屏蔽式 |
推荐料号
若列表中查询不到您要查找的料号，请使用调查表询问。

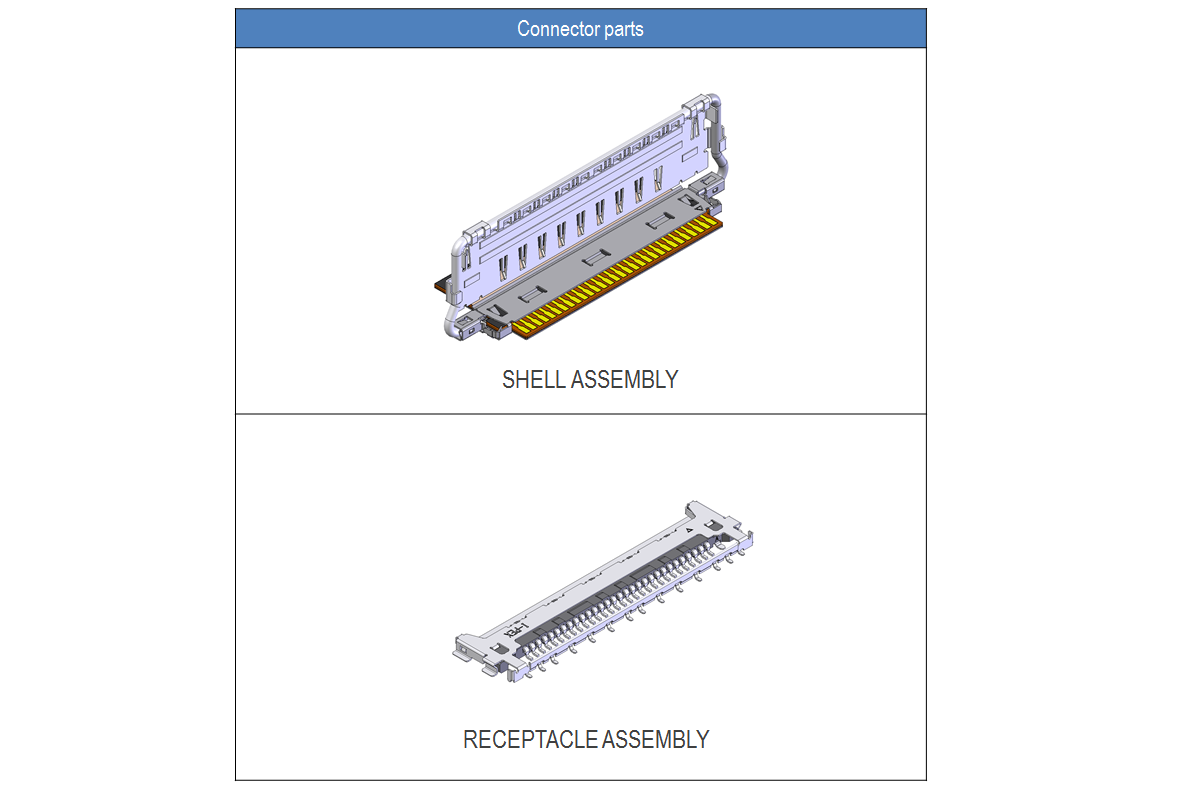

CABLINE-VS IIF RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-VS IIF shell assembly 30pin | 20862-030T-01 | 243.2 |
| CABLINE-VS IIF shell assembly 40pin | 20862-040T-01 | 291 |
| CABLINE-VS II receptacle 30pin | 20849-030E-01 | 112.322 |
| CABLINE-VS II receptacle 40pin | 20849-040E-01 | 140.232 |
