CABLINE®-VSF

样品

Add to My List

带屏蔽功能的机械锁扣和多点接地设计，适用于高速数据传输 (32 Gbps/lane)， 0.5 mm 间距, 水平对插款的FPC 型公头连接器

机械锁扣防止连接器不完全嵌合/未嵌合及脱落

该公座连接器与 CABLINE^®-VS 母座 (20455-0**E-##) 相匹配。

Contact Pitch:

0.5 mm

Mating Type / Direction:

Horizontal

Mated Height:

Nom. 1.0 +/- 0.1 mm

Operating Temperature:

-40 to 85℃ (233 to 358 K)

FPC / FFC Thickness:

Contact Area: 0.28 +0.02/-0.03 mmGround Area: 0.34 +/-0.05 mm

Current Rating:

Signal: 0.3 A/pin

CABLINE-VSF_FAB1-2_ALL

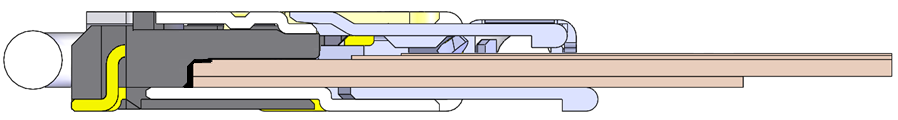

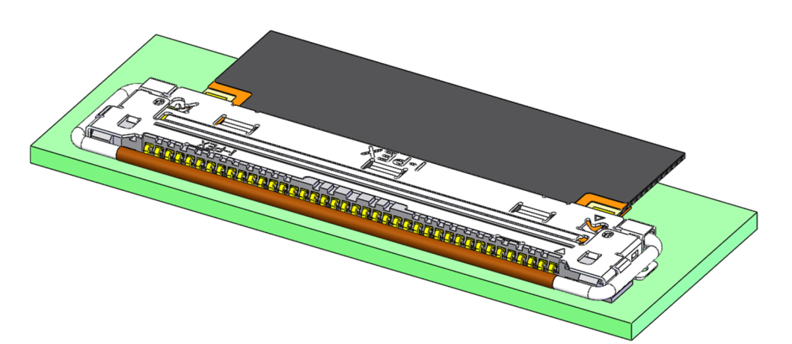

只有当公座完全和母座嵌合时，机械锁扣才能锁上。

1. CABLINE-VS 母座外壳 2. CABLINE-VSF公座外壳

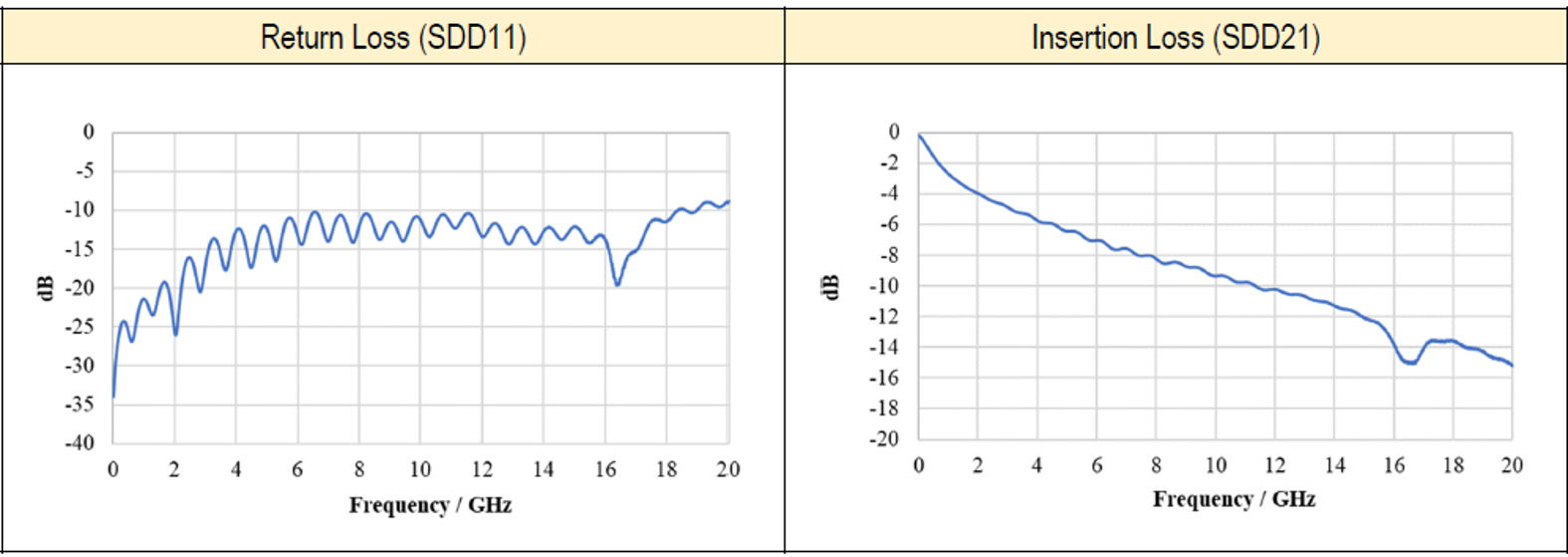

Measurement results

Connector : CABLINE-VSF 40P
FPC : Shielded FPC,
Differential 100 ohm, Length : 100 mm
Pin Assignment : GSSGSSG

Transmission Speed (Reference Only)	32 Gbps/lane NRZ
Contact Pitch	0.5 mm
Mating Type / Direction	Horizontal
Mated Height	Nom. 1.0 +/- 0.1 mm
Available Pin Count	Signal: 30, 40
Depth	5.97 mm
Width	6.15 + (0.5 x pin count) mm
Operating Temperature	-40 to 85℃ (233 to 358 K)
FPC / FFC Thickness	Contact Area: 0.28 +0.02/-0.03 mmGround Area: 0.34 +/-0.05 mm
FPC Type	Shielded/Non-shielded FPC
Current Rating	Signal: 0.3 A/pin
Applicable Standards (Reference Only)	32 Gbps/LaneUSB4 Gen 4 (40 Gbps/Lane PAM3)Thunderbolt 5 (40 Gbps/Lane PAM3)USB4 Gen 3 (20 Gbps/Lane)DisplayPort UHBR20 (20 Gbps/Lane)V-By-One US (16 Gbps/Lane)HDMI 2.1 (12 Gbps/Lane)USB 3.2 Gen 2 (10 Gbps/Lane)DisplayPort UHBR3 (8.1 Gbps/Lane)HDMI 2.0 (6 Gbps/Lane)eDP HBR 2 (5.4 Gbps/Lane)USB 3.1 Gen 1 (5 Gbps/Lane)V-By-One HS 1.4 (4 Gbps/Lane)HDMI 1.3 (3.4 Gbps/Lane)eDP (2.7 Gbps/Lane)MiPi standards
Full EMI Shielding (ZenShield®)	No
Mechanical lock	Yes
Other Features	高保持力机械锁扣
FPC	屏蔽式/非屏蔽式

CABLINE-VSF RECOMMENDED PART NUMBERS

Part Number Description	Part Number	Weight (mg)	Note
CABLINE-VSF shell assembly 30pin	20645-030T-01	167.9
CABLINE-VSF shell assembly 40pin	20645-040T-01	215
CABLINE-VS receptacle 30pin	20455-030E-76	148.718
CABLINE-VS receptacle 40pin	20455-040E-76	183.771

其他料号

CABLINE-VSF Plan to EOL PART NUMBERS
