CABLINE®-VS
VESA标准款连接器，适用于高速数据传输(32Gbps/lane), 机械锁扣， 0.5mm 间距,水平对插款的极细同轴线连接器
高速率传输, 32Gbps/lane应用的理想之选
机械锁扣防止连接器不完全嵌合/未嵌合及脱落
I-PEX VS系列多款连接器可选
Contact Pitch:
0.5
(mm)
嵌合类型:
水平
Mated Height:
1.1
max.
(mm)
可提供Pin数:
20
30
40
50
Micro-Coaxial Cable:
AWG 36
AWG 38
AWG 40
AWG 42
AWG 44
AWG 46
Twinaxial Cable:
AWG 40
Discrete Cable:
AWG 32
AWG 34
AWG 36
AWG 38
AWG 39
AWG 40
AWG 42
AWG 44
AWG 46
下载
高速率传输, 32Gbps/lane应用的理想之选
|
Measurement results |
 |
机械锁扣防止连接器不完全嵌合/未嵌合及脱落
|
|
 |
|||

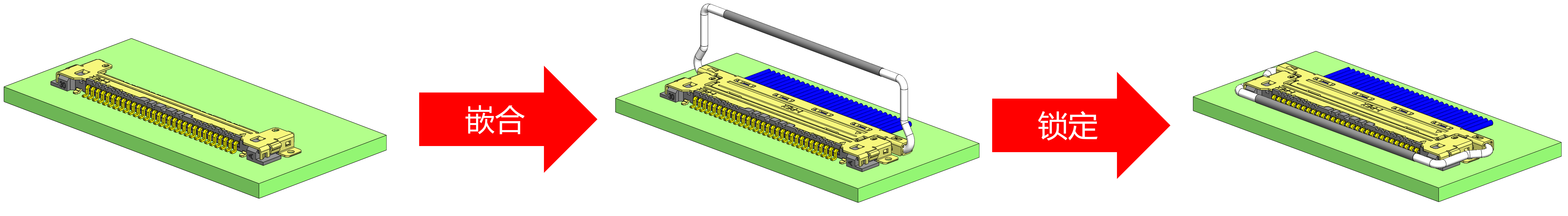

| 只有当公座完全和母座嵌合时，机械锁扣才能锁上 | |||||
|

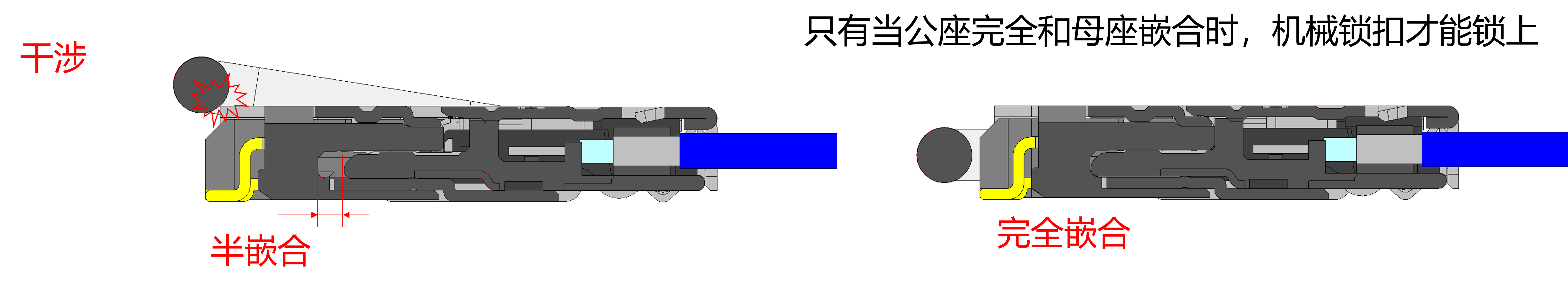

干涉
半嵌合 |
完全嵌合 |
||||
嵌合
锁定
I-PEX VS系列多款连接器可选
I-PEX VS 系列 (0.5 mm 间距, 水平对插方式) |
 |
||||
CABLINE-VS, VS II 的母座和 EVAFLEX® 5-VS 可以安装在相同布局的 PCB 上。 |
 |
 |
 |
||
CABLINE-VS II receptacle |
CABLINE-VS receptacle |
EVAFLEX 5-VS |
|||
CABLINE-VS 母座:
|
 |
 |
 |
||
CABLINE-VS II plug micro-coaxial |
CABLINE-VS IIF plug shielded FPC |
CABLINE-VS
|
CABLINE-VSF
|
EVAFLEX 5-VS
|
|
| Transmission Speed (Reference Only) | 20 Gbps/Lane NRZ |
| Contact Pitch |
0.5
(mm)
|
| 嵌合类型 |
水平
|
| Mated Height |
1.1
max.
(mm)
|
| Available Pin Counts |
20
30
40
50
|
| Depth |
5.8 (mm)
|
| Width Formula |
7.55+(0.5*?p)
|
| Micro-Coaxial Cable |
AWG 36
AWG 38
AWG 40
AWG 42
AWG 44
AWG 46
|
| Discrete Cable |
AWG 32
AWG 34
AWG 36
AWG 38
AWG 39
AWG 40
AWG 42
AWG 44
AWG 46
|
| Shielded FPC / FFC |
No
|
| Current rating | |
| Applicable Standards (Reference Only) |
USB4 Gen3 (20 Gbps/lane)
USB3.1 Gen2 (10 Gbps/Lane)
USB3.1 Gen1 (5 Gbps/Lane)
eDP HBR3 (8.1 Gbps/Lane)
eDP HBR2 (5.4 Gbps/Lane)
eDP (2.7 Gbps/Lane)
HDMI 2.0 (6 Gbps/Lane)
V-By-One HS 1.4 (4 Gbps/Lane)
MiPi standards
Thunderbolt 4 (20Gbps/Lane）
|
| Full EMI Shielding (ZenShield®) |
No
|
| Mechanical lock |
Yes
|
| Automotive Standards | LV214 (50P tested. PG17 Dynamic Loading evaluation passed) |
推荐料号
若列表中查询不到您要查找的料号，请使用调查表询问。
CABLINE-VS RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-VS plug cable assembly 20pin | 20453-220T-03 | 156.425 |
| CABLINE-VS plug cable assembly 30pin | 20453-230T-03 | 209.764 |
| CABLINE-VS plug cable assembly 40pin | 20453-240T-03 | 259.32 |
| CABLINE-VS plug cable assembly 50pin | 20453-250T-03S | 314.562 |
| CABLINE-VS plug housing 20pin | 20454-220T | 54 |
| CABLINE-VS plug housing 30pin | 20454-230T | 76.907 |
| CABLINE-VS plug housing 40pin | 20454-240T | 98 |
| CABLINE-VS plug housing 50pin | 20454-250T-01 | 127 |
| CABLINE-VS plug shell 20pin | 2574-0202 | 45 |
| CABLINE-VS plug shell 30pin | 2574-0302 | 63.799 |
| CABLINE-VS plug shell 40pin | 2574-0402 | 81.32 |
| CABLINE-VS plug shell 50pin | 2574-0502 | 95 |
| CABLINE-VS plug pull bar 20pin | 2576-120-00 | 57.425 |
| CABLINE-VS plug pull bar 30pin | 2576-130-00 | 69.058 |
| CABLINE-VS plug pull bar 40pin | 2576-140-00 | 80 |
| CABLINE-VS plug pull bar 50pin | 2576-150-00 | 92.562 |
| CABLINE-VS receptacle 20pin | 20455-A20E-76 | 116.34 |
| CABLINE-VS receptacle 30pin | 20455-030E-76 | 148.718 |
| CABLINE-VS receptacle 40pin | 20455-040E-76 | 183.771 |
| CABLINE-VS receptacle 50pin | 20455-050E-76 | 218.824 |
CABLINE-VS SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-VS harness 30pin micro-coaxial 40AWG L=100mm | 82189-100B-02-D | - |
| CABLINE-VS harness 30pin micro-coaxial 40AWG L=200mm | 81421-100B-02-D | 2636 |
| CABLINE-VS harness 30pin micro-coaxial 40AWG L=300mm | 82289-100B-02-D | - |
| CABLINE-VS harness 40pin micro-coaxial 40AWG L=100mm | 82190-100B-02-D | - |
| CABLINE-VS harness 40pin micro-coaxial 40AWG L=200mm | 81422-100B-02-D | 3556 |
| CABLINE-VS harness 40pin micro-coaxial 40AWG L=300mm | 82290-100B-02-D | - |
| CABLINE-VS harness 20pin micro-coaxial 40AWG L=200mm | 82067-100B-02-D | - |
| CABLINE-VS harness 50pin micro-coaxial 40AWG L=200mm 1-N | 82450-100B-02-D | - |
其他料号
请注意:此列表可能包含了暂时还没有可用样品的产品和不再销售的型号。
如您有新的询价，请参考上述推荐的料号。
CABLINE-VS OTHER PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-VS cable assembly | 20453-0**T-01 | - |
| CABLINE-VS cable assembly | 20453-0**T-11 | - |
| CABLINE-VS cable assembly | 20453-050T-01S | - |
| CABLINE-VS cable assembly | 20453-050T-11S | - |
| CABLINE-VS cable assembly | 20453-2**T-01 | - |
| CABLINE-VS cable assembly | 20453-2**T-11 | - |
| CABLINE-VS plug cable assembly 50pin | 20453-250T-01S | - |
| CABLINE-VS plug cable assembly 50pin | 20453-250T-11S | - |
| CABLINE-VS plug housing 20pin | 20454-020T | 54.000 |
| CABLINE-VS plug housing 30pin | 20454-030T | 76.907 |
| CABLINE-VS plug housing 40pin | 20454-040T | 98.000 |
| CABLINE-VS plug housing 50pin | 20454-050T-01 | 127.000 |
| CABLINE-VS plug housing 30pin | 20454-130T | 76.907 |
| CABLINE-VS plug housing 40pin | 20454-140T | 98.000 |
| CABLINE-VS receptacle 20pin | 20455-020E-02 | 116.340 |
| CABLINE-VS receptacle 20pin | 20455-020E-12 | 116.340 |
| CABLINE-VS receptacle 30pin | 20455-030E-02 | 148.718 |
| CABLINE-VS receptacle 30pin | 20455-030E-12 | 148.718 |
| CABLINE-VS receptacle 30pin | 20455-030E-14 | 148.718 |
| CABLINE-VS receptacle 30pin | 20455-030E-66 | 148.718 |
| CABLINE-VS receptacle 40pin | 20455-040E-02 | 183.771 |
| CABLINE-VS receptacle 40pin | 20455-040E-12 | 183.771 |
| CABLINE-VS receptacle 40pin | 20455-040E-14 | 183.771 |
| CABLINE-VS receptacle 40pin | 20455-040E-66 | 183.771 |
| CABLINE-VS receptacle 50pin | 20455-050E-02 | 218.824 |
| CABLINE-VS receptacle 50pin | 20455-050E-12 | 218.824 |
| CABLINE-VS receptacle 50pin | 20455-050E-66 | 218.824 |
| CABLINE-VS receptacle 20pin | 20455-A20E-02 | 116.340 |
| CABLINE-VS receptacle 20pin | 20455-A20E-12 | 116.340 |
| CABLINE-VS receptacle 20pin | 20455-A20E-66 | 116.340 |
| CABLINE-VS receptacle 20pin | 20765-A20E-11 | 116.340 |
| CABLINE-VS plug shell 20pin | 2574-020 | 45.000 |
| CABLINE-VS plug shell 30pin | 2574-030 | 63.799 |
| CABLINE-VS plug shell 40pin | 2574-040 | 81.320 |
| CABLINE-VS plug shell 50pin | 2574-050 | 95.000 |
| CABLINE-VS plug shell 20pin | 2574-120 | 45.000 |
| CABLINE-VS plug shell 20pin | 2574-1202 | 45.000 |
| CABLINE-VS plug shell 30pin | 2574-130 | 63.799 |
| CABLINE-VS plug shell 30pin | 2574-1302 | 63.799 |
| CABLINE-VS plug shell 40pin | 2574-140 | 81.320 |
| CABLINE-VS plug shell 40pin | 2574-1402 | 81.320 |
| CABLINE-VS plug shell 50pin | 2574-150 | 95.000 |
| CABLINE-VS plug shell 50pin | 2574-1502 | 69.000 |
| CABLINE-VS plug pull bar 20pin | 2576-020-00 | 54.000 |
| CABLINE-VS plug pull bar 30pin | 2576-030-00 | 63.920 |
| CABLINE-VS plug pull bar 40pin | 2576-040-00 | 73.150 |
| CABLINE-VS plug pull bar 50pin | 2576-050-00 | 84.000 |
| CABLINE-VS plug shell 30pin for inspection | 2657-130 | - |
| CABLINE-VS plug shell 40pin for inspection | 2657-140 |
SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) | Image |
| SI Test Board for CABLINE-VS 20pin | 91575-020B-001 | 84823.6 |
Main Board
|
| SI Test Board for CABLINE-VS 30pin | 91575-030B-001 | 84888 | |
| SI Test Board for CABLINE-VS 40pin | 91575-040B-001 | 84956 | |
| SI Test Board for CABLINE-VS 50pin | 91575-050B-001 | 85029.6 |
CABLINE-VS Plan to EOL PART NUMBERS
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| CABLINE-VS cable assembly 20pin | 20453-320T-13 | 20453-220T-03 | plating, with/without datum mark |
| CABLINE-VS cable assembly 30pin | 20453-330T-13 | 20453-230T-03 | plating, with/without datum mark |
| CABLINE-VS cable assembly 40pin | 20453-340T-13 | 20453-240T-03 | plating, with/without datum mark |
| CABLINE-VS cable assembly 50pin | 20453-350T-13S | 220453-250T-03S | plating, with/without datum mark |
| CABLINE-VS plug housing 20pin | 20454-320T | 20454-220T | plating |
| CABLINE-VS plug housing 30pin | 20454-330T | 20454-230T | plating |
| CABLINE-VS plug housing 40pin | 20454-340T | 20454-240T | plating |
| CABLINE-VS plug housing 50pin | 20454-350T-01 | 20454-250T-01 | plating |
| CABLINE-VS receptacle 30pin | 20455-030E-02-S | 20455-030E-76 | plating, MOQ, without datum mark |
| CABLINE-VS receptacle 30pin | 20455-030E-12-S | 20455-030E-76 | plating, MOQ |
| CABLINE-VS receptacle 30pin | 20455-030E-66-S | 20455-030E-76 | MOQ, without datum mark |
| CABLINE-VS receptacle 30pin | 20455-030E-68 | 20455-030E-76 | plating, without datum mark |
| CABLINE-VS receptacle 30pin | 20455-030E-76-S | 20455-030E-76 | MOQ |
| CABLINE-VS receptacle 30pin | 20455-030E-78 | 20455-030E-76 | plating |
| CABLINE-VS receptacle 30pin | 20455-030E-89 | 20455-030E-76 | plating, without datum mark |
| CABLINE-VS receptacle 30pin | 20455-030E-89-S | 20455-030E-76 | plating, MOQ, without datum mark |
| CABLINE-VS receptacle 30pin | 20455-030E-99 | 20455-030E-76 | plating |
| CABLINE-VS receptacle 30pin | 20455-030E-99-S | 20455-030E-76 | plating, MOQ |
| CABLINE-VS receptacle 40pin | 20455-040E-02-S | 20455-040E-76 | plating, MOQ, without datum mark |
| CABLINE-VS receptacle 40pin | 20455-040E-12-S | 20455-040E-76 | plating, MOQ |
| CABLINE-VS receptacle 40pin | 20455-040E-66-S | 20455-040E-76 | MOQ, datum mark |
| CABLINE-VS receptacle 40pin | 20455-040E-68 | 20455-040E-76 | plating, without datum mark |
| CABLINE-VS receptacle 40pin | 20455-040E-76-S | 20455-040E-76 | MOQ |
| CABLINE-VS receptacle 40pin | 20455-040E-78 | 20455-040E-76 | plating |
| CABLINE-VS receptacle 40pin | 20455-040E-89 | 20455-040E-76 | plating, without datum mark |
| CABLINE-VS receptacle 40pin | 20455-040E-89-S | 20455-040E-76 | plating, MOQ, without datum mark |
| CABLINE-VS receptacle 40pin | 20455-040E-99 | 20455-040E-76 | plating |
| CABLINE-VS receptacle 40pin | 20455-040E-99-S | 20455-040E-76 | plating, MOQ |
| CABLINE-VS receptacle 50pin | 20455-050E-02-S | 20455-050E-76 | plating, MOQ, without datum mark |
| CABLINE-VS receptacle 50pin | 20455-050E-12-S | 20455-050E-76 | plating, MOQ |
| CABLINE-VS receptacle 50pin | 20455-050E-66-S | 20455-050E-76 | MOQ, without datum mark |
| CABLINE-VS receptacle 50pin | 20455-050E-68 | 20455-050E-76 | plating, without datum mark |
| CABLINE-VS receptacle 50pin | 20455-050E-76-S | 20455-050E-76 | MOQ |
| CABLINE-VS receptacle 50pin | 20455-050E-78 | 20455-050E-76 | plating |
| CABLINE-VS receptacle 50pin | 20455-050E-89 | 20455-050E-76 | plating, without datum mark |
| CABLINE-VS receptacle 50pin | 20455-050E-89-S | 20455-050E-76 | plating, MOQ, without datum mark |
| CABLINE-VS receptacle 50pin | 20455-050E-99 | 20455-050E-76 | plating |
| CABLINE-VS receptacle 50pin | 20455-050E-99-S | 20455-050E-76 | plating, MOQ |
| CABLINE-VS receptacle 20pin | 20455-A20E-02-S | 20455-A20E-76 | plating, MOQ, without datum mark |
| CABLINE-VS receptacle 20pin | 20455-A20E-12-S | 20455-A20E-76 | plating, MOQ |
| CABLINE-VS receptacle 20pin | 20455-A20E-22 | 20455-A20E-76 | plating, without datum mark |
| CABLINE-VS receptacle 20pin | 20455-A20E-66-S | 20455-A20E-76 | MOQ, without datum mark |
| CABLINE-VS receptacle 20pin | 20455-A20E-76-S | 20455-A20E-76 | MOQ |
| CABLINE-VS receptacle 20pin | 20455-A20E-89-S | 20455-A20E-76 | plating, MOQ, without datum mark |
| CABLINE-VS receptacle 20pin | 20455-A20E-99 | 20455-A20E-76 | shape, without datum mark |
| CABLINE-VS receptacle 20pin | 20455-A20E-99-S | 20455-A20E-76 | plating, MOQ |
| CABLINE-VS cable assembly 20pin | 20704-020T-01 | 20453-220T-03 | plating, with/without datum mark |
| CABLINE-VS cable assembly 30pin | 20704-030T-01 | 20453-230T-03 | plating, with/without datum mark |
| CABLINE-VS cable assembly 30pin | 20704-040T-01 | 20453-240T-03 | plating, with/without datum mark |
| CABLINE-VS cable assembly 20pin | 20704-020T-11 | 20453-220T-03 | plating, with/without datum mark |
| CABLINE-VS cable assembly 30pin | 20704-030T-11 | 20453-230T-03 | plating, with/without datum mark |
| CABLINE-VS cable assembly 30pin | 20704-040T-11 | 20453-240T-03 | plating, with/without datum mark |
| CABLINE-VS cable assembly 50pin | 20704-050T-01S | 20453-250T-03S | plating, with/without datum mark |
| CABLINE-VS cable assembly 50pin | 20704-050T-11S | 20453-250T-03S | plating, with/without datum mark |
| CABLINE-VS receptacle 20pin | 20765-A20E-01 | 20455-A20E-76 | plating, without datum mark |
| CABLINE-VS plug shell 20pin | 2574-0203 | 2574-0202 | plating |
| CABLINE-VS plug shell 30pin | 2574-0303 | 2574-0302 | plating |
| CABLINE-VS plug shell 40pin | 2574-0403 | 2574-0402 | plating |
| CABLINE-VS plug shell 50pin | 2574-0503 | 2574-0502 | plating |
| CABLINE-VS plug shell 20pin | 2574-1203 | 2574-0202 | with/without datum mark |
| CABLINE-VS plug shell 30pin | 2574-1303 | 2574-0302 | with/without datum mark |
| CABLINE-VS plug shell 40pin | 2574-1403 | 2574-0402 | with/without datum mark |
| CABLINE-VS plug shell 50pin | 2574-1503 | 2574-0502 | with/without datum mark |
| CABLINE-VS plug alignment cover 30pin | 3273-0301 | Contact us | |
| CABLINE-VS plug alignment cover 40pin | 3273-0401 | Contact us | |
| CABLINE-VS plug alignment cover 50pin | 3273-0501 | Contact us | |
| CABLINE-VS plug lock bar for alignment cover 30pin | 3274-0301 | Contact us | |
| CABLINE-VS plug lock bar for alignment cover 40pin | 3274-0401 | Contact us | |
| CABLINE-VS plug lock bar for alignment cover 50pin | 3274-0501 | Contact us | |
| CABLINE-VS shell 40pin | 2699-040 | 2574-0402 | shape |
| CABLINE-VS shell 40pin | 2699-040L | 2574-0402 | shape |
| CABLINE-VS shell 40pin | 2699-140 | 2574-0402 | shape |
| CABLINE-VS shell 40pin | 2699-140L | 2574-0402 | shape |
CABLINE-VS EOL PART NUMBERS
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| CABLINE-VS receptacle 20pin | 20455-020E-66 | 20455-A20E-76 | shape, without datum mark |
| CABLINE-VS receptacle 20pin | 20455-020E-76 | 20455-A20E-76 | shape, without datum mark |
| CABLINE-VS receptacle type 20pin | 20765-020E-01 | 20455-A20E-76 | shape, plating, without datum mark |
| CABLINE-VS receptacle type 20pin | 20765-020E-11 | 20455-A20E-76 | shape, plating |
| CABLINE-VS plug pull bar 20pin | 2576-020 | 2576-120-00 | MOQ, with insulation |
| CABLINE-VS plug pull bar 30pin | 2576-030 | 2576-130-00 | MOQ, with insulation |
| CABLINE-VS plug pull bar 40pin | 2576-040 | 2576-140-00 | MOQ, with insulation |
| CABLINE-VS plug pull bar 50pin | 2576-050 | 2576-150-00 | MOQ, with insulation |
| CABLINE-VS plug pull bar 20pin | 2576-120 | 2576-120-00 | MOQ |
| CABLINE-VS plug pull bar 30pin | 2576-130 | 2576-130-00 | MOQ |
| CABLINE-VS plug pull bar 40pin | 2576-140 | 2576-140-00 | MOQ |
| CABLINE-VS plug pull bar 50pin | 2576-150 | 2576-150-00 | MOQ |
| CABLINE-VS plug alignment cover 30pin | 2658-030 | Contact us | |
| CABLINE-VS plug alignment cover 40pin | 2658-040 | Contact us |
Download
