EVAFLEX® 5-VS
自动锁扣，高温款可选(105℃)，高速数据传输，水平插拔, 0.5 mm 间距带屏蔽罩的 FFC/FPC连接器

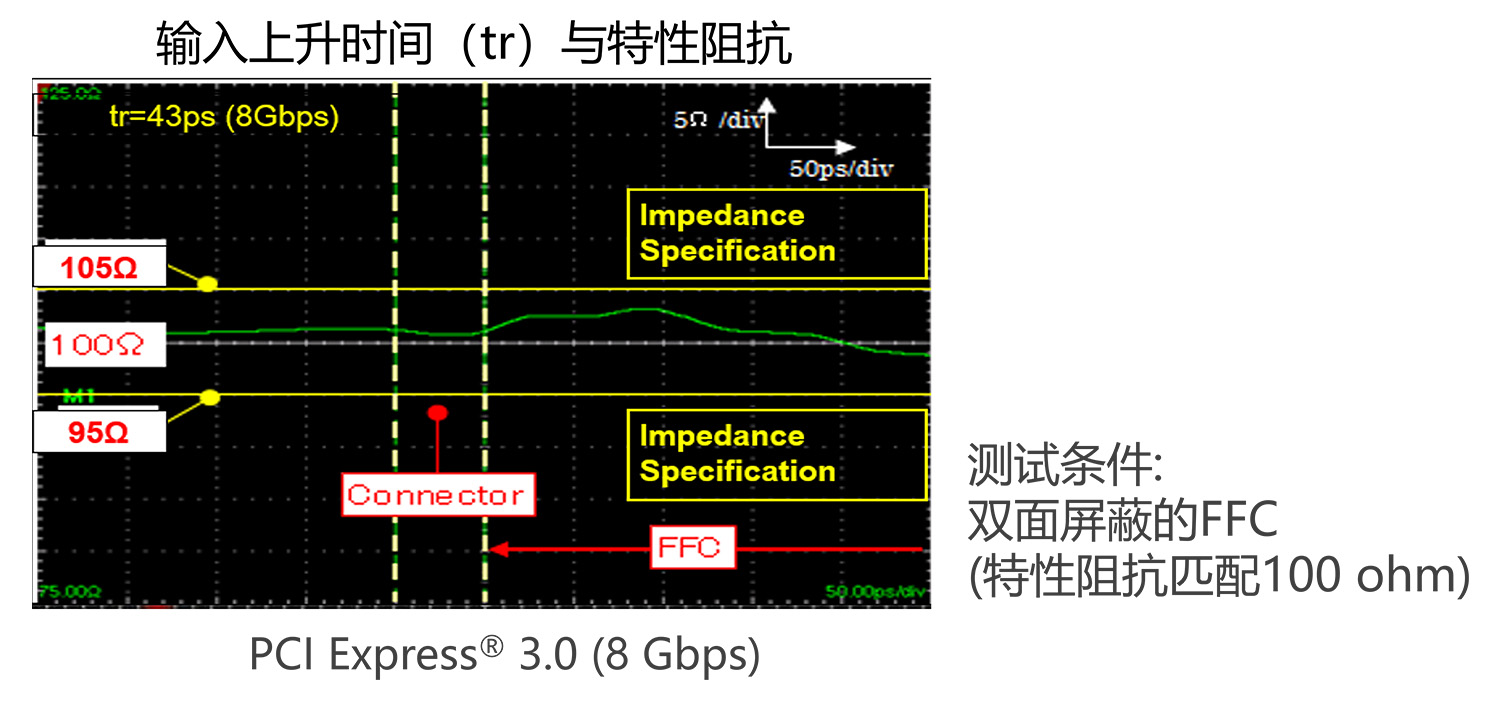

支持8+ Gbps 高速数据传输

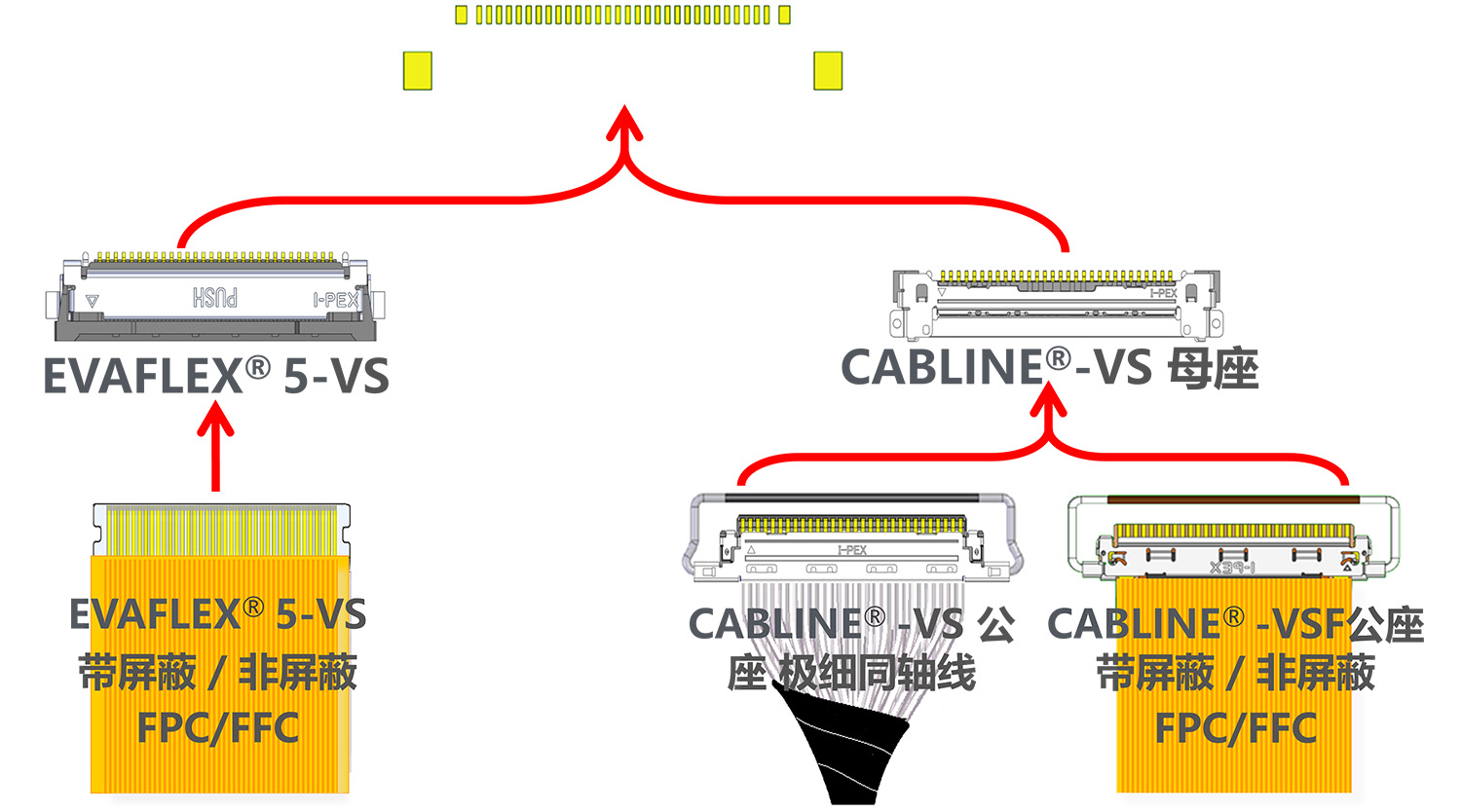

焊盘兼容CABLINE®-VS系列产品(VESA标准笔记本电脑LCD面板用连接器)

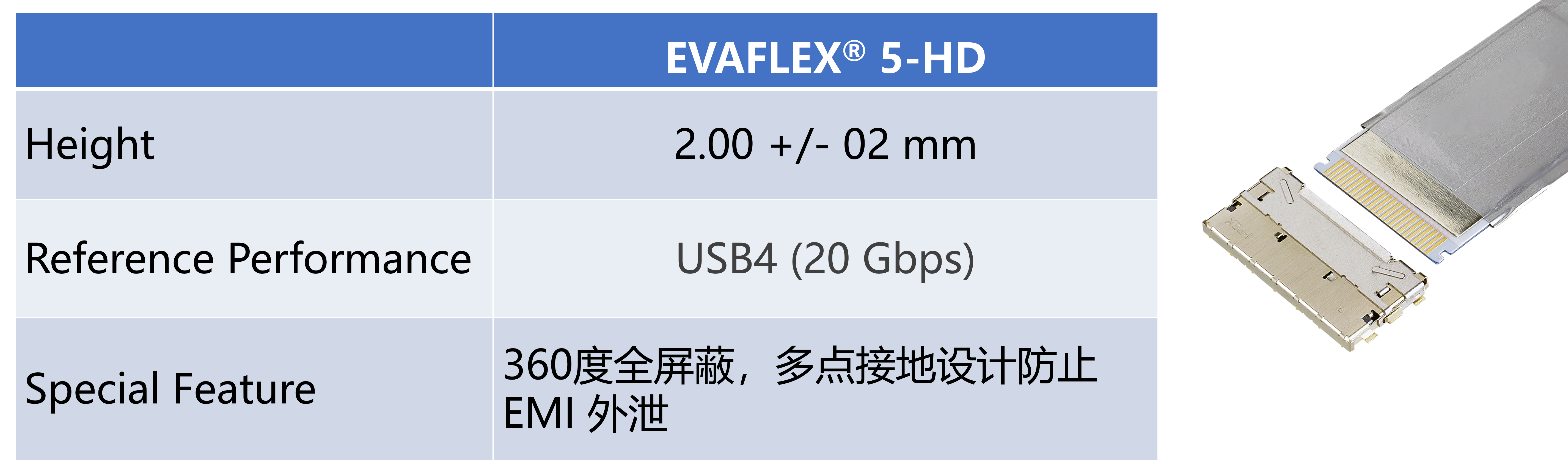

EVAFLEX® 系列: 更多选择的自动锁扣连接器
Contact Pitch:
0.5 mm
Mating Type / Direction:
Horizontal
Height:
Nom. 1.9 +/- 0.1 mm
FPC / FFC Thickness:
0.33 +/- 0.03 mm
下载
-
Specs & Test Reports
-
PCB/FPC Data
-
Symbols(脚位图)和Footprints(封装图)
-
-
FPC设计
-
-
-
操作手册
*SI测试板数据位于二维图纸中
支持8+ Gbps 高速数据传输
焊盘兼容CABLINE®-VS系列产品(VESA标准笔记本电脑LCD面板用连接器)
EVAFLEX® 系列: 更多选择的自动锁扣连接器
| Product Type | 自动锁扣
|
| Contact Pitch | 0.5 mm
|
| Mating Type / Direction | Horizontal
|
| Height | Nom. 1.9 +/- 0.1 mm
|
| Available Pin Count | Signal: 10, 15, 20, 24, 30, 40, 50 |
| Depth | 4.95 mm
|
| Width | 6.25 + (0.5 x pin count) mm
|
| Operating Temperature | |
| FPC / FFC Thickness | 0.33 +/- 0.03 mm
|
| FPC Type | Non-Shielded
|
| FFC Type | Shielded/Non-shielded
|
| Current Rating | |
| Applicable Standards (Reference Only) | USB3.1 Gen 1 (5 Gbps/Lane)eDP HBR3 (8.1 Gbps/Lane)eDP HBR2 (5.4 Gbps/Lane)eDP (2.7 Gbps)HDMI 2.0 (6 Gbps/Lane)V-By-One HS 1.4 (4 Gbps)MiPi standards, USCAR II Vibration & Shock V1
|
| Full EMI Shielding (ZenShield®) | No
|
| Mechanical lock | Yes
|
| Automotive Standards | USCAR-2 (40P tested. 5.4.6 (Vibration and Mechanical Shock (V1)) evaluation passed) |
推荐料号
若列表中查询不到您要查找的料号，请使用调查表询问。
其他料号
请注意:此列表可能包含了暂时还没有可用样品的产品和不再销售的型号。
如您有新的询价，请参考上述推荐的料号。
EVAFLEX 5-VS OTHER PART NUMBERS
| Part Number Description | PART NUMBERS | Weight (mg) | Note |
| EVAFLEX 5-VS standard 10pin | 20535-010E-01 | 145.36 | |
| EVAFLEX 5-VS standard 10pin | 20535-010E-02 | 145.36 | |
| EVAFLEX 5-VS standard 15pin | 20535-015E-01 | 181.82 | |
| EVAFLEX 5-VS standard 15pin | 20535-015E-02 | 181.82 | |
| EVAFLEX 5-VS standard 20pin | 20535-020E-01 | 220.59 | |
| EVAFLEX 5-VS standard 20pin | 20535-020E-02 | 220.59 | |
| EVAFLEX 5-VS standard 24pin | 20535-024E-01 | 249.64 | |
| EVAFLEX 5-VS standard 24pin | 20535-024E-02 | 249.64 | |
| EVAFLEX 5-VS standard 30pin | 20535-030E-01 | 296.26 | |
| EVAFLEX 5-VS standard 30pin | 20535-030E-02 | 296.26 | |
| EVAFLEX 5-VS standard 40pin | 20535-040E-01 | 373.64 | |
| EVAFLEX 5-VS standard 40pin | 20535-040E-02 | 373.64 | |
| EVAFLEX 5-VS Type CH 105℃ 10pin | 20720-010E-02 | 145.360 | |
| EVAFLEX 5-VS Type CH 105℃ 15pin | 20720-015E-02 | 181.820 | |
| EVAFLEX 5-VS Type CH 105℃ 20pin | 20720-020E-02 | 220.590 | |
| EVAFLEX 5-VS Type CH105℃ 24pin | 20720-024E-02 | 249.640 | |
| EVAFLEX 5-VS Type CH 105℃ 30pin | 20720-030E-02 | 296.260 | |
| EVAFLEX 5-VS Type CH 105℃ 40pin | 20720-040E-02 | 373.640 | |
| EVAFLEX 5-VS Robust type 105℃ 30pin | 20893-030E-02 | - | |
| EVAFLEX 5-VS Robust type 105℃ 40pin | 20893-040E-02 | 352.4 | |
| EVAFLEX 5-VS Robust type 105℃ 50pin | 20893-050E-02 | 442.2 |
SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) | Image |
| SI Test Board for EVAFLEX5-VS 10pin | 91570-010B-001 | 84888.78 |
|
| SI Test Board for EVAFLEX5-VS 15pin | 91570-015B-001 | 84960.44 | |
| SI Test Board for EVAFLEX5-VS 20pin | 91570-020B-001 | 85037.54 | |
| SI Test Board for EVAFLEX5-VS 24pin | 91570-024B-001 | 85099.08 | |
| SI Test Board for EVAFLEX5-VS 30pin | 91570-030B-001 | 85193.3 | |
| SI Test Board for EVAFLEX5-VS 40pin | 91570-040B-001 | 85344.7 |
SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) | Image |
| SI Test Board for EVAFLEX 5-VS TYPE CH 10pin | 91570-010B-002 | 84888.76 |
|
| SI Test Board for EVAFLEX 5-VS TYPE CH 15pin | 91570-015B-002 | 84960.4 | |
| SI Test Board for EVAFLEX 5-VS TYPE CH 20pin | 91570-020B-002 | 85037.48 | |
| SI Test Board for EVAFLEX 5-VS TYPE CH 24pin | 91570-024B-002 | 85099.02 | |
| SI Test Board for EVAFLEX 5-VS TYPE CH 30pin | 91570-030B-002 | 85193.22 | |
| SI Test Board for EVAFLEX 5-VS TYPE CH 40pin | 91570-040B-002 | 85344.6 |
SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) | Image |
| SI Test Board for EVAFLEX 5-VS TYPE R 30pin | 91570-030B-003 | 85190.92 |
|
| SI Test Board for EVAFLEX 5-VS TYPE R 40pin | 91570-040B-003 | 85341.58 | |
| SI Test Board for EVAFLEX 5-VS TYPE R 50pin | 91570-040B-003 | 85341.58 |
