EVAFLEX® 5-SE-G VT
单手作业的自动锁扣特色，高温环境(125℃)，高速数据传输，垂直插拔,0.5 mm 间距带屏蔽的FFC/FPC连接器

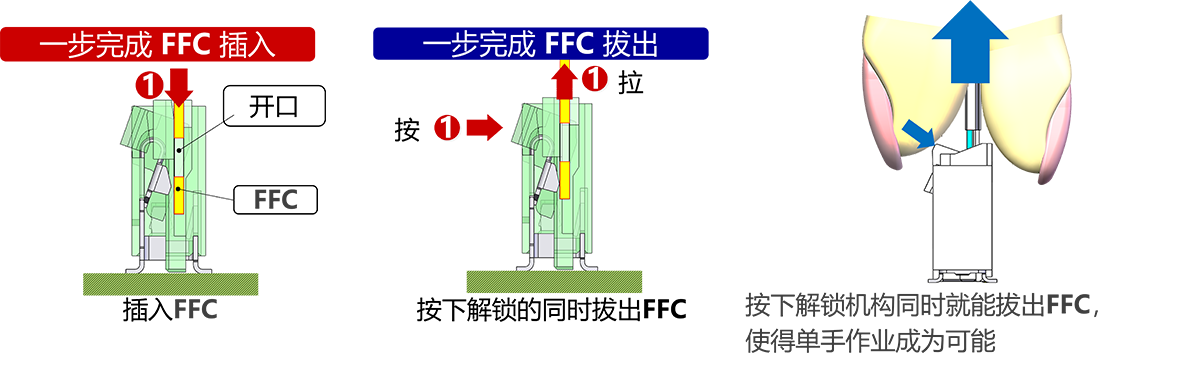

自动锁扣的设计可实现单手作业,适用于手动 或机器人装配
专为高速传输设计(4+ Gbps V-by-One)
用于汽车和工业应用的高耐热性和高耐用性连接器
*操作方法请参考"如何嵌合和拔出"视频。
Contact Pitch:
0.5
(mm)
嵌合类型:
垂直
Height:
6.7
max.
(6.6 nom.)
(mm)
可提供Pin数:
20
30
40
50
60
FPC/FFC Thickness:
0.3
下载
自动锁扣的设计可实现单手作业,适用于手动 或机器人装配
专为高速传输设计(4+ Gbps V-by-One)
 |
Hold Down结构带有接地pin可作为接地使用，
|

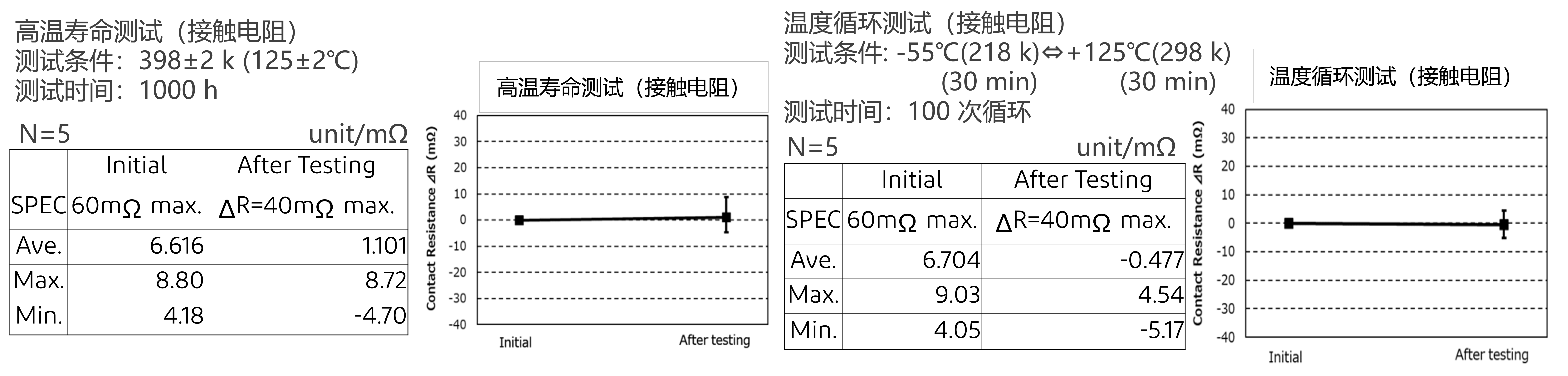

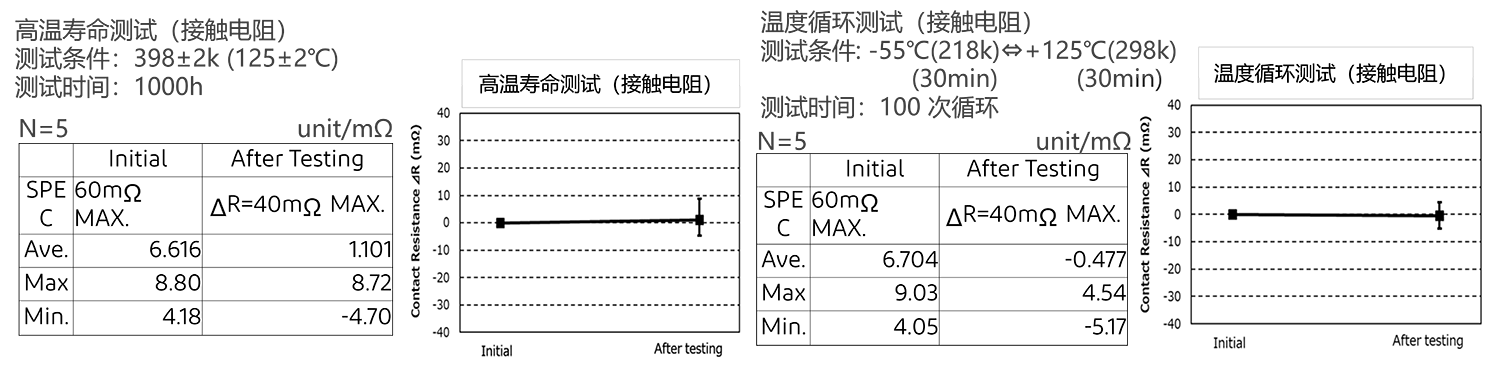

用于汽车和工业应用的高耐热性和高耐用性连接器
即使在严苛的环境条件下，它也能提供稳定的性能，支持各种应用。
|
| Product Type |
自动锁扣
|
| Contact Pitch |
0.5
(mm)
|
| 嵌合类型 |
垂直
|
| Height |
6.7
max.
(6.6 nom.)
(mm)
|
| Available Pin Counts |
20
30
40
50
60
|
| Depth |
3.5 (mm)
|
| Width Formula |
8.0 + (0.5 x pin count) (mm)
|
| Operating Temperature | |
| FPC/FFC Thickness |
0.3
|
| Shielded FPC / FFC |
Yes
|
| Current rating | |
| Applicable Standards (Reference Only) |
eDP (2.7 Gbps/Lane)
V-By-One HS 1.4 (4 Gbps/Lane)
|
| Full EMI Shielding (ZenShield®) |
No
|
| Mechanical lock |
Yes
|
| Automotive Standards | USCAR-2 (40P tested. 5.4.6 (Vibration and Mechanical Shock (V1)) evaluation passed) |
推荐料号
若列表中查询不到您要查找的料号，请使用调查表询问。
EVAFLEX 5-SE-G VT RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| EVAFLEX 5-SE-G VT 20pin | 20799-020E-01 | 349.768 | |
| EVAFLEX 5-SE-G VT 30pin | 20799-030E-01 | 434.228 | |
| EVAFLEX 5-SE-G VT 40pin | 20799-040E-01 | 521.965 | USCAR-2 (*) |
| EVAFLEX 5-SE-G VT 50pin | 20799-050E-01 | 607.057 | |
| EVAFLEX 5-SE-G VT 60pin | 20799-060E-01 | 689.155 |
Note : (*) 40P tested. 2.5.6 Vibration & Shock V1 evaluation passed.
SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) |
| SI Test Board for EVAFLEX5-SE-GVT 20pin | 91573-020B-001 | 85323.8 |
| SI Test Board for EVAFLEX5-SE-GVT 30pin | 91573-030B-001 | 85490.8 |
| SI Test Board for EVAFLEX5-SE-GVT 40pin | 91573-040B-001 | 85673.42 |
| SI Test Board for EVAFLEX5-SE-GVT 50pin | 91573-050B-001 | 85848.68 |
| SI Test Board for EVAFLEX5-SE-GVT 60pin | 91573-060B-001 | 86029.7 |
