CABLINE^®-CA II PLUS

全屏蔽设计带机械锁扣，高速伝送対応(32 Gbps/lane), 0.4 mm间距, 水平插拔款的极细同轴连接器

ZenShield^® 的全屏蔽设计和多点接地结构，EMC 解决方案的理想选择

机械式锁扣罩防止连接器不完全嵌合及脱落

高速率传输, 32Gbps/lane应用的理想之选

*想获得更高的传输速率（64 Gbps PAM4），欢迎查看可以配合 CABLINE-CA II PLUS 母座（20790-060E-01/-02）使用的CABLINE^®-CA IIP PLUS。
*操作方法请参考"如何嵌合和拔出"视频。

Contact Pitch:

0.4 mm

Mating Type / Direction:

Horizontal

Mated Height:

Nom. 0.95 +0.25/-0.15 mm

Operating Temperature:

-40 to 105℃ (233 to 378 K)

Cable Size (Micro-Coaxial):

AWG 36 (*)AWG 38AWG 40AWG 42AWG 44* (Characteristic impedance unmatching.)

Cable Size (Twinaxial):

AWG 40AWG 42

Cable Size (Discrete):

AWG 34AWG 36

Current Rating:

[AWG 44] 0.1 A/contact (up to 60 contacts)[AWG 42] 0.24 A/contact (up to 60 contacts)[AWG 40] 0.3 A/contact (up to 60 contacts)[AWG 38] 0.5 A/contact (up to 18 contacts)[AWG 36] 0.8 A/contact (up to 6 contacts)[AWG 34] 1.0 A/contact (up to 6 contacts)

下载

产品目录
- - CATALOG CABLINE-CA II PLUS SC
  - 文件:

    Product Matrix
2D图面
3D Models
- STEP
  产品

  60P CABLINE-CA II PLUS STEP
- IGES
  产品

  60P CABLINE-CA II PLUS IGES

Specs & Test Reports
PCB/FPC Data
- Symbols(脚位图)和Footprints(封装图)
操作手册
- - MANUAL CABLINE-CA II PLUS HIM-16028
  - ASSYMANUAL CABLINE-CA II PLUS ASM-16004

产品详情
技术参数技术参数
型号
配件
停止生产型号

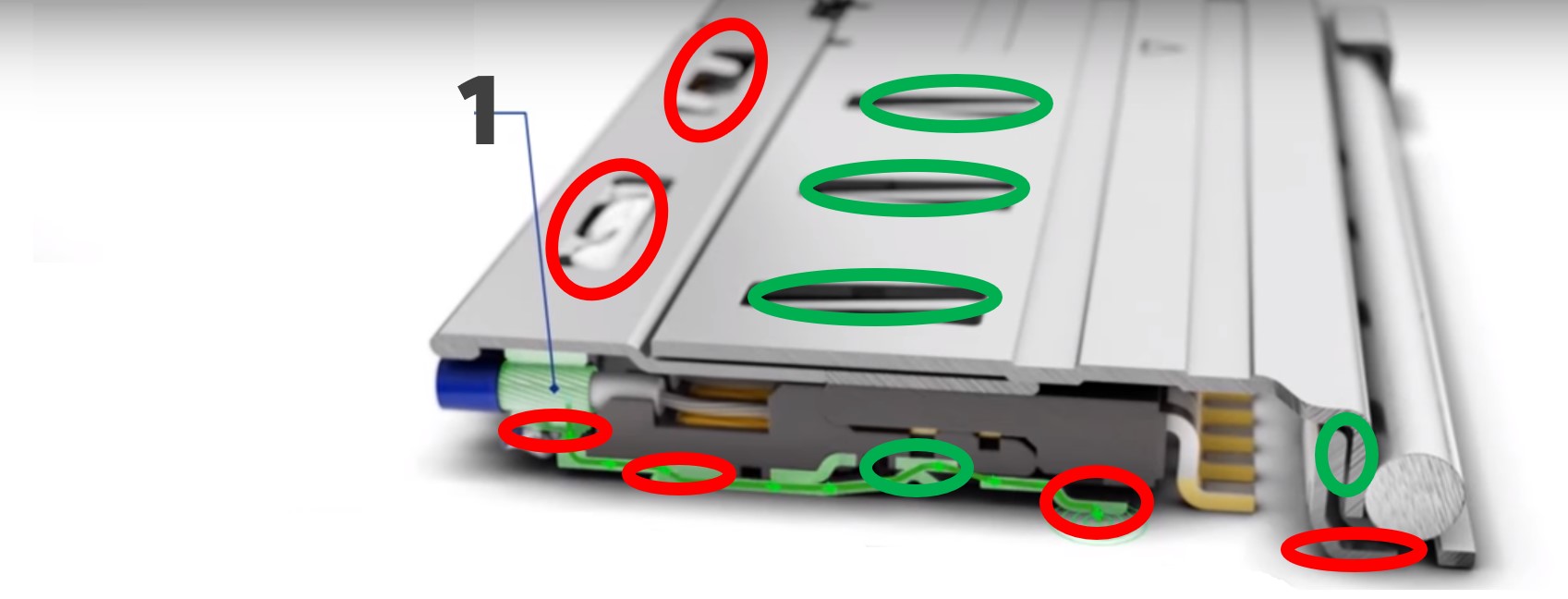

ZenShield^® 的全屏蔽设计和多点接地结构，EMC 解决方案的理想选择

		普通型连接器	ZenShield^®全屏蔽式连接器

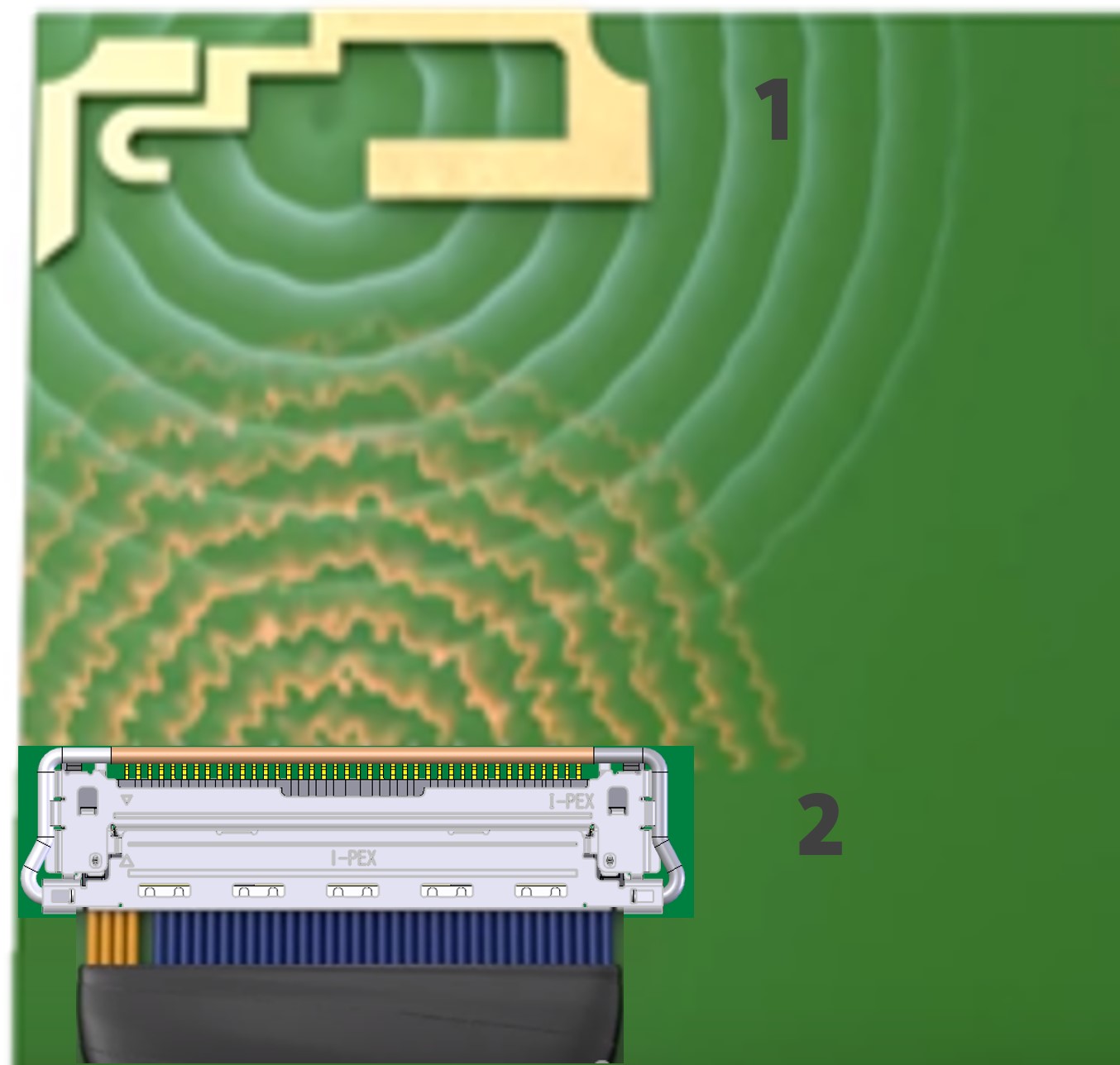

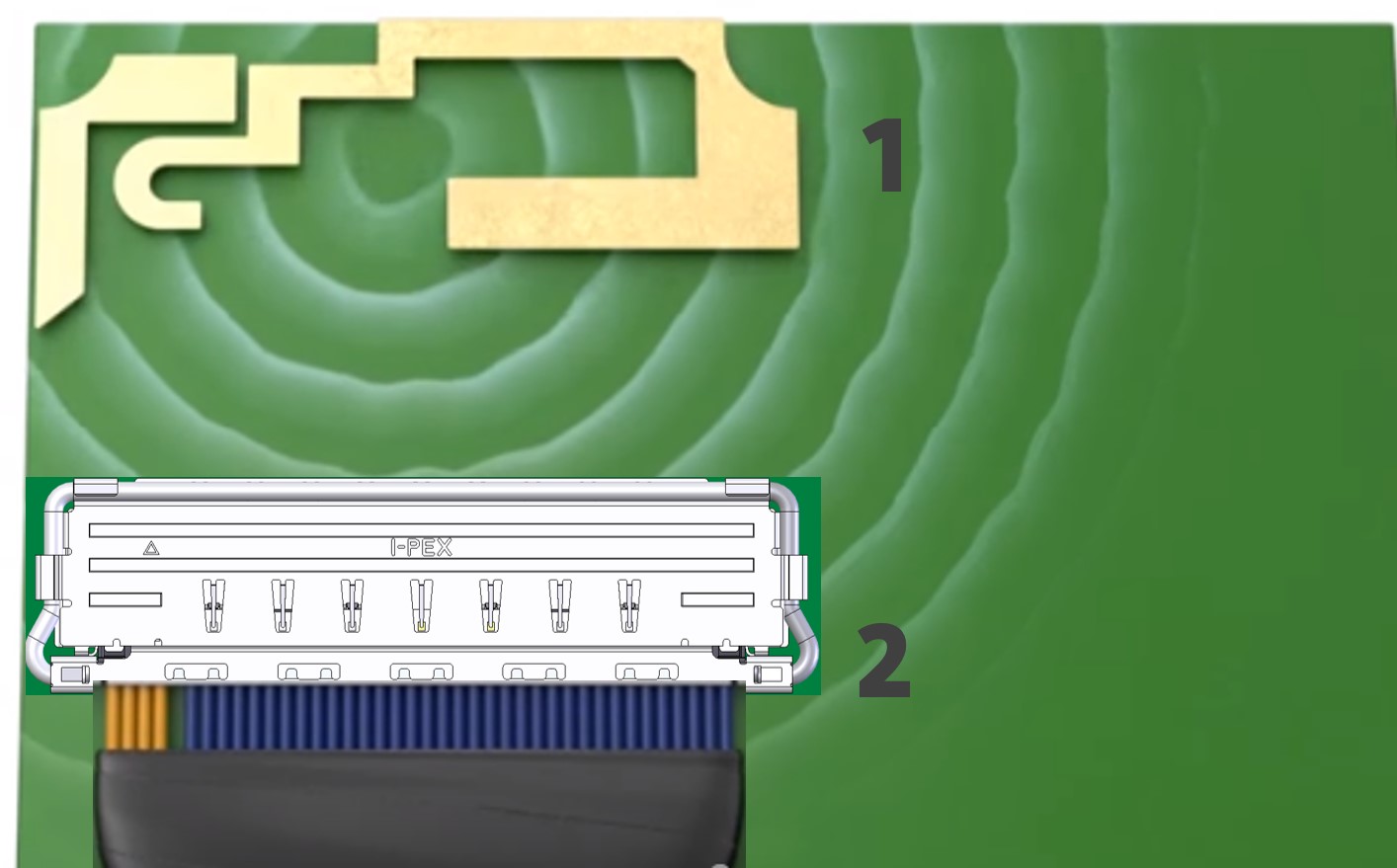

	1. Grounding path		连接器可以放置于更靠近天线的位置

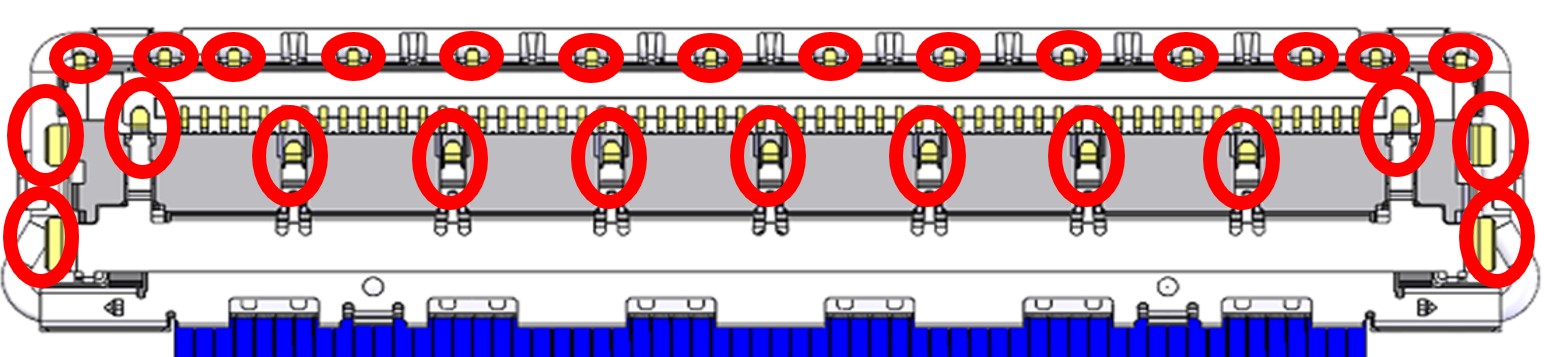

底部视图	焊接点	1. Wi-Fi 天线
	机械式触点	2. 高速数据传输

机械式锁扣罩防止连接器不完全嵌合及脱落

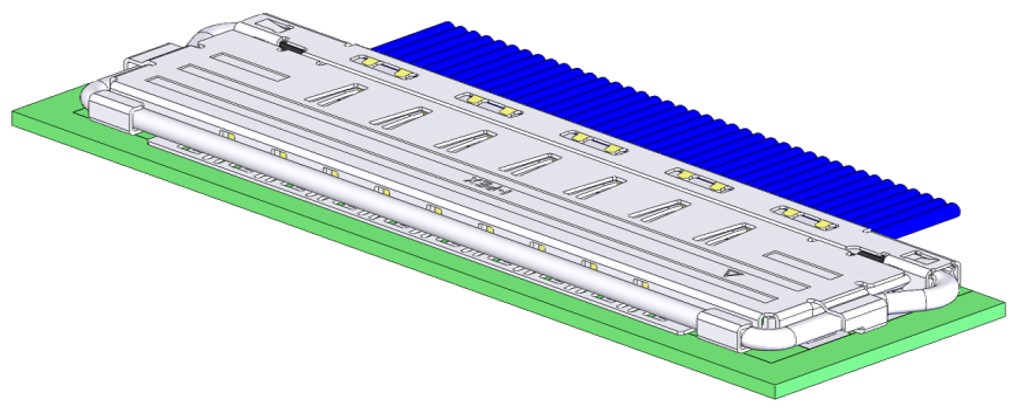

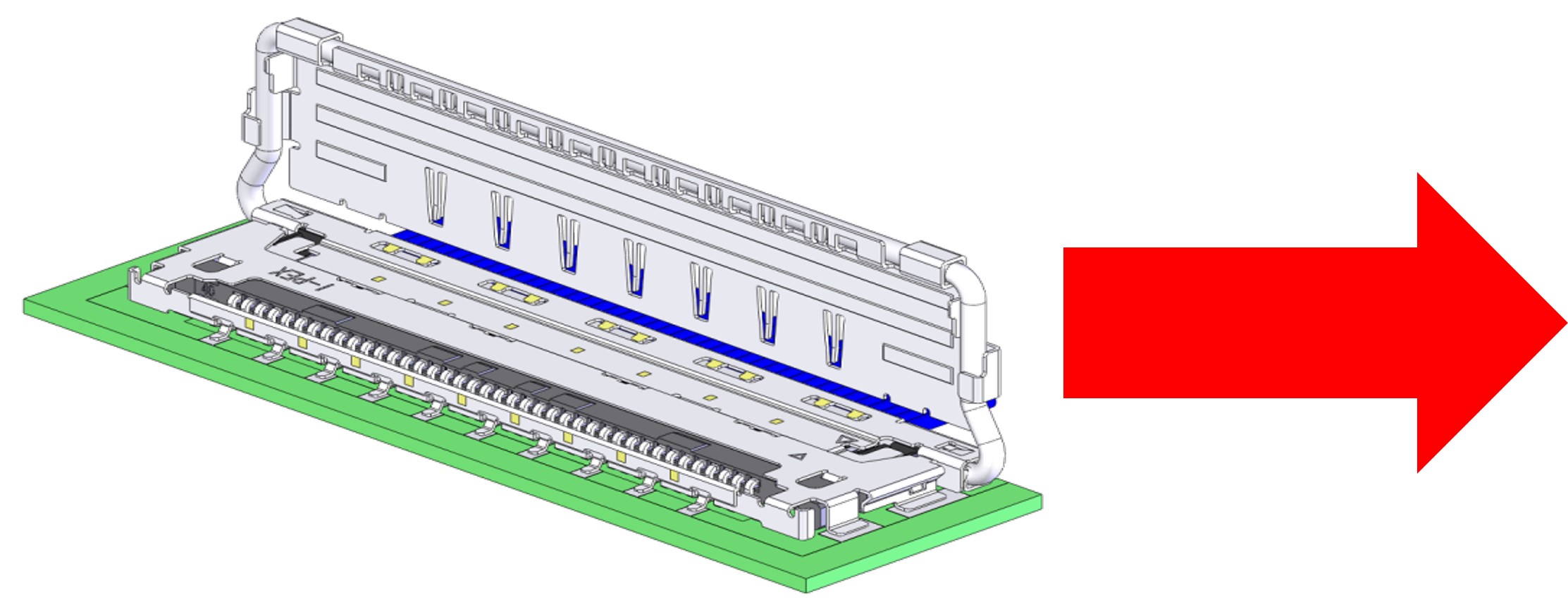

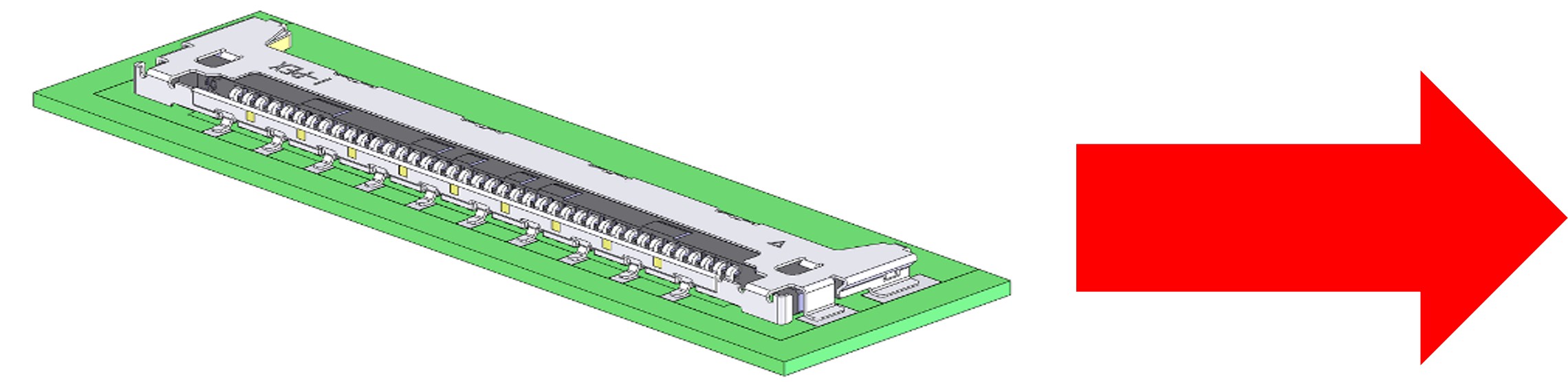

插入	上锁

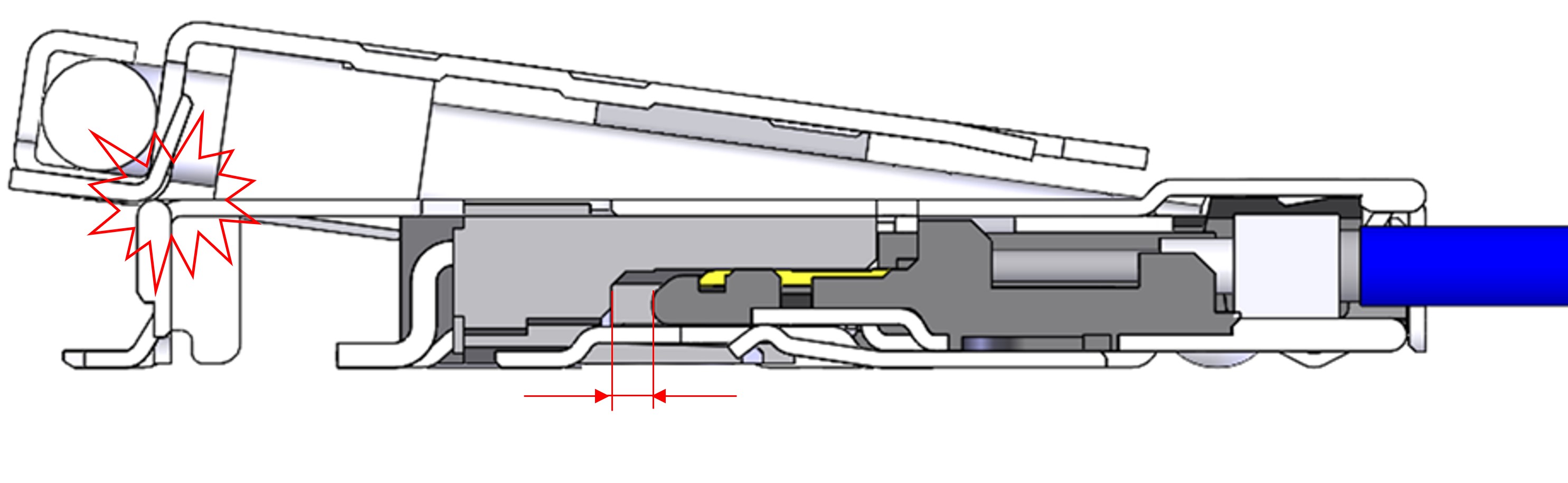

无法上锁		只有当完全插入后，SHELL才能上锁

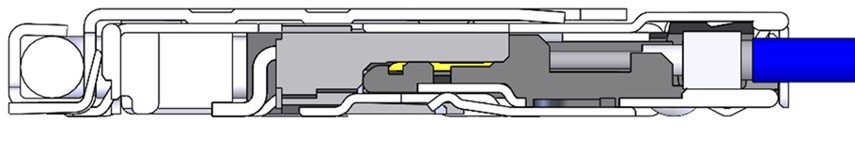

插入不到位		完全插入

高速率传输, 32Gbps/lane应用的理想之选

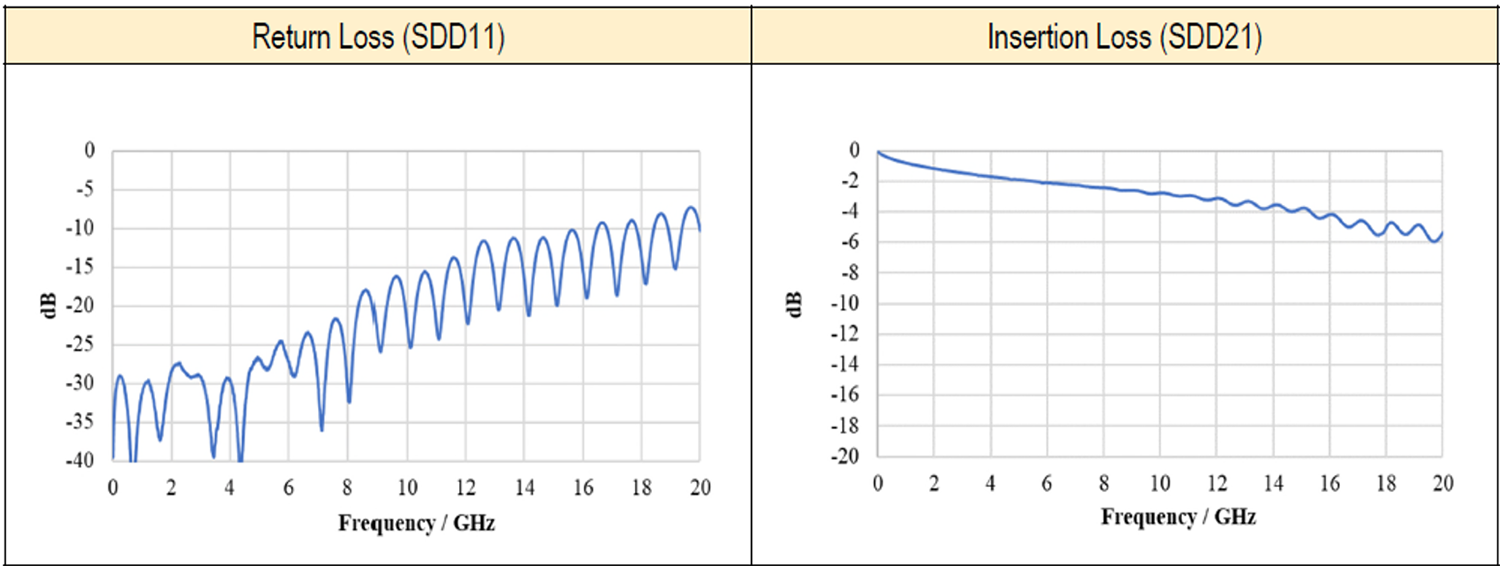

Measurement results

Connector: CABLINE^®-CA II 40P

Cable: Micro-coaxial cable
AWG #40, 45ohm,
Length: 100 mm

Pin Assignment: GSSGSSG

Transmission Speed (Reference Only)	32 Gbps/lane PAM4
Contact Pitch	0.4 mm
Mating Type / Direction	Horizontal
Mated Height	Nom. 0.95 +0.25/-0.15 mm
Available Pin Count	Signal: 60
Depth	6.7 mm
Width	6.95 + (0.4 x pin count) mm
Operating Temperature	-40 to 105℃ (233 to 378 K)
Cable Size (Micro-Coaxial)	AWG 36 ()AWG 38AWG 40AWG 42AWG 44 (Characteristic impedance unmatching.)
Cable Size (Twinaxial)	AWG 40AWG 42
Cable Size (Discrete)	AWG 34AWG 36
Current Rating	[AWG 44] 0.1 A/contact (up to 60 contacts)[AWG 42] 0.24 A/contact (up to 60 contacts)[AWG 40] 0.3 A/contact (up to 60 contacts)[AWG 38] 0.5 A/contact (up to 18 contacts)[AWG 36] 0.8 A/contact (up to 6 contacts)[AWG 34] 1.0 A/contact (up to 6 contacts)
Applicable Standards (Reference Only)	32 Gbps/laneUSB4 Gen 4 (40 Gbps/lane PAM3)Thunderbolt 5 (40 Gbps/lane PAM3)USB4 Gen 3(20 Gbps/lane)DisplayPort UHBR20 (20 Gbps/lane)V-By-One US (16 Gbps/lane)HDMI 2.1 (12 Gbps/lane)USB 3.2 Gen 2 (10 Gbps/lane)HDMI 2.0 (6 Gbps/lane)eDP HBR 2 (5.4 Gbps/lane)USB 3.1 Gen 1 (5 Gbps/lane)V-By-One HS 1.4 (4 Gbps/lane)HDMI 1.3 (3.4 Gbps/lane)eDP (2.7 Gbps/lane)MiPi standards
Full EMI Shielding (ZenShield®)	Yes
Mechanical lock	Yes

推荐料号

若列表中查询不到您要查找的料号，请使用调查表询问。

CABLINE-CA II PLUS RECOMMENDED PART NUMBERS

Part Number Description	Part Number	Weight (mg)
CABLINE-CA II PLUS plug housing 60pin	20680-060T-01	106.334
CABLINE-CA II PLUS plug shell 60pin	3204-0601	53.9
CABLINE-CA II PLUS plug lock bar 60pin	20789-060T-01	225.81
CABLINE-CA II PLUS receptacle 60pin	20790-060E-02	161.13

CABLINE-CA II PLUS SAMPLE HARNESS FOR EVALUATION PART NUMBERS

Part Number Description	Part Number	Weight (mg)
CABLINE-CA II PLUS harness 60pin micro-coaxial 40AWG L=100mm 1-N	82871-100B-02-D	-
CABLINE-CA II PLUS harness 60pin micro-coaxial 40AWG L=200mm 1-N	81674-100B-02-D	5270
CABLINE-CA II PLUS harness 60pin micro-coaxial 40AWG L=300mm 1-N	82872-100B-02-D	-

其他料号

请注意:此列表可能包含了还没有可用样品的产品和不再销售的型号。
如您有新的询价，请参考上述推荐的料号。

CABLINE-CA II PLUS OHTER PART NUMBERS

Part Number Description	Part Number	Weight (mg)
CABLINE-CA II PLUS plug housing 60pin	21067-060T-01	106.334
CABLINE-CA II PLUS plug shell A 60pin	3858-0601	53.900
CABLINE-CA II PLUS plug lock bar 60pin	3279-0601	82.500
CABLINE-CA II PLUS lock bar 60pin	21097-060T-01	225.810
CABLINE-CA II PLUS receptacle 60pin	20790-060E-01	161.130
CABLINE-CA II PLUS receptacle 60pin	20790-060E-11	-
CABLINE-CA II PLUS receptacle 60pin	20790-060E-12	161.130
CABLINE-CA II PLUS receptacle 60pin	21098-060E-02	161.130
CABLINE-CA II PLUS plug cable assembly 60pin	20788-060T-01	-
CABLINE-CA II PLUS plug cable assembly 60pin	20788-060T-02	-
CABLINE-CA II PLUS cable assembly 60pin	21096-060T-01	-

SI Test Board with 2.92mm Adapter

Part Number Description

Part Number

Weight (mg)


SI Test Board for CABLINE-CA II PLUS 60pin

91548-060B-001

84122.26

CABLINE-CA_SI_TB-806_Main_(C)

Main Board

CABLINE-CA_SI_TB-806_Thru_(C)

Thru Board

CABLINE-CA II PLUS Plan to EOL PART NUMBERS

Part Number Description	EOL P/N	EOL feature	Alternative P/N	Alternative feature
CABLINE-CA II PLUS plug lock bar 60pin	20789-060T-02	with pull tape	20789-060T-01	without pull tape
CABLINE-CA II PLUS receptacle 60pin	20790-060E-01-S	with boss, MOQ: 500	20790-060E-02	without boss, MOQ: 5500
CABLINE-CA II PLUS receptacle 60pin	20790-060E-02-S	MOQ: 500	20790-060E-02	MOQ: 5,500
