CABLINE®-UX II

CABLINE-UX II Product Image
穴通しに最適なスリムデザイン、狭ピッチ(0.25 mmピッチ)、 ライトアングル縦嵌合タイプ細線同軸コネクタ

    狭小スペースに最適

    小径ヒンジを通す事を可能にしたスリムなPlugデザイン

    多点グランド接点設計によりEMC対策
Contact Pitch:
0.25 (mm)
嵌合タイプ:
縦嵌合
Mated Height:
1.1 max. (mm)
芯数:
30 34 40 50
Micro-Coaxial Cable:
AWG 44 AWG 46
Discrete Cable:
AWG 39 AWG 40 AWG 42 AWG 44 AWG 46
Current rating:
Contact Material: Phosphor Bronze (Plug : 20531-0**T-02, Receptacle: 20533-0**E) 0.15 A AC/DC [AWG 44] per contact 0.1 A AC/DC [AWG 46] per contact Contact Material: Corson Allow (Plug: 20531-0**T-12, Receptacle: 20533-0**E-01) 0.19 A AC/DC [AWG 44] per contact 0.14 A AC/DC [AWG 46] per contact

ダウンロード

狭小スペースに最適

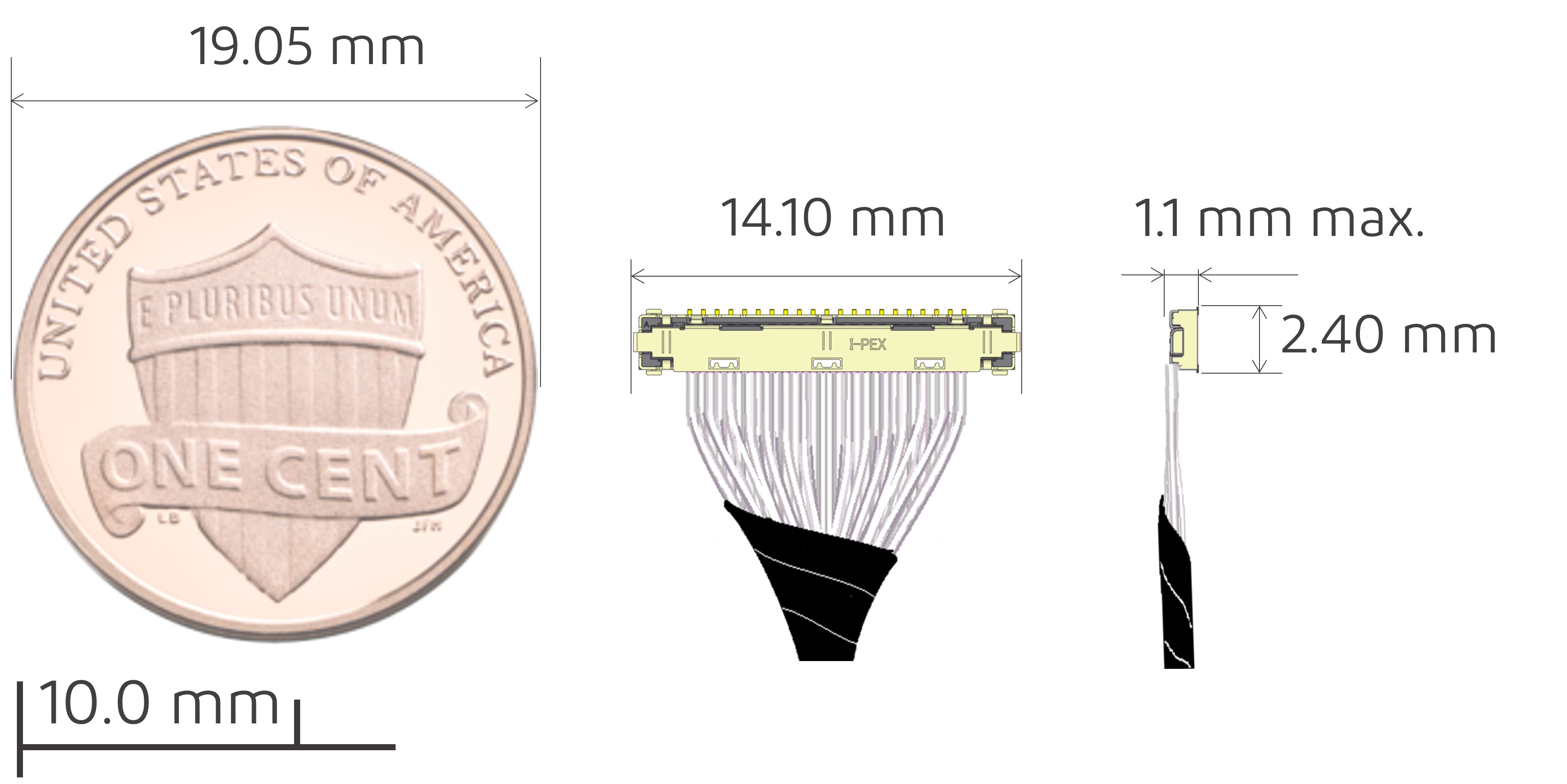

CABLINE-UX II 40p と 1円硬貨のサイズ比較

CABLINE-UX II_FAB1-1.jpg CABLINE-UX II_FAB1-2.jpg

柔軟な細線同軸ケーブルハーネスは
ヒンジのある小型アプリケーションに適応



小径ヒンジを通す事を可能にしたスリムなPlugデザイン

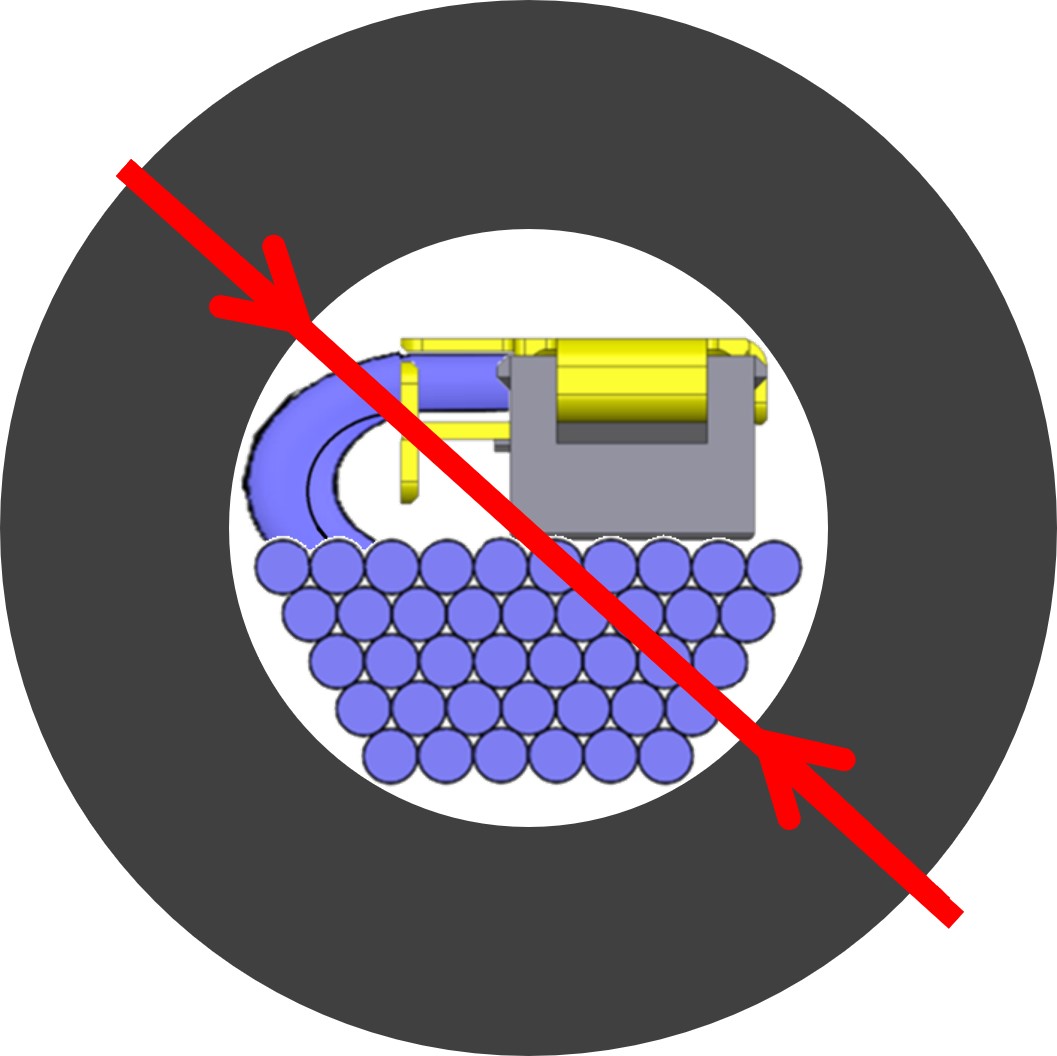

シミュレーション参考例：
外径0.24mmのケーブルを使用したUX II 40p Plug ハーネスは内径2.66mmを通す事が可能。

CABLINE-UX II_FAB2-1.jpg
φ2.66 mm
 CABLINE-UX II_FAB2-2.jpg

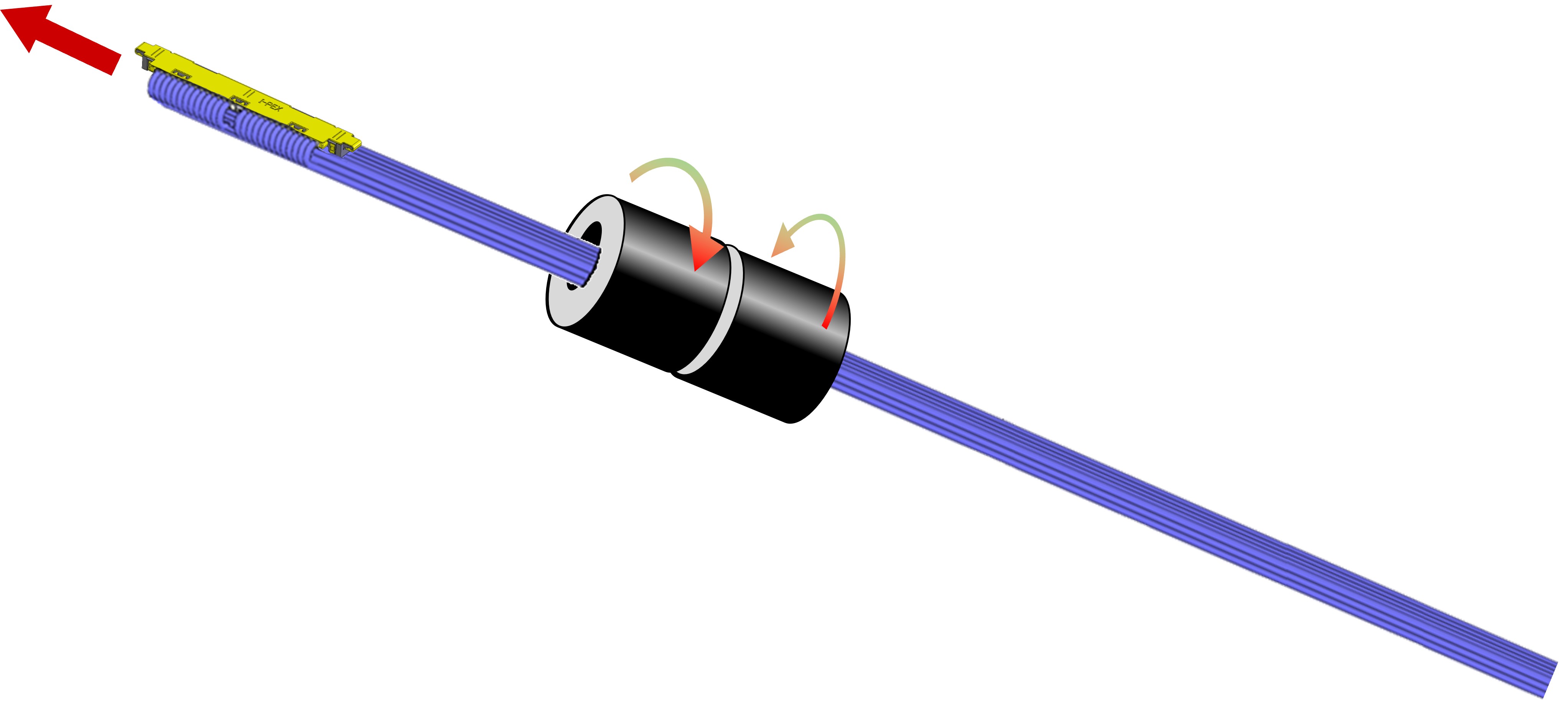

小径ヒンジ
 CABLINE-UX II_FAB2-3.jpg

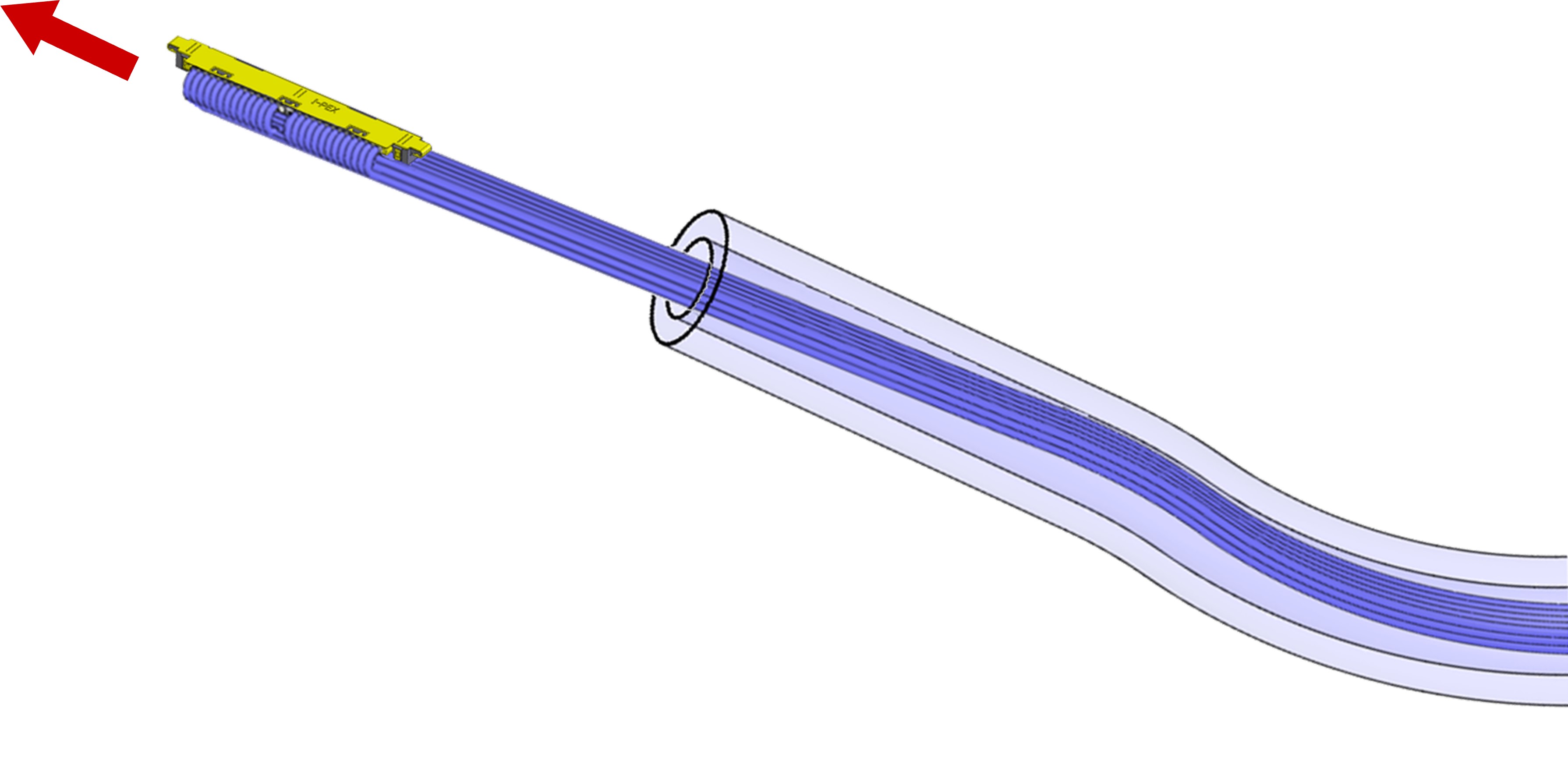

狭小チューブ



細線同軸コネクタハーネスによるヒンジ部通過シミュレーション



多点グランド接点設計によりEMC対策

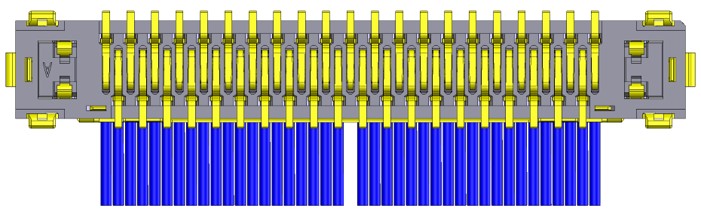

CABLINE-UX_II_FAB3-1_ALL

　　                          View From Topside

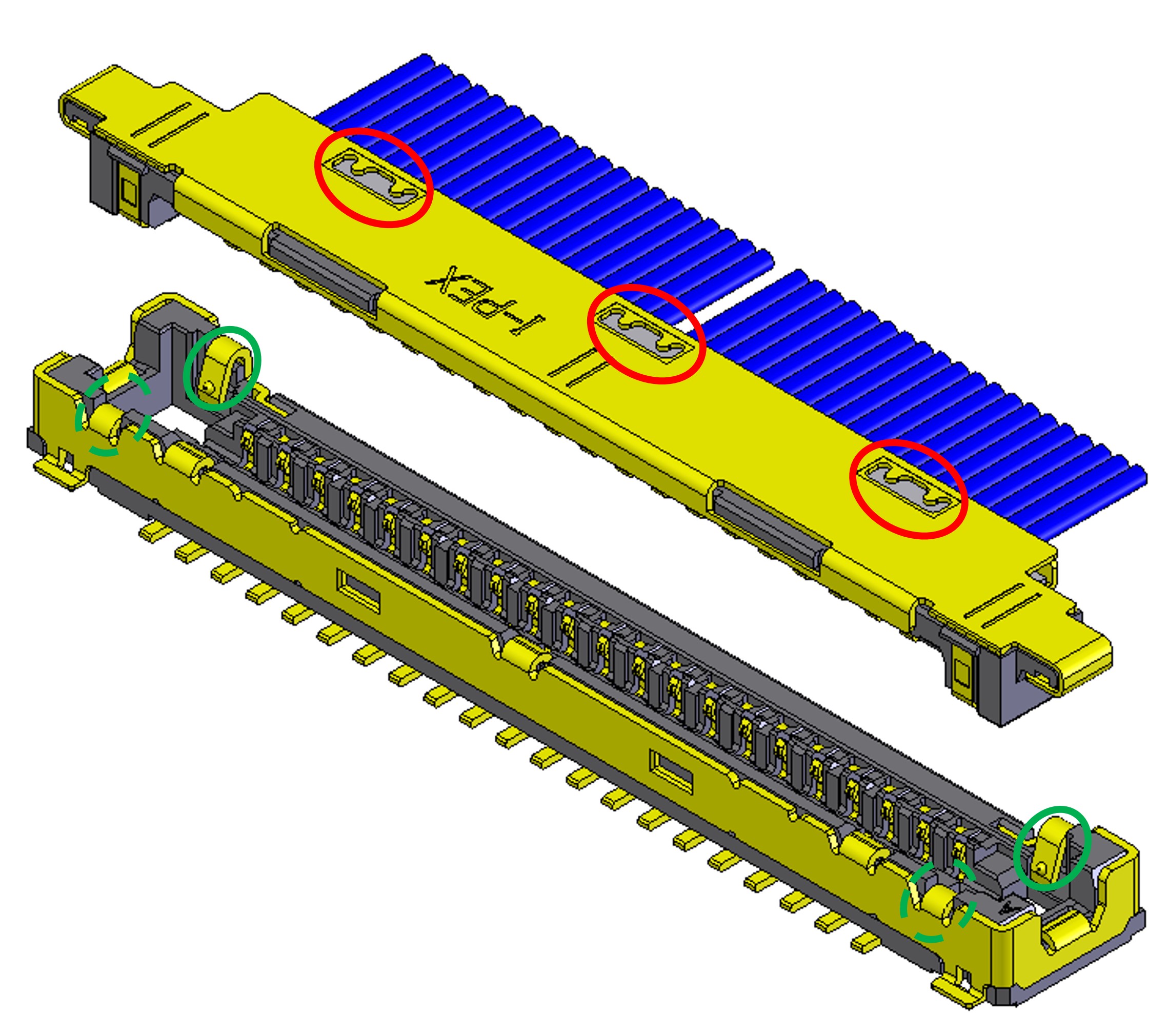

 ​ UAII_Fab3-3  Soldered contacts　　
UAII_Fab3-4 Mechanical contacts

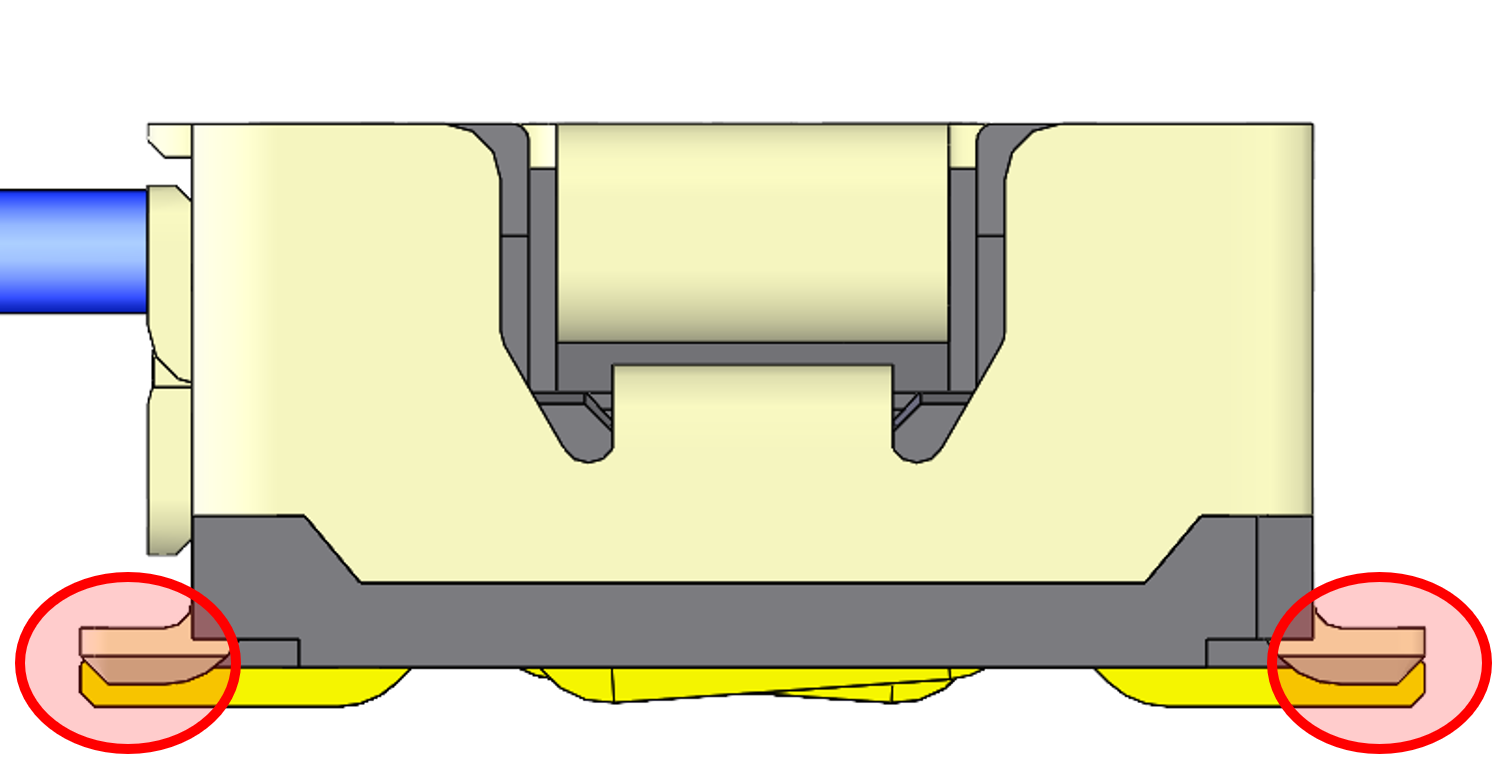

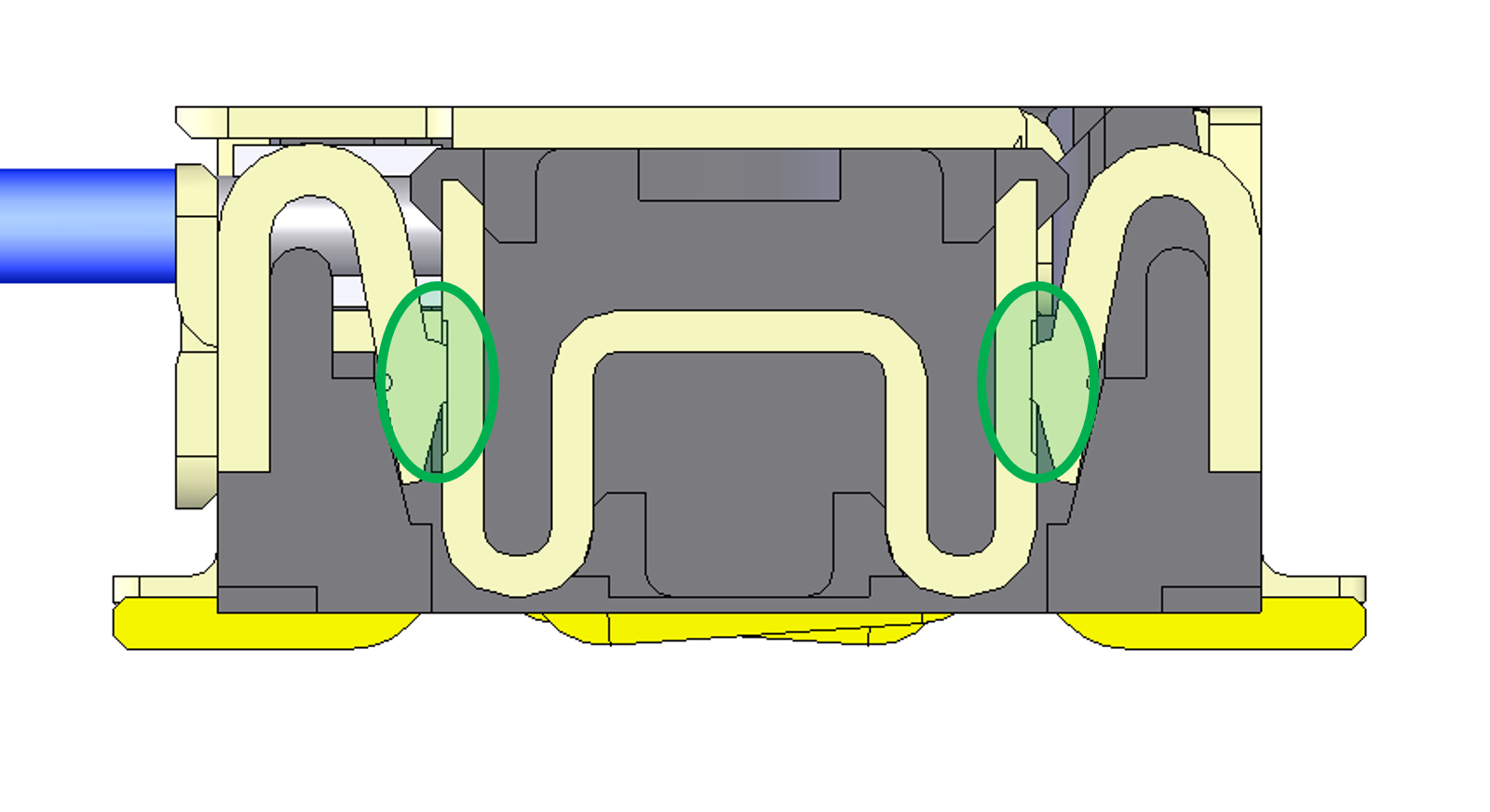

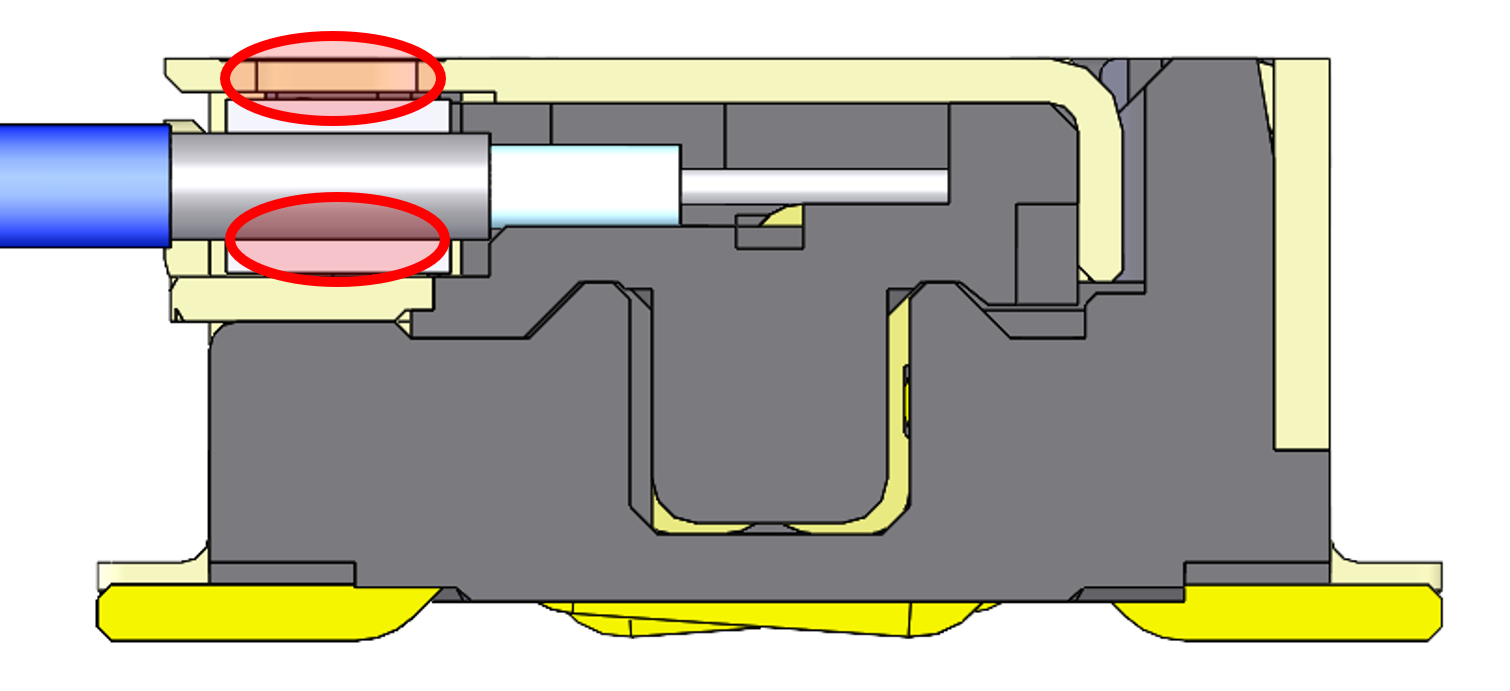

CABLINE-UX_II_FAB3-2_ALL CABLINE-UX_II_FAB3-3_ALL CABLINE-UX_II_FAB3-4 _ALL
Wire Shield
 to
Ground Bar		 FAB3 Ground Bar
 to
Plug Shell		 ​​FAB3 Plug Shell
 to
Receptacle Shell		 FAB3        Receptacle Shell
                  to
                 PCB

Transmission Speed (Reference Only) 5 Gbps/Lane NRZ
Contact Pitch
0.25 (mm)
嵌合タイプ
縦嵌合
Mated Height
1.1 max. (mm)
Available Pin Counts
30 34 40 50
Depth
2.4 (mm)
Width Formula
4.1 + (0.25 x pin count)(mm)
Micro-Coaxial Cable
AWG 44 AWG 46
Discrete Cable
AWG 39 AWG 40 AWG 42 AWG 44 AWG 46
Shielded FPC / FFC
No
Current rating
Contact Material: Phosphor Bronze (Plug : 20531-0**T-02, Receptacle: 20533-0**E) 0.15 A AC/DC [AWG 44] per contact 0.1 A AC/DC [AWG 46] per contact Contact Material: Corson Allow (Plug: 20531-0**T-12, Receptacle: 20533-0**E-01) 0.19 A AC/DC [AWG 44] per contact 0.14 A AC/DC [AWG 46] per contact
Applicable Standards (Reference Only)
USB3.1 Gen1 (5 Gbps/Lane) V-By-One HS 1.4 (4 Gbps/Lane) eDP (2.7 Gbps/Lane) MiPi standards
Full EMI Shielding (ZenShield®)
No
Mechanical lock
No

推奨型番

お探しの品番・仕様がリストにない場合はお問い合わせフォームよりお問い合わせください。



DIAGRAMS_CABLINE-UX_II



CABLINE-UX II RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-UX II plug cable assembly 30pin 20531-030T-02-1 29.2
CABLINE-UX II plug cable assembly 34pin 20531-034T-02-1 32.1
CABLINE-UX II plug cable assembly 40pin 20531-040T-02-1 37
CABLINE-UX II plug cable assembly 50pin 20531-050T-02-1 43.5
CABLINE-UX II plug housing 30pin 20532-030T-02-1 17.42
CABLINE-UX II plug housing 34pin 20532-034T-02-1 19.2
CABLINE-UX II plug housing 40pin 20532-040T-02-1 22.4
CABLINE-UX II plug housing 50pin 20532-050T-02-1 25.5
CABLINE-UX II plug metal cover 30pin 2799-0301 11.78
CABLINE-UX II plug metal cover 34pin 2799-0341 12.9
CABLINE-UX II plug metal cover 40pin 2799-0401 14.6
CABLINE-UX II plug metal cover 50pin 2799-0501 18
CABLINE-UX II receptacle 30pin 20533-230E 49.3
CABLINE-UX II receptacle 34pin 20533-234E 52.18
CABLINE-UX II receptacle 40pin 20533-240E 56.34
CABLINE-UX II receptacle 50pin 20533-250E 66.42



CABLINE-UX II SAMPLE HARNESS FOR EVALUATION PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-UX II harness 30pin micro-coaxial 46AWG L=200mm  1-N 82070-100B-02-D -
CABLINE-UX II harness 40pin micro-coaxial 46AWG L=300mm  1-N 82446-100B-02-D -
CABLINE-UX II harness 50pin micro-coaxial 46AWG L=300mm  1-N 82447-100B-02-D -
その他の型番
このリストには、サンプルの準備が無い型番や販売終了型番が含まれている場合があります。
新規での採用をご検討のお客様は、ぜひ上記の推奨型番をお選びください。



CABLINE-UX II OTHER PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-UX II receptacle 30pin for inspection 20534-030E-01 52.078
CABLINE-UX II receptacle 34pin for inspection 20534-034E-01 -
CABLINE-UX II receptacle 40pin for inspection 20534-040E-01 -
CABLINE-UX II receptacle 50pin for inspection 20534-050E-01 -

CABLINE-UX II ACCESSORIES PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-UA II/UX II hand tool one-side-extraction 90460-001 0



SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for CABLINE-UX II (type-A) 30pin 91576-030B-001 77998.6
CABLINE-UX_II(TYPE-A)_TB-837_Main_(C)
Main Board

CABLINE-UX_II(TYPE-A)_TB-837_Thru_(C)
Thru Board
SI Test Board for CABLINE-UX II (type-A) 34pin 91576-034B-001 78004.36
SI Test Board for CABLINE-UX II (type-A) 40pin 91576-040B-001 78012.68
SI Test Board for CABLINE-UX II (type-A) 50pin 91576-050B-001 78032.84
SI Test Board for CABLINE-UX II (type-B) 30pin 91577-030B-001 81698.6
CABLINE-UX_II(TYPE-B)_TB-837_Main_(C)
Main Board
CABLINE-UX_II(TYPE-B)_TB-837_Thru_(C)
Thru Board


SI Test Board for CABLINE-UX II (type-B) 34pin 91577-034B-001 81704.36
SI Test Board for CABLINE-UX II (type-B) 40pin 91577-040B-001 81712.68
SI Test Board for CABLINE-UX II (type-B) 50pin 91577-050B-001 81732.84

CABLINE-UX II ACCESSORIES PART NUMBERS

Part Number Descriptions EOL P/N Alternative I-PEX P/N Differences to alternative item
CABLINE-UX II plug cable assembly 30pin 20531-030T-02 20531-030T-02-1 shape
CABLINE-UX II plug cable assembly 34pin 20531-034T-02 20531-034T-02-1 shape
CABLINE-UX II plug cable assembly 40pin 20531-040T-02 20531-040T-02-1 shape
CABLINE-UX II plug cable assembly 50pin 20531-050T-02 20531-050T-02-1 shape
CABLINE-UX II plug housing 30pin 20532-030T-02 20532-030T-02-1 shape
CABLINE-UX II plug housing 30pin 20532-030T-12 20532-030T-02-1 material, shape
CABLINE-UX II plug housing 34pin 20532-034T-02 20532-034T-02-1 shape
CABLINE-UX II plug housing 34pin 20532-034T-12 20532-034T-02-1 material, shape
CABLINE-UX II plug housing 40pin 20532-040T-02 20532-040T-02-1 shape
CABLINE-UX II plug housing 40pin 20532-040T-12 20532-040T-02-1 material, shape
CABLINE-UX II plug housing 50pin 20532-050T-02 20532-050T-02-1 shape
CABLINE-UX II plug housing 50pin 20532-050T-12 20532-050T-02-1 material, shape
CABLINE-UX II receptacle 30pin 20533-030E 20533-230E vacuum clip
CABLINE-UX II receptacle 30pin 20533-030E-01 20533-230E material, vacuum clip
CABLINE-UX II receptacle 34pin 20533-034E 20533-234E vacuum clip
CABLINE-UX II receptacle 34pin 20533-034E-01 20533-234E material, vacuum clip
CABLINE-UX II receptacle 40pin 20533-040E 20533-240E vacuum clip
CABLINE-UX II receptacle 40pin 20533-040E-01 20533-240E material, vacuum clip
CABLINE-UX II receptacle 50pin 20533-050E 20533-250E vacuum clip
CABLINE-UX II receptacle 50pin 20533-050E-01 20533-250E material, vacuum clip
