CABLINE®-CAL

CABLINE-CAL Product Image
低背(高さ = 0.8 mm max.)、高速伝送対応(40 Gbps/lane PAM3)、 メカニカルロック付き、0.4 mmピッチ、水平嵌合タイプ細線同軸コネクタ

    限られたコネクタスペースに対応する極薄設計

    40 Gbps/lane PAM3の高速伝送内部接続に最適

    メカニカルロックバーによる不完全嵌合防止とPlug抜け防止

Contact Pitch:
0.4 mm
Mating Type / Direction:
Horizontal
Mated Height:
Nom. 0.73 +/- 0.07 mm
Operating Temperature:
-40 to 85℃ (233 to 358 K)
Cable Size (Micro-Coaxial):
AWG 38 AWG 40AWG 42AWG 44
Cable Size (Discrete):
AWG 34AWG 36
Current Rating:
[AWG 44] 0.1 A/contact[AWG 42] 0.24 A/contact[AWG 40] 0.3 A/contact[AWG 36] 0.8 A/contact[AWG 34] 1.0 A/contact

ダウンロード

限られたコネクタスペースに対応する極薄設計


CABLINE®-CAL 40p

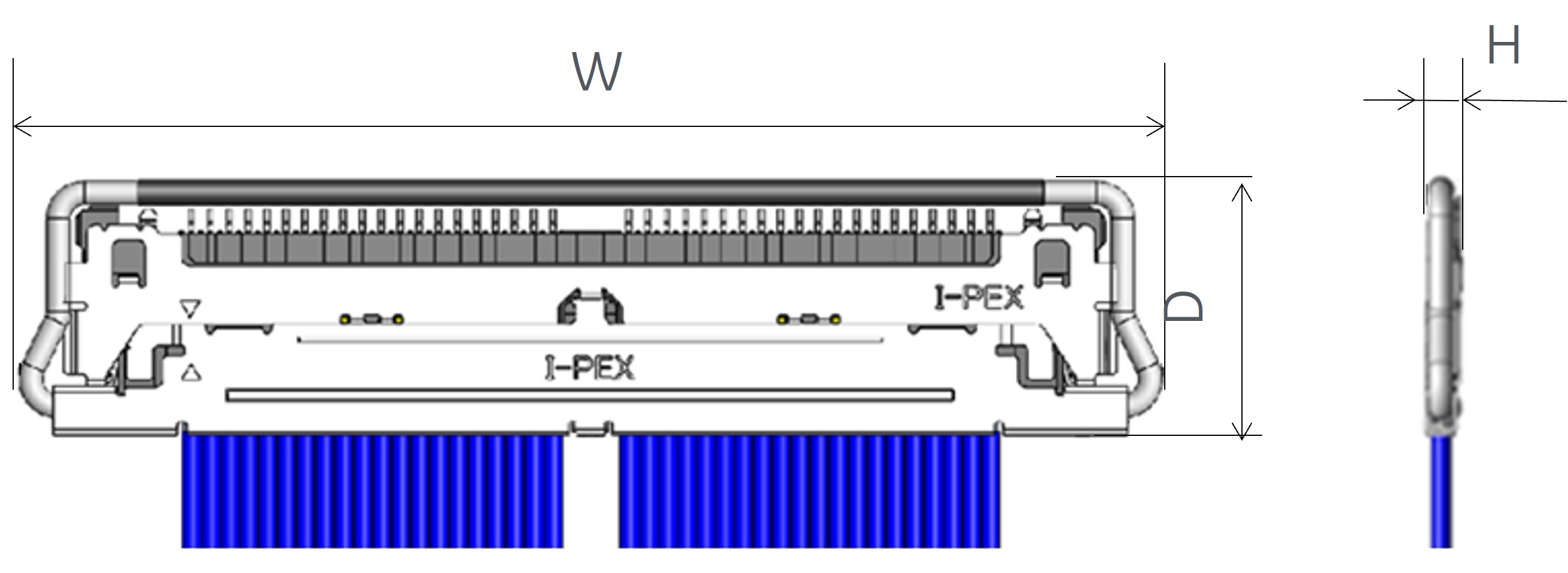

Mated Set Dimensions (mm)

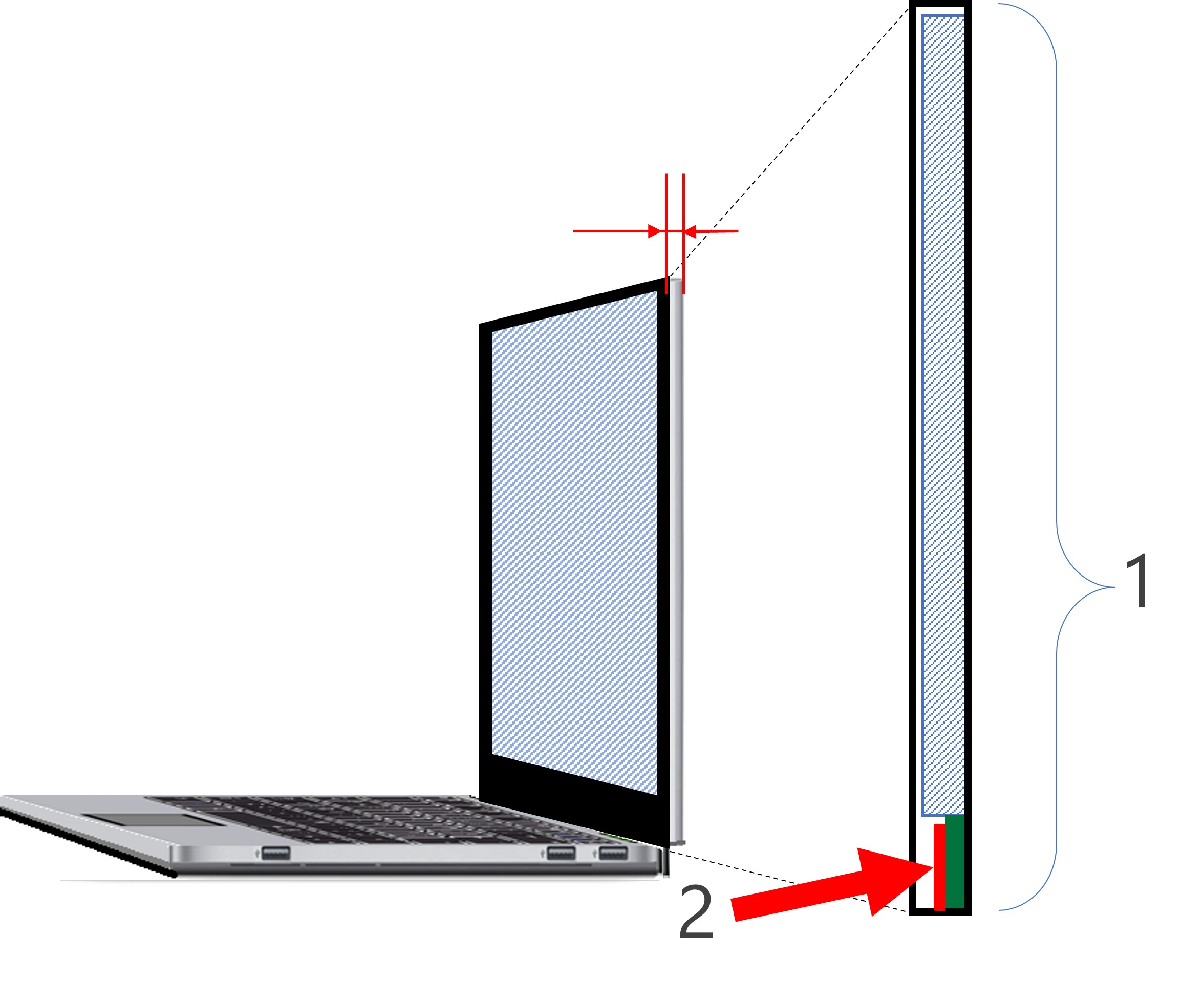

薄型パネル

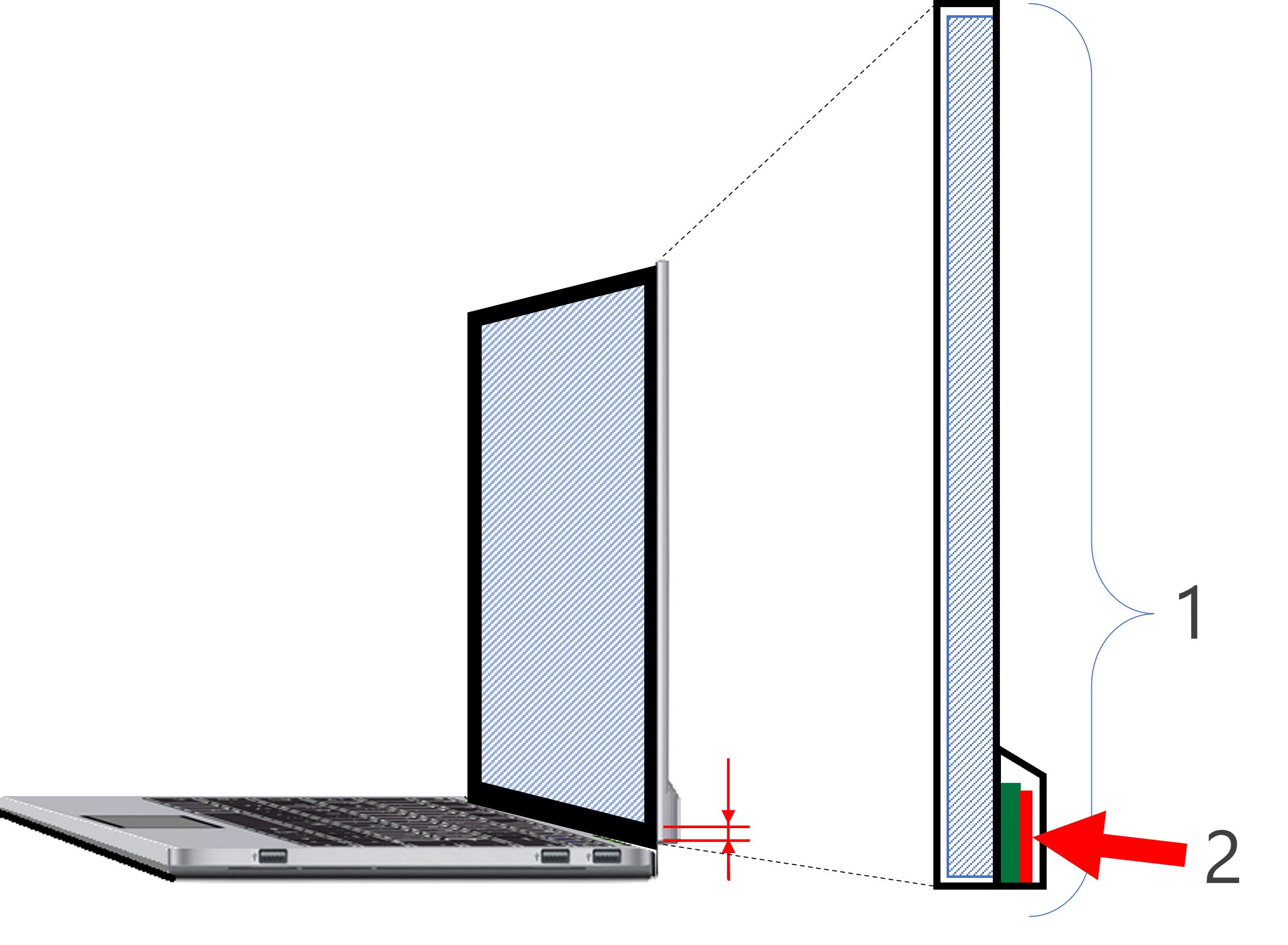

 狭小パネルフレーム

W: 24.05 D: 5.50 H: 0.80 max. 1 FPD unit
2 CABLINE®-CAL

40 Gbps/lane PAM3の高速伝送内部接続に最適

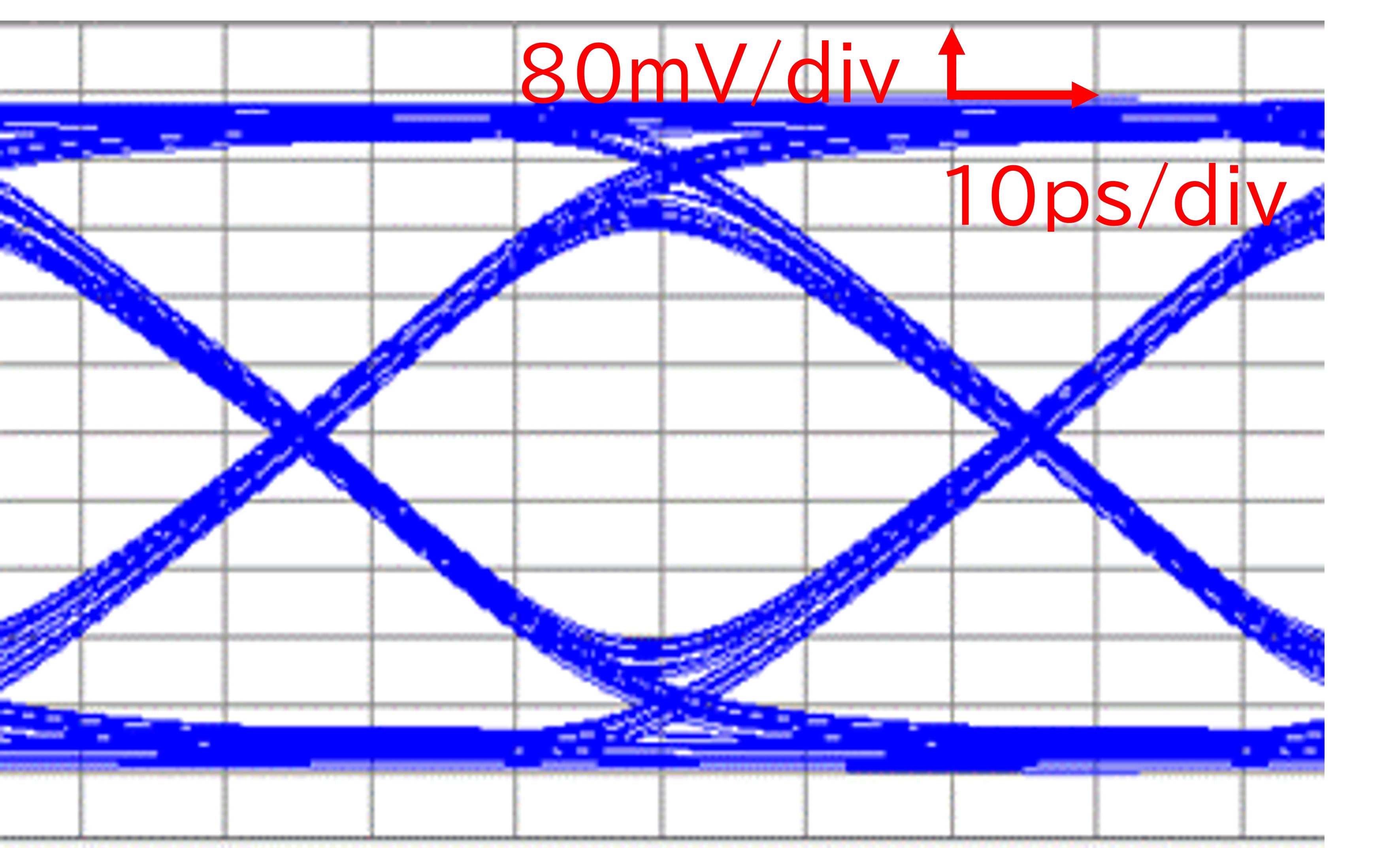

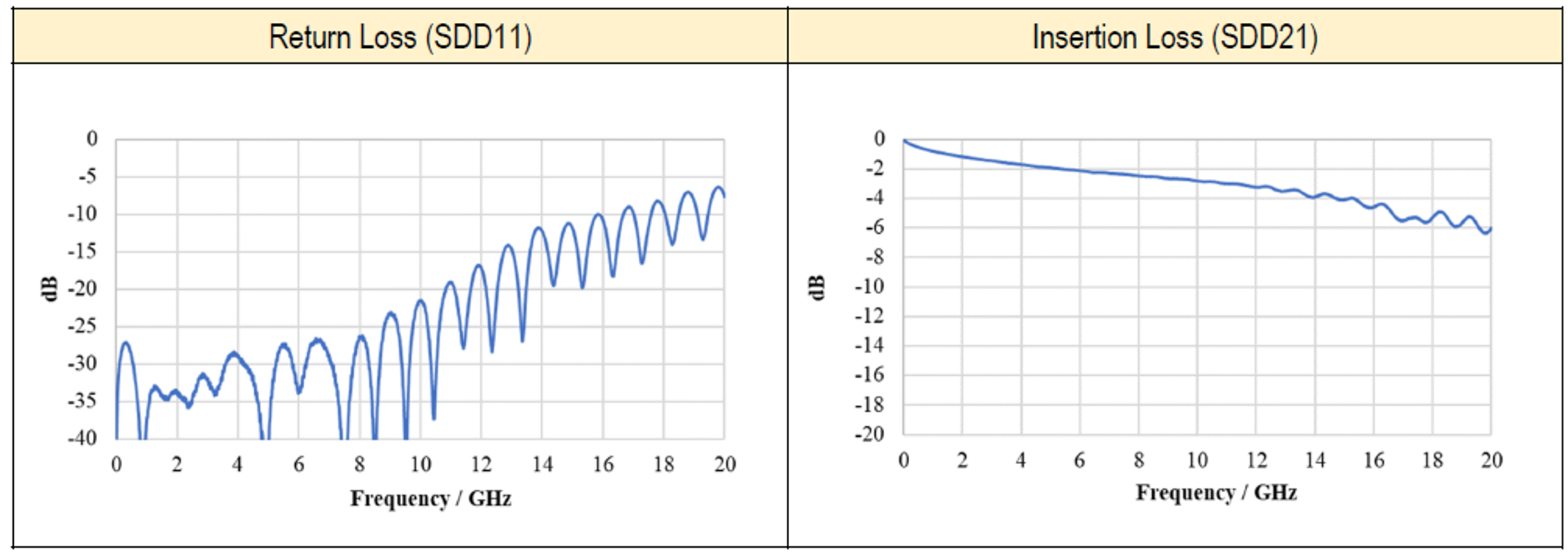

Measurement results

Connector : CABLINE-CAL 30P
Cable : Micro-coaxial cable
AWG #40,  45ohm , Length : 100 mm
Pin Assignment : GSSGSSG

 CABLINE-CAL_FAB2

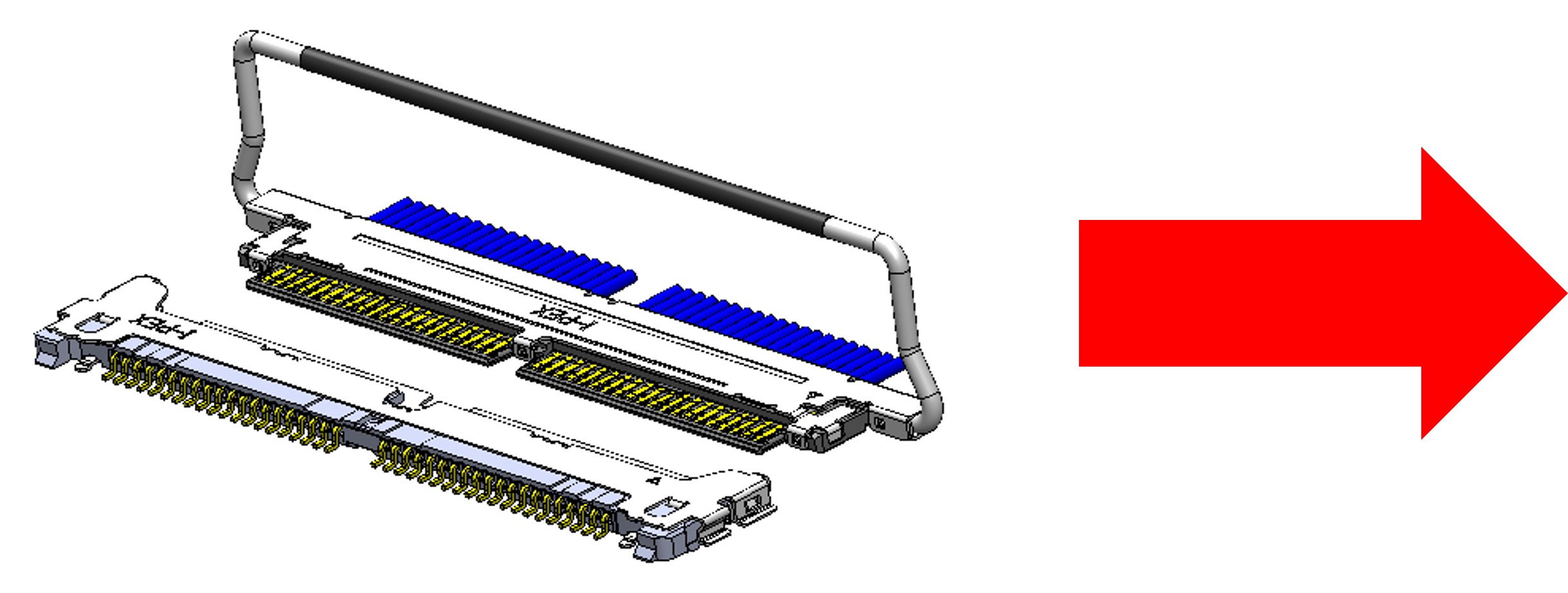

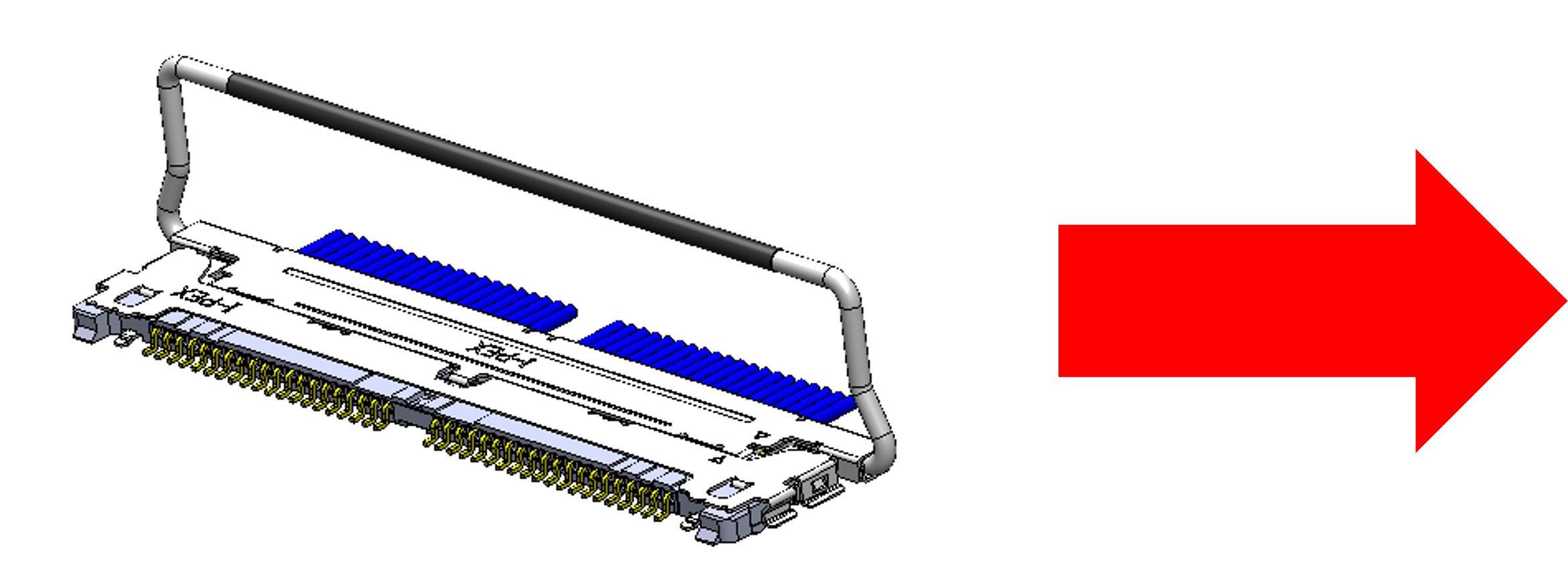

メカニカルロックバーによる不完全嵌合防止とPlug抜け防止

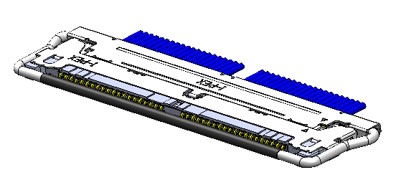

Mated
 Locked

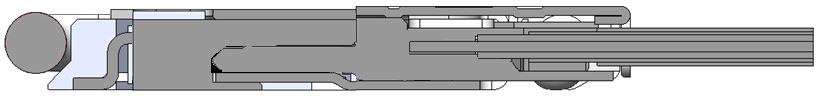

PlugがReceptacleに完全に嵌合されている場合にのみロックが可能

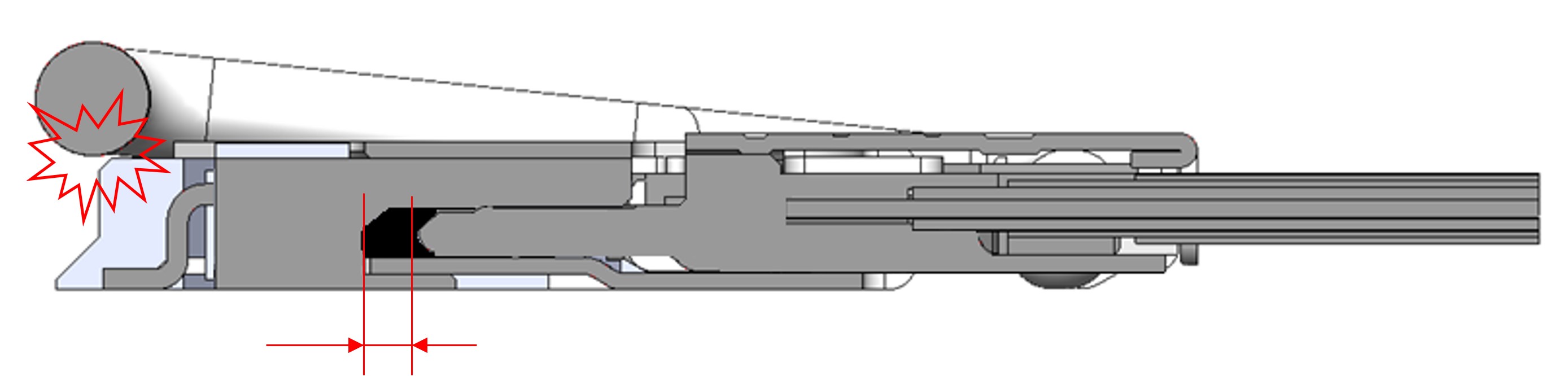

 干渉

不完全嵌合



完全嵌合




Transmission Speed (Reference Only) 40 Gbps/lane PAM3
Contact Pitch
0.4 mm
Mating Type / Direction
Horizontal
Mated Height
Nom. 0.73 +/- 0.07 mm
Available Pin Count Signal: 30, 40
Depth
5.5 mm
Width
10 to 20 pin: 6.85 + (0.4 x pin count) mm22 to 40 pin: 8.05 + (0.4 x pin count) mm
Operating Temperature
-40 to 85℃ (233 to 358 K)
Cable Size (Micro-Coaxial)
AWG 38 AWG 40AWG 42AWG 44
Cable Size (Discrete)
AWG 34AWG 36
Current Rating
[AWG 44] 0.1 A/contact[AWG 42] 0.24 A/contact[AWG 40] 0.3 A/contact[AWG 36] 0.8 A/contact[AWG 34] 1.0 A/contact
Applicable Standards (Reference Only)
USB4 Gen 4(40Gbps/Lane PAM3)Thunderbolt 5(40Gbps/Lane PAM3)USB4 Gen 3(20 Gbps/Lane)DisplayPort UHBR20(20Gbps/Lane)V-By-One US (16 Gbps/Lane)HDMI 2.1 (12 Gbps/Lane)USB 3.2 Gen 2 (10 Gbps/Lane)HDMI 2.0 (6 Gbps/Lane)eDP HBR 2 (5.4 Gbps/Lane)USB 3.1 Gen 1 (5 Gbps/Lane)V-By-One HS 1.4 (4 Gbps/Lane)HDMI 1.3 (3.4 Gbps/Lane)eDP (2.7 Gbps/Lane)MiPi standards
Full EMI Shielding (ZenShield®)
No
Mechanical lock
Yes

推奨型番

お探しの品番・仕様がリストにない場合はお問い合わせフォームよりお問い合わせください。



DIAGRAMS_CABLINE-CAL



CABLINE-CAL RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-CAL plug cable assembly 40pin 20728-040T-01 163.386
CABLINE-CAL plug housing 30pin 20777-030T-01 51.52
CABLINE-CAL plug housing 40pin 20777-040T-01 65.4
CABLINE-CAL plug shell 30pin 3298-0301 33.44
CABLINE-CAL plug shell 40pin 3298-0401 43.436
CABLINE-CAL plug lock bar 30pin 3300-0301 48.25
CABLINE-CAL plug lock bar 40pin 3300-0401 54.55
CABLINE-CAL receptacle 30pin 20729-030E-02 79.34
CABLINE-CAL receptacle 40pin 20729-040E-02 96.25



CABLINE-CAL SAMPLE HARNESS FOR EVALUATION PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-CAL harness 30pin micro-coaxial 40AWG L=100mm 1-N 82873-100B-02-D -　
CABLINE-CAL harness 30pin micro-coaxial 40AWG L=200mm 1-N 82437-100B-02-D 　-
CABLINE-CAL harness 30pin micro-coaxial 40AWG L=300mm 1-N 82874-100B-02-D 　-
CABLINE-CAL harness 40pin micro-coaxial 40AWG L=100mm 1-N 82875-100B-02-D 　-
CABLINE-CAL harness 40pin micro-coaxial 40AWG L=200mm 1-N 82438-100B-02-D 　-
CABLINE-CAL harness 40pin micro-coaxial 40AWG L=300mm 1-N 82876-100B-02-D 　-
その他の型番



CABLINE-CAL OTHER PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-CAL plug housing 30pin 20777-030T-11 -
CABLINE-CAL plug housing 40pin 20777-040T-11 64.900

SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for CABLINE-CAL 91689-030B-001 　 ​

CABLINE-CA_SI_TB-806_Main_(C)

Main Board

CABLINE-CA_SI_TB-806_Thru_(C)

Thru Board
SI Test Board for CABLINE-CAL 91689-040B-001
