CABLINE®-UX II
适合通孔解决方案的超细设计，窄间距 （0.25 mm ）, 90°出线垂直插拔款的极细同轴线连接器
空间有限的小型电子产品的理想选择
Plug尺寸也非常小巧，能够方便穿过转轴
多点接地设计提供良好的EMC解决方案
Contact Pitch:
0.25
(mm)
嵌合类型:
垂直
Mated Height:
1.1
max.
(mm)
可提供Pin数:
30
34
40
50
Micro-Coaxial Cable:
AWG 44
AWG 46
Discrete Cable:
AWG 39
AWG 40
AWG 42
AWG 44
AWG 46
下载
空间有限的小型电子产品的理想选择
CABLINE-UX II 40p 的连接器大小比一分钱硬币还小。
 |
柔软的极细同轴线束 |
Plug尺寸也非常小巧，能够方便穿过转轴
模拟参考示例:
当使用外径为0.24 mm的同轴线加工成的 UX II 40pin 线束可以穿过内孔径为Φ2.66 mm的转轴或者软管。
φ2.66 mm |
小型转轴 |
小直径管 |
多点接地设计提供良好的EMC解决方案
|
View From Topside |
|
Soldered contacts
Mechanical contacts |
 |
 |
||||
| Wire Shield to Ground Bar |
 |
Ground Bar to Plug Shell |
|
Plug Shell to Receptacle Shell |
|
Receptacle Shell to PCB |
| Transmission Speed (Reference Only) | 5 Gbps/Lane NRZ |
| Contact Pitch |
0.25
(mm)
|
| 嵌合类型 |
垂直
|
| Mated Height |
1.1
max.
(mm)
|
| Available Pin Counts |
30
34
40
50
|
| Depth |
2.4 (mm)
|
| Width Formula |
4.1 + (0.25 x pin count)(mm)
|
| Micro-Coaxial Cable |
AWG 44
AWG 46
|
| Discrete Cable |
AWG 39
AWG 40
AWG 42
AWG 44
AWG 46
|
| Shielded FPC / FFC |
No
|
| Current rating | |
| Applicable Standards (Reference Only) |
USB3.1 Gen1 (5 Gbps/Lane)
V-By-One HS 1.4 (4 Gbps/Lane)
eDP (2.7 Gbps/Lane)
MiPi standards
|
| Full EMI Shielding (ZenShield®) |
No
|
| Mechanical lock |
No
|
推荐料号
若列表中查询不到您要查找的料号，请使用调查表询问。
CABLINE-UX II RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-UX II plug cable assembly 30pin | 20531-030T-02-1 | 29.2 |
| CABLINE-UX II plug cable assembly 34pin | 20531-034T-02-1 | 32.1 |
| CABLINE-UX II plug cable assembly 40pin | 20531-040T-02-1 | 37 |
| CABLINE-UX II plug cable assembly 50pin | 20531-050T-02-1 | 43.5 |
| CABLINE-UX II plug housing 30pin | 20532-030T-02-1 | 17.42 |
| CABLINE-UX II plug housing 34pin | 20532-034T-02-1 | 19.2 |
| CABLINE-UX II plug housing 40pin | 20532-040T-02-1 | 22.4 |
| CABLINE-UX II plug housing 50pin | 20532-050T-02-1 | 25.5 |
| CABLINE-UX II plug metal cover 30pin | 2799-0301 | 11.78 |
| CABLINE-UX II plug metal cover 34pin | 2799-0341 | 12.9 |
| CABLINE-UX II plug metal cover 40pin | 2799-0401 | 14.6 |
| CABLINE-UX II plug metal cover 50pin | 2799-0501 | 18 |
| CABLINE-UX II receptacle 30pin | 20533-230E | 49.3 |
| CABLINE-UX II receptacle 34pin | 20533-234E | 52.18 |
| CABLINE-UX II receptacle 40pin | 20533-240E | 56.34 |
| CABLINE-UX II receptacle 50pin | 20533-250E | 66.42 |
CABLINE-UX II SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-UX II harness 30pin micro-coaxial 46AWG L=200mm | 82070-100B-02-D | - |
| CABLINE-UX II harness 40pin micro-coaxial 46AWG L=300mm 1-N | 82446-100B-02-D | - |
| CABLINE-UX II harness 50pin micro-coaxial 46AWG L=300mm 1-N | 82447-100B-02-D | - |
其他料号
请注意:此列表可能包含了暂时还没有可用样品的产品和不再销售的型号。
如您有新的询价，请参考上述推荐的料号。
CABLINE-UX II OTHER PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-UX II receptacle 30pin for inspection | 20534-030E-01 | 52.078 |
| CABLINE-UX II receptacle 34pin for inspection | 20534-034E-01 | - |
| CABLINE-UX II receptacle 40pin for inspection | 20534-040E-01 | - |
| CABLINE-UX II receptacle 50pin for inspection | 20534-050E-01 | - |
CABLINE-UX II ACCESSORIES PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-UA II/UX II hand tool one-side-extraction | 90460-001 | 0 |

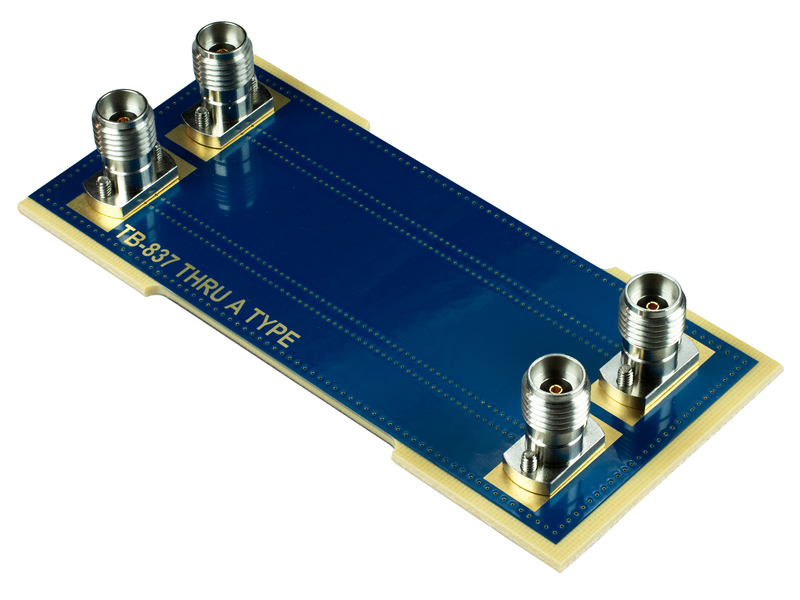

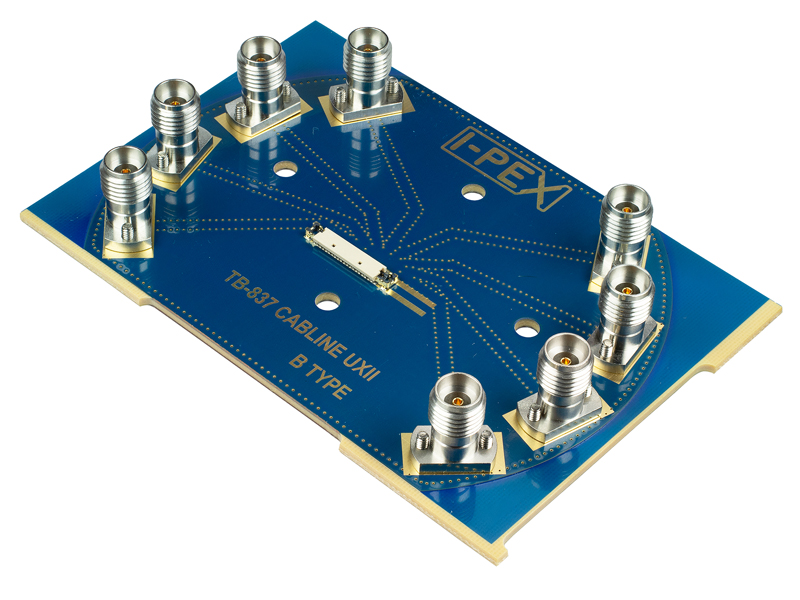

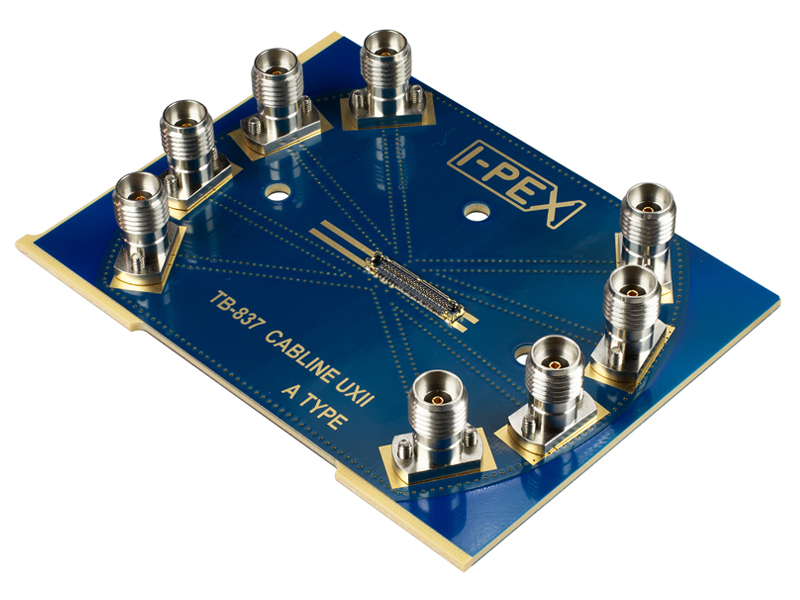

SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) |
| SI Test Board for CABLINE-UX II (type-A) 30pin | 91576-030B-001 | 77998.6 |
| SI Test Board for CABLINE-UX II (type-A) 34pin | 91576-034B-001 | 78004.36 |
| SI Test Board for CABLINE-UX II (type-A) 40pin | 91576-040B-001 | 78012.68 |
| SI Test Board for CABLINE-UX II (type-A) 50pin | 91576-050B-001 | 78032.84 |
| SI Test Board for CABLINE-UX II (type-B) 30pin | 91577-030B-001 | 81698.6 |
| SI Test Board for CABLINE-UX II (type-B) 34pin | 91577-034B-001 | 81704.36 |
| SI Test Board for CABLINE-UX II (type-B) 40pin | 91577-040B-001 | 81712.68 |
| SI Test Board for CABLINE-UX II (type-B) 50pin | 91577-050B-001 | 81732.84 |
CABLINE-UX II ACCESSORIES PART NUMBERS
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| CABLINE-UX II plug cable assembly 30pin | 20531-030T-02 | 20531-030T-02-1 | shape |
| CABLINE-UX II plug cable assembly 34pin | 20531-034T-02 | 20531-034T-02-1 | shape |
| CABLINE-UX II plug cable assembly 40pin | 20531-040T-02 | 20531-040T-02-1 | shape |
| CABLINE-UX II plug cable assembly 50pin | 20531-050T-02 | 20531-050T-02-1 | shape |
| CABLINE-UX II plug housing 30pin | 20532-030T-02 | 20532-030T-02-1 | shape |
| CABLINE-UX II plug housing 30pin | 20532-030T-12 | 20532-030T-02-1 | material, shape |
| CABLINE-UX II plug housing 34pin | 20532-034T-02 | 20532-034T-02-1 | shape |
| CABLINE-UX II plug housing 34pin | 20532-034T-12 | 20532-034T-02-1 | material, shape |
| CABLINE-UX II plug housing 40pin | 20532-040T-02 | 20532-040T-02-1 | shape |
| CABLINE-UX II plug housing 40pin | 20532-040T-12 | 20532-040T-02-1 | material, shape |
| CABLINE-UX II plug housing 50pin | 20532-050T-02 | 20532-050T-02-1 | shape |
| CABLINE-UX II plug housing 50pin | 20532-050T-12 | 20532-050T-02-1 | material, shape |
| CABLINE-UX II receptacle 30pin | 20533-030E | 20533-230E | vacuum clip |
| CABLINE-UX II receptacle 30pin | 20533-030E-01 | 20533-230E | material, vacuum clip |
| CABLINE-UX II receptacle 34pin | 20533-034E | 20533-234E | vacuum clip |
| CABLINE-UX II receptacle 34pin | 20533-034E-01 | 20533-234E | material, vacuum clip |
| CABLINE-UX II receptacle 40pin | 20533-040E | 20533-240E | vacuum clip |
| CABLINE-UX II receptacle 40pin | 20533-040E-01 | 20533-240E | material, vacuum clip |
| CABLINE-UX II receptacle 50pin | 20533-050E | 20533-250E | vacuum clip |
| CABLINE-UX II receptacle 50pin | 20533-050E-01 | 20533-250E | material, vacuum clip |
