- Head-up Display
- Meter Cluster
- Center Information Display
- Driver Monitoring System
- Rear Seat Entertainment
- Climate Control
- Body, Seat Controls
Interior Components
Interior Components
- Headlamp
- LiDAR
- On-board Charger, DC/DC Converter, Inverter unit
- BMS
- Telematics
- Rear View Camera
- Roof, Door Harness
- Rear Lamp
Exterior Components
Exterior Components
Head-up Display

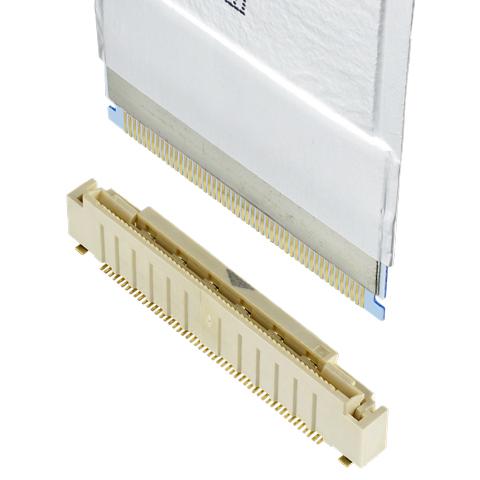

EVAFLEX® 5-SE-G VT
One-handed auto-locking feature, high temperature resistance (125℃), high-speed, vertical mate, 0.5 mm pitch shielded FFC/FPC connector

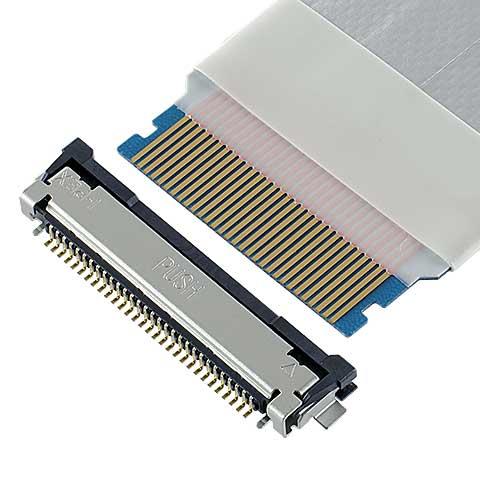

EVAFLEX® 5-VS
Auto-locking, high temperature option (105℃), high-speed, horizontal mate, 0.5 mm pitch shielded FFC/FPC connector

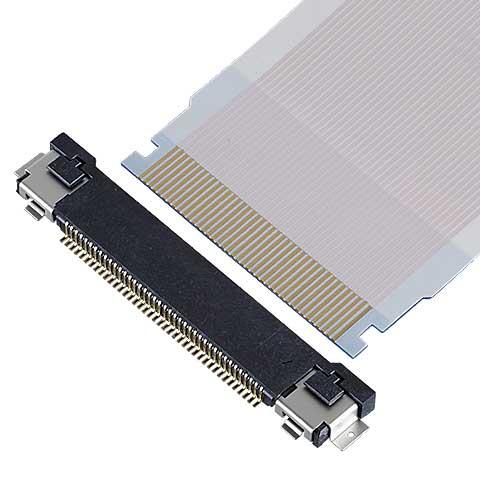

EVAFLEX® 5-SE
Auto-locking, horizontal mate, 0.5 mm pitch FFC/FPC connector
EVAFLEX® 5-SE VT
Auto-locking, vertical mate, 0.5 mm pitch FFC/FPC connector
Meter Cluster
EVAFLEX® 5-VS
Auto-locking, high temperature option (105℃), high-speed, horizontal mate, 0.5 mm pitch shielded FFC/FPC connector
EVAFLEX® 5-SE
Auto-locking, horizontal mate, 0.5 mm pitch FFC/FPC connector
CABLINE®-CA II
Fully-shielded with mechanical lock, suitable for high-data-rate transfer (32 Gbps/lane), 0.4 mm pitch, horizontal mating type micro-coaxial connector

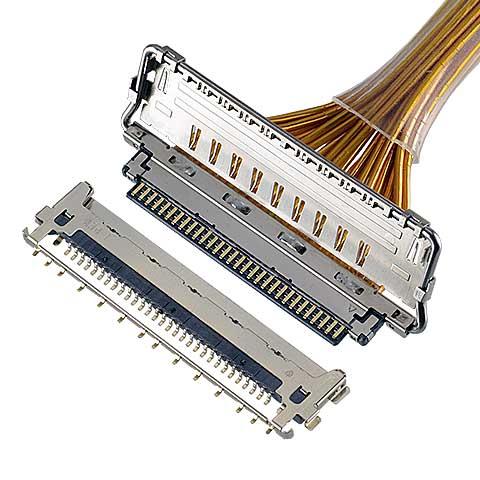

CABLINE®-VS II
Fully-shielded with mechanical lock, Suitable for high-data-rate transfer (PCIe Gen5 32 GT/s/lane), 0.5 mm pitch, Horizontal mating type micro-coaxial connector
CABLINE®-VS
VESA standard connector, Suitable for high-data-rate transfer (32 Gbps/lane), Mechanical locking bar, 0.5 mm pitch, Horizontal mating type micro-coaxial connector
CABLINE®-CA
High-data-rate transfer (32 Gbps/Lane), mechanical lock with shielding and multi-point ground, 0.4 mm pitch, Horizontal mating type micro-coaxial connector
Center Information Display
EVAFLEX® 5-VS
Auto-locking, high temperature option (105℃), high-speed, horizontal mate, 0.5 mm pitch shielded FFC/FPC connector
EVAFLEX® 5-SE
Auto-locking, horizontal mate, 0.5 mm pitch FFC/FPC connector

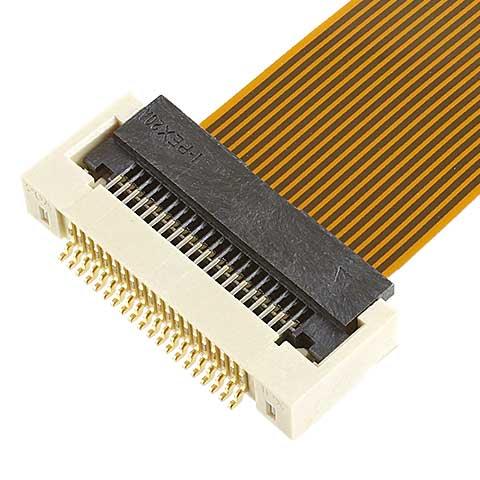

MINIFLEX® 5-FF
Robust design with hold down feature, high temperature resistance (125℃), height = 2.55 mm, 0.5 mm pitch, horizontal, front flip
MINIFLEX® 5-BFN II
Robust design with hold-down feature, high temperature resistance (125℃), low profile (height = 1.0 mm), 0.5 mm pitch, horizontal, backflip

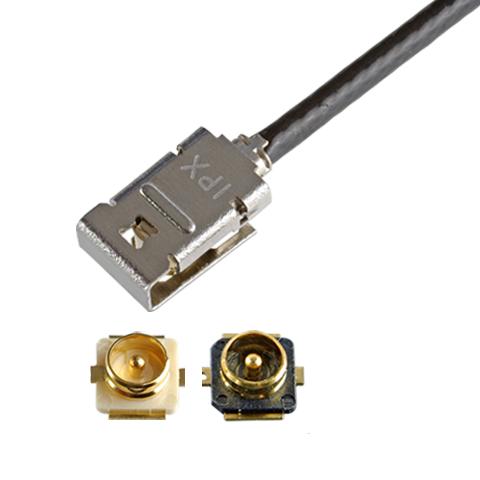

MHF® I LK
Locking solution that works with MHF I receptacles, supports up to 9 GHz, mated height of 2.9 mm max
MHF® I
Supports up to 9 GHz, mated height of 2.5 mm max. and 3.0 mm max.
MHF® I (4 pads receptacle)
MHF® I receptacle with additional 4th pad improves center alignment when mounted on the board by reflow, and increases solder shear force
EVAFLEX® 5-HD
Fully-shielded, high-speed, auto-locking, horizontal mate, 0.5 mm pitch shielded FFC/FPC connector
CABLINE®-CA II
Fully-shielded with mechanical lock, suitable for high-data-rate transfer (32 Gbps/lane), 0.4 mm pitch, horizontal mating type micro-coaxial connector
CABLINE®-VS II
Fully-shielded with mechanical lock, Suitable for high-data-rate transfer (PCIe Gen5 32 GT/s/lane), 0.5 mm pitch, Horizontal mating type micro-coaxial connector
CABLINE®-VS
VESA standard connector, Suitable for high-data-rate transfer (32 Gbps/lane), Mechanical locking bar, 0.5 mm pitch, Horizontal mating type micro-coaxial connector
CABLINE®-CA
High-data-rate transfer (32 Gbps/Lane), mechanical lock with shielding and multi-point ground, 0.4 mm pitch, Horizontal mating type micro-coaxial connector
MHF®-TI
Small, robust RF connector for automotive telematics antenna, and camera sensors
Driver Monitoring System
MHF®-TI
Small, robust RF connector for automotive telematics antenna, and camera sensors
MHF® I LK
Locking solution that works with MHF I receptacles, supports up to 9 GHz, mated height of 2.9 mm max
Rear Seat Entertainment
CABLINE®-VS II
Fully-shielded with mechanical lock, Suitable for high-data-rate transfer (PCIe Gen5 32 GT/s/lane), 0.5 mm pitch, Horizontal mating type micro-coaxial connector
CABLINE®-SS
High-data-rate transfer (16 Gbps/Lane), Narrow depth, robust, max power delivery (AWG#34), 0.4 mm pitch, right angle vertical mating type micro-coaxial connector
CABLINE®-CA II
Fully-shielded with mechanical lock, suitable for high-data-rate transfer (32 Gbps/lane), 0.4 mm pitch, horizontal mating type micro-coaxial connector

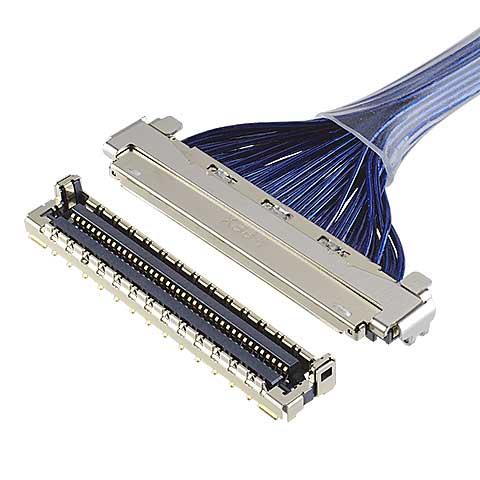

CABLINE®-UM
Fully-shielded and multi-point ground, Mechanical lock, High-data-rate transfer (40 Gbps/lane PAM3), 0.4 mm pitch, Right angle vertical mating type micro-coaxial connector
CABLINE®-VS
VESA standard connector, Suitable for high-data-rate transfer (32 Gbps/lane), Mechanical locking bar, 0.5 mm pitch, Horizontal mating type micro-coaxial connector
EVAFLEX® 5-VS
Auto-locking, high temperature option (105℃), high-speed, horizontal mate, 0.5 mm pitch shielded FFC/FPC connector
EVAFLEX® 5-SE
Auto-locking, horizontal mate, 0.5 mm pitch FFC/FPC connector
MHF® I LK
Locking solution that works with MHF I receptacles, supports up to 9 GHz, mated height of 2.9 mm max
Climate Control
EVAFLEX® 5-VS
Auto-locking, high temperature option (105℃), high-speed, horizontal mate, 0.5 mm pitch shielded FFC/FPC connector
EVAFLEX® 5-SE
Auto-locking, horizontal mate, 0.5 mm pitch FFC/FPC connector

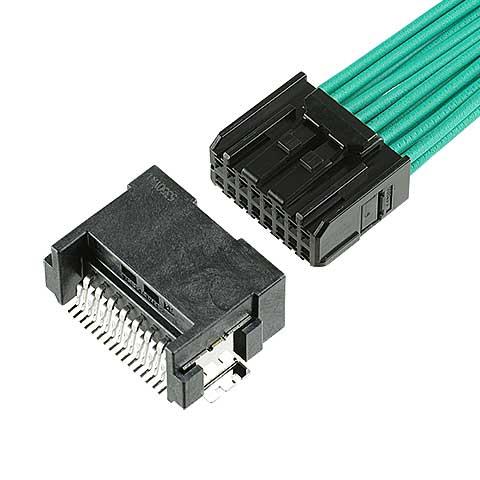

ISH® HORIZONTAL
High heat and vibration resistant, horizontal, SMT connector
ISH® WIRE TO WIRE
High heat and vibration resistance, wire-to-wire relay connector
ISH® VERTICAL
High heat and vibration resistant, vertical SMT connector
ISH® HORIZONTAL HYBRID
High heat and vibration resistant connector with hybrid (signal + power) terminals
IARPB® HORIZONTAL
Vibration resistant, one-piece,horizontal type board-in connector
IARPB® VERTICAL
Vibration resistant, one-piece,vertical type board-in connector

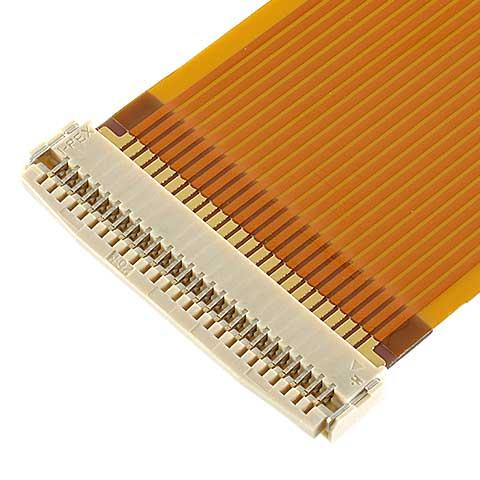

MINIFLEX® 5-BFN II LK
Mechanical lock, robust design with hold-down feature, high temperature resistance (125℃), low profile (height = 1.0 mm), 0.5 mm pitch, horizontal, backflip
Body, Seat Controls
ISH® HORIZONTAL
High heat and vibration resistant, horizontal, SMT connector
ISH® WIRE TO WIRE
High heat and vibration resistance, wire-to-wire relay connector
ISH® VERTICAL
High heat and vibration resistant, vertical SMT connector
ISH® HORIZONTAL HYBRID
High heat and vibration resistant connector with hybrid (signal + power) terminals
IARPB® HORIZONTAL
Vibration resistant, one-piece,horizontal type board-in connector
IARPB® VERTICAL
Vibration resistant, one-piece,vertical type board-in connector
Headlamp
ISH® HORIZONTAL
High heat and vibration resistant, horizontal, SMT connector
ISH® HORIZONTAL HYBRID
High heat and vibration resistant connector with hybrid (signal + power) terminals
ISH® VERTICAL
High heat and vibration resistant, vertical SMT connector
ISH® WIRE TO WIRE
High heat and vibration resistance, wire-to-wire relay connector
IARPB® HORIZONTAL
Vibration resistant, one-piece,horizontal type board-in connector
IARPB® VERTICAL
Vibration resistant, one-piece,vertical type board-in connector
LiDAR
EVAFLEX® 5-SE-G VT
One-handed auto-locking feature, high temperature resistance (125℃), high-speed, vertical mate, 0.5 mm pitch shielded FFC/FPC connector
EVAFLEX® 5-SE-G HT
One-handed auto-locking feature, high temperature (125℃), high-speed, horizontal mate, 0.5 mm pitch shielded FFC/FPC connector
EVAFLEX® 5-VS
Auto-locking, high temperature option (105℃), high-speed, horizontal mate, 0.5 mm pitch shielded FFC/FPC connector
EVAFLEX® 5-SE
Auto-locking, horizontal mate, 0.5 mm pitch FFC/FPC connector
MHF®-TI
Small, robust RF connector for automotive telematics antenna, and camera sensors
NOVASTACK® 35-P
Robust connector with hold-down feature and Corson Alloy main contacts to transmit power, 0.35 mm pitch, 0.7 mm height, 2.3 mm depth
On-board Charger, DC/DC Converter, Inverter unit

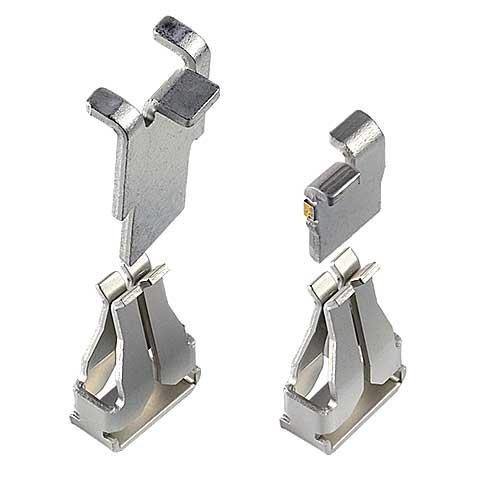

AP-10
High-power supply terminal, high heat resistance board-to-board connection. Contribute to miniaturization of power electronics devices, height differences can be customized.

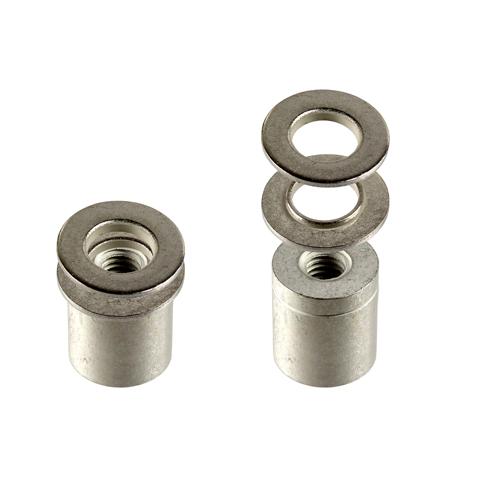

AP-TSS10, AP-LT10
High current (32 A), high temperature (125 °C) Spacer/Power Terminal, PCB SMT Terminal, easily operate with SMT and M3 (8.00 mm) screws
ISH® HORIZONTAL
High heat and vibration resistant, horizontal, SMT connector
ISH® HORIZONTAL HYBRID
High heat and vibration resistant connector with hybrid (signal + power) terminals
ISH® VERTICAL
High heat and vibration resistant, vertical SMT connector
ISH® WIRE TO WIRE
High heat and vibration resistance, wire-to-wire relay connector
IARPB® HORIZONTAL
Vibration resistant, one-piece,horizontal type board-in connector
IARPB® VERTICAL
Vibration resistant, one-piece,vertical type board-in connector
BMS
EVAFLEX® 5-SE
Auto-locking, horizontal mate, 0.5 mm pitch FFC/FPC connector
ISH® HORIZONTAL
High heat and vibration resistant, horizontal, SMT connector
ISH® HORIZONTAL HYBRID
High heat and vibration resistant connector with hybrid (signal + power) terminals
ISH® VERTICAL
High heat and vibration resistant, vertical SMT connector
ISH® WIRE TO WIRE
High heat and vibration resistance, wire-to-wire relay connector
IARPB® HORIZONTAL
Vibration resistant, one-piece,horizontal type board-in connector
IARPB® VERTICAL
Vibration resistant, one-piece,vertical type board-in connector
Telematics
MHF® I LK
Locking solution that works with MHF I receptacles, supports up to 9 GHz, mated height of 2.9 mm max
MHF®-TI
Small, robust RF connector for automotive telematics antenna, and camera sensors
MHF® I
Supports up to 9 GHz, mated height of 2.5 mm max. and 3.0 mm max.
MHF® I (4 pads receptacle)
MHF® I receptacle with additional 4th pad improves center alignment when mounted on the board by reflow, and increases solder shear force
Rear View Camera
EVAFLEX® 5-SE-G VT
One-handed auto-locking feature, high temperature resistance (125℃), high-speed, vertical mate, 0.5 mm pitch shielded FFC/FPC connector
EVAFLEX® 5-SE-G HT
One-handed auto-locking feature, high temperature (125℃), high-speed, horizontal mate, 0.5 mm pitch shielded FFC/FPC connector
EVAFLEX® 5-VS
Auto-locking, high temperature option (105℃), high-speed, horizontal mate, 0.5 mm pitch shielded FFC/FPC connector
EVAFLEX® 5-SE
Auto-locking, horizontal mate, 0.5 mm pitch FFC/FPC connector
MHF®-TI
Small, robust RF connector for automotive telematics antenna, and camera sensors
NOVASTACK® 35-P
Robust connector with hold-down feature and Corson Alloy main contacts to transmit power, 0.35 mm pitch, 0.7 mm height, 2.3 mm depth
Roof, Door Harness
ISH® HORIZONTAL
High heat and vibration resistant, horizontal, SMT connector
ISH® HORIZONTAL HYBRID
High heat and vibration resistant connector with hybrid (signal + power) terminals
ISH® VERTICAL
High heat and vibration resistant, vertical SMT connector
ISH® WIRE TO WIRE
High heat and vibration resistance, wire-to-wire relay connector
MHF®-TI
Small, robust RF connector for automotive telematics antenna, and camera sensors
IARPB® HORIZONTAL
Vibration resistant, one-piece,horizontal type board-in connector
IARPB® VERTICAL
Vibration resistant, one-piece,vertical type board-in connector
Rear Lamp
ISH® HORIZONTAL
High heat and vibration resistant, horizontal, SMT connector
ISH® HORIZONTAL HYBRID
High heat and vibration resistant connector with hybrid (signal + power) terminals
ISH® VERTICAL
High heat and vibration resistant, vertical SMT connector
ISH® WIRE TO WIRE
High heat and vibration resistance, wire-to-wire relay connector
IARPB® HORIZONTAL
Vibration resistant, one-piece,horizontal type board-in connector
IARPB® VERTICAL
Vibration resistant, one-piece,vertical type board-in connector
*You can reach to product page by clicking product pictures below.
Efficiency -Minimizing Energy Losses and Maximizing Performance-
Low Resistance for High Current Loads
Highly Conductive Materials for longer life and better heat dissipation
Compact Formfactors and High Electrical Performance

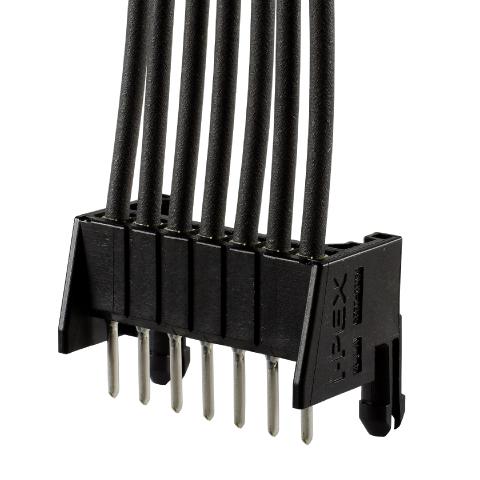

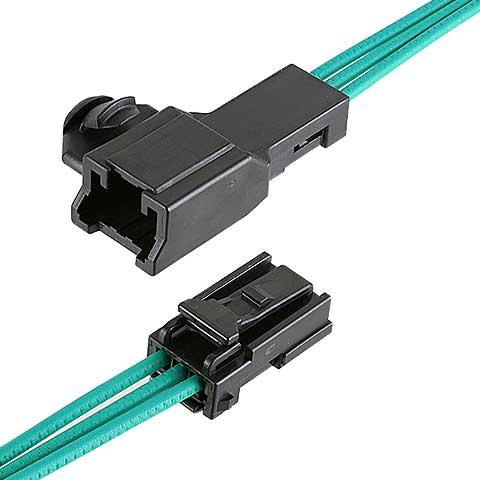

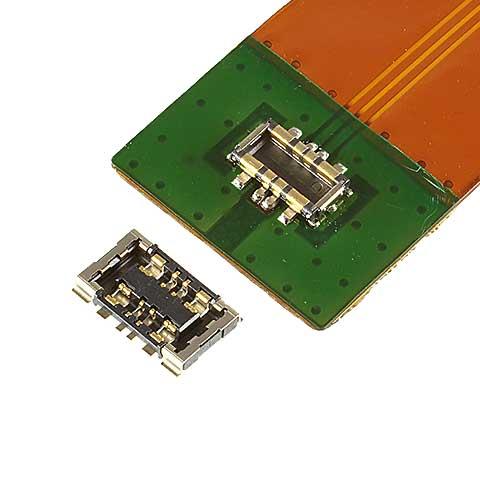

ISH horizontal / ISH wire to wire / NOVASTACK-B / IARPB vertical / AP-TSS10 / AP-10
Connectivity -Enabling High-Speed Data Transmission-
Bandwidth and Signal Integrity of Connectors
Uniform Matched Impedance
360 Degrees EMI Shielding

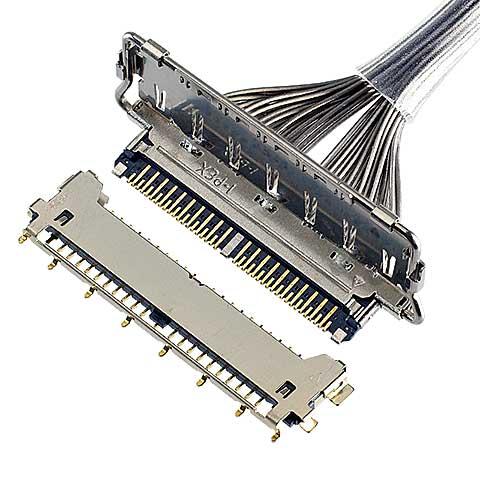

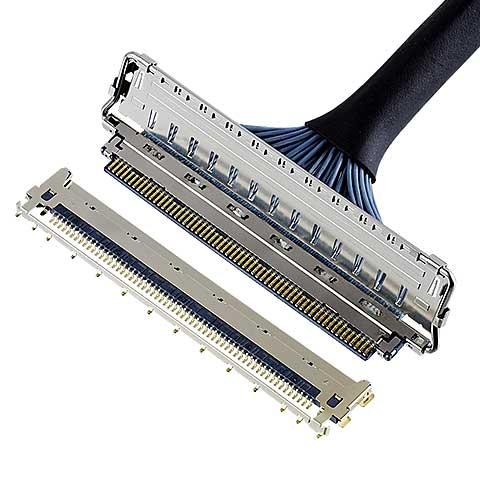

CABLINE-VS II / CABLINE-CX II / CABLINE-CA II PLUS / CABLINE-UM
Safety -Withstanding Harsh and High Stress Conditions-
Wide Operating Temperature Range
High Resistance to Shock and Vibration
High Performance Corson Alloy for Contacts

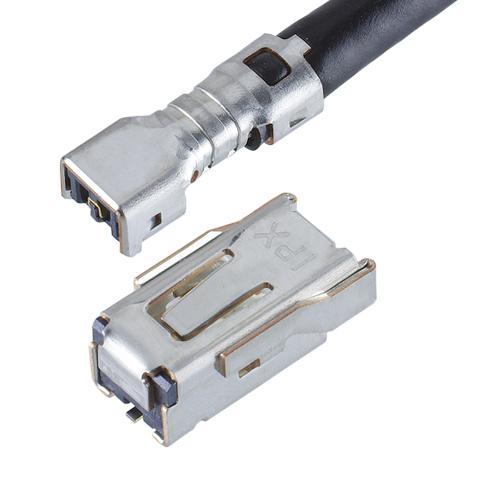

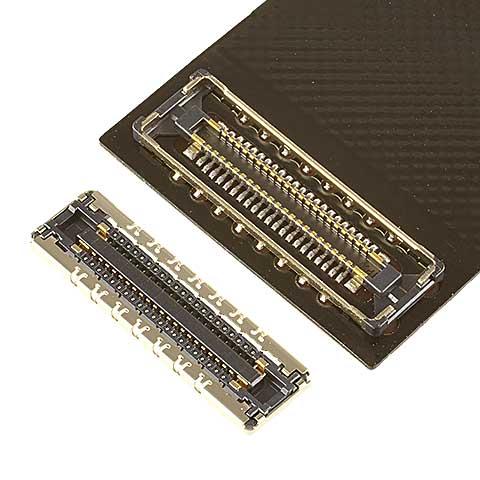

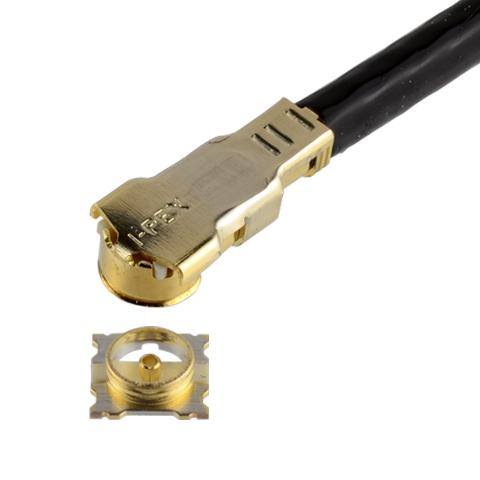

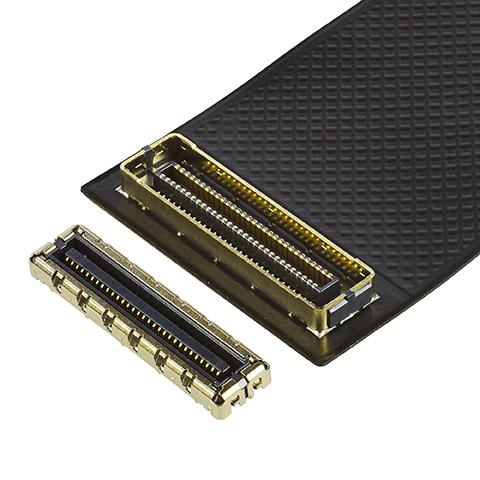

NOVASTACK 35-HDP / NOVASTACK 35-HDH / MHF-TI / MHF 7S / MINIFLEX 5-BFN II LK
Accessibility -Design for Assembly, Modularity, and Maintenance-
Vertical, Horizontal and Right Angle Mount Types
Locking Features
High Density and Light Weight

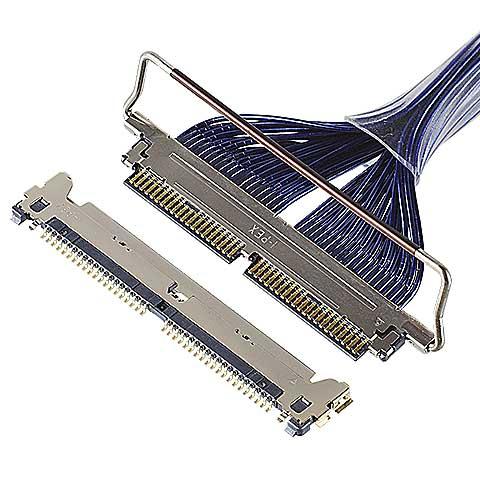

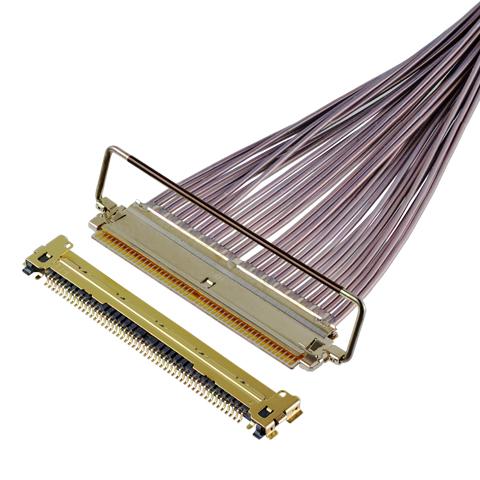

CABLINE-CAL / EVAFLEX 5-VS / MHF I LK / CABLINE-CAP / EVAFLEX 5-SE
Sustainability -Designing for Lifecycle and Environmental Compliance-
RoHS and REACH Compliance
UL Certified
Automotive Grade: LV214, USCAR-2
