IARPB® VERTICAL

Vibration resistant, one-piece,vertical type board-in connector

    The positioning boss on housing guides the terminal to the PCB through-hole

    High connection reliability

    Increase design flexibility with wide range of horizontal and vertical variations
Contact Pitch:
2.5 (mm)
Mating Direction:
Vertical
Height:
8.7 max. (mm)
Available Pin Count:
2 3 4 5 6 7 8 9 10
Discrete Cable:
AWG 22 O.D. 1.67 mm
Current rating:
3 A/pin

Downloads

The positioning boss on housing guides the terminal to the PCB through-hole

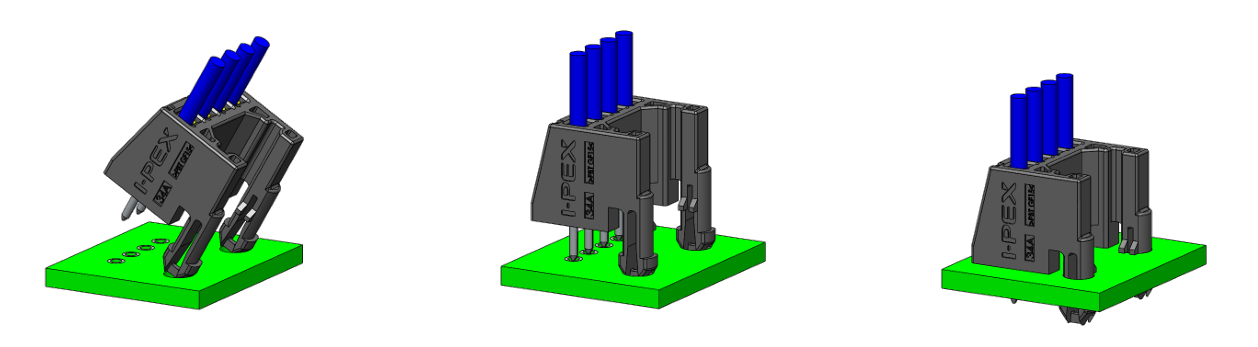

1. Mounting position is determined by the positioning boss

2. Guiding terminal to
the PCN through hole

3. Inserting the
connector into the PCB



High connection reliability
Positioning boss on housing
enhances performance under vibration		   Circumference is covered with Sn plating,
 allowing high solderability
IARPB(VERTIVAL_TYPE)_FAB2-1.png   IARPB(VERTIVAL_TYPE)_FAB2-2_1.png

Fully Sn Plating



Increase design flexibility with wide range of horizontal and vertical variations



Contact Pitch
2.5 (mm)
Mating Direction
Vertical
Height
8.7 max. (mm)
Available Pin Counts
2 3 4 5 6 7 8 9 10
Depth
10.95 (mm)
Width Formula
1.5 + (2.5 x pin count) (mm)
Discrete Cable
AWG 22 O.D. 1.67 mm
Current rating
3 A/pin
Other Features
Through hole mounting High heat resistant High vibration resistant

IARPB (Vertical Type) RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
IARPB VERTICAL housing 2pin V0145-91002-01 390
IARPB VERTICAL housing 3pin V0145-91003-01 440
IARPB VERTICAL housing 4pin V0145-91004-01 500
IARPB VERTICAL housing 5pin V0145-91005-01 560
IARPB VERTICAL housing 6pin V0145-91006-01 630
IARPB VERTICAL housing 7pin V0145-91007-01 670
IARPB VERTICAL housing 8pin V0145-91008-01 730
IARPB VERTICAL housing 9pin V0145-91009-01 790
IARPB VERTICAL housing 10pin V0145-91010-01 840
