ISH® VERTICAL

ISH Vertical Product Image
High heat and vibration resistant, vertical SMT connector

    High heat and strong vibration resistance for high-reliability applications

    Unique embedded spring terminals for long-term stable electrical connection

    LV214 compliant, designed for automotive and industrial grade applications
Contact Pitch:
2.0 (mm)
Mating Direction:
Vertical
Mated Height:
20.75 max. (mm)
Available Pin Count:
8 10 20 26
Discrete Cable:
AWG 20 O.D. 1.6 mm AWG 22 O.D. 1.6 mm
Current rating:
4.5 A/pin

Downloads

High heat and strong vibration resistance for high-reliability applications
ISH Vertical Type FAB1 E

Unique embedded spring terminals for long-term stable electrical connection
ISH Vertical Type FAB2 E

LV214 compliant, designed for automotive and industrial grade applications

For Automotive

For Non-Automotive
For Automotive For Non-Automotive
  • Headlamp & other automotive lamps
  • Inverter & DC/DC converter
  • Battery control module
  • Front/Rear view camera control module
  • Instrument cluster
  • Offroad vehicles (ATV/UTVs, QUADS, Tricycles)
  • Trucks and construction machineries (Excavators, Loaders)
  • Factory automation equipment

For applications that require compliance with LV214

Please refer to "part number" tab above for LV214 compliant part numbers.



Product Type
Discrete wire
Contact Pitch
2.0 (mm)
Mating Direction
Vertical
Mated Height
20.75 max. (mm)
Available Pin Counts
8 10 20 26
Width Formula
ISH=7.6+1.0*pin counts ISHV=10.5+1.0*pin counts
Discrete Cable
AWG 20 O.D. 1.6 mm AWG 22 O.D. 1.6 mm
Shielded FPC / FFC
No
Current rating
4.5 A/pin
Full EMI Shielding (ZenShield®)
No

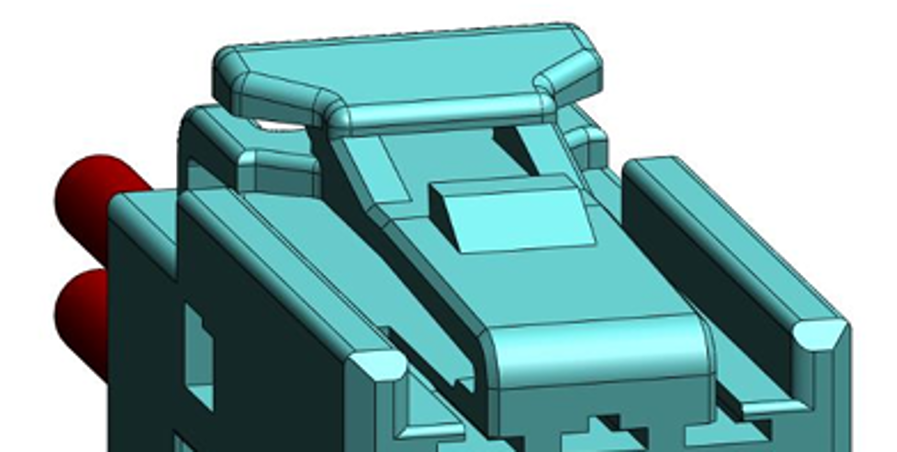

Mechanical lock
Yes
Mated Height (max.) 20.75mm
Automotive Standards LV214

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



ISH (Vertical Type) RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg) Note
ISH VERTICAL male assembly 8pin V0026-008E-001 2781.7 LV214
ISH VERTICAL male assembly 10pin V0019-010E-001 2730.56 LV214
ISH VERTICAL male assembly 20pin V0019-020E-001 3968 LV214
ISH VERTICAL male assembly 20pin V0019-026E-002 4289.99 LV214
ISH VERTICAL male assembly 26pin V0027-91008-211 783.6 LV214
ISH female housing 10pin V0020-91010-211 890.5 LV214
ISH female housing 20pin V0020-91020-211 1669.3 LV214
ISH female housing 26pin V0020-91026-211 1996 LV214
ISH_ISH-V female retainer 8pin V0116-92008-01 78.7 LV214
ISH female retainer 20pin V0020-92010-211 107.7 LV214
ISH female retainer 26pin V0020-92020-211 202.7 LV214
ISH VERTICAL TYPE female retainer 26pin double V0020-92026-211 269 LV214
ISH female terminal 0.5mm SL VT009-02 92.3 Signal Terminal
ISH female terminal 0.5mm Au VT009-03 88 　
Other Part Numbers
Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.



OTHER ISH (Vertical Type) PART NUMBERS

Part Number Description Part Number Weight (mg) Note
ISH VERTICAL TYPE male terminal 20pin double nosuctioncap V0019-020E-002 3819 LV214, Without Suction Cap
ISH female terminal 1.5mm VT011-01 -
