Micro-Coaxial/Twinax Connectors

I-PEX micro-coaxial connectors are ideal for connecting displays, camera modules, storage devices and other applications.

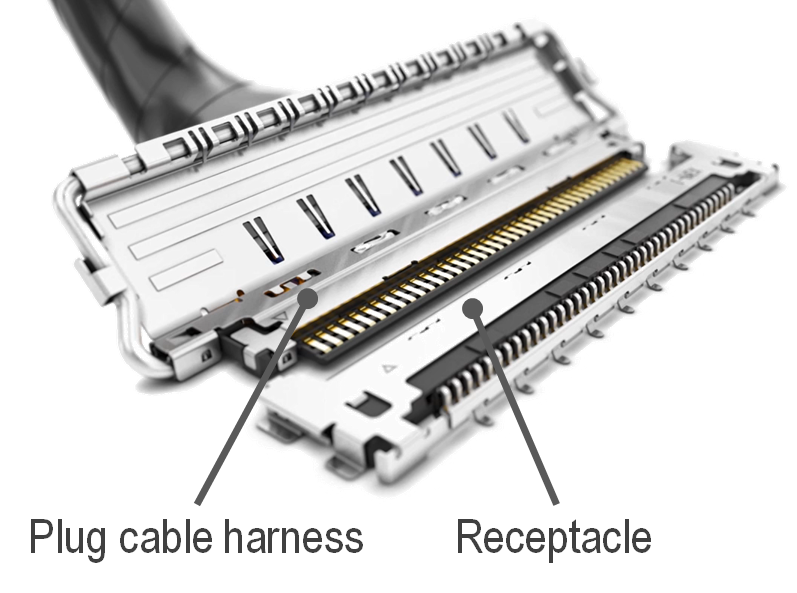

1) What is a Micro-coaxial Cable Harness and why do you need it?

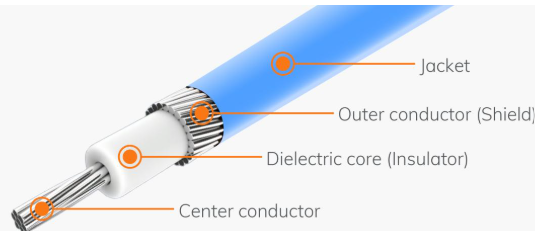

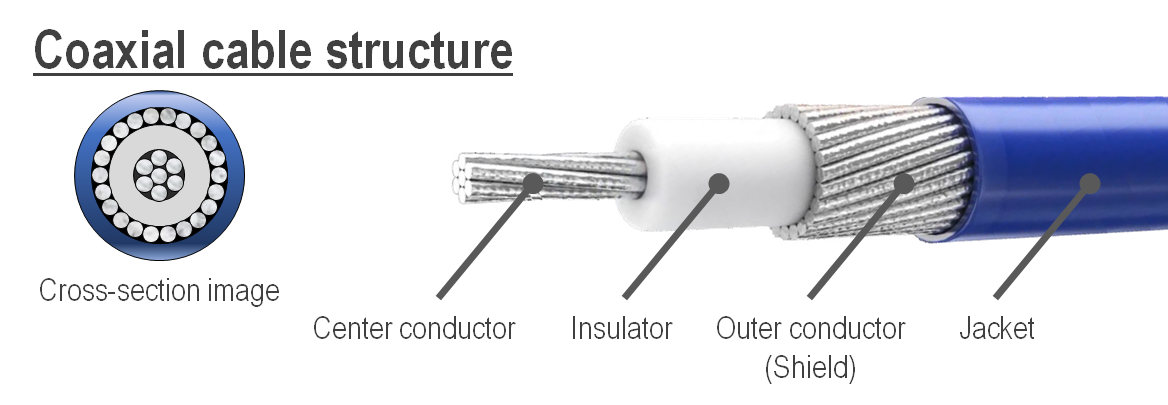

High frequency signals are more sensitive to electromagnetic radiation from near by communication sources like antennas, high speed board traces and transcievers on PCBs. By using Micro-coaxial cables, these high speed signals are well shielded from noise and signal integrity of data is preserved. A micro-coaxial cable includes a center conductor for signal transmission that is surrounded  by dielectric core for insulaion. There is outer metallic jacket with multiple strands for ground return current followed by PVC type jacket for additional insulation. I-PEX offers complete micro-coaxial cable harness solutions for high frequency signals by using its fully shielded connectors with optional mechanical locking feature for reliable connectivity.
Learn more :  What is a Micro-coaxial Cable Harness and why do you need it?



Qstns_1-1

1. Center conductor
2. Insulator
3. Outer ground layer (Shield)
4. Jacket

Coaxial Cable Structure

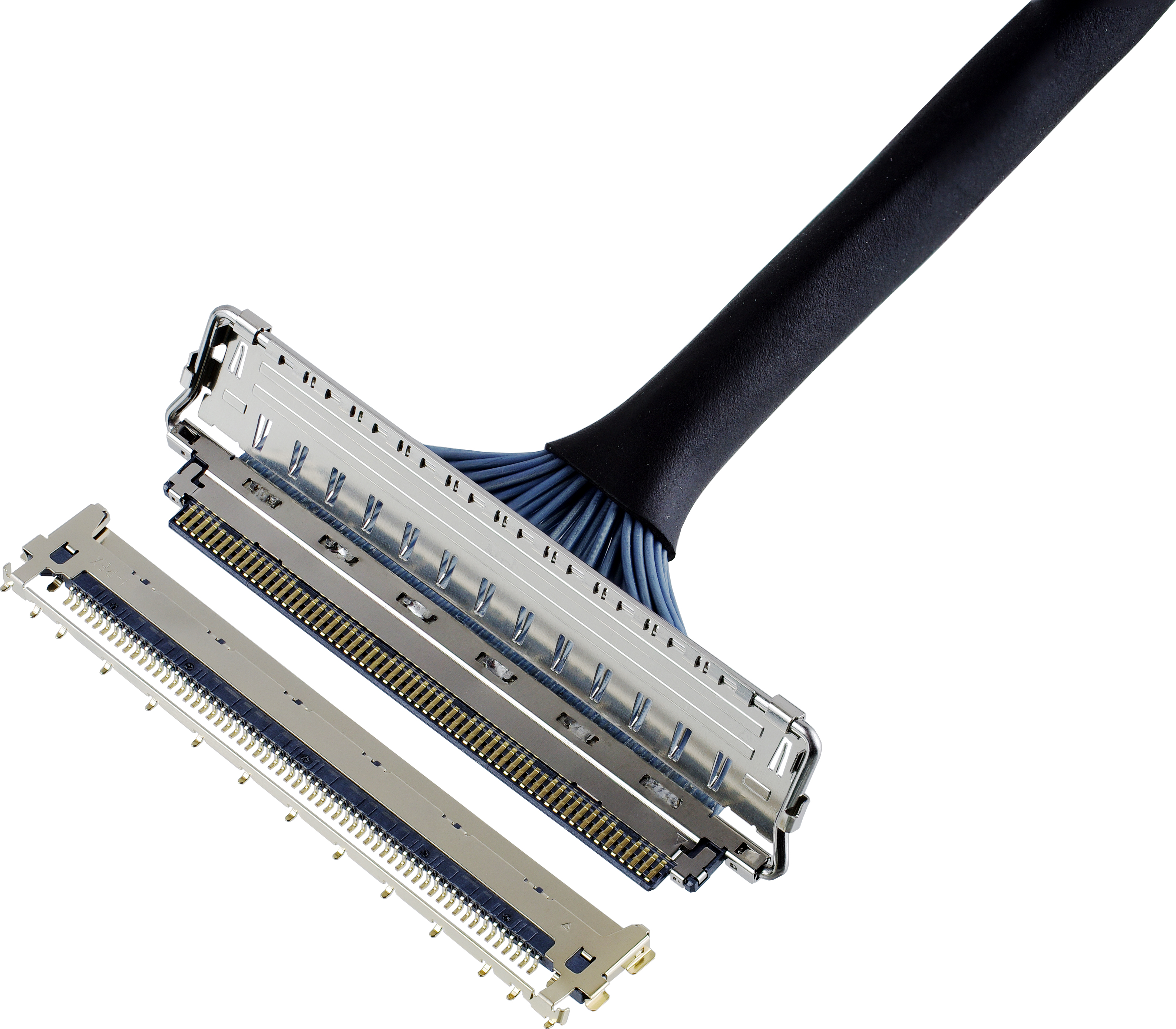

CABLINE-CA II PLUS
CABLINE®-CA II PLUS

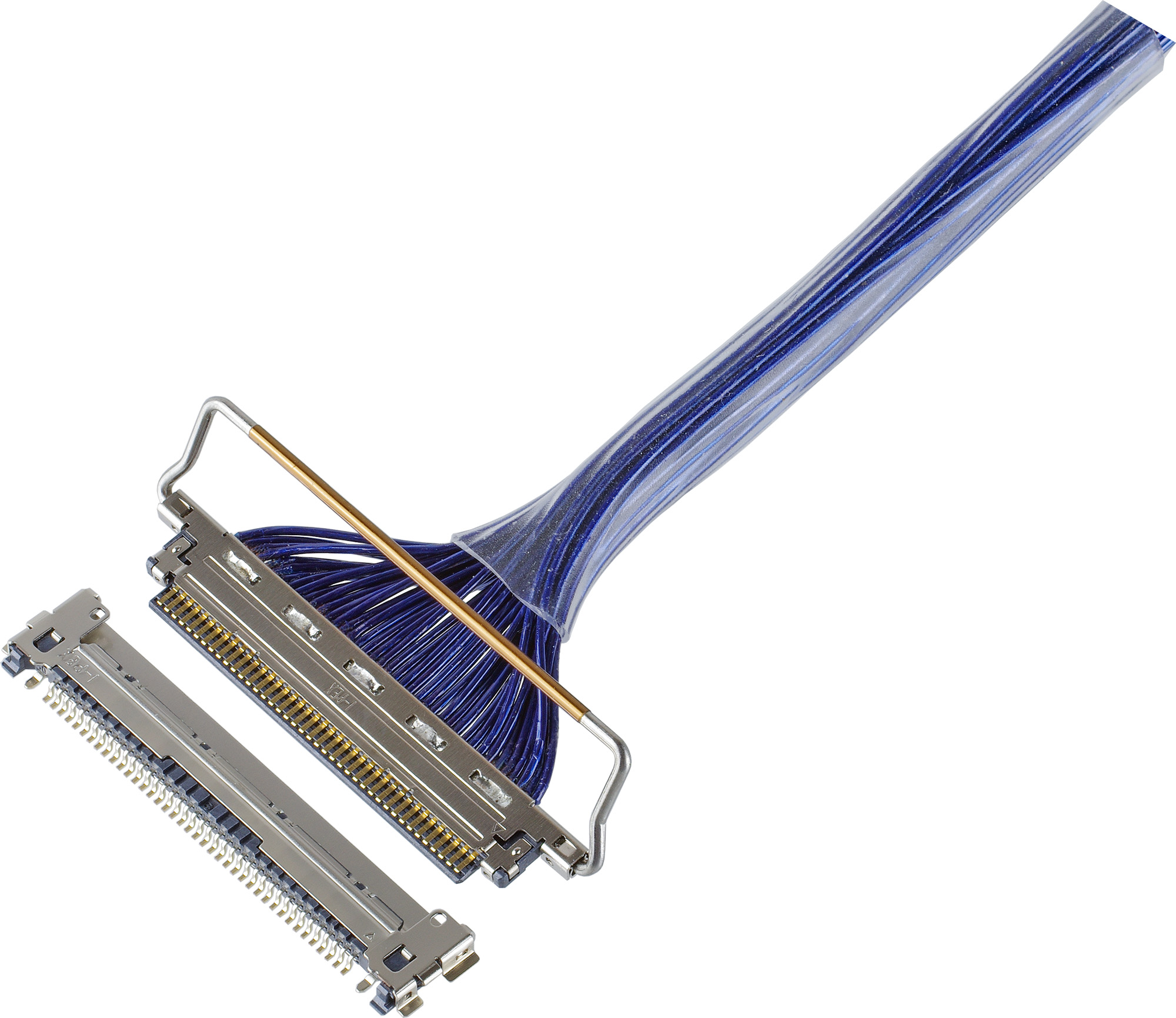

CABLINE-CA
CABLINE®-CA

Search Micro-Coaxial/Twinax Connectors                                View Product Matrix                              Back to top



AnchorAnchor2) What is a Twinax Cable Harness and why do you need it?

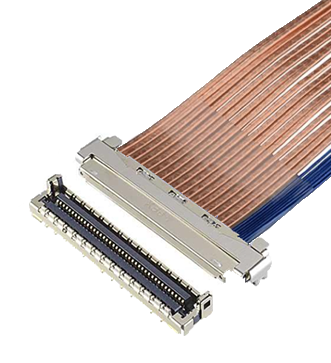

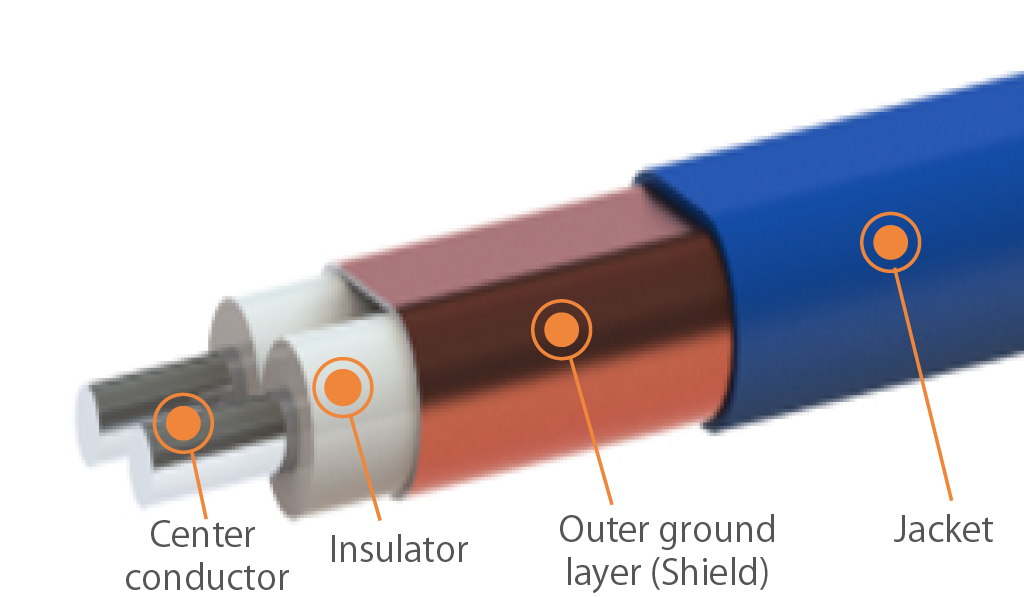

Twinax cables are more suitable for high speed digital data transmission that uses low voltage, low skew and tightly phase matched signals. These cables also dissipate less heat and offer smaller signal losses than PCB traces, so they can be used to interconnect the devices on the board. A Twinax cable has two center conductors typically used for differential signals. The two conductors are separated and surrounded by insualator like rubber or plastic. There is outer layer of dielectric around these conductors for insulation just like in Micro-coaxial cables. There is metallic outer conducting shield for ground return current and outer PVC type jacket. I-PEX offers complete Twinax Cable Harness solutions for high speed differential signals by using its fully shielded connectors with optional mechanical locking feature for reliable connectivity.
Learn more : What is a Twinax Cable Harness and why do you need it?



Qstns_2-1

1. Center conductor
2. Insulator
3. Outer ground layer (Shield)
4. Jacket

Twinax Cable Structure

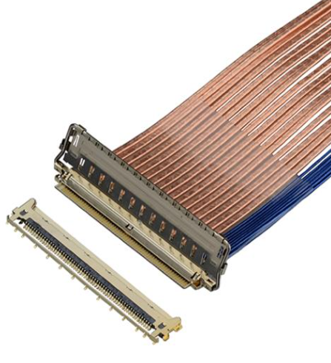

CABLINE -CA IIP PLUS
CABLINE® -CA IIP PLUS
CABLINE®-UM
CABLINE®-UM

Search Micro-Coaxial/Twinax Connectors                                View Product Matrix                              Back to top



Anchor3) What is the maximum operating frequency in your application?

Maximum operating frequency determines how fast and how much of the data can be transmitted in a high speed interface of communication system. Impedance mismatch and high Insertion Losses of interconnect medium in high speed digital data transmission result in closed signal eye, leading to high Bit Error Rate and data loss on receiving end. For this reason, it becomes even more important to use a high performance, low loss cable interconnect with well matched impedance so that the high speed signals can be transmitted with high fidelity. CABLINE® series of products offer low losses and can operate up to maximum frequency of 16GHz and data rates can be supported up to 64Gbps using PAM4 signalling. USB, eDP, Display Port and PCIe are some of the commonly supported proctocols.
Learn more : Maximum Operating Frequency

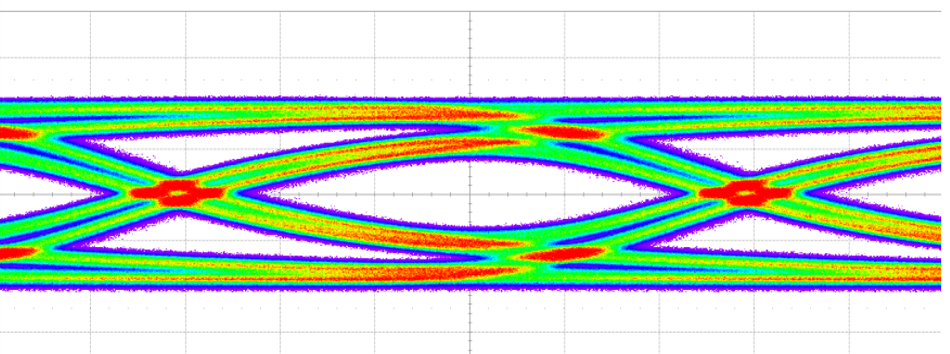

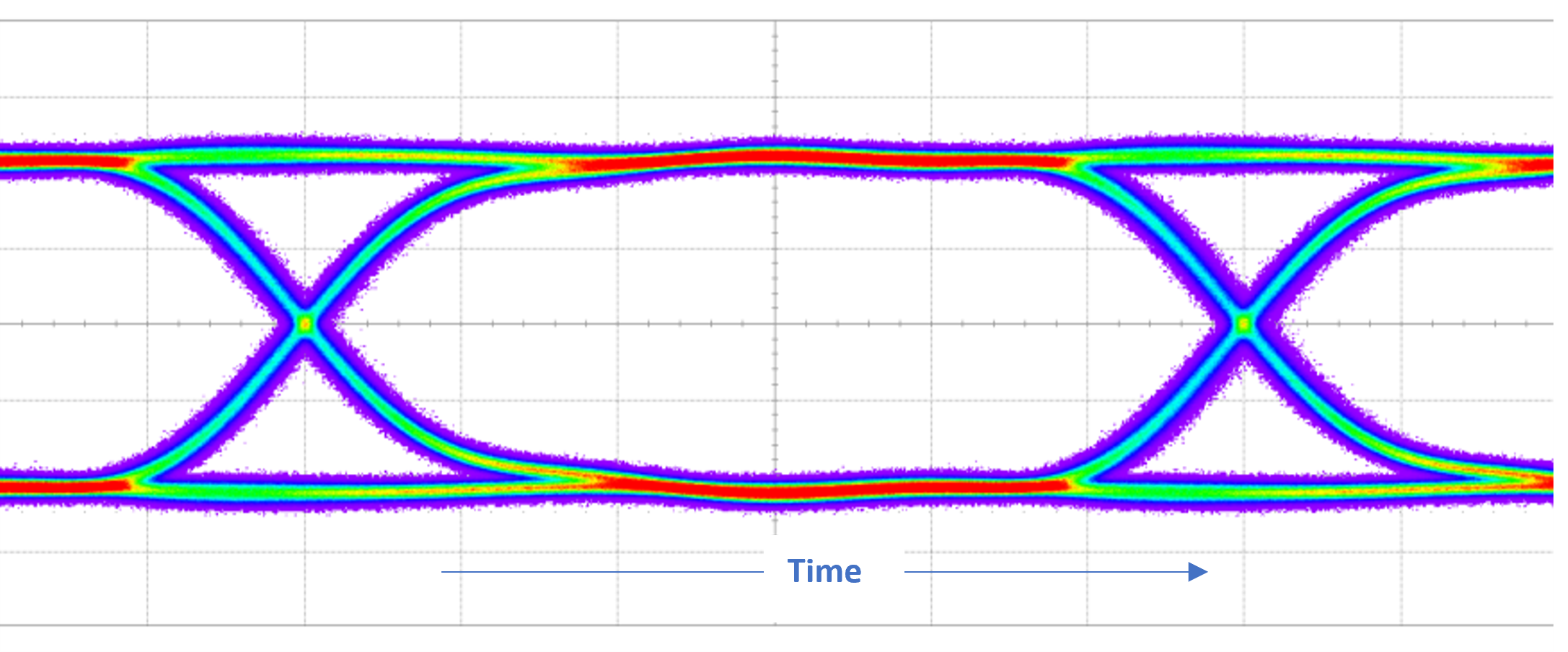

Open Eye
Open Eye :
High Fidelity Digital Data Signals with High performance Coax Interconnect
Closed Eye
Closed Eye :
Distorted Digital Data/ Bit Errors with Lossy Coax Interconnect

Search Micro-Coaxial/Twinax Connectors                                View Product Matrix                              Back to top



Anchor4) What is the available real estate for connector/ receptacle and plug assembly?

Number of channels in interface, required pin count, spacing between each pin, allowed mated width, length and profile height of plug and connector determine the type of suitable connector that should be used. Maximum available area and location of connector on PCB also determine the mounting configuration for receptacle and plug harness assembly, which can be horizontal or vertical . I-PEX offers connectors in both Horizontal and Vertical Mounting configurations and various different sizes and pin counts in its CABLINE® series of high speed connectors.
Learn more : Real Estate



Contact Pitch Options

Mating Type Options

0.35mm_pitch CABLINE-VS CABLINE-CA CABLINE-UY CABLINE-UA II CABLINE-CX II without cover CABLINE-CAP
horizontal mating
CABLINE-UA II
vertical mating
0.35 mm pitch
0.5 mm pitch
0.4 mm pitch
0.35 mm pitch
0.3 mm pitch
0.25mm pitch
mating type options

Search Micro-Coaxial/Twinax Connectors                                View Product Matrix                              Back to top



5) Is there a need to shield the high frequency or power signals in the harness?

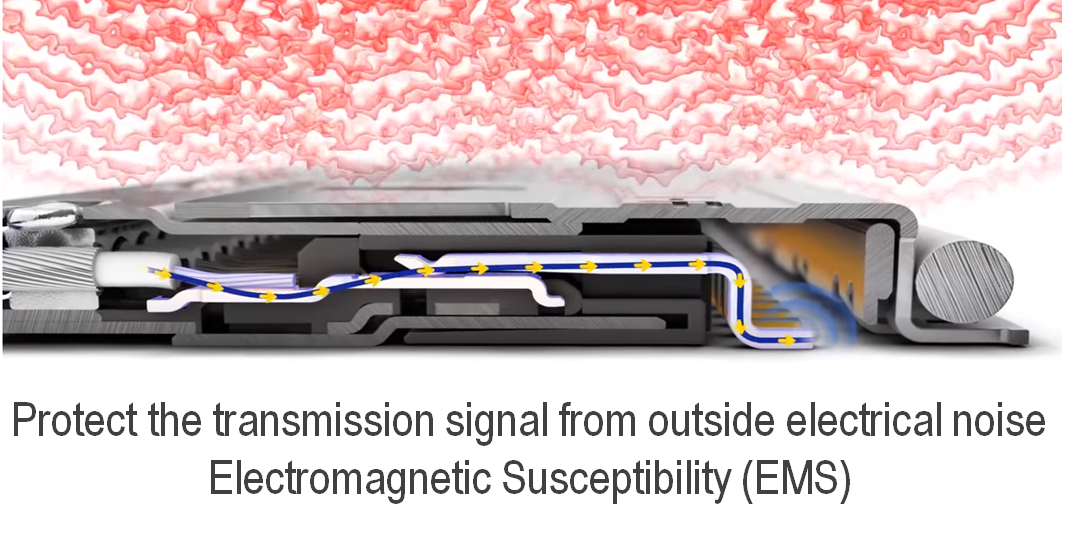

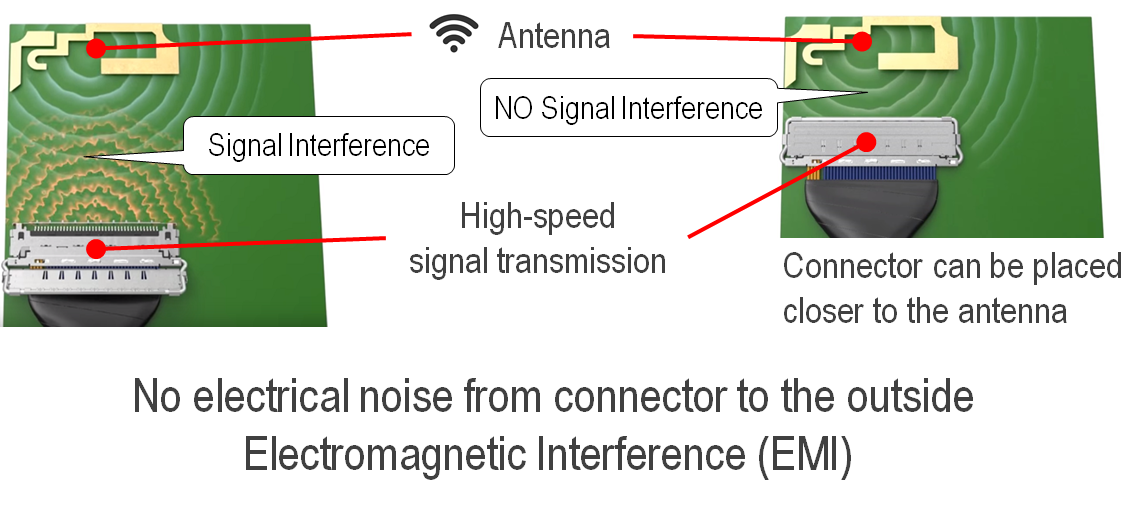

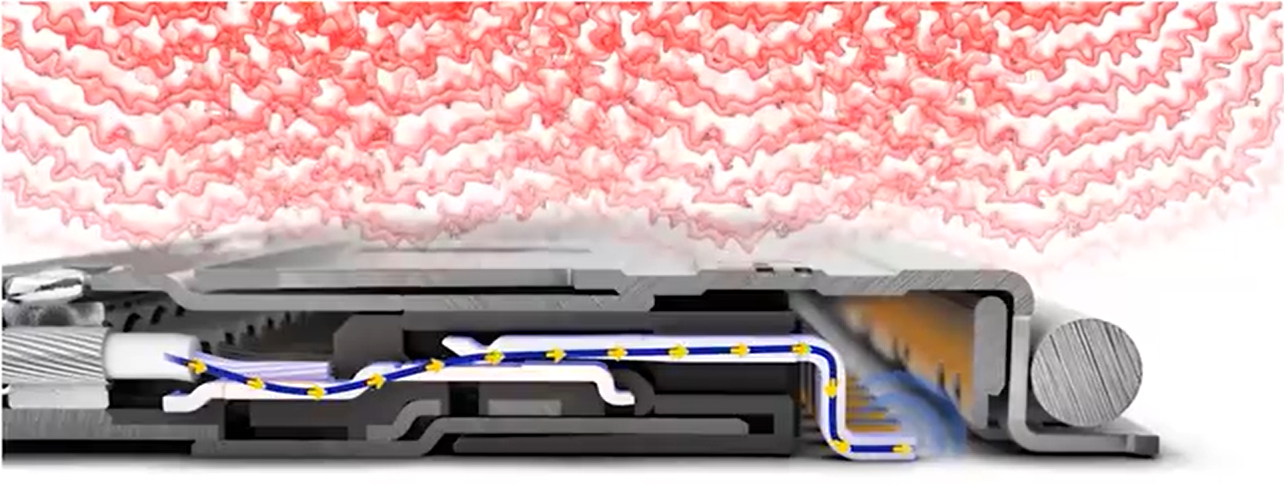

Sometimes there is a need to transmit power, low speed control and high speed data signals all in the same harness. Due to the close proximity of surface mounted components or noise present in the system, the signals need to be shielded from EMI and cross talk. I-PEX offers full 360 degrees EMI shielding solution, called ZenShield® on its plugs for both Flexible Printed Circuit Cable Micro-coaxial cables and Twinax in CABLINE®  series products to cover both the signal contacts and the soldered tails of mated connector from EMI noise.
ZenShield® is offered in CABLINE® -VS II, CABLINE® -VS IIF, CABLINE®-CA II, CABLINE®-CA II Plus, CABLINE®-CA IIP Plus, CABLINE®-CA IIF, CABLINE®-CX II and CABLINE®-UM series products.
Learn more : Need for Shielding

Need for Shielding_4

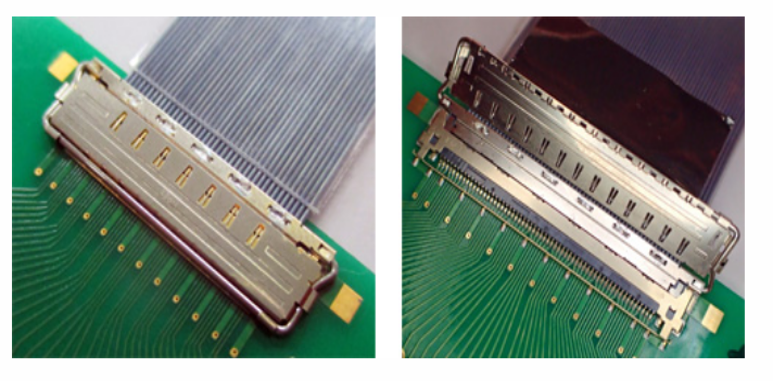

Graphic Connector With Integrated Shielding for Tail Pins
Need for Shielding_3

Search Micro-Coaxial/Twinax Connectors                                View Product Matrix                              Back to top



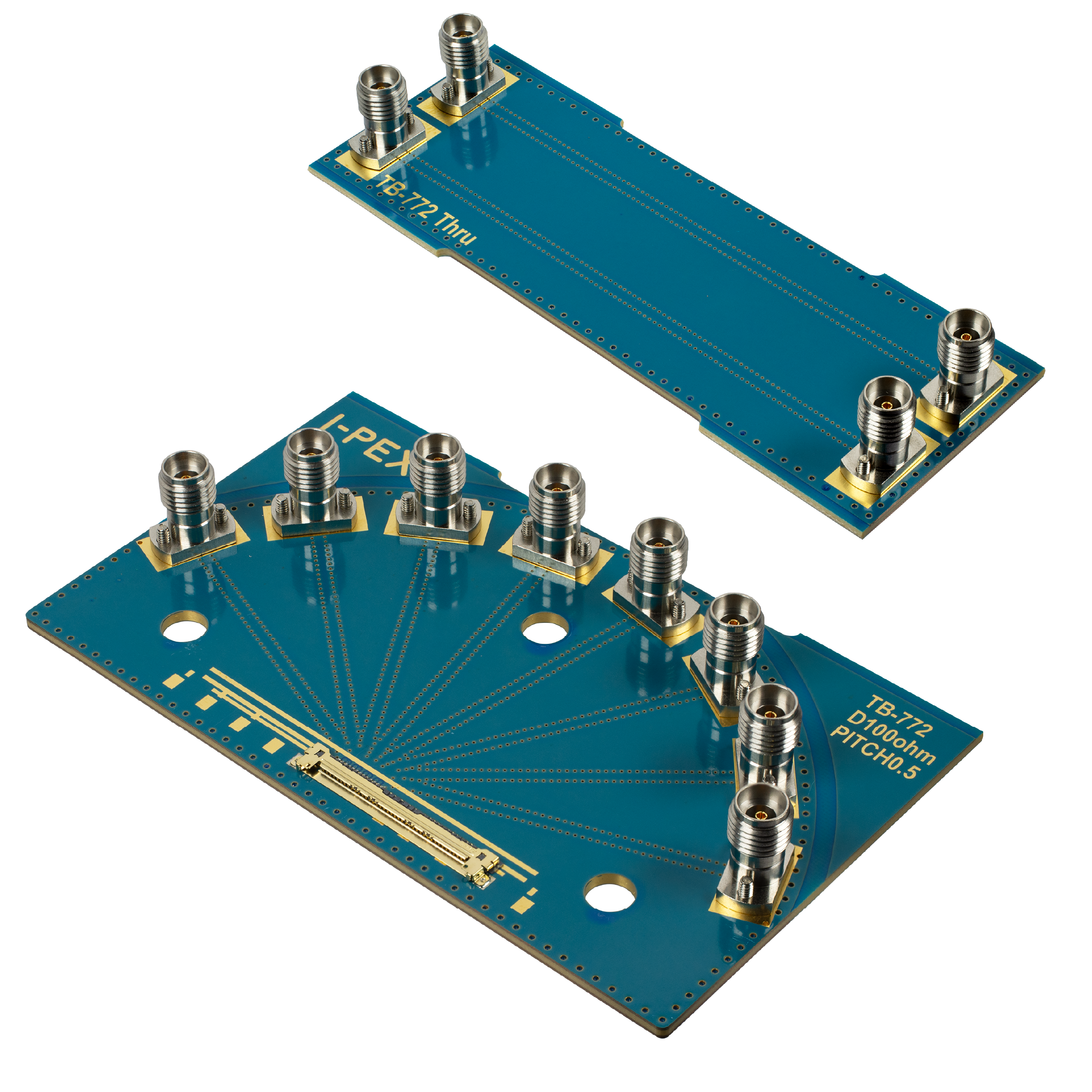

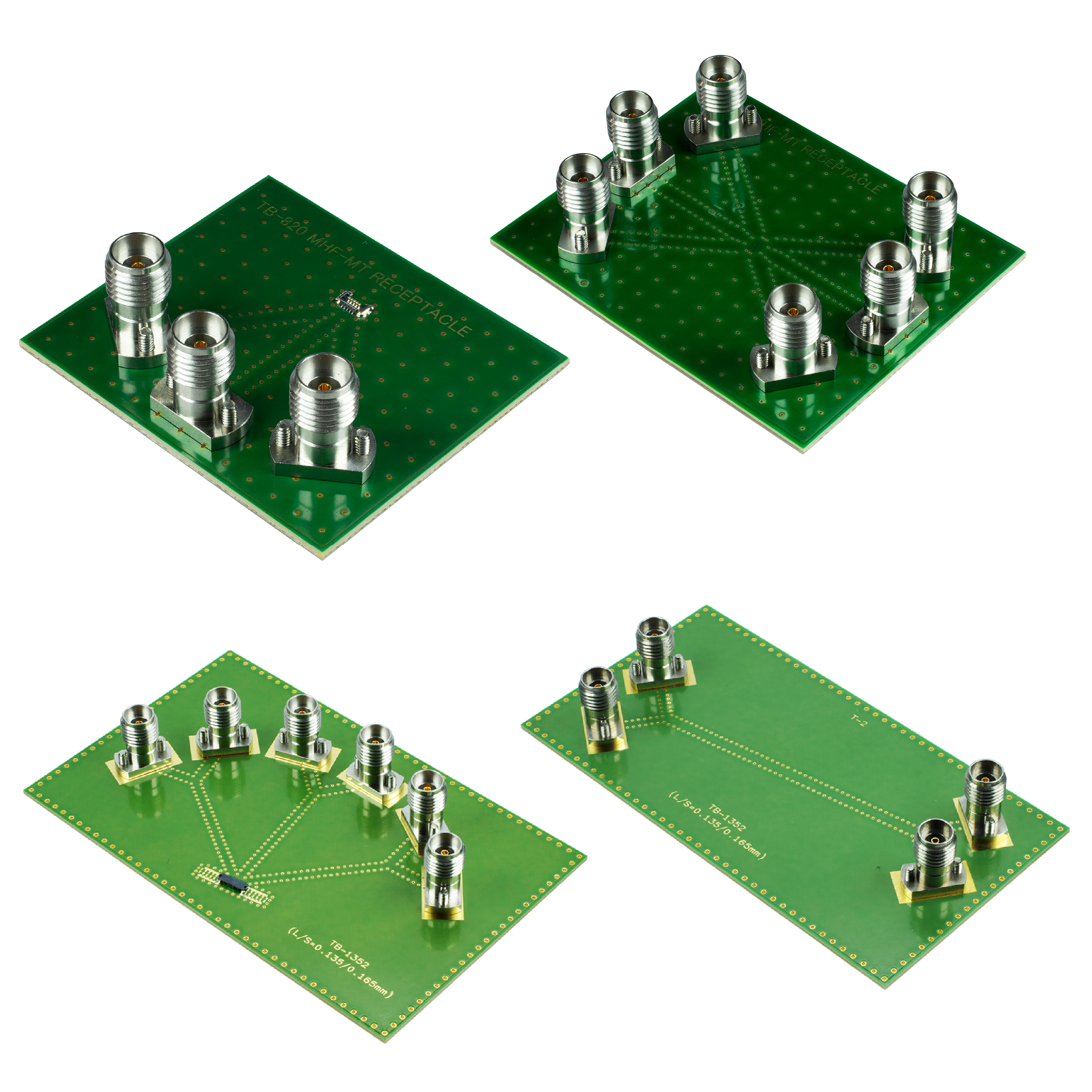

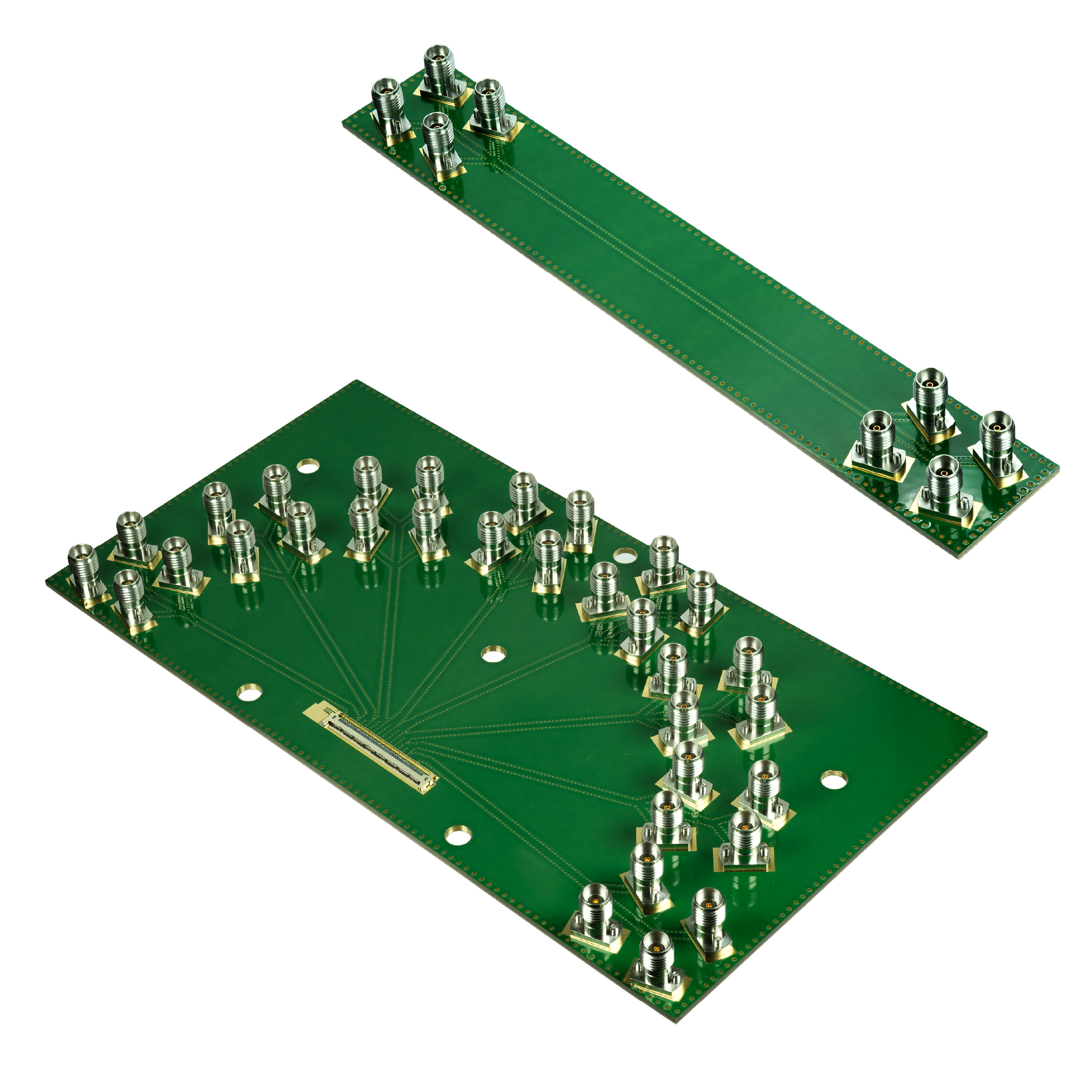

Anchor6) What are the main losses in high speed cable assemblies? How can the losses be minimized in my Harness Assemblies?

Insertion Loss, Return Loss and VSWR are key performance indicators of High Speed Twinax and Micro-Coaxial Cable Assemblies. A high performance Micro-coaxial cable results in excellent signal integrity  and reduced losses in high speed applications. At I-PEX we take pride to offer the high performance CABLINE® Micro-coaxial and Twinax Cable Assemblies which are built by using automated assembly processes to ensure consistent high quality and low losses in every finished product.
Learn more : Main Losses

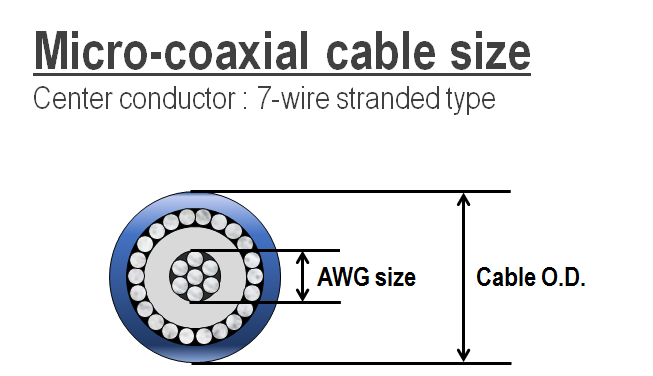

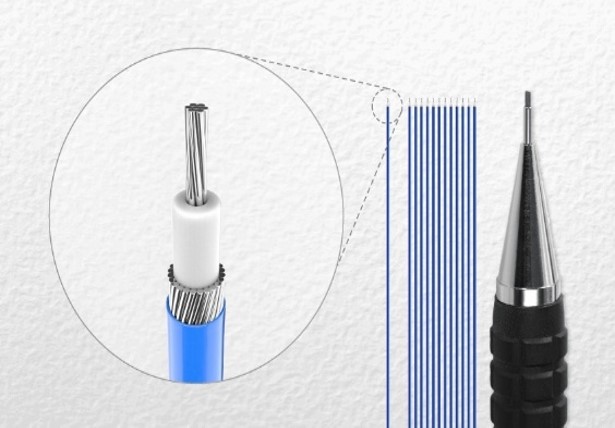

Size of micro-coaxial cable
Size of micro-coaxial cable

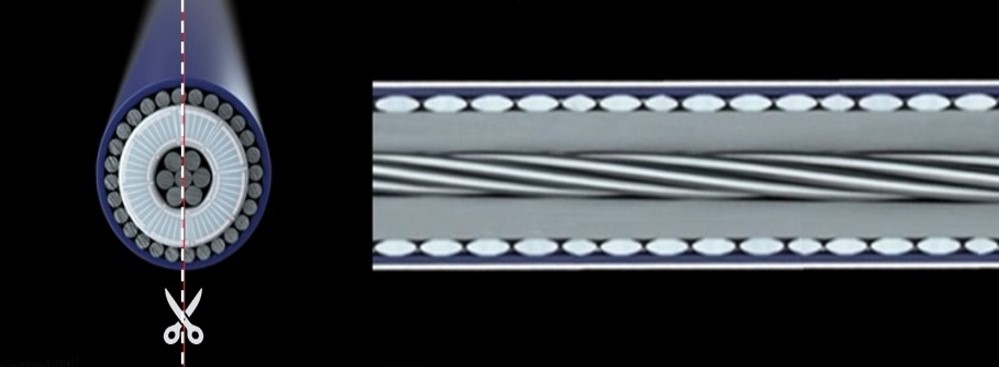

Cross section of micro-coaxial cable
Cross section of micro-coaxial cable

Search Micro-Coaxial/Twinax Connectors                                View Product Matrix                              Back to top



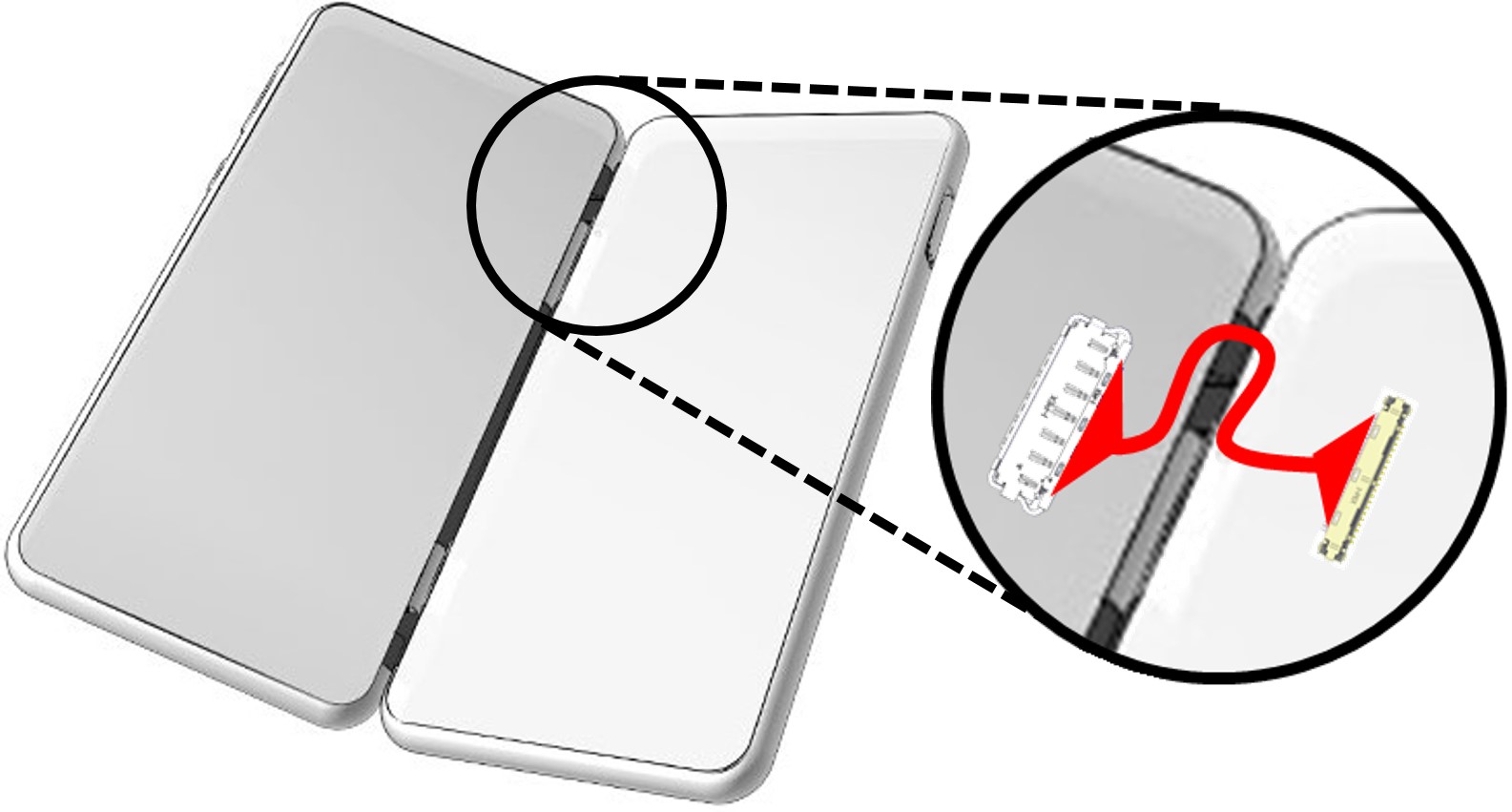

Anchor7) What are the bend, flex and twist requirements of the harness?

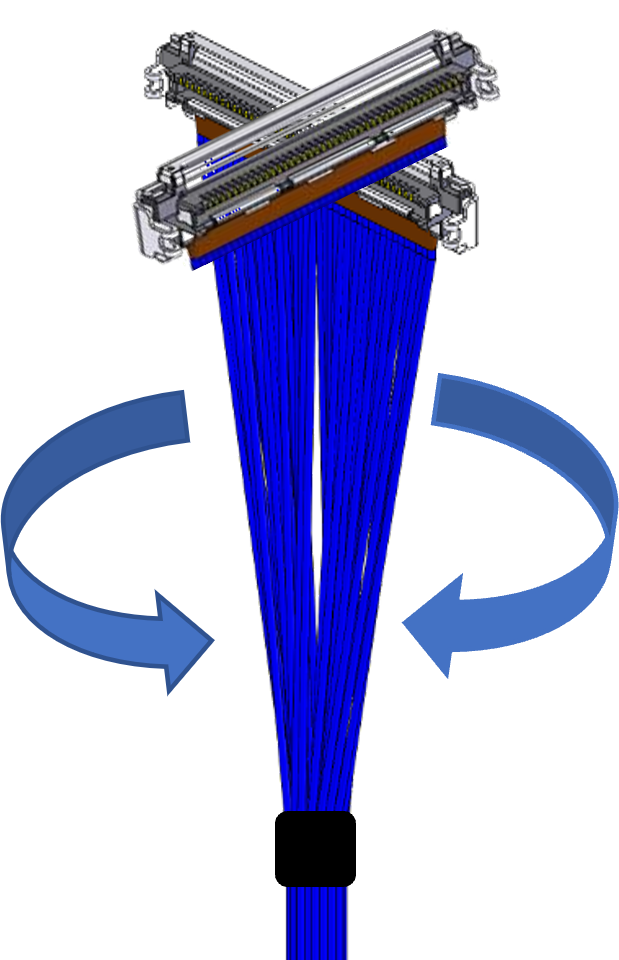

Both Micro-coaxial and Twinax cables are specified for Minimum Bend Radius, a parameter that determines how tightly these cables can be bent repeatedly with out being damaged and still ensuring high signal integrity. Minimum bend radius is typically measured in millimeters. Micro-coaxial cables are also specified for twisting, a parameter that allows the rotational movement of cable along the Y axis and is typically measured in degrees.  When it comes to Micro-coaxial cables, the recommended minimum bending radius of cable is “6 times Wire O.D" but the actual specification depends on customer's selected coaxial cable.

Bend Flex and Twist Rqmnts_3
                   180 deg. to 360 deg.

Bend Flex and Twist Rqmnts_1

     180 deg.             180 deg.

Bend Flex and Twist Rqmnts_2

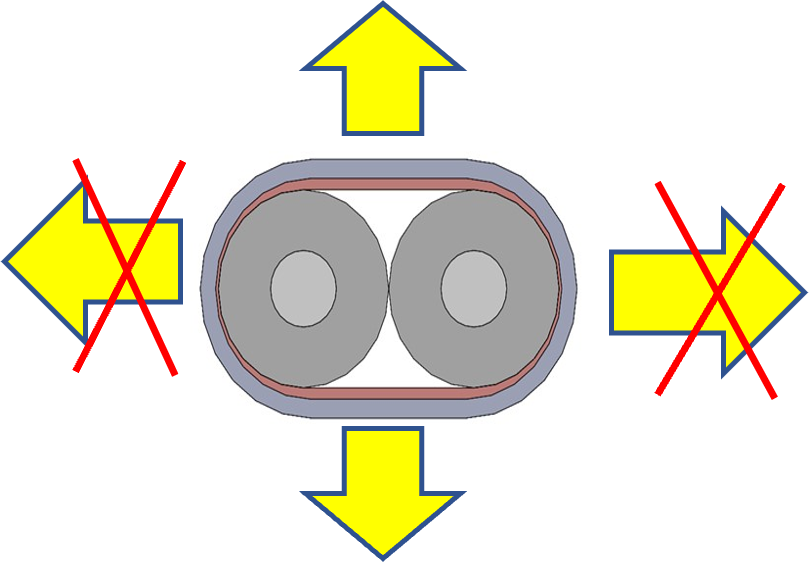

For Twinax Cables, the construction of cable restricts the bending and flexing in the direction of its height only as shown below. As a rule of thumb, the Minimum Bend radius for Twinax cables is specified as 10 times the height of cable. Bending and flexing side ways, along Y-axis is not allowed.
Learn more : Bend Flex and Twist Requirements



  Minimum cable bending R : 10 times Height
Bending Not Allowed

Qstns_7-4

  Minimum cable bending R : 10 times Height

Bending Not Allowed




 Width

Qstns_7-5

    ↑ Jacket

Height

Search Micro-Coaxial/Twinax Connectors                                View Product Matrix                              Back to top



Anchor8) What is the required pin out of harness assemblies?

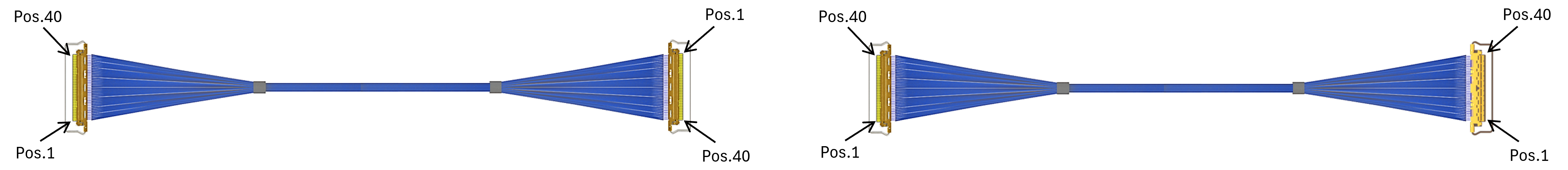

Depending on the signal pin out, lay out and routing of board traces, the pin assignments can be different on each connector in the harness assembly. Two different types of pin out configurations are offered in I-PEX high speed harness assemblies i.e. 1-N type straight pin out and 1-1 type mirror pin out configurations for routing and placement flexibility in designs.
Learn more : Pin Out

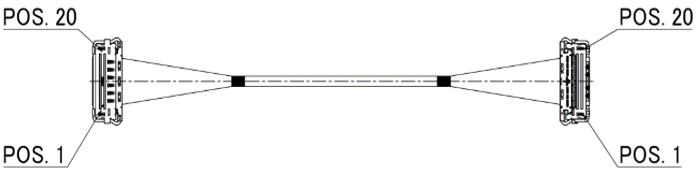

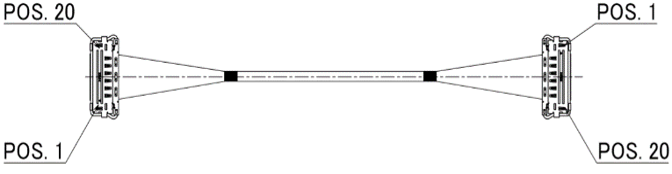

1-N Type Configuration
1-N Type Configuration
1-1 Type Configuration
1-1 Type Configuration

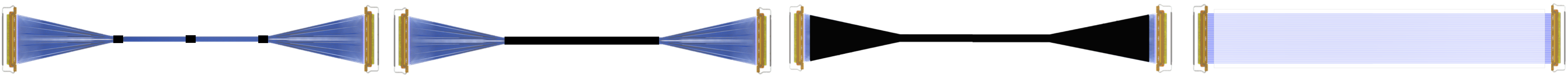

Anchor9) What is the required jacketing and bundling type on harness ?

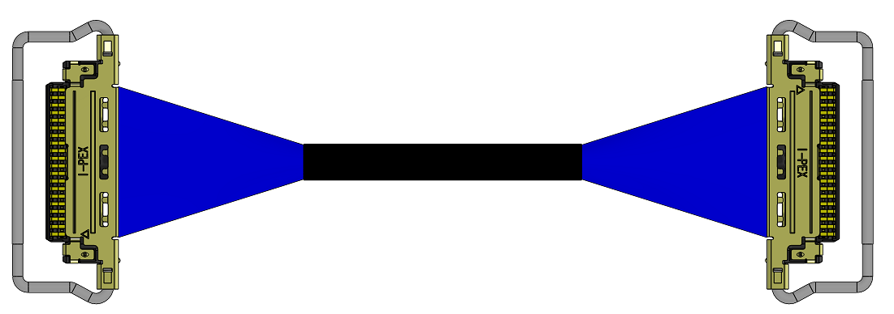

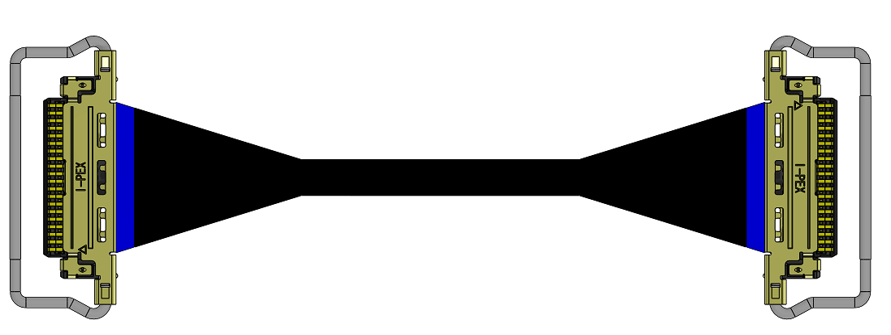

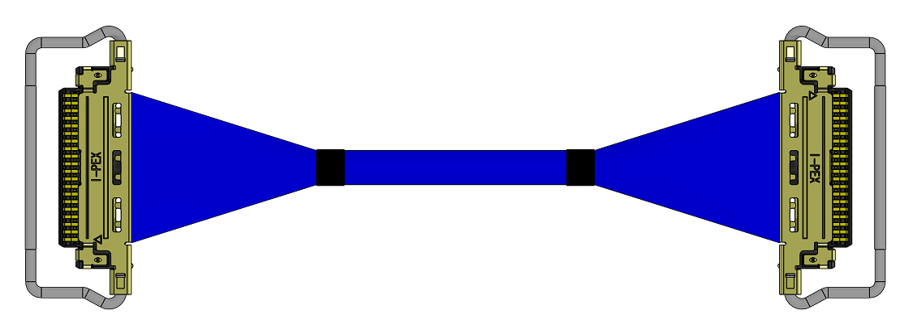

Four different types of outer tapes or jackets are offered for high speed cable harnesses for increased routing and placement flexibility in designs.  The bundling tapes can be wrapped around the cables at multiple points covering some, most or all of the cabling area of the harness. Also, there is flat bundle type option for space constrained systems that need light weight, transparent outer jacket with fast heat dissipation and uniform stress distribution.
Learn more : Jacketing and Bundling



harness1

harness2

harness3

harness4

                                    Styles of Taping and Bundling In Micro-Coaxial Cable Harnesses



Search Micro-Coaxial/Twinax Connectors                                View Product Matrix                              Back to top



Anchor10) What are the typical high speed protocols supported by these harnesses?

USB 3, USB 4, Thunderbolt, Displayport, eDP, HDMI, MIPI and PCIe Gen 5 and Gen 6 are some of the commenly supported protocols with the maximum data rate of 64Gbps/Lane using PAM4 signal type.

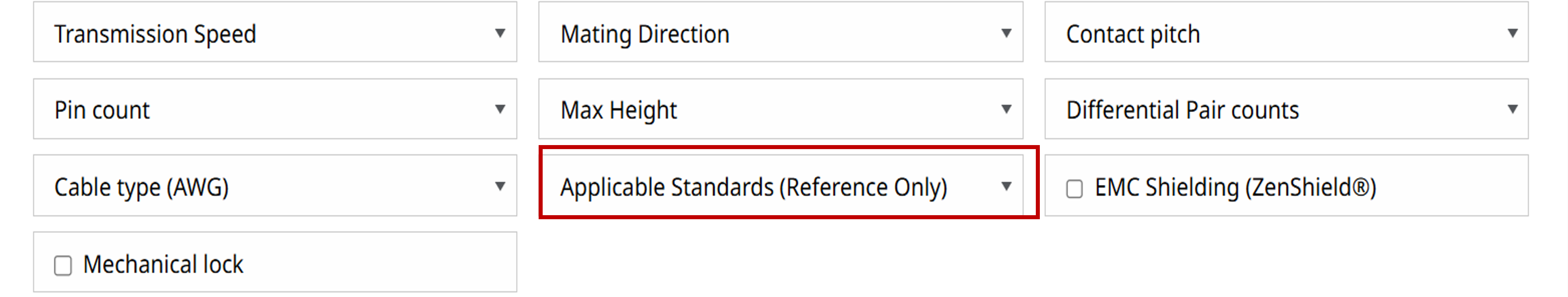

I-PEX offers a tool which can be used to find the available connector options that are suitable for a specific industry standard such as MIPI, PCIe, USB etc. At the same time, it allows the users to see what types of industry standards are supported by each of I-PEX high speed connector family.
Signal  Integrity Reference Tool



Applicable Standards

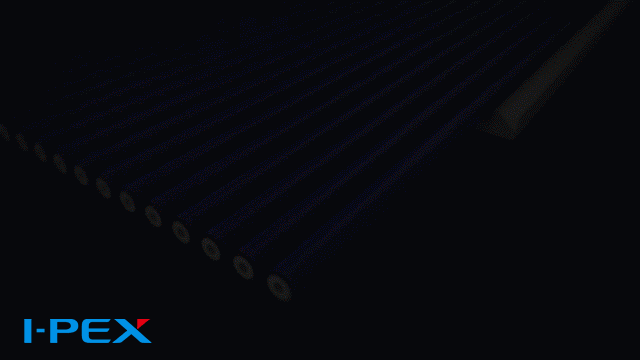

Anchor11) How is a Micro-coaxial Cable Harness prepared and how many types of cables can be supported?

Main Process of Plug Harness Preparation is as follows:
1. Strip and prepare cable sub-assembly
2. Set the Cable Sub-Assembly to the Plug Housing Assembly part and solder the exposed conductor to the plug signal terminal
3. Set Lock Bar Assembly (or Lock Bar) to Plug Housing Assembly parts
4. Cover the plug shell and solder the required area to complete the plug harness
Learn more : Main Process of Plug Harness Preparation

9
Image of plug harness assembly process
(Example: CABLINE®-CA II)
