Input/Output (I/O) Connectors

I-PEX provides robust, secure, and reliable docking connectors.

I/O Connectors: MINIDOCK™ Series

The MINIDOCK™ series is a docking connector (Iinput/Ooutput connector) series for board-to-board connections. It maintains a robust and reliable connection and is installed in portable medical and industrial devices.
The main features of the MINIDOCK™ series are as follows:

- A multi-pin I/O connector featuring die-cast housing and large guide pins.
- Guaranteed up to 5,000 mating cycles.
- Options for vertical and horizontal mating, pin counts ranging from 80 to 240, and a three-stage arrangement of signals, power, and ground.

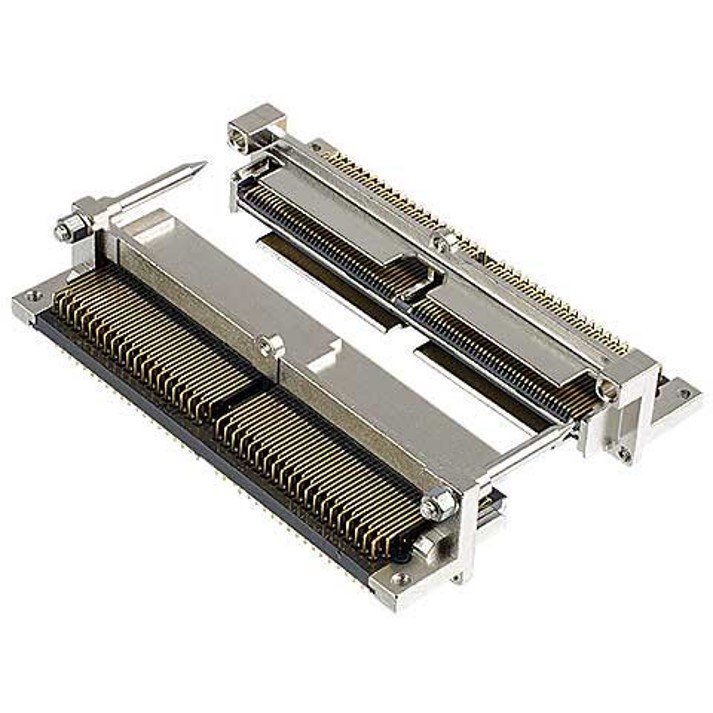

Plug(above) and Receptacle(below) Mating Combinations



SLIM TYPE

STANDARD TYPE

Type of plug

Right angle

Right angle

Contact type

2 Sequences

Standard (All long pins)

All long pins Offset type

Part number

30029

30046

30001

30094

Pin contact

80

160

100, 240

200

Dimensions (WxD) mm

36.00 × 14.50

62.00 × 9.90

100 pin: 51.65 × 16.90
240 pin: 96.10 × 16.90

83.40 × 9.90

PLUG

minidock_1.png minidock_2.png minidock_3.png minidock_4.png

RECEPTACLE

minidock_5.png minidock_6.png minidock_7.png minidock_8.png minidock_9.png

Type of rece.

Right angle

Vertical

Right angle

Vertical

Part number

30030

30047

30056

30002

30007

Pin count

80

160

160

100, 240

200

Dimensions (WxD) mm

36.00 × 14.50

62.00 × 9.70

62.00 × 16.03

100 pin: 51.65 × 20.30
240 pin: 96.10 × 20.30

83.40 × 15.16



 Features of the I-PEX MINIDOCK™

1. A multi-pin I/O connector featuring die-cast housing and large guide pins

The robust die-cast shell structure protects the connector. Additionally, the guide pins ensure secure mating and unmating.

A multi-pin I/O connector featuring die-cast housing and large guide pins_1
Slim Type P/N 30046/30047
A multi-pin I/O connector featuring die-cast housing and large guide pins_2
Standard Type P/N30001/30002



2. Guaranteed up to 5,000 mating cycles



Graph: Insertion/extraction durability (contact resistance)
(Per 1 pin)

The low insertion force contacts guarantee 5,000 mating cycles.

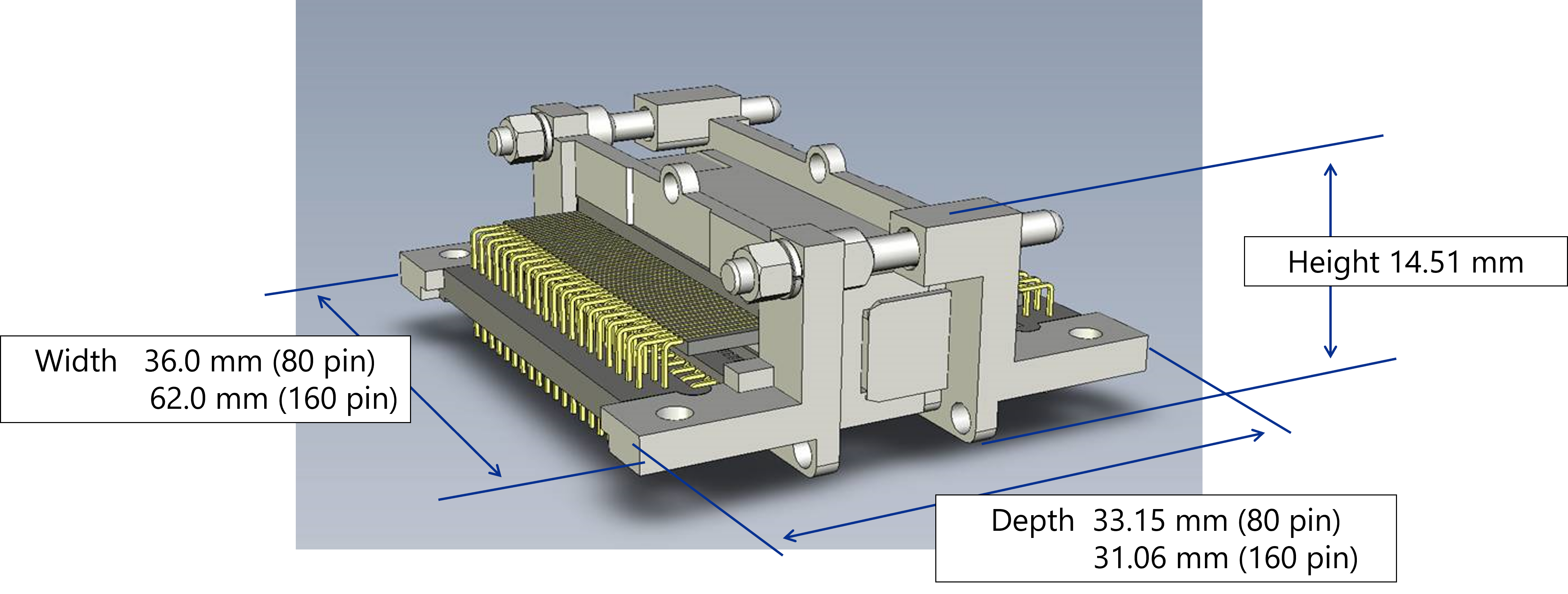

3-1. Slim Type Horizontal Plug–Horizontal Receptacle Mating (80P, 160P)



Slim Type Horizontal Plug–Horizontal Receptacle Mating (80P, 160P)

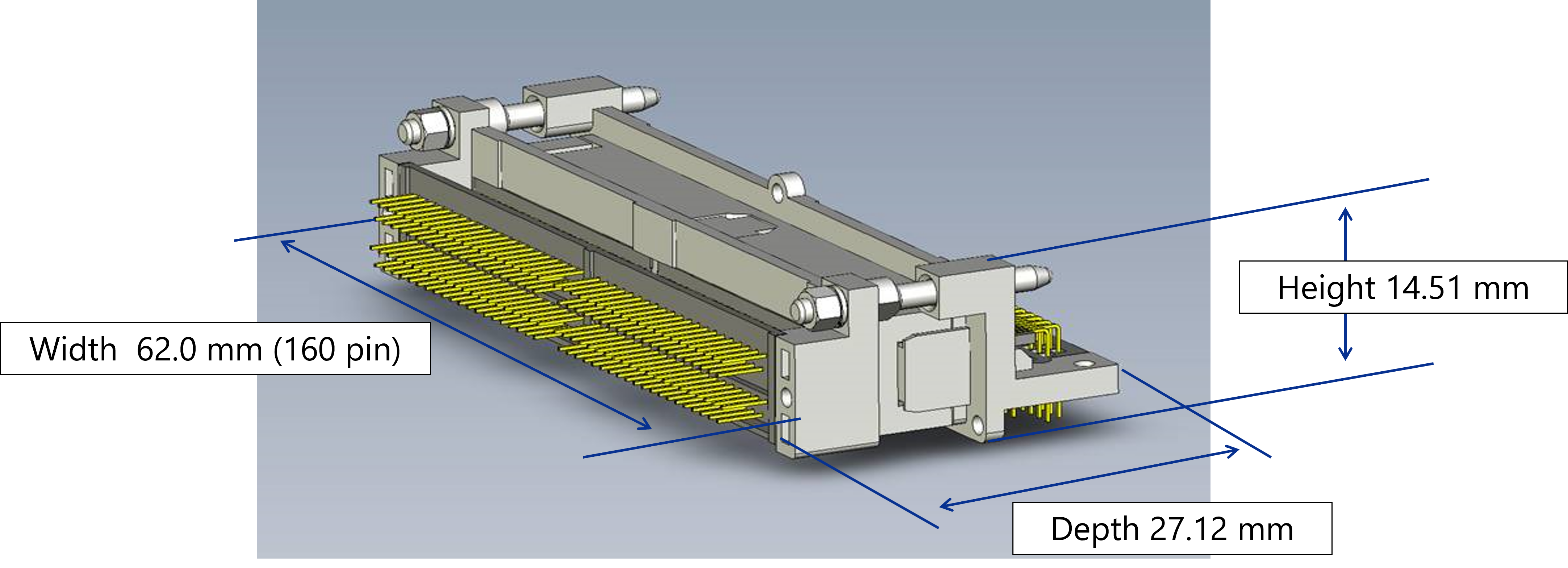

3-2. Slim Type Horizontal Plug-Vertical Receptacle Mating (160P)

Slim Type Horizontal Plug-Vertical Receptacle Mating (160P)

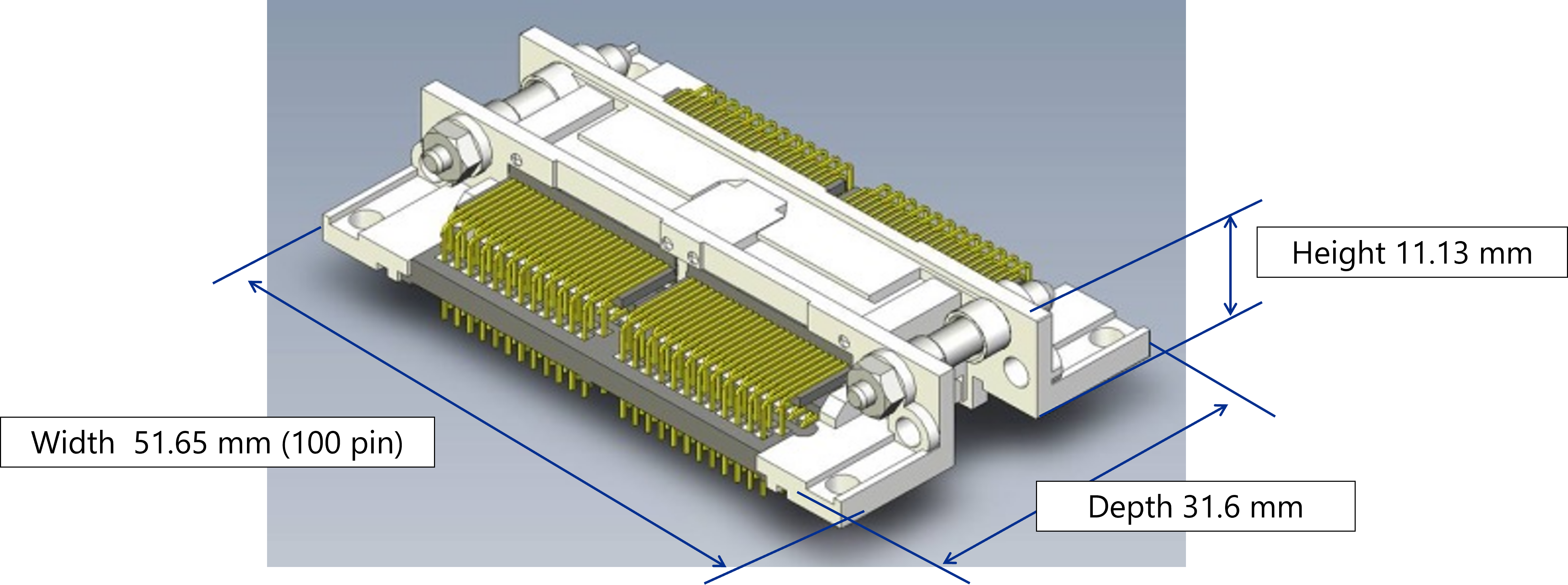

3-3. Standard Type Horizontal Plug-Horizontal Receptacle Mating (100P, 240P)



Standard Type Horizontal Plug-Horizontal Receptacle Mating (100P, 240P)

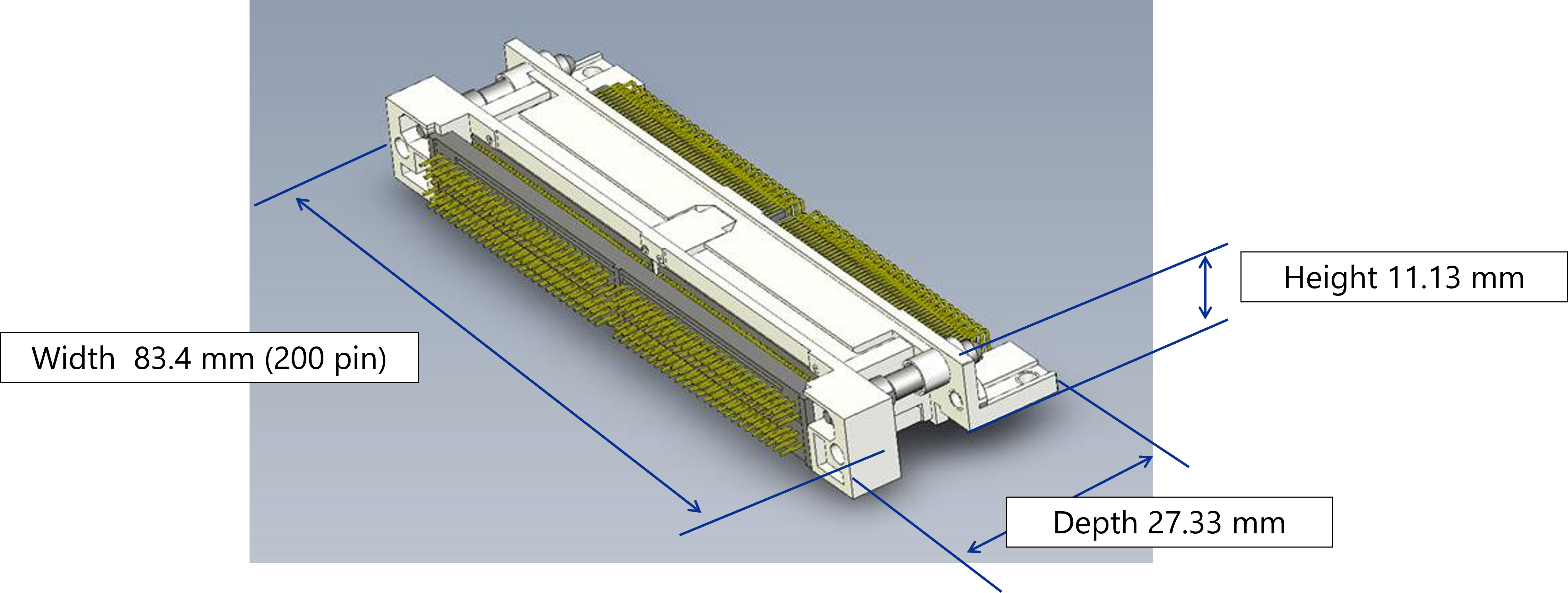

3-4. Standard Type Horizontal Plug-Vertical Receptacle Mating (200P)

 Standard Type Horizontal Plug-Vertical Receptacle Mating (200P)





We offer a wide range of mating types and pin counts, including sequential contact types  for ground pins, signal pins, and power pins during mating and unmating. We provide robust, secure, and reliable docking solutions for portable industrial devices, such as ultrasonic diagnostic equipment, medical devices, cable harness certification systems, and phased array flaw detectors. For inquiries or questions regarding the MINIDOCK™ series, please contact us here.
