Problems can occur when electromagnetic noise generated from the devices’ own internal digital timing signals or electronic components causes failure of other components within the same system.  This is called an intra-system EMC(Electromagnetic Compatibility) problem. It often causes headaches for engineers who must develop high-performance, hand-held or portable electronic devices, in which high density electronic components are used. I-PEX offers a number of EMC shielding connectors with ZenShield^® technology to meet various application and design requirements.

Micro-Coaxial Connectors

CABLINE^®-CA IIP PLUS

Fully-shielded, 64 Gbps/lane PAM4, 0.4 mm pitch, horizontal mating type twinaxial & micro-coaxial cable assembly
Mated Height: 1.14 +/- 0.16 mm

CABLINE^®-CA II

Fully-shielded with mechanical lock, suitable for high-data-rate transfer (32 Gbps/lane), 0.4 mm pitch, horizontal mating type micro-coaxial connector
Mated Height: 0.95 +/- 0.15 mm

CABLINE^®-CA II PLUS

Fully-shielded, 64 Gbps/lane PAM4, 0.4 mm pitch, horizontal mating type twinaxial & micro-coaxial cable assembly
Mated Height: 0.95 +0.25/-0.15 mm

CABLINE^®-VS II

Fully-shielded with mechanical lock, suitable for high-data-rate transfer (PCIe Gen5 32 GT/s/lane), 0.5 mm pitch, horizontal mating type micro-coaxial connector
Mated Height: 0.95 +/- 0.25 mm

CABLINE^®-UM

Fully-shielded and multi-point ground, mechanical lock, high-data-rate transfer (40 Gbps/lane PAM3), 0.4 mm pitch, right angle vertical mating type micro-coaxial connector
Mated Height: 2.2 +/- 0.15 mm

 RF connector

MHF^® 7S

Excellent EMC performance with fully-shielded ZenShield® design for 5G mmWave, up to 15 GHz, 1.4 mm max. mated height RF connector
Mated Height: 1.4 mm max.

Board-to-Board (FPC) Connectors

NOVASTACK^®35-HDN

Fully-shielded, 0.7 mm mated height, 0.35 mm pitch, narrow design, high frequency and high speed transmission supporting board-to-board connector
Mated Height: 0.7 +/- 0.05 mm

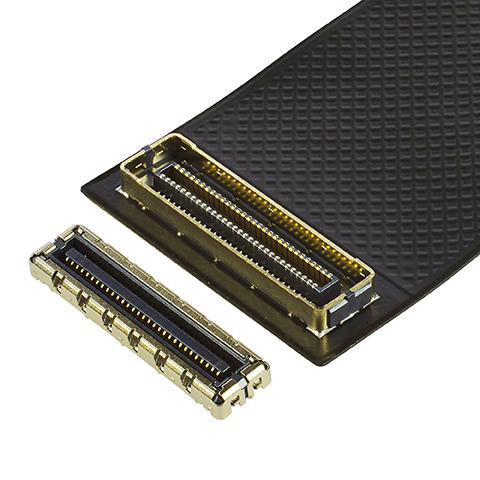

NOVASTACK^®35-HDH

Fully-shielded, 1.5 mm mated height, 0.35 mm pitch, up to 40 Gbps per lane supporting board-to-board connector
 Mated Height: 1.5 +/- 0.1 mm

 NOVASTACK^®35-HDP

Fully-shielded, 0.7 mm mated height, 0.35 mm pitch, equipped with power contacts, 40 Gbps per lane supporting board-to-board connector
Mated Height: 0.7 +/- 0.05 mm

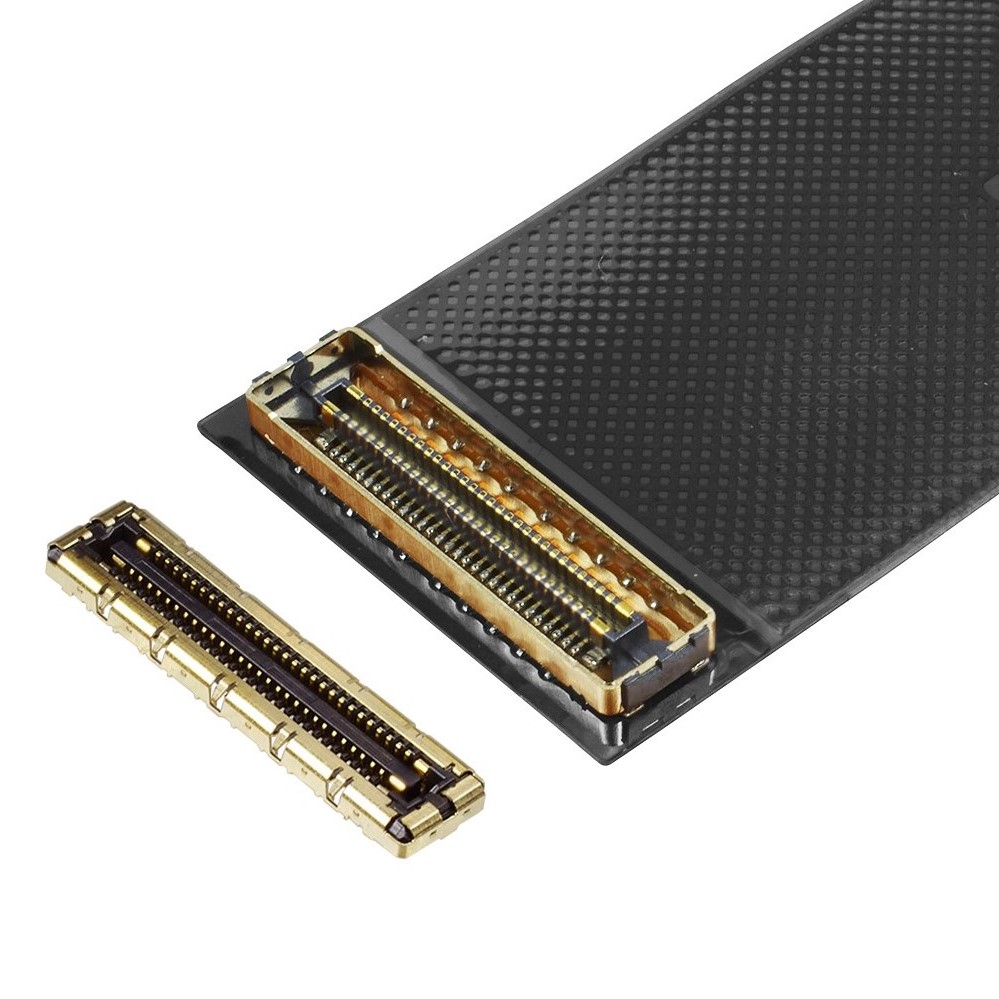

NOVASTACK^®35-HDP 12

Fully-shielded, 1.2 mm mated height, 0.35 mm pitch, power contact-equipped, up to 40 Gbps per lane supporting board-to-board connector
 Mated Height: 1.2 +/- 0.05 mm

FPC/FFC connectors

EVAFLEX^®5-HD

Fully-shielded, high-speed, auto-locking, horizontal mate, 0.5 mm pitch shielded FFC/FPC connector
Mated Height: 1.55 +/- 0.2 mm

 CABLINE^®-VS IIF

Fully-shielded with mechanical lock, suitable for high-data-rate transfer (32 Gbps/lane), 0.5 mm pitch, horizontal mating type FPC plug connector
Mated Height: 0.95 +0.25/-0.1 mm

CABLINE^®-CA IIF

Fully-shielded with mechanical lock, suitable for high-data-rate transfer (32 Gbps/lane),0.4 mm pitch, horizontal mating type FPC plug connector
Mated Height: 0.95 +/- 0.15 mm

 CABLINE^®-CA IIF PLUS

Fully-shielded with mechanical lock, suitable for high-data-rate transfer (32 Gbps/lane), 0.4 mm pitch, horizontal mating type FPC plug connector
Mated Height: 0.95 +0.25/-0.1 mm

CABLINE^®-CAL IIF

Low profile (0.9 mm max.), fully-shielded with mechanical lock, suitable for high-data-rate transfer (32 Gbps/lane), 0.4 mm pitch, horizontal mating type FPC connector
Mated Height: 0.74 +/- 0.16 mm
