NOVASTACK® 35-HDP 12

NOVASTACK® 35-HDP 12
A fully shielded, 1.2 mm mated height, 0.35 mm pitch, power contact-equipped, up to 40 Gbps per lane supporting board-to-board connector

    1.2 mm stack height design delivering excellent mating operability and connection reliability

    Compact connector design for high-density mounting, enabled by power contacts and ZenShield® shielding

    High-speed signal transmission performance supporting 40 Gbps per lane

Contact Pitch:
0.35 mm
Mated Height:
Nom. 1.2 +/- 0.05 mm
Operating Temperature:
-40 to 85℃ (233 to 358 K)
Current Rating:
Signal: 0.3 A/pinPower: 4.5 A/pin x 4

Downloads

1.2 mm stack height design delivering excellent mating operability and connection reliability

Mating guide



 Un-mating force

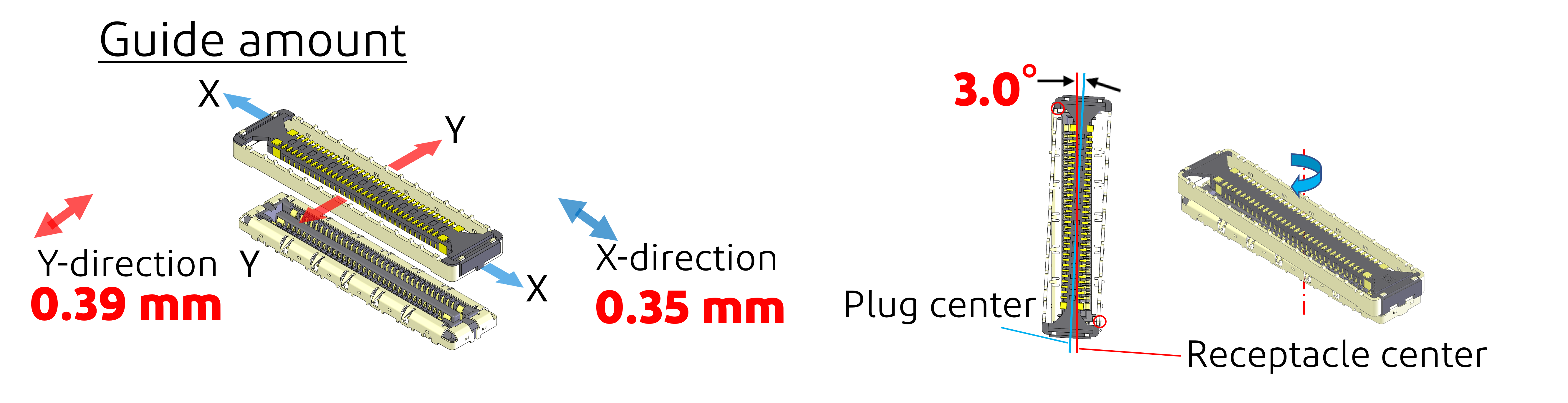

Guide amount



Compact connector design for high-density mounting, enabled by power contacts and ZenShield® shielding

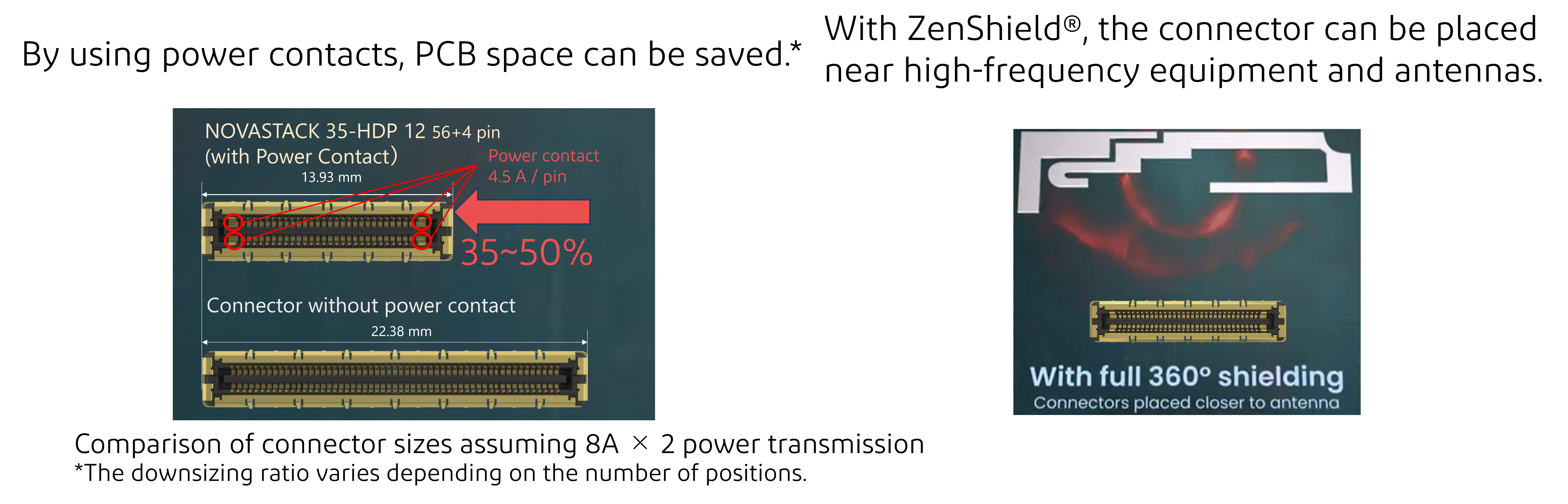

Compact connector design for high‑density mounting

High-speed signal transmission performance supporting 40 Gbps per lane

High‑speed signal transmission performance supporting 40 Gbps per lane


Transmission Speed (Reference Only) 40 Gbps/lane NRZ
Contact Pitch
0.35 mm
Mated Height
Nom. 1.2 +/- 0.05 mm
Available Pin Count Signal+Power: 22+4, 53+4, 62+4
Depth
3.7 mm
Width
4.86 + (0.35 x pin count/2) mm
Operating Temperature
-40 to 85℃ (233 to 358 K)
Current Rating
Signal: 0.3 A/pinPower: 4.5 A/pin x 4
Applicable Standards (Reference Only)
USB4 (20 Gbps/lane)USB3.1 Gen2 (10 Gbps/lane)eDP HBR3 (8.1 Gbps/lane)eDP HBR2 (5.4 Gbps/lane)HDMI 2.1 (12 Gbps/lane)V-By-One HS 1.4 (4 Gbps/lane)MiPi standards
Full EMI Shielding (ZenShield®)
Yes

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.

NOVASTACK 35-P RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg) Note
NOVASTACK 35-HDP 12 plug 22 + 4pin 21150-022E-01 51.6 　
NOVASTACK 35-HDP 12 plug 56 + 4pin 21150-056E-01 83.1 　
NOVASTACK 35-HDP 12 plug 62 + 4pin 21150-062E-01 88.7 　
NOVASTACK 35-HDP 12 receptacle 22 + 4pin 21151-022E-01 37.9 　
NOVASTACK 35-HDP 12 receptacle 56 + 4pin 21151-056E-01 64.5 　
NOVASTACK 35-HDP 12 receptacle 62 + 4pin 21151-062E-01 69.4
