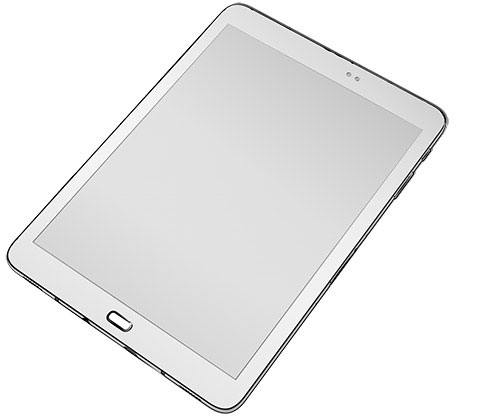

Tablet

  • LCD Connection
  • Touch Panel Connection
  • LED Backlight
  • Camera
  • Battery
  • Speaker / Microphone
  • Antenna
LCD Connection
MINIFLEX® 2-BF
0.2 mm pitch, Horizontal mating, Backflip, (Height = 0.9 mm)
  • FPC
MINIFLEX® 3-BFN
Low profile (Height = 0.9 mm), 0.3 mm pitch, horizontal mating, backflip
  • FPC
MINIFLEX® 3-BFNH
Improved retention force, footprint compatibility, 0.3 mm pitch, horizontal
  • FPC
MINIFLEX® 5-BFN II
Robust design with hold-down feature, high temperature resistance (125℃), low profile (height = 1.0 mm), 0.5 mm pitch, horizontal, backflip
  • FPC
  • FFC
NOVASTACK® 35-P
Robust connector with hold-down feature and Corson Alloy main contacts to transmit power, 0.35 mm pitch, 0.7 mm height, 2.3 mm depth
  • BOARD TO BOARD
  • POWER PIN
NOVASTACK® 35-HDP
High-speed (20+ Gbps/lane) fully-shielded with power contacts, 0.35 mm pitch, 0.7 mm height
  • BOARD TO BOARD
  • POWER PIN
  • EMI SHIELD
Touch Panel Connection
MINIFLEX® 2-BF
0.2 mm pitch, Horizontal mating, Backflip, (Height = 0.9 mm)
  • FPC
MINIFLEX® 3-BFN
Low profile (Height = 0.9 mm), 0.3 mm pitch, horizontal mating, backflip
  • FPC
MINIFLEX® 3-BFNH
Improved retention force, footprint compatibility, 0.3 mm pitch, horizontal
  • FPC
NOVASTACK® 35-P
Robust connector with hold-down feature and Corson Alloy main contacts to transmit power, 0.35 mm pitch, 0.7 mm height, 2.3 mm depth
  • BOARD TO BOARD
  • POWER PIN
LED Backlight
MINIFLEX® 2-BF
0.2 mm pitch, Horizontal mating, Backflip, (Height = 0.9 mm)
  • FPC
MINIFLEX® 3-BFN
Low profile (Height = 0.9 mm), 0.3 mm pitch, horizontal mating, backflip
  • FPC
MINIFLEX® 3-BFNH
Improved retention force, footprint compatibility, 0.3 mm pitch, horizontal
  • FPC
Camera
CABLINE®-UY
Low mating height (Height = 0.82 mm Max.), Suitable for high-data-rate transfer (32 Gbps/lane), Narrow pitch (0.35 mm pitch), Right angle vertical mating type micro-coaxial cable connector
  • MICRO-COAXIAL
  • FPC
MINIFLEX® 4-ST
Super low profile (height = 0.5 mm), 0.4 mm pitch, horizontal mating, backflip
  • FPC
NOVASTACK® 35-P
Robust connector with hold-down feature and Corson Alloy main contacts to transmit power, 0.35 mm pitch, 0.7 mm height, 2.3 mm depth
  • BOARD TO BOARD
  • POWER PIN
NOVASTACK® 35-HDN
Fully-shielded and narrow design, Good performance at high frequency and high speed signals. Power supply is available with Corson Alloy contact, 0.35 mm pitch, 0.7mm height
  • BOARD TO BOARD
  • EMI SHIELD
Battery
NOVASTACK®-B
Supports high power delivery, robust design, 0.4 mm pitch, 0.6 mm height, 2.6 mm depth
  • BOARD TO BOARD
  • POWER PIN
Speaker / Microphone
CABLINE®-UY
Low mating height (Height = 0.82 mm Max.), Suitable for high-data-rate transfer (32 Gbps/lane), Narrow pitch (0.35 mm pitch), Right angle vertical mating type micro-coaxial cable connector
  • MICRO-COAXIAL
  • FPC
DW-5
Hybrid connector for discrete wire and FPC, height = 1.0 mm, 0.5 mm pitch, horizontal, backflip
  • FPC
  • DISCRETE WIRE
MINIFLEX® 5-BFN II
Robust design with hold-down feature, high temperature resistance (125℃), low profile (height = 1.0 mm), 0.5 mm pitch, horizontal, backflip
  • FPC
  • FFC
Antenna
NOVASTACK® 35-HDN
Fully-shielded and narrow design, Good performance at high frequency and high speed signals. Power supply is available with Corson Alloy contact, 0.35 mm pitch, 0.7mm height
  • BOARD TO BOARD
  • EMI SHIELD
MHF® 7S
Excellent EMC performance with fully-shielded design, ideal for 5G mmWave applications, VSWR 1.5 max at 15 GHz in small 2.0 x 2.0 mm footprint
  • EMI SHIELD
  • MICRO-COAXIAL
MHF® 4L
The M.2 industry standard, mated height of 1.2 mm, 1.4 mm, and 1.7 mm max.,excellent electrical performance up to 12 GHz
  • MICRO-COAXIAL
MHF® 4L (1.4 mm height)
The M.2 industry standard, mated height of 1.4 mm max., excellent electrical performance up to 12 GHz
  • MICRO-COAXIAL
MHF® 4L (1.7 mm height)
The M.2 industry standard, mated height of 1.7 mm max., excellent electrical performance up to 12 GHz
  • MICRO-COAXIAL
MHF® 5
Low-profile (mated height = 1.0 mm max.), supports to 12 GHz
  • MICRO-COAXIAL
MHF® 5L
Improved electrical performance of 1.6 VSWR through 15 GHz,mated height of 1.3 mm max.
  • MICRO-COAXIAL
