CABLINE®-UY

CABLINE-UY
Low mating height (Height 0.82 mm max.), Suitable for high-data-rate transfer (32 Gbps/lane), Narrow pitch (0.35 mm pitch), Right angle vertical mating type micro-coaxial cable connector

    Small & low height design, suitable for narrow spaces

    High-data-rate transfer, ideal for 32 Gbps/lane applications

    Plug design able to go through small hinge after cable termination
Contact Pitch:
0.35 (mm)
Mating Direction:
Vertical
Mated Height:
0.82 max. (mm)
Available Pin Count:
5 10
Micro-Coaxial Cable:
AWG 40 AWG 42
Discrete Cable:
AWG 36

Downloads

Small & low height design, suitable for narrow spaces

Connector mated size

Connector mated size

Size comparison image of 5 pin plug with a one-cent coin

Size comparison image of 5 pin plug with a one-cent coin



High-data-rate transfer, ideal for 32 Gbps/lane applications

Measurement results

Connector : CABLINE-UY 10 pin
Cable : Micro-coaxial cable
AWG 42, 50 ohm , Length : 100 mm
Pin Assignment : GSSGSSG

 FAB2



Plug design able to go through small hinge after cable termination
Hinge Component Pass-Through with CABLINE® Harness Assemblies
No need to bend the cable_1


Simulation results (5 pin):
No need to bend the cable

No need to bend the cable		 Simulation results (more than 5 pin): Minimum hinge inner diameter without bonding (mm)Minimum hinge inner diameter without bonding (mm)
Simulation results (more than 5 pin):  Minimum hinge inner diameter with bonding (mm)Minimum hinge inner diameter with bonding (mm)



Transmission Speed (Reference Only) 2.7 Gbps/Lane NRZ
Contact Pitch
0.35 (mm)
Mating Direction
Vertical
Mated Height
0.82 max. (mm)
Available Pin Counts
5 10
Depth
3.1 (mm)
Width Formula
Wire plug : 2.15 + (0.35 * ?p) SMT plug : 2.02 + (0.35 * ?p)　
Micro-Coaxial Cable
AWG 40 AWG 42
Discrete Cable
AWG 36
Shielded FPC / FFC
No
Applicable Standards (Reference Only)
USB4 Gen4 (40 Gbps/Lane PAM3) Thunderbolt 5 (40 Gbps/Lane PAM3) USB4 Gen3 (20 Gbps/lane) DisplayPort UHBR20 (20 Gbps/Lane） V-By-One US (16 Gbps/Lane) PCIe 4.0 (16 Gbps/Lane) DisplayPort UHBR13.5 (13.5 Gbps/Lane) HDMI 2.1 (12 Gbps/Lane) USB3.1 Gen2 (10 Gbps/Lane) DisplayPort HBR3 (8.1 Gbps/Lane) PCIe 3.0 (8 Gbps/Lane) HDMI 2.0 (6 Gbps/Lane) DisplayPort HBR2 (5.4 Gbps/Lane) eDP HBR2 (5.4 Gbps/Lane) USB3.1 Gen1 (5 Gbps/Lane) PCIe 2.0 (5 Gbps/Lane) V-By-One HS 1.4 (4 Gbps/Lane) V-By-One HS 1.3 (3.75 Gbps/Lane) HDMI 1.3 (3.4 Gbps/Lane) DisplayPort HBR (2.7 Gbps/Lane) eDP (2.7 Gbps/Lane) MiPi standards
Full EMI Shielding (ZenShield®)
No
Mechanical lock
No

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



CABLINE-UY

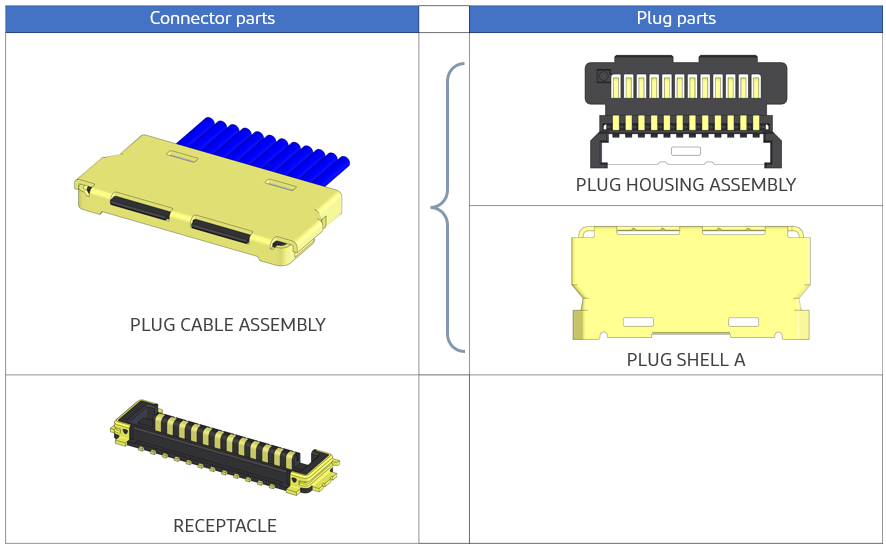

CABLINE-UY RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-UY plug cable assembly 5pin 20857-005T-01 24.868
CABLINE-UY plug cable assembly 10pin 20857-010T-01 32.85
CABLINE-UY receptacle 5pin 20854-005E-02 6.3
CABLINE-UY receptacle 10pin 20854-010E-02 9.74
CABLINE-UY shell A 5pin 3568-0051 18.938
CABLINE-UY shell A 10pin 3568-0101 23.850



 CABLINE-UY SAMPLE HARNESS FOR EVALUATION PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-UY harness 5pin micro-coaxial 42AWG L=100mm 81426-100B-03-D -
CABLINE-UY harness 5pin micro-coaxial 42AWG L=200mm 81426-100B-02-D -
CABLINE-UY harness 5pin micro-coaxial 42AWG L=300mm 81426-100B-01-D 522
CABLINE-UY harness 10pin micro-coaxial 42AWG L=100mm 81787-100B-03-D   -
CABLINE-UY harness 10pin micro-coaxial 42AWG L=200mm 81787-100B-02-D  -
CABLINE-UY harness 10pin micro-coaxial 42AWG L=300mm 81787-100B-01-D 1007.4
CABLINE-UY harness 5pin micro-coaxial 42AWG L=300mm  1-1 82448-100B-02-D -
CABLINE-UY harness 10pin micro-coaxial 42AWG L=300mm  1-1 82449-100B-02-D -


Other Part Numbers

CABLINE-UY OTHER PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-UY receptacle 5pin 20854-005E-12 -
CABLINE-UY plug housing 5pin 20907-005E-01 5.930
CABLINE-UY plug housing 10pin 20907-010E-01 9.000
CABLINE-UY shell A 5pin 3568-0052 18.938

CABLINE-UY ACCESSORIES PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-UY hand tool plug insertion/extraction 5p 91174-0001 440
CABLINE-UY hand tool plug insertion/extraction 10p 91174-0002 600



SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for CABLINE-UY 91565-005B-001 39708.72

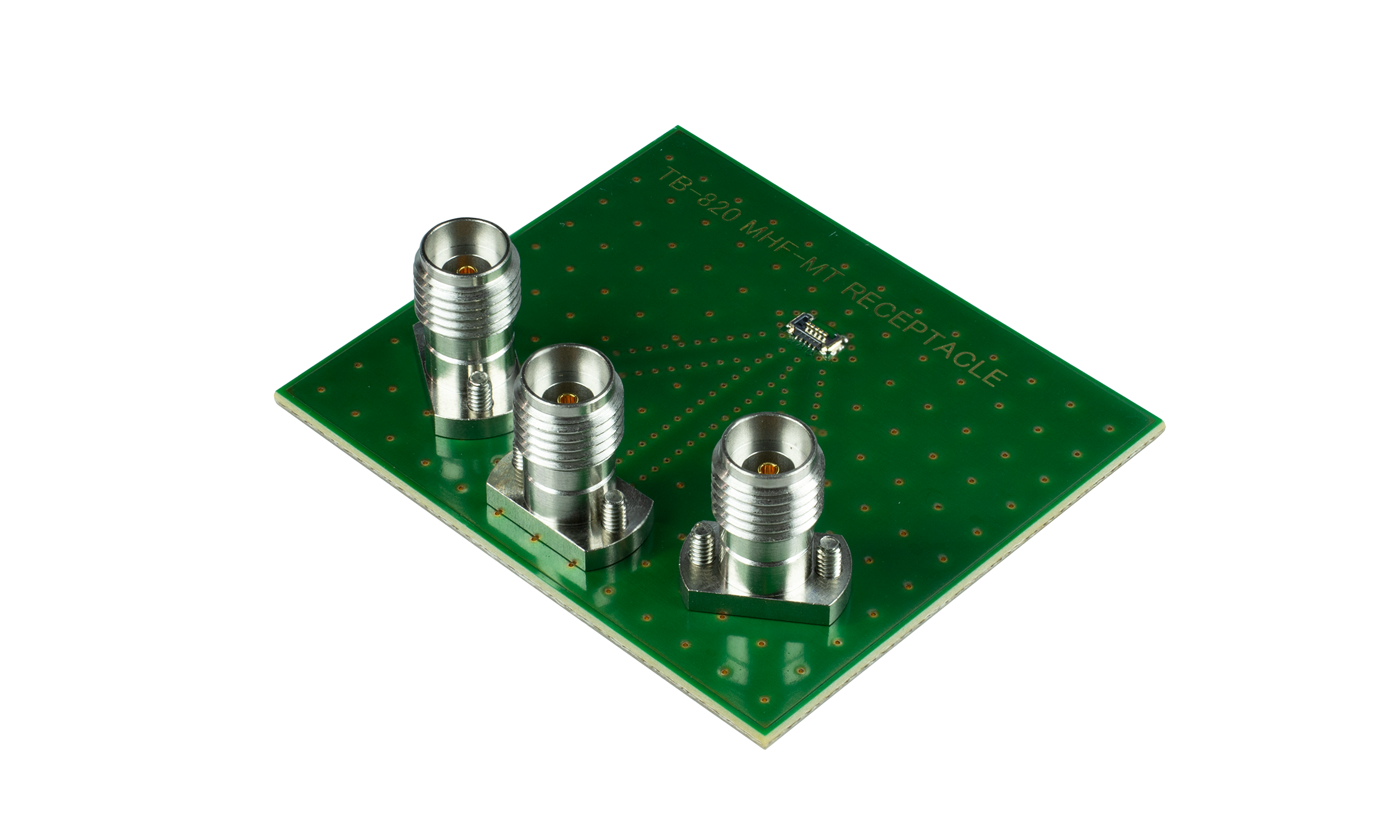

CABLINE-UY_TB-820_Main_(C)

Main Board

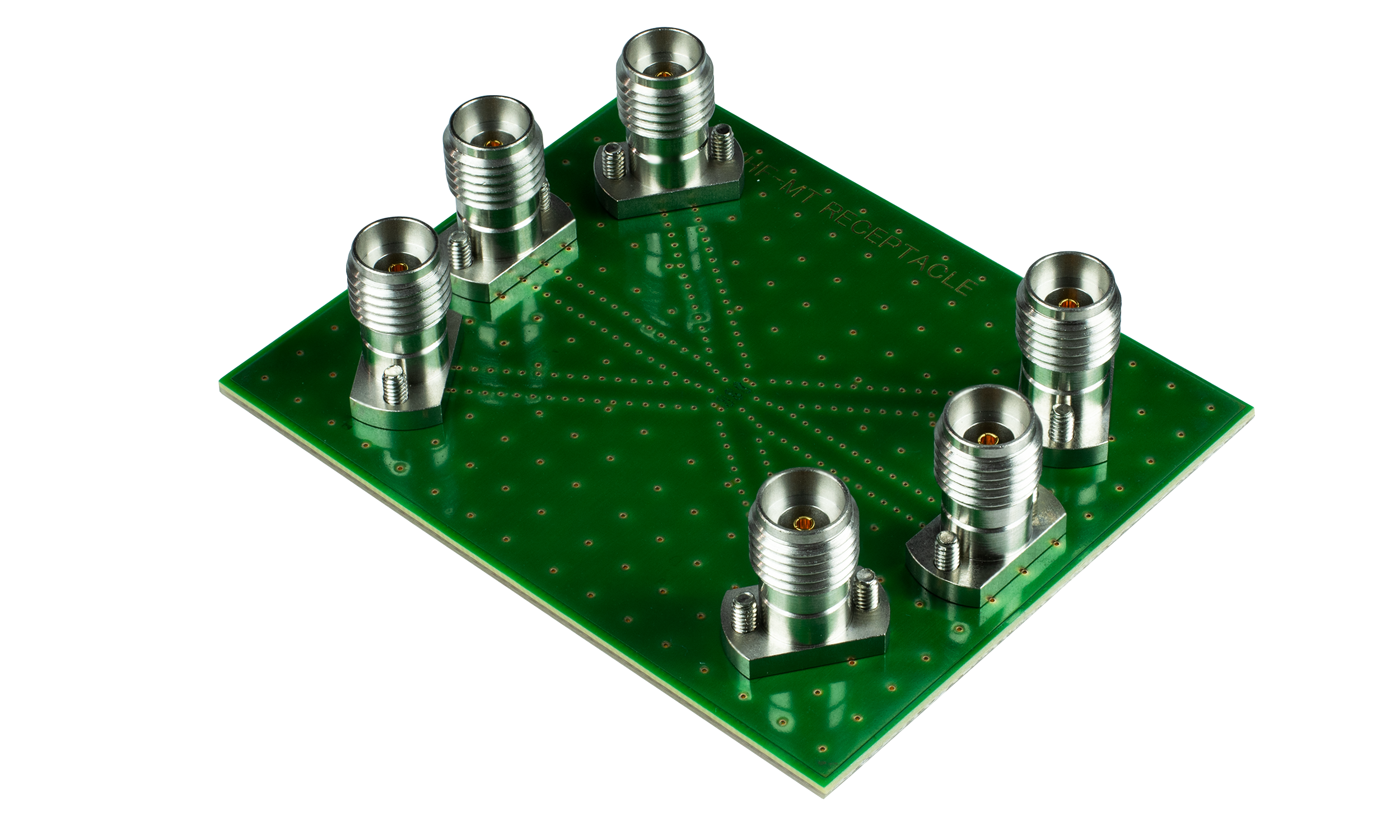

CABLINE-UY_TB-820_Thru_(C)
Thru Board

CABLINE-UY Plan to EOL PART NUMBERS

Part Number Descriptions EOL P/N Alternative I-PEX P/N Differences to alternative item
CABLINE-UY receptacle 5pin 20854-005E-00 20854-005E-02 plating
CABLINE-UY receptacle 10pin 20854-010E-01 20854-010E-02 plating



CABLINE-UY EOL PART NUMBERS

Part Number Descriptions EOL P/N Alternative I-PEX P/N Differences to alternative item
CABLINE-UY SMT plug 5pin 20853-005E-01 Contact us 　
CABLINE-UY SMT plug 10pin 20853-010E-01 Contact us
