CABLINE®-CX II Without Cover

CABLINE-CX II Without Cover Product Image
Narrow pitch (0.25 mm pitch), Low mating height (Height = 0.78 mm max), Mechanical lock with shielding and multi-point ground, Horizontal mating type micro-coaxial connector

    Suitable For Small Connector Spaces

    Mechanical locking bar prevents incomplete mating and back-out/un-mating

    EMI Shielding and Multi-point Ground Design
Contact Pitch:
0.25 (mm)
Mating Direction:
Horizontal
Mated Height:
0.78 max. (mm)
Available Pin Count:
40
Micro-Coaxial Cable:
AWG 44 AWG 46
Discrete Cable:
AWG 39 AWG 40 AWG 42 AWG 44 AWG 46
Current rating:
0.10A AC/DC [AWG #46] per contact/up to 40 contacts 0.15A AC/DC [AWG #44] per contact/up to 40 contacts 0.30A AC/DC [AWG #39] per contact/up to 40 contacts

Downloads

Suitable For Small Connector Spaces

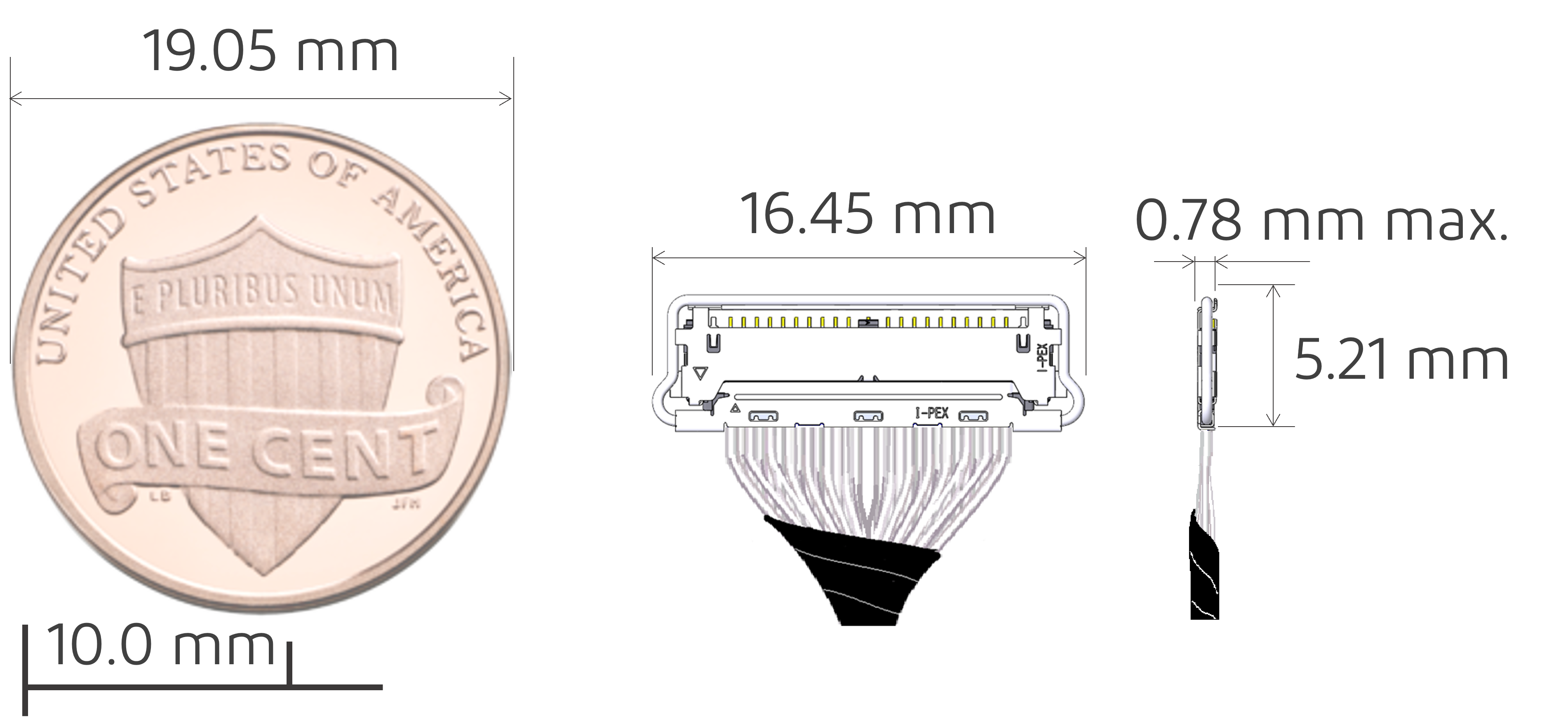

CABLINE-CX II 40p size is smaller than a one-cent coin.
Mating Height: 0.78 mm maximum                                                      Hinge Component Pass-Through with CABLINE® Harness Assemblies

CABLINE-CX_II_FAB1-1 CABLINE-UX II_FAB1-2.jpg

Flexible micro-coaxial cable harness is
suitable for applications with hinge design.

Mechanical locking bar prevents incomplete mating and back-out/un-mating
CABLINE-CX II_FAB2-1Mate

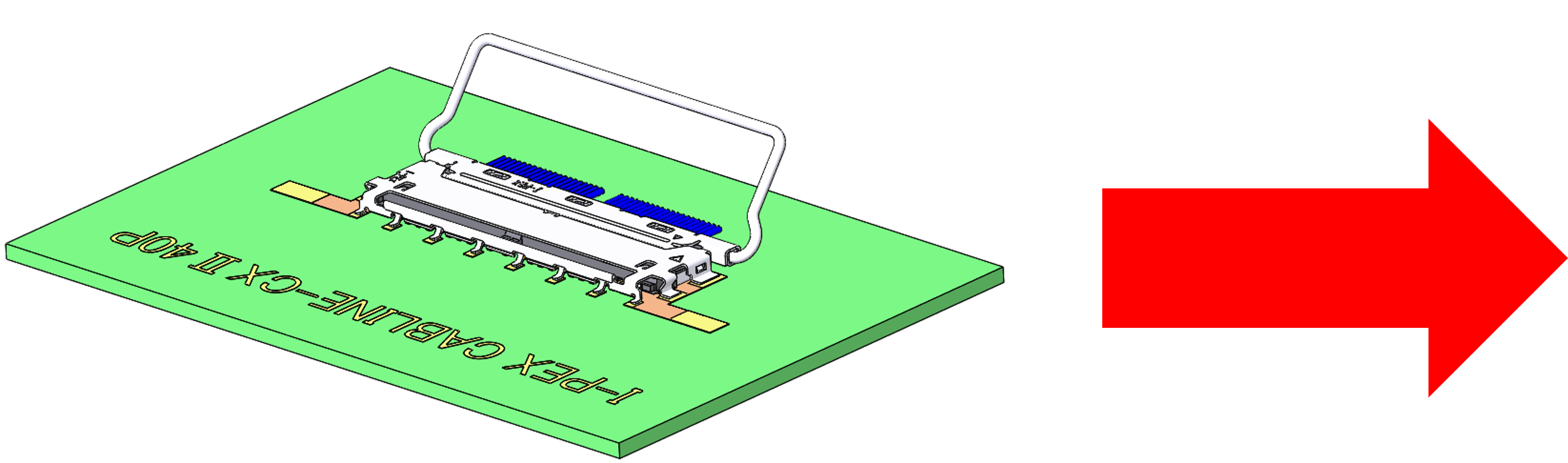

CABLINE-CX_II_FAB2-2 Locked
 CABLINE-CX II_FAB2-3
                                           Mechanical locking bar can be locked only when plug is fully mated to receptacle.
Interference

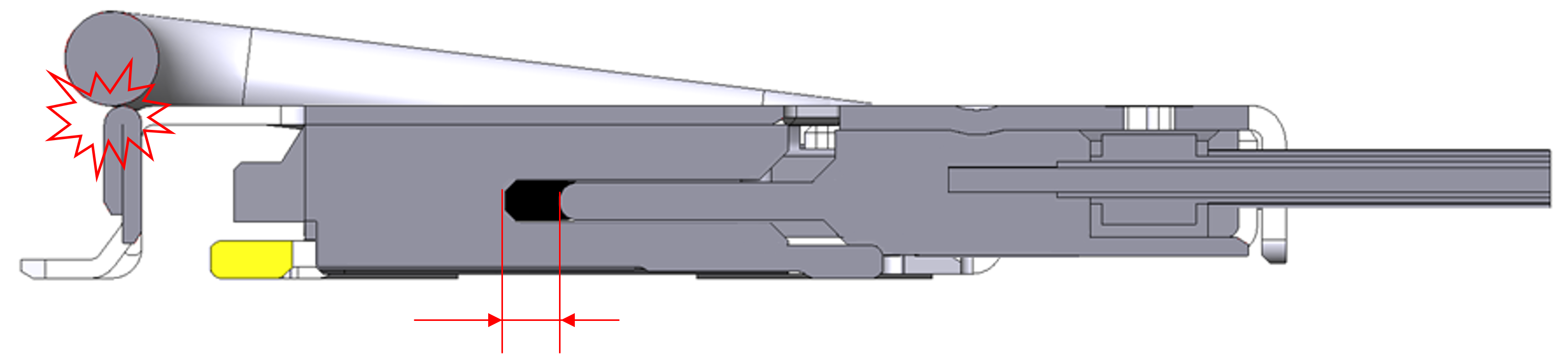

CABLINE-CX_II_FAB2-4                                           Incomplete mating

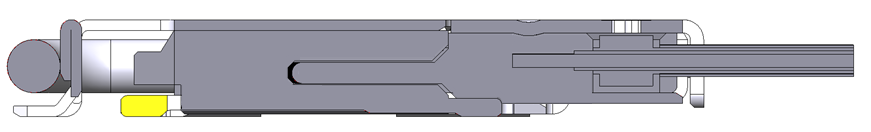

CABLINE-CX_II_FAB2-5
                                       Complete mating



EMI Shielding and Multi-point Ground Design

UAII_Fab3-3  Soldered contacts
UAII_Fab3-4 Mechanical contacts

1. Plug Shell
 to
Receptacle Shell

 FAB3

2. Receptacle Shell
to
PCB

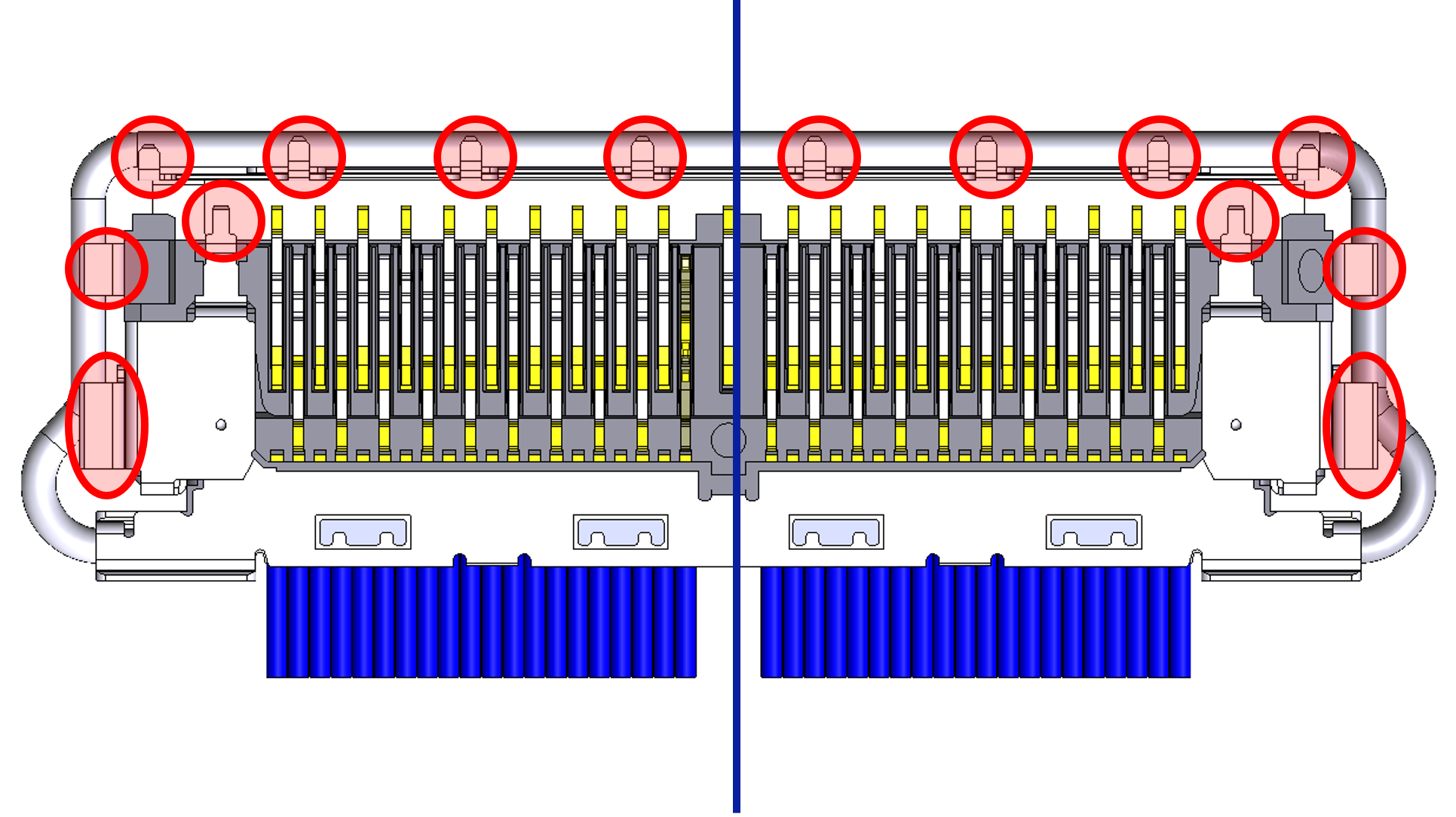

CABLINE-CX_II_FAB3-1

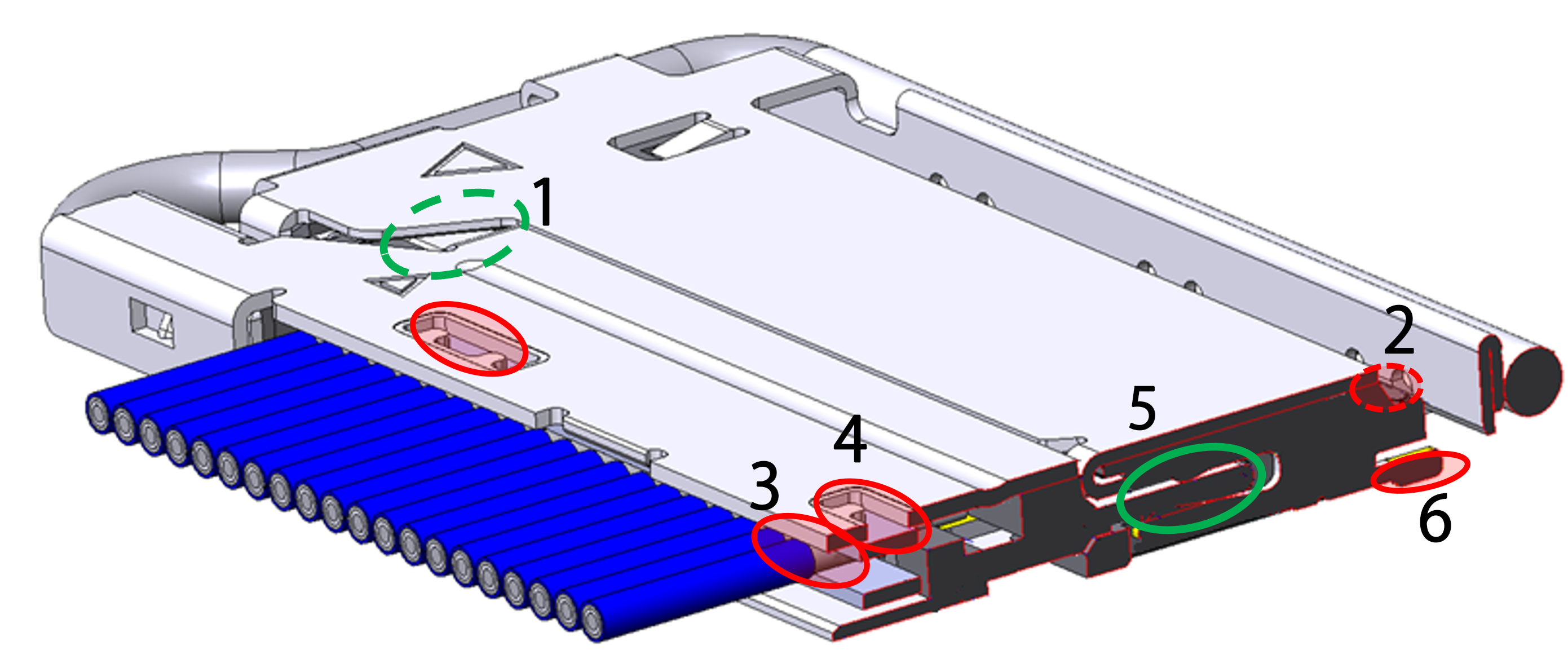

             View From Underside		 CABLINE-CX_II_FAB3-2_2
3. Wire Shield
 to
Ground Bar		 FAB3 4. Ground Bar
 to
Plug Shell		 ​​FAB3 5. Plug Shell
 to
Receptacle Ground Contact		 FAB3 6. Receptacle Shell
to
PCB





Transmission Speed (Reference Only) 5 Gbps/Lane NRZ
Contact Pitch
0.25 (mm)
Mating Direction
Horizontal
Mated Height
0.78 max. (mm)
Available Pin Counts
40
Depth
5.21 (mm)
Width Formula
16.45
Micro-Coaxial Cable
AWG 44 AWG 46
Discrete Cable
AWG 39 AWG 40 AWG 42 AWG 44 AWG 46
Shielded FPC / FFC
No
Current rating
0.10A AC/DC [AWG #46] per contact/up to 40 contacts 0.15A AC/DC [AWG #44] per contact/up to 40 contacts 0.30A AC/DC [AWG #39] per contact/up to 40 contacts
Applicable Standards (Reference Only)
USB3.1 Gen1 (5 Gbps/Lane) V-By-One HS 1.4 (4 Gbps/Lane) eDP (2.7 Gbps/Lane) MiPi standards
Full EMI Shielding (ZenShield®)
No
Mechanical lock
Yes

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



DIAGRAMS_CABLINE-CX_II_WITHOUT_COVER

CABLINE-CX II Without Cover RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-CX II without cover plug cable assembly 40pin 20978-040T-01 79.48
CABLINE-CX II plug housing 40pin 20974-040T-01 32.53
CABLINE-CX II plug shell A 40pin 3655-0401 19.35
CABLINE-CX II without cover plug lock bar assembly 40pin 3656-0402 27.6
CABLINE-CX II receptacle 40pin 20976-040E-01 78.353



CABLINE-CX II Without Cover SAMPLE HARNESS FOR EVALUATION PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-CX II 40pin micro-coaxial 46AWG L=300mm 1-N  Zenshield type 82439-100B-02-D -

SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg)
SI Test Board for CABLINE-CX II (type-A) 40pin 91583-040B-001 73853.52
SI Test Board for CABLINE-CX II (type-B) 40pin 91584-040B-001 80553.52

CABLINE-CX II Without Cover Plan to EOL PART NUMBERS

Part Number Descriptions EOL P/N Alternative I-PEX P/N Differences to alternative item
CABLINE-CX II plug 40pin 20833-040T-01-1 20974-040T-01 old P/N
CABLINE-CX II lock bar 40pin 20834-040T-01-1 20975-040T-01 old P/N
CABLINE-CX II with cover 40pin 20844-040T-01-1 20977-040T-01 old P/N
CABLINE-CX II without cover 40pin 20845-040T-01-1 20978-040T-01 old P/N
CABLINE-CX II plug shell A 40pin 3398-0401-1 3655-0401 old P/N
CABLINE-CX II lock bar 40pin 3400-0402-1 3656-0402 old P/N
