CABLINE®-VS II

CABLINE-VS II Product Image
Fully-shielded with mechanical lock, Suitable for high-data-rate transfer (PCIe Gen5 32 GT/s/lane), 0.5 mm pitch, Horizontal mating type micro-coaxial connector

    ZenShield® fully-shielded with multi-point grounds is ideal for EMC solutions

    Mechanical locking cover prevents incomplete mating and back-out/unmating

    High-data-rate transfer, ideal for PCIe Gen5 (32 GT/s/lane) applications

*Refer to the "How to mate and unmate" video for handling.
Contact Pitch:
0.5 (mm)
Mating Direction:
Horizontal
Mated Height:
1.2 max. (mm)
Available Pin Count:
20 30 40
Micro-Coaxial Cable:
AWG 36 AWG 38 AWG 40 AWG 42 AWG 44
Twinaxial Cable:
AWG 40
Discrete Cable:
AWG 32 AWG 34 AWG 36
Current rating:
0.24 A AC/DC [AWG 42] per contact 0.3 A AC/DC [AWG 40] per contact 0.5 A AC/DC [AWG 38] per contact 0.8 A AC/DC [AWG 36] per contact 1.0 A AC/DC [AWG 34] per contact for power 1.0 A AC/DC [AWG 32] per contact for power

Downloads

ZenShield® fully-shielded with multi-point grounds is ideal for EMC solutions
    General Connector ZenShield® Connector
CABLINE-VS_II_FAB1-1.jpg CABLINE-VS_II_FAB1-2.jpg CABLINE-VS_II_FAB1-3.jpg


Connectors can be placed closer to antenna
View From Back
CABLINE-VS_II_FAB1-5.jpgSoldered contacts
1. Wi-Fi Antenna

CABLINE-VS_II_FAB1-6.jpgMechanical contact
2. High-data-rate Signal Transfer

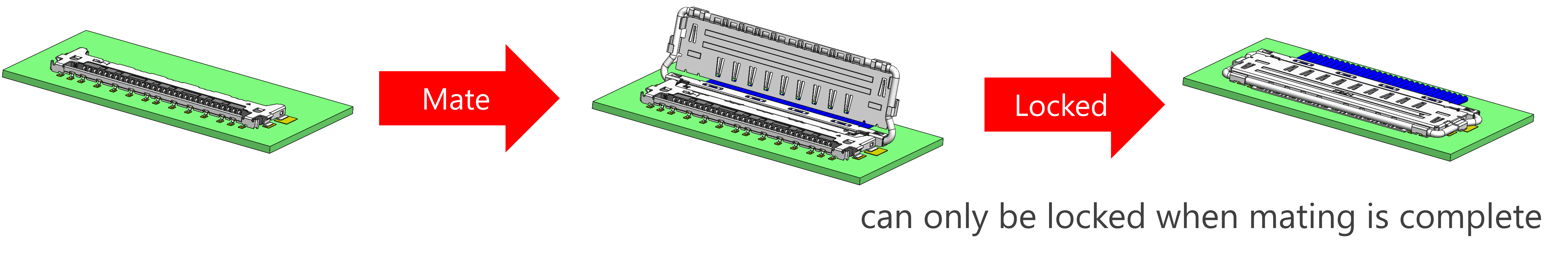

Mechanical locking cover prevents incomplete mating and back-out/unmating
Mate
 Locked

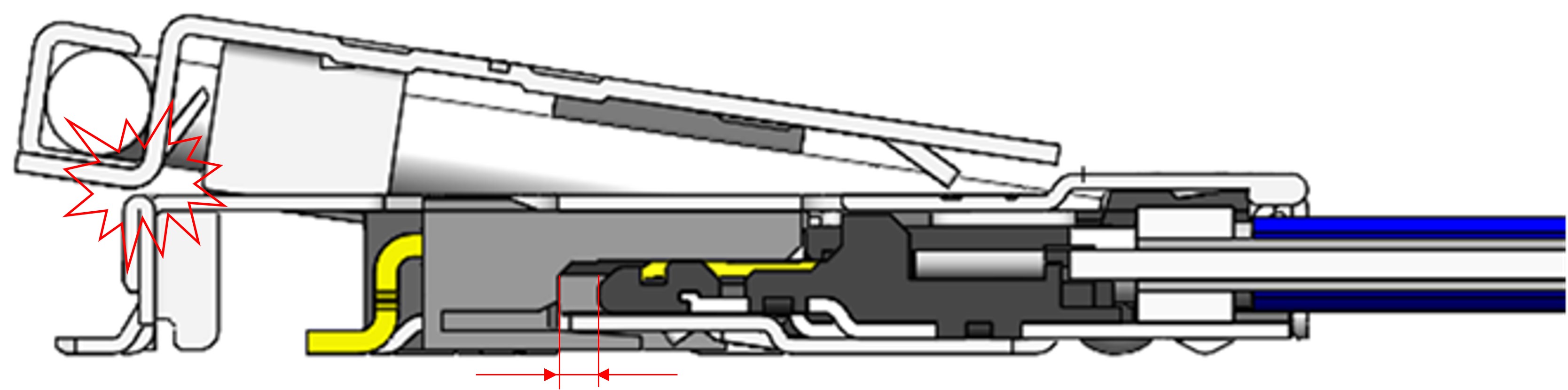

Unable to lock Can only be locked when mating is complete
incomplete mating
complete mating



High-data-rate transfer, ideal for PCIe Gen5 (32 GT/s/lane) applications

Measurement results

Connector : CABLINE-VS II 40P
FPC : Micro-coaxial cable
AWG #40, 45 ohm, Length : 100 mm
Pin Assignment : GSSGSSG

 CABLINE-VS II FAB3 ALL



Transmission Speed (Reference Only) 2.7 Gbps/Lane NRZ
Contact Pitch
0.5 (mm)
Mating Direction
Horizontal
Mated Height
1.2 max. (mm)
Available Pin Counts
20 30 40
Depth
6.7 (mm)
Width Formula
6.85 + (0.5 x pin count)(mm)
Micro-Coaxial Cable
AWG 36 AWG 38 AWG 40 AWG 42 AWG 44
Discrete Cable
AWG 32 AWG 34 AWG 36
Shielded FPC / FFC
No
Current rating
0.24 A AC/DC [AWG 42] per contact 0.3 A AC/DC [AWG 40] per contact 0.5 A AC/DC [AWG 38] per contact 0.8 A AC/DC [AWG 36] per contact 1.0 A AC/DC [AWG 34] per contact for power 1.0 A AC/DC [AWG 32] per contact for power
Applicable Standards (Reference Only)
USB4 Gen4 (40 Gbps/Lane PAM3) Thunderbolt 5 (40 Gbps/Lane PAM3) USB4 Gen3 (20 Gbps/lane) DisplayPort UHBR20 (20 Gbps/Lane） V-By-One US (16 Gbps/Lane) HDMI 2.1 (12 Gbps/Lane) USB3.1 Gen2 (10 Gbps/Lane) USB3.1 Gen1 (5 Gbps/Lane) eDP HBR3 (8.1 Gbps/Lane) eDP HBR2 (5.4 Gbps/Lane) USB3.1 Gen1 (5 Gbps/Lane) HDMI 2.0 (6 Gbps/Lane) V-By-One HS 1.4 (4 Gbps/Lane) eDP (2.7 Gbps/Lane) MiPi standards PCIe 5.0 (32 Gbps/Lane)
Full EMI Shielding (ZenShield®)
Yes
Mechanical lock
Yes
Automotive Standards LV214 (40P tested. PG17 Dynamic Loading evaluation passed)

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



DIAGRAMS_CABLINE-VS_II



CABLINE-VS II RECOMMENDED PART NUMBERS

Part Number Description PART NUMBERS Weight (mg)
CABLINE-VS II plug cable assembly 20pin 20846-020T-01 204.100
CABLINE-VS II plug cable assembly 30pin 20846-030T-01 261.407
CABLINE-VS II plug cable assembly 40pin 20846-040T-01 318.752
CABLINE-VS II plug housing 20pin 20847-020T-01 46.25
CABLINE-VS II plug housing 30pin 20847-030T-01 62.931
CABLINE-VS II plug housing 40pin 20847-040T-01 79.488
CABLINE-VS II plug shell A 20pin 3427-0201 27.47
CABLINE-VS II plug shell A 30pin 3427-0301 36.6
CABLINE-VS II plug shell A 40pin 3427-0401 45.801
CABLINE-VS II plug lock bar assembly 20pin 20848-020T-01 130.38
CABLINE-VS II plug lock bar assembly 30pin 20848-030T-01 161.876
CABLINE-VS II plug lock bar assembly 40pin 20848-040T-01 193.463
CABLINE-VS II receptacle 20pin 20849-020E-01 85.23
CABLINE-VS II receptacle 30pin 20849-030E-01 112.322
CABLINE-VS II receptacle 40pin 20849-040E-01 140.232







CABLINE-VS II SAMPLE HARNESS FOR EVALUATION PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-VS II harness 20pin micro-coaxial 40AWG L=200mm 81619-100B-02-D 1919
CABLINE-VS II harness 30pin micro-coaxial 40AWG L=200mm 81457-100B-02-D 2756.4
CABLINE-VS II harness 40pin micro-coaxial 40AWG L=200mm 81458-100B-02-D 3625.5


Other Part Numbers

CABLINE-VS II OTHER PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-VS II plug housing 20pin 20847-020T-02 46.250
CABLINE-VS II plug housing 30pin 20847-030T-02 62.931
CABLINE-VS II plug housing 40pin 20847-040T-02 　
CABLINE-VS II plug housing 20pin 21071-020T-01 46.250
CABLINE-VS II plug housing 30pin 21071-030T-01 62.931
CABLINE-VS II plug housing 40pin 21071-040T-01 79.488
CABLINE-VS II plug shell A 20pin 3859-0201 27.470
CABLINE-VS II plug shell A 30pin 3859-0301 36.600
CABLINE-VS II plug shell A 40pin 3859-0401 45.801
CABLINE-VS II lock bar 20pin 21072-020T-01 130.380
CABLINE-VS II lock bar 30pin 21072-030T-01 161.876
CABLINE-VS II lock bar 40pin 21072-040T-01 193.463
CABLINE-VS II receptacle 20pin 20849-020E-02 85.230
CABLINE-VS II receptacle 30pin 20849-030E-02 112.322
CABLINE-VS II receptacle 40pin 20849-040E-02 　
CABLINE-VS II receptacle 20pin 21073-020E-01 85.230
CABLINE-VS II receptacle 30pin 21073-030E-01 112.322
CABLINE-VS II receptacle 40pin 21073-040E-01 140.232
CABLINE-VS II cable assembly 20pin 21070-020E-01 -
CABLINE-VS II cable assembly 30pin 21070-030E-01 -
CABLINE-VS II cable assembly 40pin 21070-040E-01 -
CABLINE-VS II cable assembly 40pin 21070-060E-01 -

SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg)
SI Test Board for CABLINE-VS II 20pin 91579-020B-001 84766
SI Test Board for CABLINE-VS II 30pin 91579-030B-001 84815.34
SI Test Board for CABLINE-VS II 40pin 91579-040B-001 84872.66

CABLINE-VS II Plan to EOL PART NUMBERS

Part Number Descriptions EOL P/N Alternative I-PEX P/N Differences to alternative item
CABLINE-VS II receptacle 20pin 20849-020E-01-S 20849-020E-01 MOQ
CABLINE-VS II receptacle 20pin 20849-020E-02-S 20849-020E-01 plating, MOQ
CABLINE-VS II receptacle 30pin 20849-030E-01-S 20849-030E-01 MOQ
CABLINE-VS II receptacle 30pin 20849-030E-02-S 20849-030E-01 plating, MOQ
CABLINE-VS II receptacle 40pin 20849-040E-01-S 20849-040E-01 MOQ
CABLINE-VS II receptacle 40pin 20849-040E-02-S 20849-040E-01 plating, MOQ



CABLINE-VS II EOL PART NUMBERS

Part Number Descriptions EOL P/N Alternative I-PEX P/N Differences to alternative item
CABLINE-VS II plug lock bar assembly 20pin 20848-020T-02 20848-020T-01 without tape
CABLINE-VS II plug lock bar assembly 20pin 20848-020T-03 20848-020T-01 without tape
CABLINE-VS II plug lock bar assembly 30pin 20848-030T-02 20848-030T-01 without tape
CABLINE-VS II plug lock bar assembly 30pin 20848-030T-03 20848-030T-01 without tape
