Wi-Fi 6 / 6E

Wi-Fi has become indispensable due to the arrival of IoT (Internet-of-Things) in which various "things" are connected to the internet, cashless payments, smart speakers, and the introduction of IT in medical care. In addition, technologies such as AI (Artificial Intelligence) and ICT (Information and Communication Technology), which require enormous amounts of information processing, are expected to be used more and more in the future, and there is an increasing demand for improved stability of the communication environment.


With the development of communication technologies such as Wi-Fi 6 / 6E, which are new wireless communication standards, high-speed, large-capacity communication, and the stability of wireless communication when connected simultaneously by a large number of communication devices have been improved, and unified communication has been achieved. Cloud computing, AR (Augmented Reality) / VR (Virtual Reality), telepresence, and other content that requires large-capacity data communication will become more familiar to use.



Micro RF connector for Wi-Fi 6 / 6E applications



I-PEX's MHF® micro RF connector series is ideal solution for connecting antenna signals such as Wi-Fi, 5G (millimeter wave / Sub-6), 4G LTE, Bluetooth, GPS, WiGig, M2M, IoT, SigFox, WiSUN, NB-IoT and LoRa. In addition, I-PEX has a large selection of MHF® series products that have been confirmed to work with Wi-Fi 6 / 6E, by performing performance evaluation in the frequency band of 6 GHz band (5935 MHz to 7125 MHz) of Wi-Fi 6 / 6E.




  • MHF® I: Micro RF connector with excellent performance at ~9 GHz

MHF I performance



  • MHF® 4L: Micro RF connector with excellent performance at ~12G Hz

MHF 4L performance



  • MHF® 5L: Micro RF connector with excellent performance at ~15 GHz

MHF 5L performance

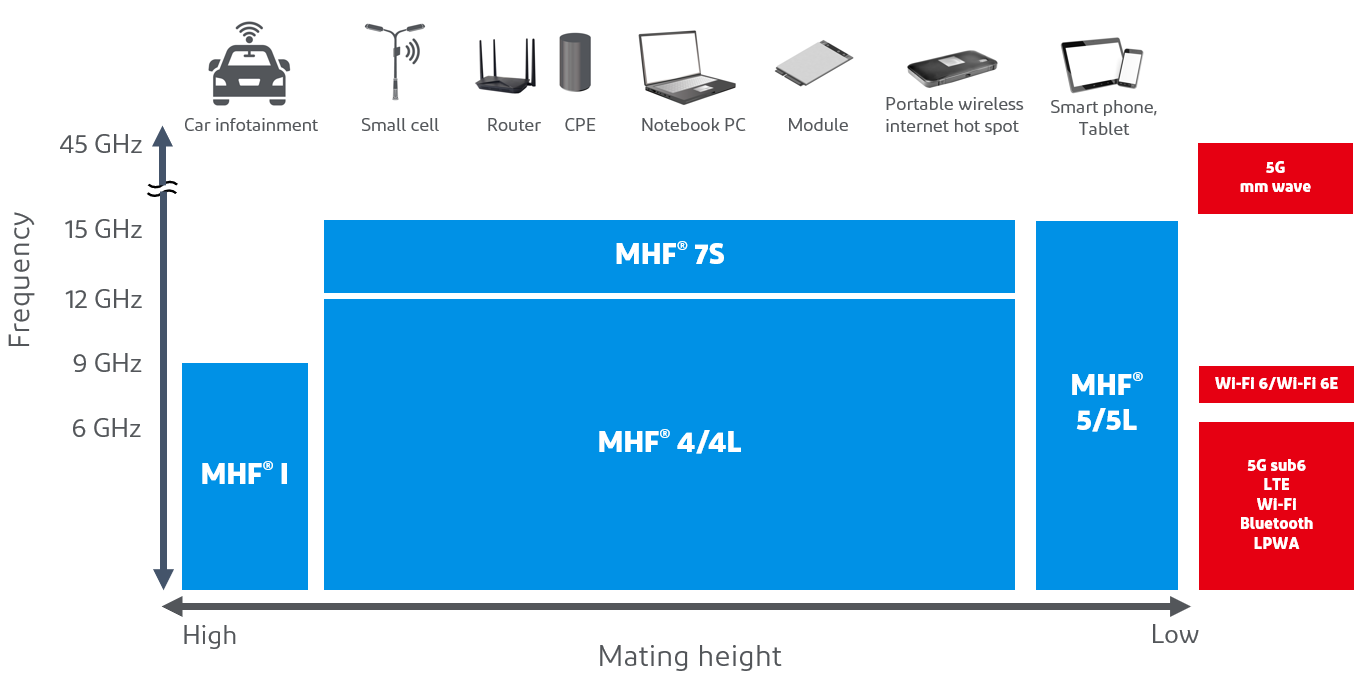

List of compatible frequencies for I-PEX's micro RF connector series (MHF® series)



Introduction of MHF® series


I-PEX offers an extensive line of MHF® micro RF connector series for Wi-Fi 6 / 6E applications.

Application-5g_MHFI-LKMHF®I LK
Locking solution that works with MHF I receptacles, supports up to 9 GHz, mated height of 2.9 mm max.

 ● Mated Height (mm): 2.90 Max.
 ● Frequency Range: Up to 9 GHz
 ● Micro-Coaxial Wire (AWG / O.D. (mm)): #30 (1.80), #30 (1.37), #32 (1.32), #32 (1.13), #36 (0.81)

Click to watch MHF® I LK product video.





Application-5g_MHF-I_20670MHF®I
Supports up to 9 GHz, mated height of 2.5 mm max.

 ● Mated Height (mm): 2.50 Max.
 ● Frequency Range: Up to 9 GHz
 ● Micro-Coaxial Wire (AWG / O.D. (mm)): #30 (1.80), #30 (1.37), #32 (1.32), #32 (1.13), #36 (0.81)





Application-5g_MHF-I_20767-2.0-mm-cable-O.D.jpgMHF®I (2.0 mm cable outer diameter / AWG#26)
Low insertion loss for long length harness applications

 ● Mated Height (mm): 3.00 Max.
 ● Frequency Range: Up to 9 GHz
 ● Micro-Coaxial Wire (AWG / O.D. (mm)): #26 (2.00)





Application-5g_MHF4L LKMHF®4L LK
Locking solution that works with MHF 4/4L receptacles, the M.2 industry standard, mated height of 2.0 mm max., excellent electrical performance up to 12 GHz

 ● Mated Height (mm): 2.00 Max.
 ● Frequency Range: Up to 12 GHz
 ● Micro-Coaxial Wire (AWG / O.D. (mm)): #30 (1.37)





Application-5g_MHF4L-20632-1.7mmHMHF®4L (1.7 mm height)
The M.2 industry standard, mated height of 1.7 mm max., excellent electrical performance up to 12 GHz

 ● Mated Height (mm): 1.70 Max.
 ● Frequency Range: Up to 12 GHz
 ● Micro-Coaxial Wire (AWG / O.D. (mm)): #30 (1.37)





Application-5g_MHF4L-20565-1.4mmHMHF®4L (1.4 mm height)
The M.2 industry standard, mated height of 1.4 mm max., excellent electrical performance up to 12 GHz

 ● Mated Height (mm): 1.40 Max.
 ● Frequency Range: Up to 12 GHz
 ● Micro-Coaxial Wire (AWG / O.D. (mm)): #32 (1.13), #33 (0.95)





Application-5g_MHF4L-20572-1.2mmHMHF®4L (1.2 mm height)
The M.2 industry standard, mated height of 1.2 mm max., excellent electrical performance up to 12 GHz

 ● Mated Height (mm): 1.20 Max.
 ● Frequency Range: Up to 12 GHz
 ● Micro-Coaxial Wire (AWG / O.D. (mm)): #35 (0.81), #36 (0.64), #36 (0.81)





Application-5g_MHF5MHF®5
Low-profile (mated height = 1.0 mm max.), supports to 12 GHz

 ● Mated Height (mm): 1.00 Max.
 ● Frequency Range: Up to 12 GHz, Up to 6 GHz
 ● Micro-Coaxial Wire (AWG / O.D. (mm)): #35 (0.81), #36 (0.64), #36 (0.81), #38 (0.48)





Application-5g_MHF5LMHF®5L
Improved electrical performance of 1.6 VSWR through 15 GHz, mated height of 1.3 mm max.

 ● Mated Height (mm): 1.30 Max.
 ● Frequency Range: Up to 15 GHz
 ● Micro-Coaxial Wire (AWG / O.D. (mm)): #32 (1.13), #33 (0.81)





Application-5g_MHF7SMHF®7S
Excellent EMC performance with fully-shielded design, ideal for 5G mmWave applications, VSWR 1.5 max at 15 GHz in small 2.0 x 2.0 mm footprint

 ● Mated Height (mm): 1.40 Max.
 ● Frequency Range: Up to 15 GHz
 ● Micro-Coaxial Wire (AWG / O.D. (mm)): #32 (1.13)
