MHF® 5

Ultra low-profile design for high-density wireless devices, up to 12 GHz, 1.0 mm max. mated height RF connector

    Small form factor with big performance through 12 GHz

    Lowest profile connector of MHF® series

    MHF® 5 Plug available cable O.D. (AWG) : 0.81 mm (36), 0.64 mm (36), 0.48 mm (38)

*For larger cable O.D. plug that mates to MHF® 5 receptacle, please review MHF 5L.
Mated Height:
1.0 mm max.
Operating Temperature:
-40 to 90℃ (233 to 363 K)
Cable Size (Micro-Coaxial):
AWG 36 O.D. 0.64 mmAWG 36 O.D. 0.81 mmAWG 38 O.D. 0.48 mm

Downloads

Small form factor with big performance through 12 GHz

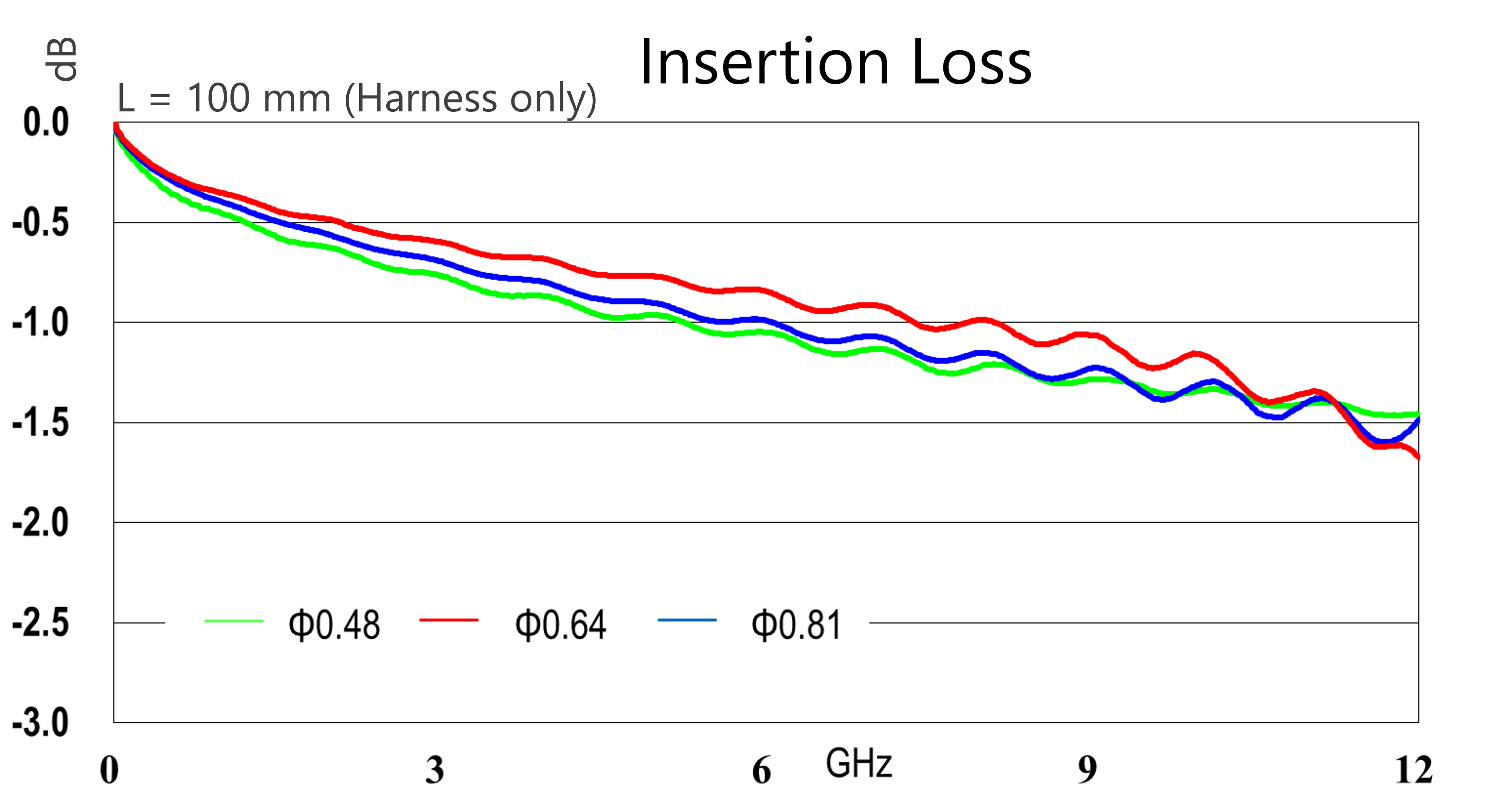

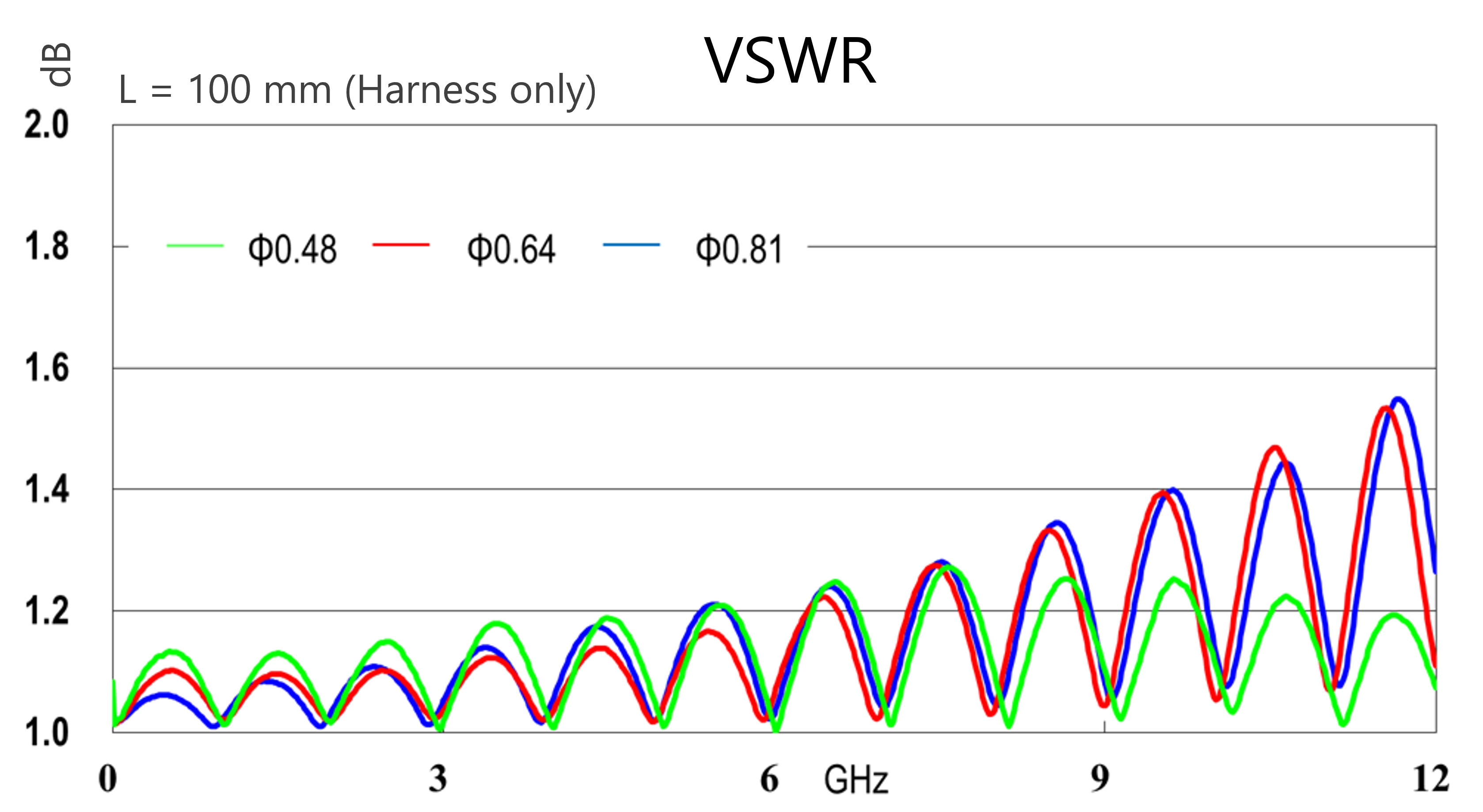

MHF5_VSWR MHF5_Insertion Loss

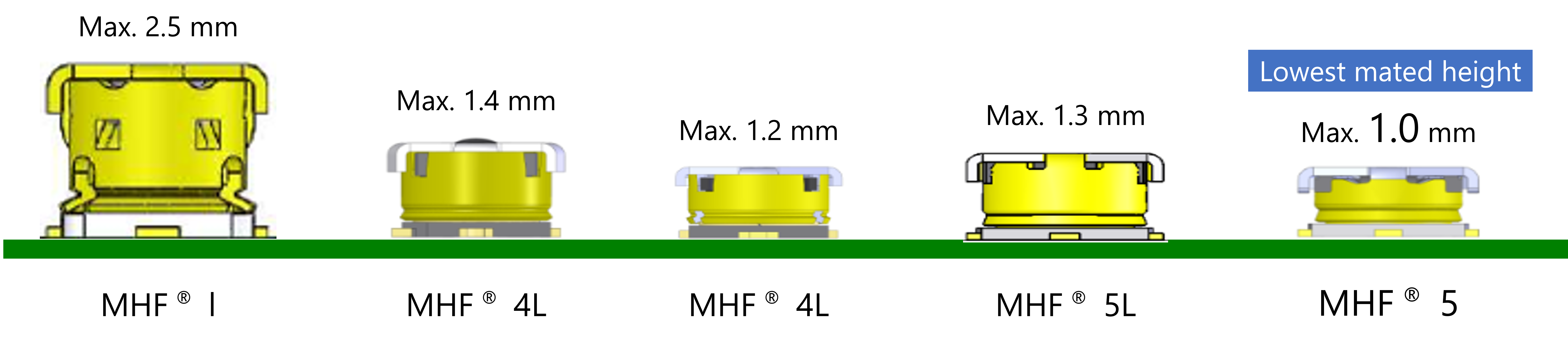

Lowest profile connector of MHF® series

Lowest profile connector of MHF® series



MHF® 5 Plug available cable O.D. (AWG) : 0.81 mm (36), 0.64 mm (36), 0.48 mm (38)



Product name MHF® 5 MHF® 5L
Mating Height 1.0 mm max. 1.3 mm max.
Coaxial O.D.
(Center Conductor AWG)		 1.13 mm (AWG 32)   ●
0.81 mm (AWG 33)   ●
0.81 mm (AWG 36) ●
0.64 mm (AWG 36) ●
0.48 mm (AWG 38) ●
Product name MHF® 5 receptacle

Product Type
Coaxial RF Connector
Mated Height
1.0 mm max.
SMT Size
2.0 x 2.0 mm
Frequency Range Up to 12 GHz
Operating Temperature
-40 to 90℃ (233 to 363 K)
Cable Size (Micro-Coaxial)
AWG 36 O.D. 0.64 mmAWG 36 O.D. 0.81 mmAWG 38 O.D. 0.48 mm
V.S.W.R (Plug)
DC to 3 GHz: 1.3 max.3 to 6 GHz: 1.5 max.6 to 9 GHz: 1.6 max.9 to 12 GHz: 1.8 max. (O.D. 0.64 mm)9 to 12 GHz: 1.7 max. (O.D. 0.81 mm)9 to 12 GHz: 1.6 max. (O.D. 0.48 mm)
Applicable Standards (Reference Only)
5G sub6Wi-FiLTE / LTE-AdvancedLPWABluetoothGPS
Full EMI Shielding (ZenShield®)
No
Mechanical Lock
No

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



MHF 5 RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg) Note
MHF 5 harness OD=0.81mm/0.64mm Offered as harness only - *see note below
MHF 5 harness OD=0.48mm Offered as harness only - *see note below
MHF 5/5L receptacle 20566-001E-01 3.6 　

*The MHF 5 is offered as our MHF 5 harness assembly only.
  Please specify harness assembly specification (single-end or double-ended, cable size, length, color).



MHF 5 SAMPLE HARNESS FOR EVALUATION PART NUMBERS

MHF 5-5 OD0.48MM 100MM



Part Number Description Part Number Weight (mg)
MHF 5-5 harness OD=0.48mm L=50mm 8-25-0471 60
MHF 5-5 harness OD=0.48mm L=100mm 8-25-0472 100
MHF 5-5 harness OD=0.48mm L=200mm 8-25-0473 180
MHF 5-5 harness OD=0.64mm L=50mm 8-25-0432 100
MHF 5-5 harness OD=0.64mm L=100mm 8-21-0045 160
MHF 5-5 harness OD=0.64mm L=200mm 8-25-0433 280
MHF 5-5 harness OD=0.81mm L=100mm 8-25-0869 195.6
MHF 5-5 harness OD=0.81mm L=200mm 8-25-0870 362.6
MHF 5-5 harness OD=0.81mm L=300mm 8-25-0871 529.6
MHF 5-5 harness OD=0.81mm L=400mm 8-25-0872 696.6
MHF 5-5 harness OD=0.81mm L=500mm 8-25-0873 863.6



MHF 5 SAMPLE HARNESS FOR EVALUATION PART NUMBERS

MHF 5-5 OD0.48MM 100MM Type-2



Part Number Description Part Number Weight (mg)
MHF 5-5 harness OD=0.48mm L=50mm 180 degree orientation 8-25-0983 63.5
MHF 5-5 harness OD=0.48mm L=100mm 180 degree orientation 8-25-0984 102
MHF 5-5 harness OD=0.48mm L=200mm 180 degree orientation 8-25-0985 179
MHF 5-5 harness OD=0.64mm L=50mm 180 degree orientation 8-25-0877 86.1
MHF 5-5 harness OD=0.64mm L=100mm 180 degree orientation 8-25-0878 143.6
MHF 5-5 harness OD=0.64mm L=200mm 180 degree orientation 8-25-0879 258.6
MHF 5-5 harness OD=0.81mm L=100mm 180 degree orientation 8-25-0896 195.6
MHF 5-5 harness OD=0.81mm L=200mm 180 degree orientation 8-25-0897 362.6
MHF 5-5 harness OD=0.81mm L=300mm 180 degree orientation 8-25-0898 529.6
MHF 5-5 harness OD=0.81mm L=400mm 180 degree orientation 8-25-0899 696.6
MHF 5-5 harness OD=0.81mm L=500mm 180 degree orientation 8-25-0900 863.6

MHF 5  ACCESSORIES PART NUMBERS

Part Number Description Part Number Weight (mg) Image
MHF 5/5L SMA adapter for plug electrical-performance-check 90543-0001 2294.5

For_Plug_Voltage_MHF_5&5L_LK
MHF 5/5L adapter for plug voltage-check 90586-0002 703.8

For voltage check
MHF 5/5L SMA adapter for receptacle electrical-performance-check 90847-0001 1610
MHF 5/5L SMA adapter for receptacle electrical-performance-check 90543-0002 1451.2

For electrical performance check
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=100mm 90577-0100 4503.2

Adaptor cable (Attach to probe)
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=200mm 90577-0200 5358.9
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=350mm 90577-0350 6571
MHF series SMA adapter for receptacle high-cycle narrow-pitch cable L=750mm 90577-0750 9769.8
MHF series SMA adapter for receptacle high-cycle detachable base 90684-0001 15104.1

MHF series SMA adapter for receptacle high-cycle detachable base
MHF 5/5L SMA adapter for receptacle high-cycle detachable probe 90690-0001 1818.9

Adapter
MHF 5/5L insertion/extraction tool 90612-0001 706.5

Insertion/Extraction tool
MHF 5/5L insertion tool 90624-0001 9158.5

MHF_5_5L_Pushing_tool
MHF 5/5L SMA adapter for receptacle high-cycle 90793-0001 7160 Probe
MHF 5 type 06 semi-auto jig 90601-006 -
MHF 5 type 08 semi-auto jig 90601-008 -
MHF 5 type 13 semi-auto 90905-013 -
MHF 5 inspection connector 90586-0002 703.8



SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for MHF 5 91605-001B-001 17855

MHF_5_SI_TB-1040_Test_Borad_(C)

Main Board

MHF_5_SI_TB-1040_THRU_Board_(C)

Thru Board



Insertion/Extraction tools to handle MHF® 5

Due to the small size of the products and the need for appropriate connector mating, dedicated insertion and extraction tools help ensure safe operation and improve reliability during assembly and maintenance.

How to extract

Insertion/Extraction tools to handle MHF® 5

Slide the tool until it reaches a stopper, lift vertically to the PCB surface.



Adapters for plugs and receptacles

For plug inspection, Electrical Performance Check and Voltage/Continuity Check tools are provided.
Receptacle inspection tools, on the other hand, support Electrical performance check only.
The lineup includes various types to suit different applications, such as Standard series, High Cycle types with different durability ratings, and narrow-pitch types that enable operation on high-density PCB layouts.

Standard series High Cycle Series
Standard type Narrow Pitch type Detachable type
Durability: 500 Durability: 10,000 Durability: 10,000 (Probe), 100 (Cable) Durability: 10,000 (Probe), 200,000 (Base)
MHF_I&_LK_Rece_Standard

Since the receptacle and the adapter are manually mated, the durability cycles are limited to 500. This type is best suited for inspection in small scale production environments, such as laboratories.

 MHF_I&_LK_Rece_High_Cycle_Standard

The Standard type connects directly from the probe to the measuring instrument.

 MHF_I&_LK_Rece_High_Cycle_Narrow

The Narrow pitch type is designed with a tight pitch, allowing multiple probes to be aligned and measured simultaneously.

 MHF_I&_LK_Rece_High_Cycle_Detachable

The Detachable type allows the adapter and probe to be removed and replaced. The base adapter is compatible with all series.



SI Test board for signal integrity performance measurement

Signal Integrity testing, measures and analyzes the extent to which high-speed signals maintain their integrity when transmitted through a connector.

Signal Integrity Test Board
