CABLINE®-UA II

      Suitable for Small Connector Spaces
Slim Plug Design, Suitable For Through-hinge Assemblies
EMI Shielding and Multi-point Ground Design
*Refer to the "How to mate and unmate" video for handling.
Downloads
-
                            Catalog
-
                            2D Drawing-
                                                Receptacles
-
                                                Cable Assemblies
-
                                                Plugs

-

-
  3D Models
-
  Specs & Test Reports-
          Product Specification
-
          Test Reports

-

-
  PCB/FPC Data-
    Symbols & FootprintsSymbols and footprints may be downloaded from an external site, SnapMagic.
-


-

Suitable for Small Connector Spaces

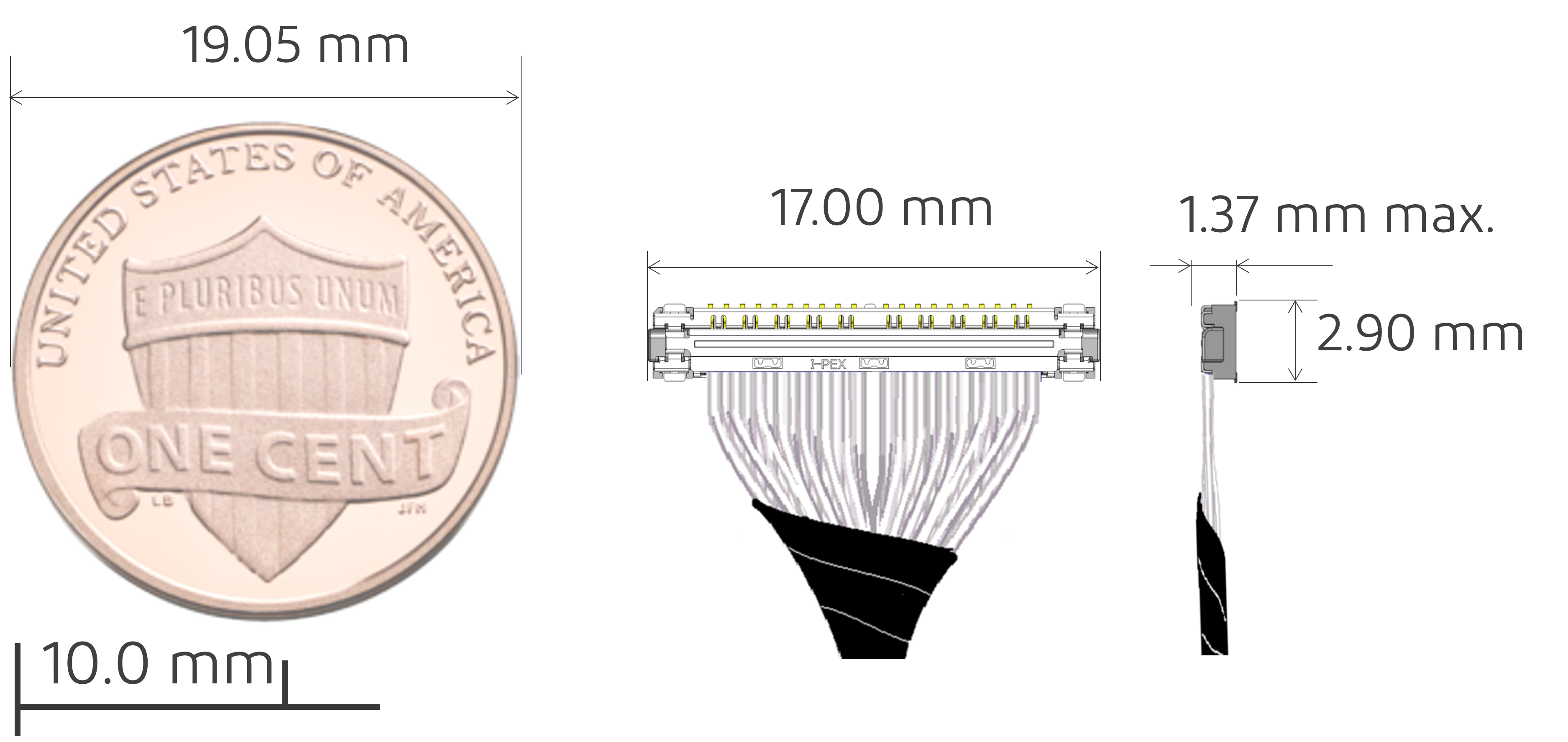

CABLINE®-UA II 40p size is smaller than a one-cent coin. Hinge Component Pass-Through with CABLINE® Harness Assemblies
|  |   Flexible micro-coaxial cable harness is |

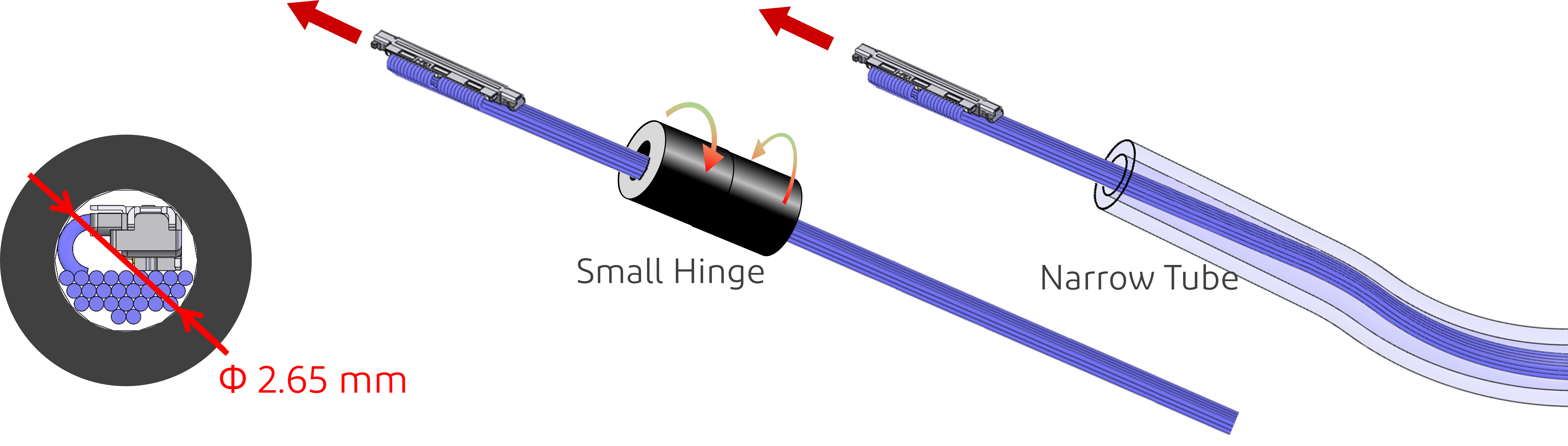

Slim Plug Design, Suitable For Through-hinge Assemblies
Simulation Reference Example:
UA II 26p plug with 0.29 mm cable outer diameter harness can go through 2.65 mm inner diameter.

EMI Shielding and Multi-point Ground Design
|   View From Underside |  |
|
 | |
| Transmission Speed (Reference Only) | 5 Gbps/Lane NRZ |
| Contact Pitch |

                          0.3

            (mm)
         |
| Mating Direction |
          Vertical
       |
| Mated Height |

                                                                            1.37
                      max.

            (mm)
       |
| Available Pin Counts |
          26
          32
          40
          50
       |
| Depth |
            2.9 (mm)
         |
| Width Formula |
          5.0 + (0.3 x pin count)(mm)
       |
| Micro-Coaxial Cable |
          AWG 42
          AWG 44
          AWG 46
       |
| Discrete Cable |
          AWG 39
          AWG 40
          AWG 42
          AWG 44
          AWG 46
       |
| Shielded FPC / FFC |
          No
       |
| Current rating | |
| Applicable Standards (Reference Only) |
          USB3.1 Gen1 (5 Gbps/Lane)
          V-By-One HS 1.4 (4 Gbps/Lane)
          eDP (2.7 Gbps/Lane)
          MiPi standards
       |
| Full EMI Shielding (ZenShield®) |
          No
       |
| Mechanical lock |
          No
       |
RECOMMENDED PART NUMBERS
Please contact us if you cannot find the needed part number(s) from the list below.

CABLINE-UA II RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-UA II plug cable assembly 26pin | 20496-026T-40 | - |
| CABLINE-UA II plug cable assembly 32pin | 20496-032T-40 | 48.976 |
| CABLINE-UA II plug cable assembly 40pin | 20496-040T-40 | 63.02 |
| CABLINE-UA II plug cable assembly 50pin | 20496-050T-40 | 72.29 |
| CABLINE-UA II plug housing 26pin | 20497-026T-30 | 25.618 |
| CABLINE-UA II plug housing 32pin | 20497-032T-30 | 27.976 |
| CABLINE-UA II plug housing 40pin | 20497-040T-30 | 37.26 |
| CABLINE-UA II plug housing 50pin | 20497-050T-30 | 40.86 |
| CABLINE-UA II plug metal cover 26pin | 2679-026-10 | 14.7 |
| CABLINE-UA II plug metal cover 32pin | 2679-032-10 | 21 |
| CABLINE-UA II plug metal cover 40pin | 2679-040-10 | 25.76 |
| CABLINE-UA II plug metal cover 50pin | 2679-050-10 | 31.43 |
| CABLINE-UA II receptacle 26pin | 20498-026E-41 | 67.5 |
| CABLINE-UA II receptacle 32pin | 20498-032E-41 | 82.4 |
| CABLINE-UA II receptacle 40pin | 20498-040E-41 | 91.8 |
| CABLINE-UA II receptacle 50pin | 20498-050E-41 | 105.8 |
CABLINE-UA II SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-UA II harness 26pin micro-coaxial 44AWG L=200mm | 82068-100B-02-D | - |
| CABLINE-UA II harness 32pin micro-coaxial 44AWG L=200mm | 82148-100B-02-D | - |
| CABLINE-UA II harness 40pin micro-coaxial 44AWG L=200mm | 81467-100B-02-D | - |
| CABLINE-UA II harness 50pin micro-coaxial 44AWG L=200mm 1-N | 82445-100B-02-D | - |
Other Part Numbers
CABLINE-UA II OTHER PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-UA II receptacle 26pin | 20498-026E-30 | 58.400 |
| CABLINE-UA II receptacle 26pin | 20498-026E-31 | 67.600 |
| CABLINE-UA II receptacle 26pin | 20498-026E-40 | 58.400 |
| CABLINE-UA II receptacle 32pin | 20498-032E-30 | 66.900 |
| CABLINE-UA II receptacle 32pin | 20498-032E-31 | 82.400 |
| CABLINE-UA II receptacle 32pin | 20498-032E-40 | 66.900 |
| CABLINE-UA II receptacle 40pin | 20498-040E-30 | 76.300 |
| CABLINE-UA II receptacle 40pin | 20498-040E-31 | 91.800 |
| CABLINE-UA II receptacle 40pin | 20498-040E-40 | 76.300 |
| CABLINE-UA II receptacle 50pin | 20498-050E-30 | 90.300 |
| CABLINE-UA II receptacle 50pin | 20498-050E-31 | 105.800 |
| CABLINE-UA II receptacle 50pin | 20498-050E-40 | 90.300 |
| CABLINE-UA II plug metal cover 26pin | 2679-026-00 | 14.700 |
| CABLINE-UA II plug metal cover 32pin | 2679-032-00 | 21.000 |
| CABLINE-UA II plug metal cover 40pin | 2679-040-00 | 25.760 |
| CABLINE-UA II plug metal cover 50pin | 2679-050-00 | 31.430 |
CABLINE-UA II ACCESSORIES PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-UA II/UX II hand tool one-side-extraction | 90460-001 | 0 |
| CABLINE-UA II hand tool extraction 26pin | 90466-026 | 2790 |
| CABLINE-UA II hand tool extraction 32pin | 90466-032 | 3090 |
| CABLINE-UA II hand tool extraction 34pin | 90466-034 | 3050 |
| CABLINE-UA II hand tool extraction 40pin | 90466-040 | 3380 |
| CABLINE-UA II hand tool extraction 50pin | 90466-050 | 4020 |
SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) |
| SI Test Board for CABLINE-UA II (type-A) 26pin | 91567-026B-001 | 77205.6 |
| SI Test Board for CABLINE-UA II (type-A) 32pin | 91567-032B-001 | 77219.4 |
| SI Test Board for CABLINE-UA II (type-A) 40pin | 91567-040B-001 | 77238 |
| SI Test Board for CABLINE-UA II (type-A) 50pin | 91567-050B-001 | 77260.8 |
| SI Test Board for CABLINE-UA II (type-B) 26pin | 91585-026B-001 | 79105.6 |
| SI Test Board for CABLINE-UA II (type-B) 32pin | 91585-032B-001 | 79119.4 |
| SI Test Board for CABLINE-UA II (type-B) 40pin | 91585-040B-001 | 79138 |
| SI Test Board for CABLINE-UA II (type-B) 50pin | 91585-050B-001 | 79160.8 |
CABLINE-UA II Plan to EOL PART NUMBERS
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| CABLINE-UA II plug housing 26pin | 20497-R26T-30 | 20497-026T-30 | material |
| CABLINE-UA II plug housing 32pin | 20497-R32T-30 | 20497-032T-30 | material |
| CABLINE-UA II plug housing 40pin | 20497-R40T-30 | 20497-040T-30 | material |
| CABLINE-UA II plug housing 50pin | 20497-R50T-30 | 20497-050T-30 | material |
| CABLINE-UA II receptacle 26pin | 20498-R26E-30 | 20498-026E-41 | material, plating, with/without vacuum clip |
| CABLINE-UA II receptacle 26pin | 20498-R26E-31 | 20498-026E-41 | material, plating |
| CABLINE-UA II receptacle 26pin | 20498-R26E-40 | 20498-026E-41 | material, with/without vacuum clip |
| CABLINE-UA II receptacle 26pin | 20498-R26E-41 | 20498-026E-41 | material |
| CABLINE-UA II receptacle 32pin | 20498-R32E-30 | 20498-032E-41 | material, plating, with/without vacuum clip |
| CABLINE-UA II receptacle 32pin | 20498-R32E-31 | 20498-032E-41 | material, plating |
| CABLINE-UA II receptacle 32pin | 20498-R32E-40 | 20498-032E-41 | material, with/without vacuum clip |
| CABLINE-UA II receptacle 32pin | 20498-R32E-41 | 20498-032E-41 | material |
| CABLINE-UA II receptacle 40pin | 20498-R40E-30 | 20498-040E-41 | material, plating, with/without vacuum clip |
| CABLINE-UA II receptacle 40pin | 20498-R40E-31 | 20498-040E-41 | material, plating |
| CABLINE-UA II receptacle 40pin | 20498-R40E-40 | 20498-040E-41 | material, plating, with/without vacuum clip |
| CABLINE-UA II receptacle 40pin | 20498-R40E-41 | 20498-040E-41 | material |
| CABLINE-UA II receptacle 50pin | 20498-R50E-30 | 20498-050E-41 | material, plating, with/without vacuum clip |
| CABLINE-UA II receptacle 50pin | 20498-R50E-31 | 20498-050E-41 | material, plating |
| CABLINE-UA II receptacle 50pin | 20498-R50E-40 | 20498-050E-41 | material, plating, with/without vacuum clip |
| CABLINE-UA II receptacle 50pin | 20498-R50E-41 | 20498-050E-41 | material |
| CABLINE-UA II receptacle 26pin for inspection | 20537-026E-01 | Contact us |
CABLINE-UA II EOL PART NUMBERS
| Part Number Descriptions | EOL P/N | Alternative I-PEX P/N | Differences to alternative item |
| CABLINE-UA II plug housing 26pin | 20497-026T-00 | 20497-026T-30 | shape |
| CABLINE-UA II plug housing 26pin | 20497-026T-20 | 20497-026T-30 | shape, plating |
| CABLINE-UA II plug housing 32pin | 20497-032T-00 | 20497-032T-30 | shape |
| CABLINE-UA II plug housing 32pin | 20497-032T-20 | 20497-032T-30 | shape, plating |
| CABLINE-UA II plug housing 40pin | 20497-040T-00 | 20497-040T-30 | shape, plating |
| CABLINE-UA II plug housing 40pin | 20497-040T-20 | 20497-040T-30 | shape, plating |
| CABLINE-UA II plug housing 50pin | 20497-050T-01 | 20497-050T-30 | shape, plating |
| CABLINE-UA II plug housing 50pin | 20497-050T-20 | 20497-050T-30 | shape, plating |
| CABLINE-UA II receptacle 26pin | 20498-026E-00 | 20498-026E-41 | shape, plating, with vacuum clip |
| CABLINE-UA II receptacle 26pin | 20498-026E-01 | 20498-026E-41 | shape, plating |
| CABLINE-UA II receptacle 26pin | 20498-026E-21 | 20498-026E-41 | shape |
| CABLINE-UA II receptacle 32pin | 20498-032E-00 | 20498-032E-41 | shape, plating, with vacuum clip |
| CABLINE-UA II receptacle 32pin | 20498-032E-01 | 20498-032E-41 | shape, plating |
| CABLINE-UA II receptacle 40pin | 20498-040E-00 | 20498-040E-41 | shape, plating, with vacuum clip |
| CABLINE-UA II receptacle 40pin | 20498-040E-01 | 20498-040E-41 | shape, plating |
| CABLINE-UA II receptacle 50pin | 20498-050E-00 | 20498-050E-41 | shape, plating, with vacuum clip |
| CABLINE-UA II receptacle 50pin | 20498-050E-01 | 20498-050E-41 | shape, plating |
| CABLINE-UA II receptacle 26pin for inspection | 20499-026E-01 | 20498-026E-41 | shape |
| CABLINE-UA II receptacle 32pin for inspection | 20499-032E-01 | 20498-032E-41 | shape |
| CABLINE-UA II receptacle 40pin for inspection | 20499-040E-01 | 20498-040E-41 | shape |
| CABLINE-UA II receptacle 50pin for inspection | 20499-050E-01 | 20498-050E-41 | shape |

 Soldered contacts
  Soldered contacts Mechanical contacts
 Mechanical contacts
