MINIFLEX® 3-BFN

MINIFLEX 3-PFN Product Image
Low profile (Height = 0.9 mm), 0.3 mm pitch, horizontal mating, backflip

    Slim design with one of the industry's smallest width and depth contributes to reduced PCB mounting area


    Curved actuator design prevents half-locking, and enhances visibility of the locked state

    Usability for closing actuator without FPC
Contact Pitch (mm):
0.3 mm
Height:
1 Max (0.9 Nom.)
Available Pin Count:
13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 45 49 51 55 57 61 65
Mating Direction:
Horizontal

Downloads

Slim design with one of the industry's smallest width and depth contributes to reduced PCB mounting area

MINIFLEX_3-BFN_FAB1_1

                                                           (mm)

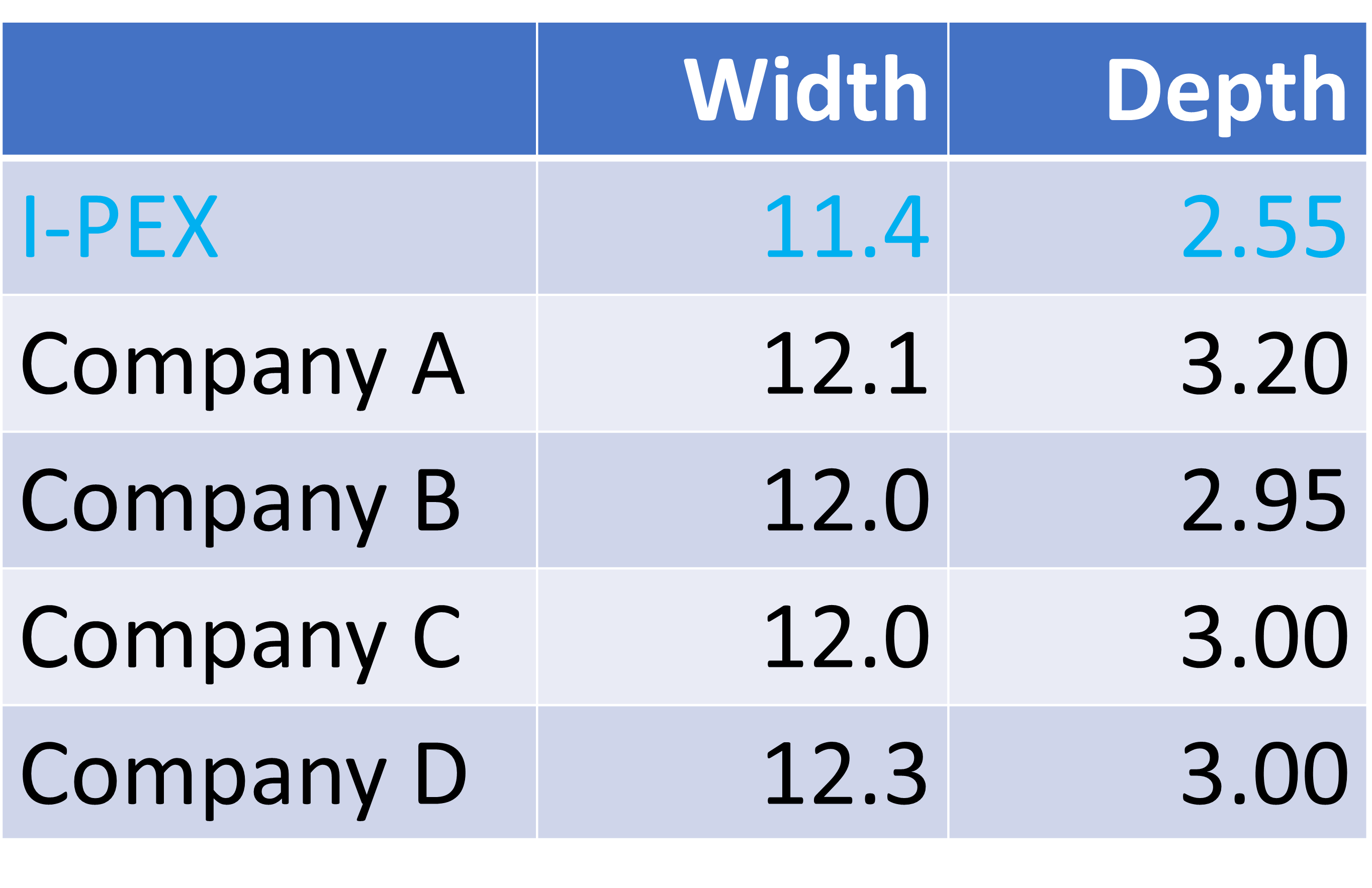

MINIFLEX_3-BFN_FAB1_2_E
comparison chart dimensions (35 P)

Available in a wide range of pin counts from 13 to 61P, contributing for application design flexibility



Curved actuator design prevents half-locking, and enhances visibility of the locked state

Curved actuator design prevents
half-locking caused by side pressing

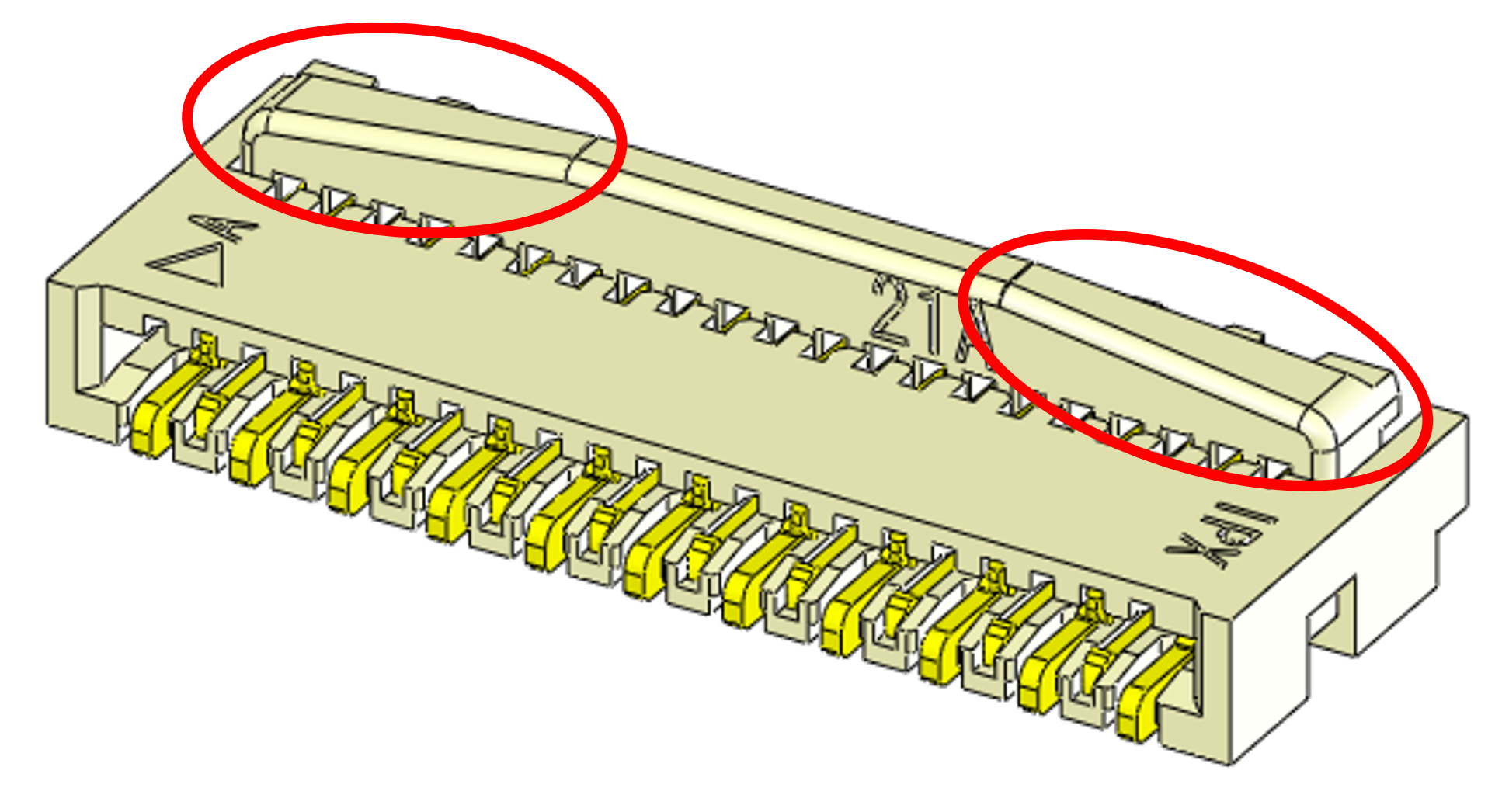

MINIFLEX_3-BFN_FAB2_1		 VS

Conventional actuator design

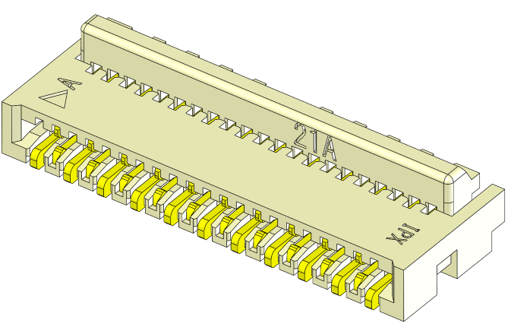

MINIFLEX_3-BFN_FAB2_2


The curved actuator design allows easy visual confirmation of the lock status from the top

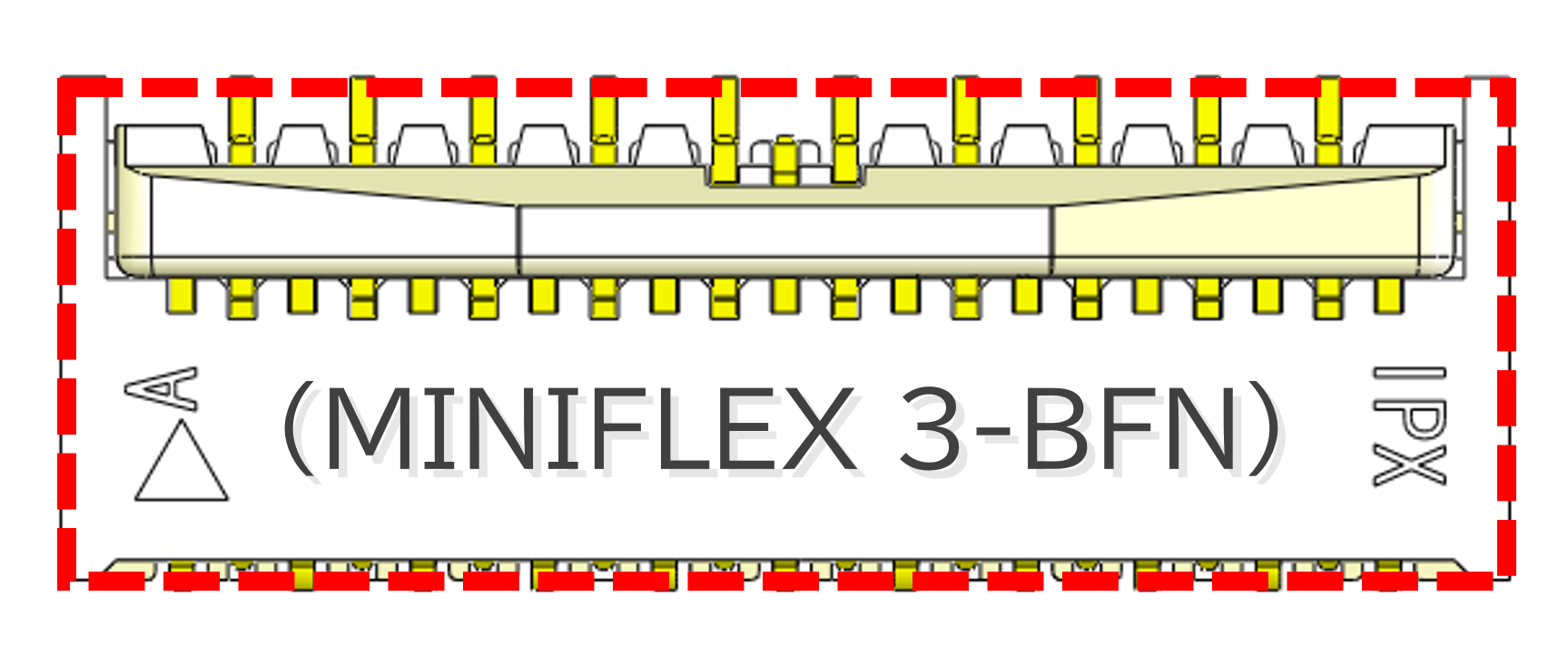

MINIFLEX_3-BFN_FAB2_3
Actuator released status

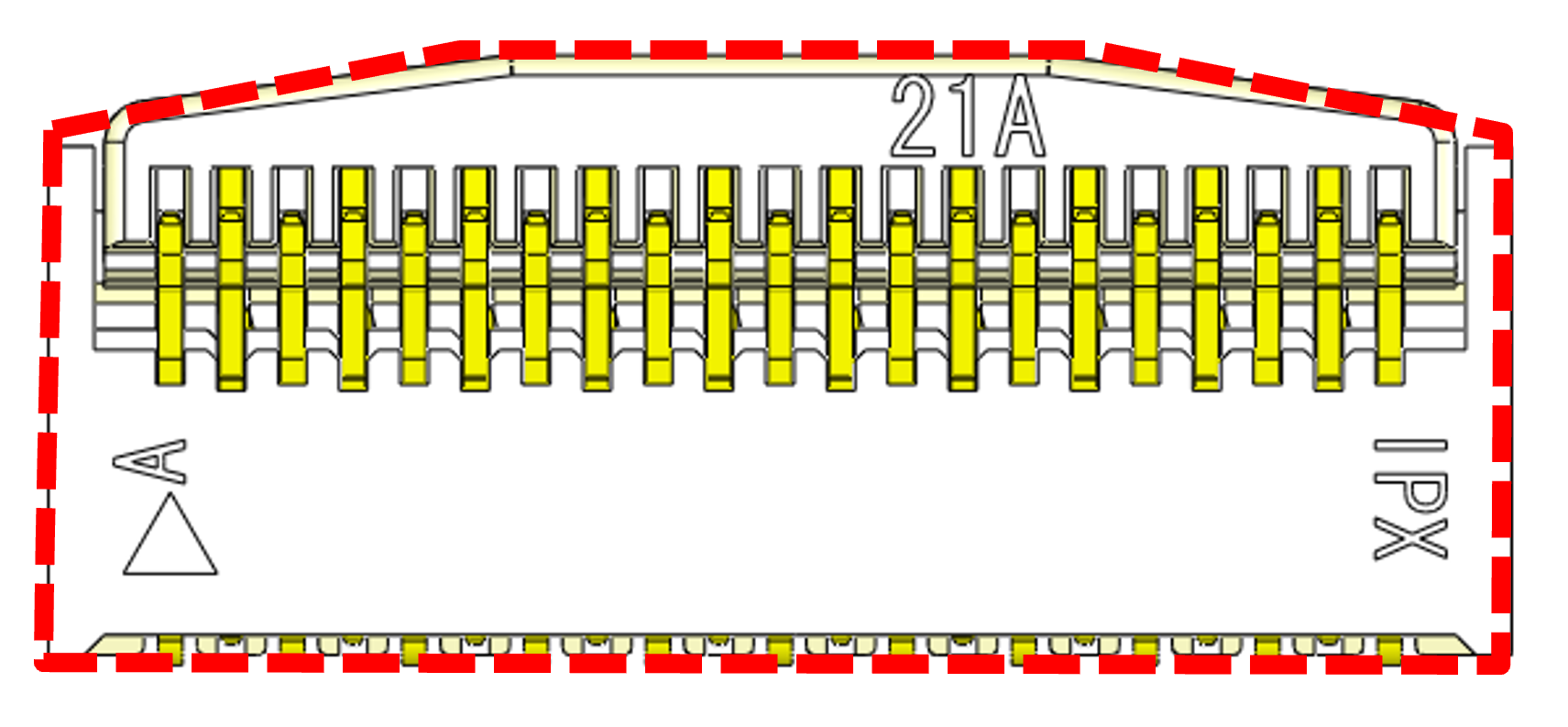

MINIFLEX_3-BFN_FAB2_4
Actuator locked status

Curved design makes lock status instantly visible!

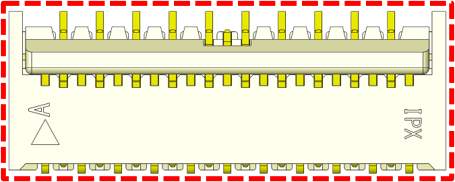

MINIFLEX_3-BFN_FAB2_5
Conventional actuator released status

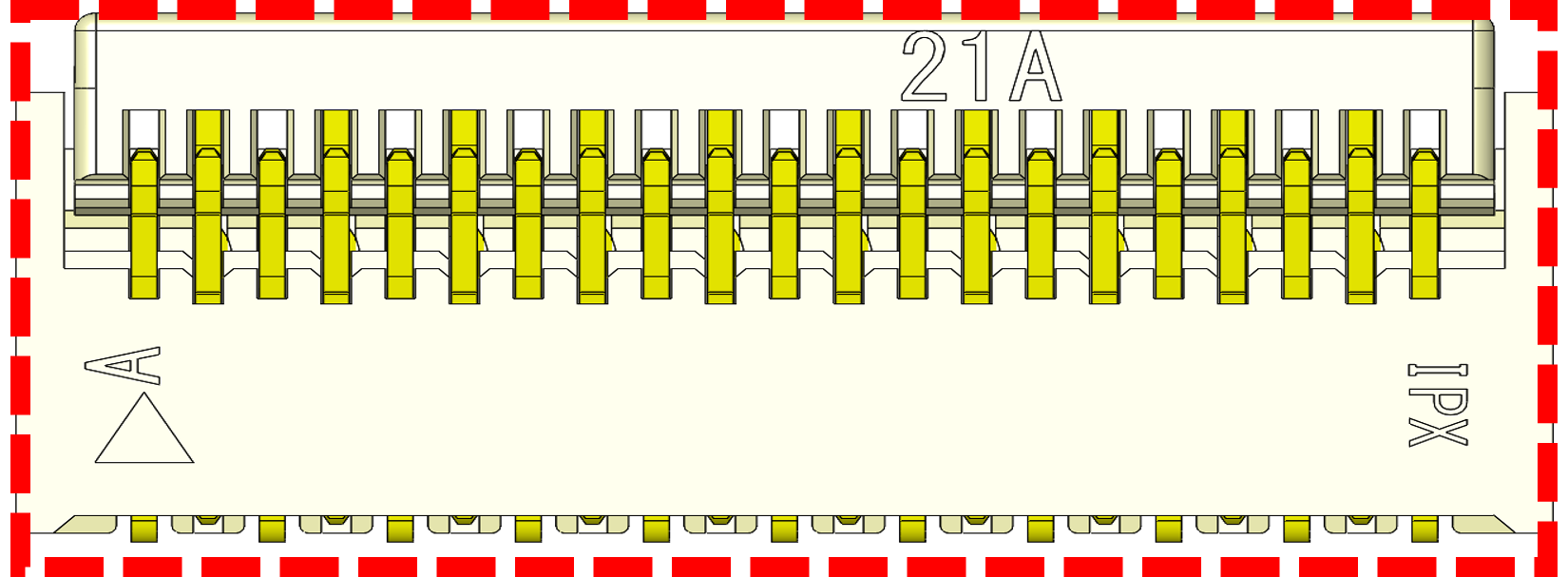

MINIFLEX_3-BFN_FAB2_6
Conventional actuator closed status

Usability for closing actuator without FPC

The connector will still function even if the actuator is accidentally closed without the FPC being inserted after the SMT process

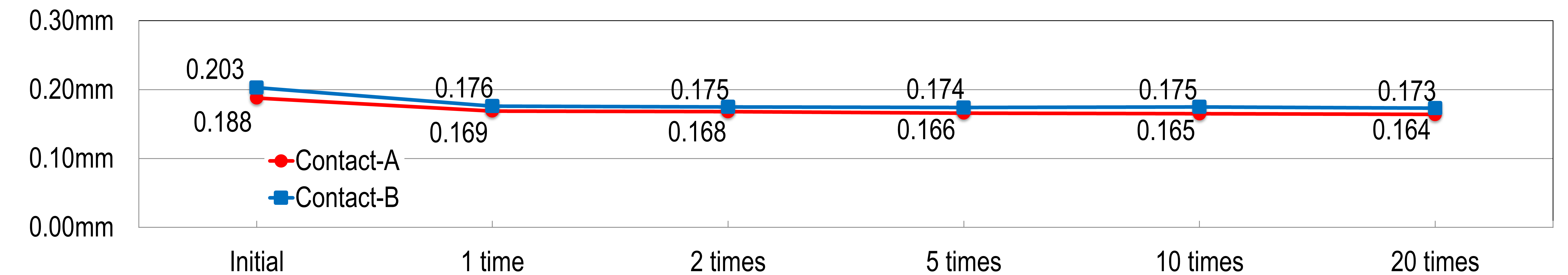

■ Connector will still function reliably (contact gap graph 35 pins before and after operating actuator without FPC inserted)

MINIFLEX_3-BFN_FAB3

■ Insertion force of connector goes up

■ Retention force of connector does not change greatly

Product Type
Back Flip
Mating Direction
Horizontal
Contact pitch
0.3 mm
Height
1 Max (0.9 Nom.)
Depth
3 mm
Width Formula
0.9+(0.3*?P) mm
Pin count
13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 45 49 51 55 57 61 65
FPC/FFC Thickness
0.20
Current rating
0.3A / Signal pin
Full shielding (ZenShield®)
No
Mechanical lock
No
Shielded FPC / FFC
No

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.


MFX3-BFN_Standard-vs-Long-actuator



MINIFLEX 3-BFN RECOMMENDED Part Number

Part Number Description Part Number Weight (mg) Note
MINIFLEX 3-BFN standard 13pin 20527-013E-01 20 　
MINIFLEX 3-BFN standard 15pin 20527-015E-01 23.3 　
MINIFLEX 3-BFN standard 17pin 20527-017E-01 26.6 　
MINIFLEX 3-BFN standard 19pin 20527-019E-01 29.9 　
MINIFLEX 3-BFN standard 21pin 20527-021E-01 33.2 　
MINIFLEX 3-BFN standard 23pin 20527-023E-01 35.8 　
MINIFLEX 3-BFN standard 25pin 20527-025E-01 38.3 　
MINIFLEX 3-BFN standard 27pin 20527-027E-01 40.8 　
MINIFLEX 3-BFN standard 29pin 20527-029E-01 43.5 　
MINIFLEX 3-BFN standard 31pin 20527-031E-01 46.7 　
MINIFLEX 3-BFN standard 33pin 20527-033E-01 49.7 　
MINIFLEX 3-BFN standard 35pin 20527-035E-01 52.9 　
MINIFLEX 3-BFN standard 37pin 20527-037E-01 56.2 　
MINIFLEX 3-BFN standard 39pin 20527-039E-01 59.5 　
MINIFLEX 3-BFN standard 41pin 20527-041E-01 62.8 　
MINIFLEX 3-BFN long 33pin 20538-033E-01 55.3 　
MINIFLEX 3-BFN long 35pin 20538-035E-01 58.7 　
MINIFLEX 3-BFN long 39pin 20538-039E-01 64.5 　
MINIFLEX 3-BFN long 41pin 20538-041E-01 65.9 　
MINIFLEX 3-BFN long 45pin 20538-045E-01 73.2 　
MINIFLEX 3-BFN long 49pin 20538-049E-01 80.3 　
MINIFLEX 3-BFN long 51pin 20538-051E-01 83.7 　
MINIFLEX 3-BFN long 55pin 20538-055E-01 88.5 　
MINIFLEX 3-BFN long 57pin 20538-057E-01 91.4 　
MINIFLEX 3-BFN long 61pin 20538-061E-01 100 　
MINIFLEX 3-BFN long 65pin 20538-065E-01 106.6 　
Other Part Numbers
Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.



MINIFLEX 3-BFN OTHER Part Number

Part Number Description Part Number Weight (mg)
MINIFLEX 3-BFN standard 13pin 20527-013E-02 20
MINIFLEX 3-BFN standard 15pin 20527-015E-02 23.3
MINIFLEX 3-BFN standard 17pin 20527-017E-02 26.6
MINIFLEX 3-BFN standard 19pin 20527-019E-02 29.9
MINIFLEX 3-BFN standard 21pin 20527-021E-02 33.2
MINIFLEX 3-BFN standard 23pin 20527-023E-02 35.8
MINIFLEX 3-BFN standard 25pin 20527-025E-02 38.3
MINIFLEX 3-BFN standard 27pin 20527-027E-02 40.8
MINIFLEX 3-BFN standard 29pin 20527-029E-02 43.5
MINIFLEX 3-BFN standard 31pin 20527-031E-02 46.7
MINIFLEX 3-BFN standard 33pin 20527-033E-02 49.7
MINIFLEX 3-BFN standard 35pin 20527-035E-02 52.9
MINIFLEX 3-BFN standard 37pin 20527-037E-02 56.2
MINIFLEX 3-BFN standard 39pin 20527-039E-02 59.5
MINIFLEX3-BFN long 41pin 20538-041E-02 65.9
MINIFLEX3-BFN long 45pin 20538-045E-02 73.2
MINIFLEX3-BFN long 57pin 20538-057E-02 91.4
MINIFLEX3-BFN long 61pin 20538-061E-02 100
MINIFLEX 3-BFN type S 21pin 20979-021E-01 34.8
