MINIFLEX® 3-BFNH L-HD

MINIFLEX 3-BFNH L-HD
Improved retention force, robust design with hold-down feature, long actuator, low profile (height = 0.9 mm), 0.3 mm pitch, horizontal, backflip

    Hold down to improve strength of side wall

    Designed with sharp edge for stronger FPC retention force

    Usability for closing actuator without FPC
Contact Pitch:
0.3 (mm)
Mating Direction:
Horizontal
Height:
1.0 max. (0.9 nom.) (mm)
Available Pin Count:
39 61
FPC/FFC Thickness:
0.2
Current rating:
0.3 A/signal pin

Downloads

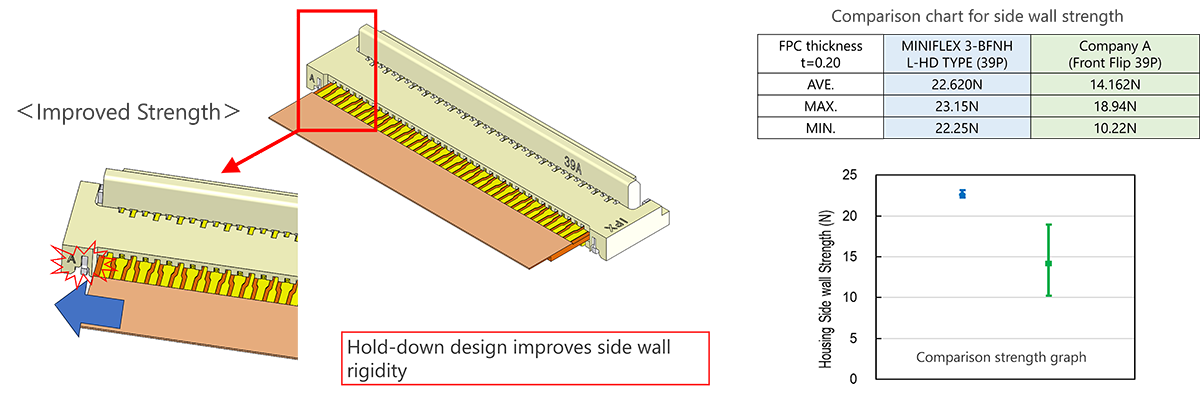

Hold down to improve strength of side wall
Hold down to improve strength of side wall



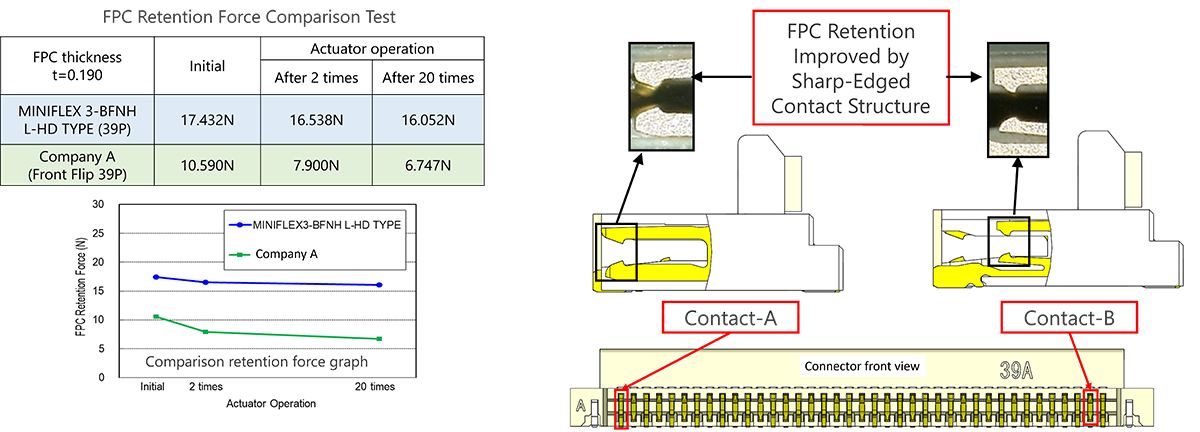

Designed with sharp edge for stronger FPC retention force
Designed with sharp edge for stronger FPC retention force



Usability for closing actuator without FPC

The connector will still function even if the actuator is accidentally closed without the FPC being inserted after the SMT process

■ Connector will still function reliably (contact gap graph 39 pins before and after operating actuator without FPC inserted)

Usability for closing actuator without FPC

■ Insertion force of connector goes up
■ Retention force of connector does not change greatly



Product Type
Back Flip
Contact Pitch
0.3 (mm)
Mating Direction
Horizontal
Height
1.0 max. (0.9 nom.) (mm)
Available Pin Counts
39 61
Depth
3.5 (mm)
Width Formula
2.1 + (0.3 x pin count) (mm)
FPC/FFC Thickness
0.2
Shielded FPC / FFC
No
Current rating
0.3 A/signal pin
Full EMI Shielding (ZenShield®)
No
Mechanical lock
No
Other Features
With Hold Down

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



MINIFLEX 3-BFNH L-HD RECOMMENDED PART NUMBERS

Part Number Description Part Number
MINIFLEX 3-BFNH L-HD 39pin 20660-039E-01
MINIFLEX 3-BFNH L-HD 61pin 20660-061E-01
Other Part Numbers
Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.


MINIFLEX 3-BFNH L-HD OTHER PART NUMBERS

Part Number Description Part Number
MINIFLEX 3-BFNH L-HD 31pin 20660-031E-01
MINIFLEX 3-BFNH L-HD TYPE-U 31pin 20792-031E-01
MINIFLEX 3-BFNH L-HD TYPE-U 39pin 20792-039E-01

MINIFLEX 3-BFNH L-HD Plan to EOL PART NUMBERS

Part Number Descriptions EOL P/N Alternative I-PEX P/N Differences to alternative item
MINIFLEX 3-BFN L-HD 51pin 20718-051E-01 20982-051E-01 material
MINIFLEX 3-BFN L-HD TYPE 61pin 20718-061E-01 20982-061E-01 material
