MINIFLEX® 3-BFN LK

MINIFLEX 3-BFN LK Product Image
Mechanical lock, low profile (Height 0.9 mm), 0.3 mm pitch, horizontal, backflip

    High FPC retention force with additional mechanical lock

    Designed to prevent contact distortion

    Usability for closing actuator without FPC

Contact Pitch :
0.3 mm
Mating Direction:
Horizontal
Height:
1.0 max. (0.9 nom.) mm
Available Pin Counts:
911131517192123252729313335375153576171
FPC / FFC Thickness:
0.2 +/- 0.03 mm
Current Rating:
Signal: 0.3 A/pin

Downloads

*SI Test Boards data are under 2D Drawings

High FPC retention force with additional mechanical lock

High FPC Retention Force With Additional Mechanical Lock

Designed to prevent contact distortion

Structure to Prevent Contact Distortion

Usability for closing actuator without FPC

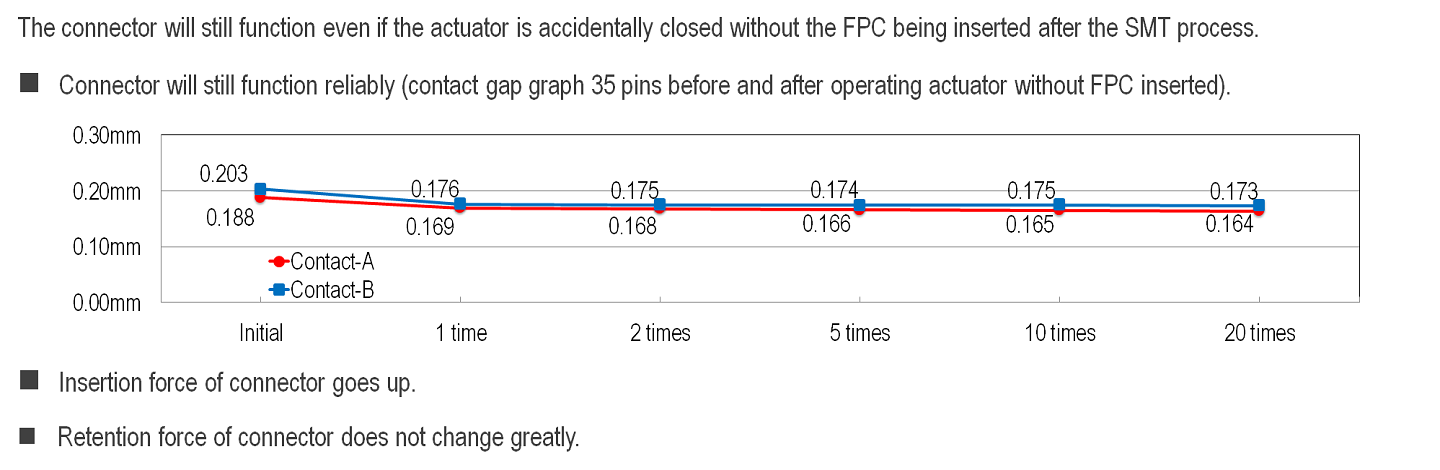

Usability for Closing Actuator Without FPC

Product Type
Back Flip
Contact Pitch
0.3 mm
Mating Direction
Horizontal
Height
1.0 max. (0.9 nom.) mm
Available Pin Counts
911131517192123252729313335375153576171
Depth
3.5 mm
Width Formula
2.1 + (0.3 x pin count) (mm)
FPC / FFC Thickness
0.2 +/- 0.03 mm
Shielded FPC / FFC
No
Current Rating
Signal: 0.3 A/pin
Full EMI Shielding (ZenShield®)
No
Mechanical lock
Yes
Board Pitch 0.6 mm

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



MINIFLEX 3-BFN LK standard vs long size



MINIFLEX 3-BFN LK RECOMMENDED Part Number

Part Number Description Part Number Weight (mg) Note
MINIFLEX 3-BFN LK standard 9pin 20599-009E-01 18.28 　
MINIFLEX 3-BFN LK standard 11pin 20599-011E-01 21.58 　
MINIFLEX 3-BFN LK standard 13pin 20599-013E-01 24.88 　
MINIFLEX 3-BFN LK standard 15pin 20599-015E-01 28.18 　
MINIFLEX 3-BFN LK standard 17pin 20599-017E-01 31.48 　
MINIFLEX 3-BFN LK standard 19pin 20599-019E-01 34.08 　
MINIFLEX 3-BFN LK standard 21pin 20599-021E-01 36.58 　
MINIFLEX 3-BFN LK standard 23pin 20599-023E-01 39.08 　
MINIFLEX 3-BFN LK standard 25pin 20599-025E-01 41.78 　
MINIFLEX 3-BFN LK standard 27pin 20599-027E-01 44.98 　
MINIFLEX 3-BFN LK standard 29pin 20599-029E-01 47.98 　
MINIFLEX 3-BFN LK standard 31pin 20599-031E-01 51.18 　
MINIFLEX 3-BFN LK standard 33pin 20599-033E-01 54.48 　
MINIFLEX 3-BFN LK standard 35pin 20599-035E-01 57.78 　
MINIFLEX 3-BFN LK standard 37pin 20599-037E-01 61.08 　
MINIFLEX 3-BFN LK long 51pin 20584-051E-01 85.38 　
MINIFLEX 3-BFN LK long 53pin 20584-053E-01 87.88 　
MINIFLEX 3-BFN LK long 57pin 20584-057E-01 98.28 　
MINIFLEX 3-BFN LK long 61pin 20584-061E-01 104.88 　
MINIFLEX 3-BFN LK long 71pin 20584-071E-01 121.08 　
Other Part Numbers
Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.


MINIFLEX 3-BFN LK OTHER Part Number

Part Number Description Part Number Weight (mg) Note
MINIFLEX 3-BFN LK long 29pin 20584-029E-01 53.58 　
MINIFLEX 3-BFN LK long 31pin 20584-031E-01 56.98 　
MINIFLEX 3-BFN LK long 35pin 20584-035E-01 60.38 　
MINIFLEX 3-BFN LK long 37pin 20584-037E-01 63.28 　
MINIFLEX 3-BFN LK long 40pin 20584-040E-01 72.68 　
MINIFLEX 3-BFN LK long 41pin 20584-041E-01 67.58 　
MINIFLEX 3-BFN LK long 45pin 20584-045E-01 74.88 　
MINIFLEX 3-BFN LK long 47pin 20584-047E-01 81.98 　

MINIFLEX 3-BFN LK Plan to EOL Part Number

Part Number Description EOL P/N EOL feature Alternative P/N Alternative feature
MINIFLEX 3-BFN LK long 29pin 20584-029E-01 Long actuor: close 3.5 mm 20599-029E-01 Standard actuor: close 3.0 mm
MINIFLEX 3-BFN LK long 31pin 20584-031E-01 Long actuor: close 3.5 mm 20599-031E-01 Standard actuor: close 3.0 mm
MINIFLEX 3-BFN LK long 35pin 20584-035E-01 Long actuor: close 3.5 mm 20599-035E-01 Standard actuor: close 3.0 mm
MINIFLEX 3-BFN LK long 37pin 20584-037E-01 Long actuor: close 3.5 mm 20599-037E-01 Standard actuor: close 3.0 mm
MINIFLEX 3-BFN LK long 40pin 20584-040E-01 No FPC lock, no hold down 20655-040E-01 With FPC lock, with hold down
MINIFLEX 3-BFN LK long 41pin 20584-041E-01 Normal retation force 20613-041E-02 High retation force
MINIFLEX 3-BFN LK long 45pin 20584-045E-01 Normal retation force 20613-045E-02 High retation force
MINIFLEX 3-BFN LK long 47pin 20584-047E-01 　 Contact us
