NOVASTACK® 35-HDN

Fully-shielded and narrow design, good performance at high frequency and high speed signals. power supply is available with Corson Alloy contact, 0.35 mm pitch, 0.7mm height

    Compact and low-profile, optimized for use in space-constrained applications.

    ZenShield® fully-shielded design is ideal for EMC solutions.

    Supports high-frequency transmission; ensures good signal quality even for RF transmission.

Contact Pitch:
0.35 mm
Mated Height:
Nom. 0.7 +/- 0.05 mm
Operating Temperature:
-40 to 85℃ (233 to 358 K)
Current Rating:
10 pin Signal: 1.0 A/pin (Total 10.0 A max.), Power: -12 pin and over Signal: 1.0 A/pin (Total 12.0 A max.), Power:-

Downloads

*SI Test Boards data are under 2D Drawings

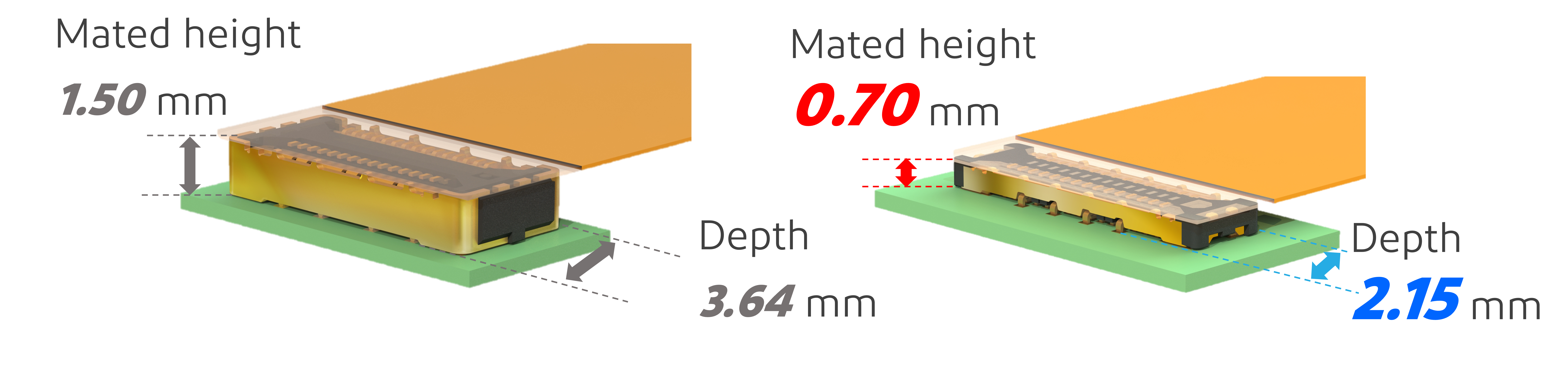

Compact and low-profile, optimized for use in space-constrained applications.

NOVASTACK 35®-HDH NOVASTACK 35®-HDN
FAB1_NOVASTACK 35-HDN



ZenShield® fully-shielded design is ideal for EMC solutions.

フルシールドデザイン設計(ZenShield®)による優れたEMC対策


E-Field comparison of adjacent signal lines with or without shields



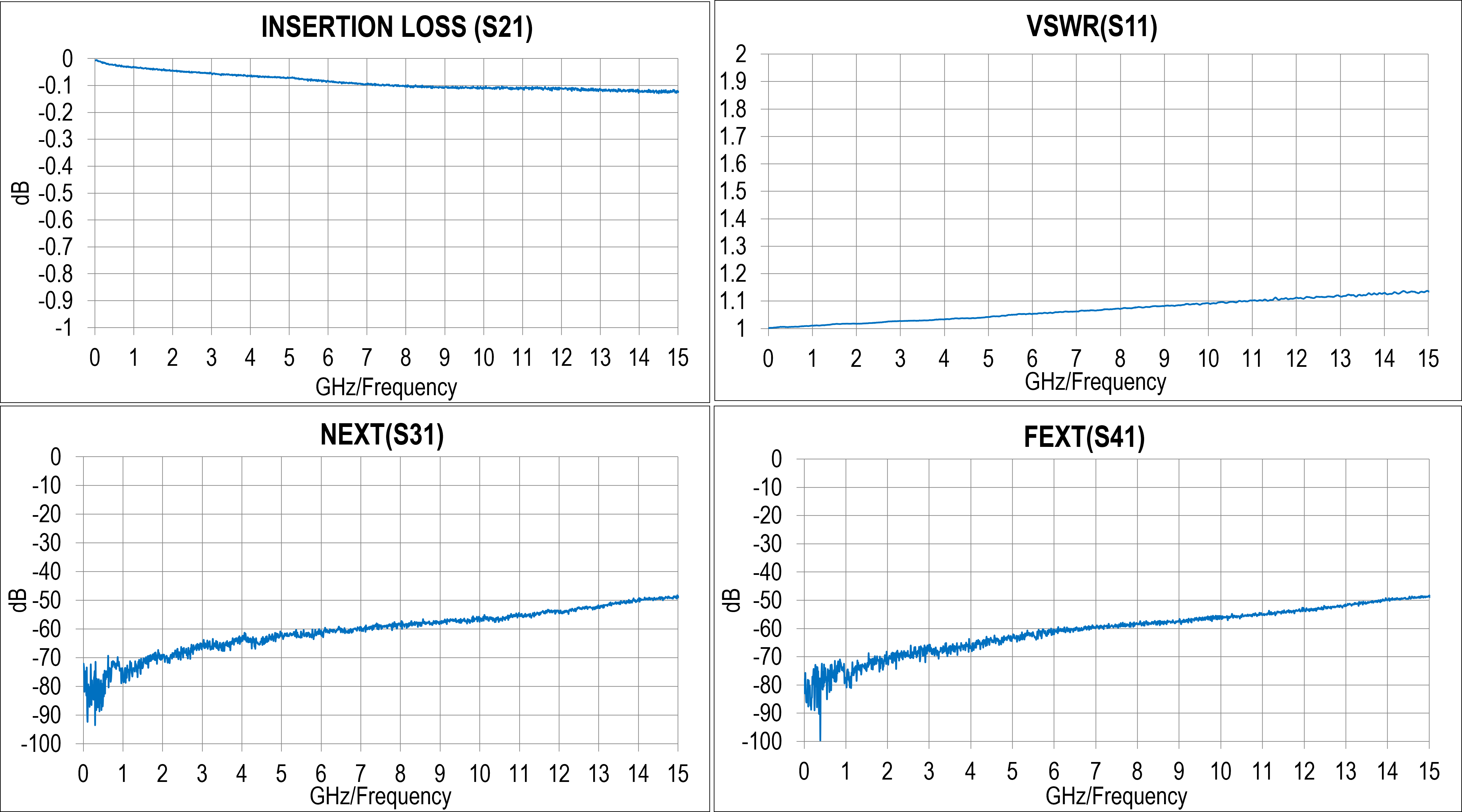

Supports high-frequency transmission; ensures good signal quality even for RF transmission.

FAB3(1)_NOVASTACK 35-HDN

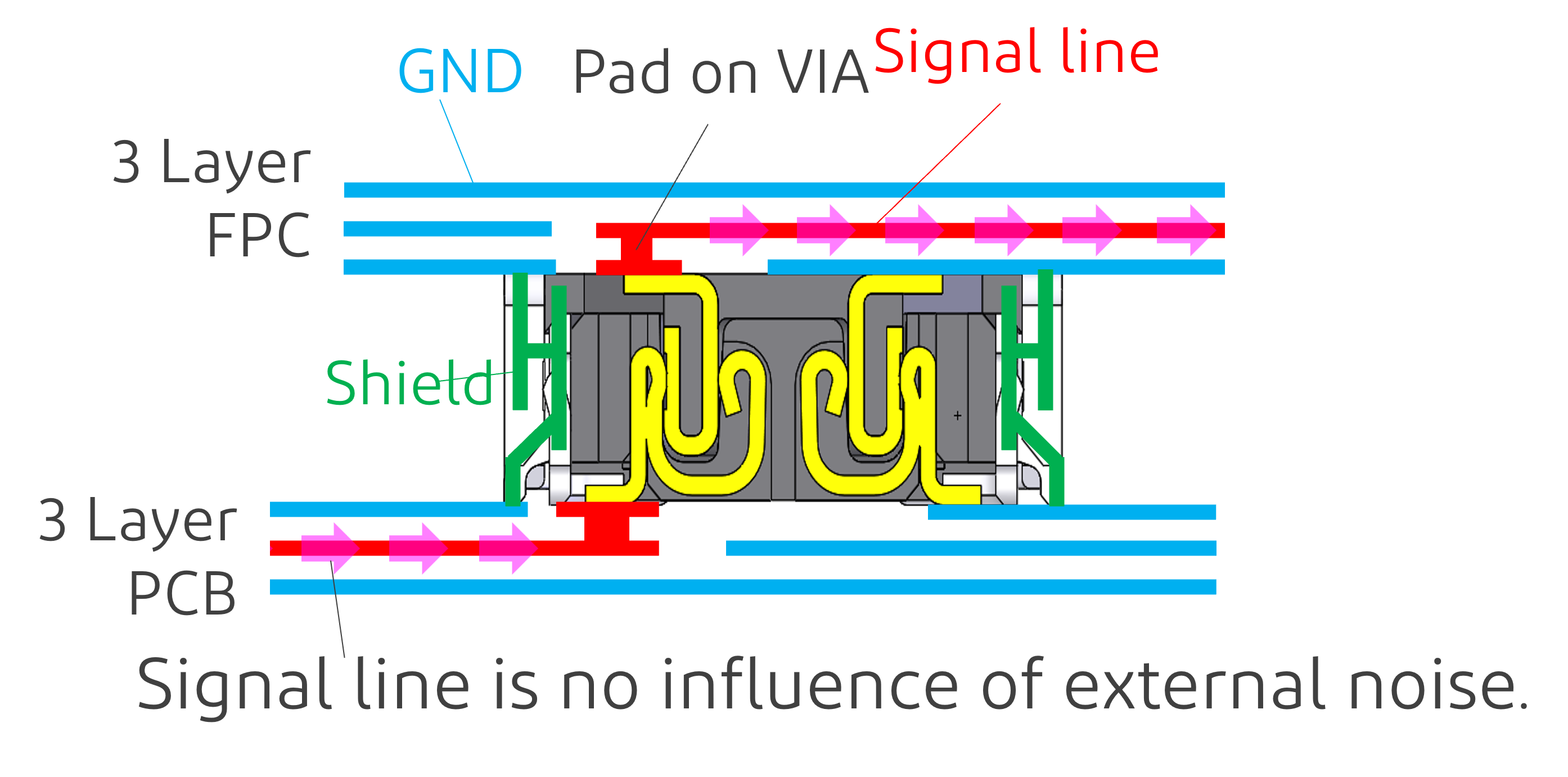

　Signal line is no influence of external noise.

 FAB3(3)_NOVASTACK 35-HDN

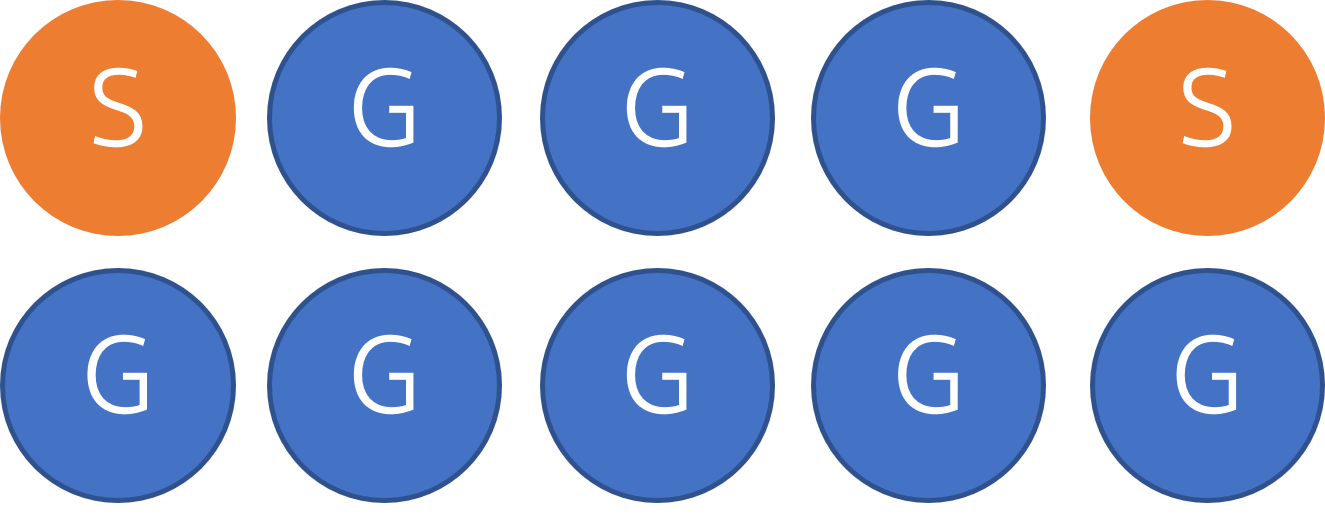

◆Pin Assignment

FAB3(2)_NOVASTACK 35-HDN





Contact Pitch
0.35 mm
Mated Height
Nom. 0.7 +/- 0.05 mm
Available Pin Count Signal: 10, 20, 30
Depth
2.15 mm
Width
10 pin: 4.15 mm20 pin: 5.9 mm30 pin: 7.9 mm
Contact Type
signal pins only
Frequency Range Up to 15 GHz
Operating Temperature
-40 to 85℃ (233 to 358 K)
Current Rating
10 pin Signal: 1.0 A/pin (Total 10.0 A max.), Power: -12 pin and over Signal: 1.0 A/pin (Total 12.0 A max.), Power:-
V.S.W.R.
VSWR (DC～1.2GHz) 1.2VSWR (1.2GHz～10GHz) 1.5VSWR (10GHz～15GHz) 2.0
Applicable Standards (Reference Only)
USB4 (20 Gbps/lane)USB 3.1 Gen 2 (10 Gbps)eDP HBR 3 (8.1 Gbps)eDP HBR 2 (5.4 Gbps)HDMI 2.0 (6 Gbps)V-By-One HS 1.4 (4 Gbps)MiPi standards
Full EMI Shielding (ZenShield®)
Yes
Mechanical lock
No
Other Features
Fully shielded
Board Pitch 0.35 mm

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



NOVASTACK 35-HDN RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg) Note
NOVASTACK 35-HDN plug 10pin 20864-010E-01 9.642
NOVASTACK 35-HDN plug 20pin 20864-020E-01 13.4
NOVASTACK 35-HDN plug 30pin 20864-030E-01 17.3
NOVASTACK 35-HDN receptacle 10pin 20865-010E-03 7.32
NOVASTACK 35-HDN receptacle 20pin 20865-020E-03 10.94
NOVASTACK 35-HDN receptacle 30pin 20865-030E-03 14.6
Other Part Numbers
Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.



NOVASTACK 35-HDN OTHER PART NUMBERS

Part Number Description Part Number Weight (mg) Note
NOVASTACK 35-HDN receptacle 10pin 20865-010E-01 7.32
NOVASTACK 35-HDN receptacle 30pin 20865-030E-01 14.6

SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for NOVASTACK 35-HDN 30pin 91601-030B-001 81099.19 NOVASTACK_35-HDN_TB-921_Plug_Jack-side_(C)

Main Board

NOVASTACK_35-HDN_TB-921_Thru_(C)


Thru Board

NOVASTACK 35-HDN Plan to EOL PART NUMBERS

Part Number Description EOL P/N EOL feature Alternative P/N Alternative feature
NOVASTACK 35-HDN receptacle 10pin 20865-010E-01 Connector depth: 2.1 +/- 0.2 mm 20865-010E-03 Connector depth: 2.15 +/- 0.1 mm
NOVASTACK 35-HDN receptacle 30pin 20865-030E-01 Connector depth: 2.1 +/- 0.2 mm 20865-030E-03 Connector depth: 2.15 +/- 0.1 mm
