CABLINE®-CAL IIF

CABLINE-CAL IIF
Low profile (0.9 mm max.), fully-shielded with mechanical lock, suitable for high-data-rate transfer (32 Gbps/lane), 0.4 mm pitch, horizontal mating type FPC connector

    Low profile (0.9 mm max.), ZenShield® fully-shielded with multi-point grounds to prevent EMI leakage

    High-data-rate transfer, ideal for 32 Gbps/lane applications

    Mechanical locking bar prevents incomplete mating and back-out/unmating

*Refer to the "How to mate and unmate" video for handling.
Contact Pitch:
0.4 mm
Mating Type / Direction:
Horizontal
Mated Height:
Nom. 0.74 +/- 0.16 mm
FPC / FFC Thickness:
Contact Area: 0.25 +0.02/-0.03 mm, Ground Area: 0.37 +0.04/-0.06 mm
Current Rating:
0.2 A0.26 A

Downloads

*SI Test Boards data are under 2D Drawings

Low profile (0.9 mm max.), ZenShield® fully-shielded with multi-point grounds to prevent EMI leakage

Low profile (0.9 mm max.)



ZenShield® fully-shielded with multi-point grounds to prevent EMI leakageZenShield® fully-shielded with multi-point grounds to prevent EMI leakage





High-data-rate transfer, ideal for 32 Gbps/lane applications

Measurement results

Connector : CABLINE®-CAL IIF 50P
FPC : Shielded FPC, Differential 90 ohm
Length : 100 mm
Pin Assignment : GSSGSSG

Return Loss and Insertion Loss

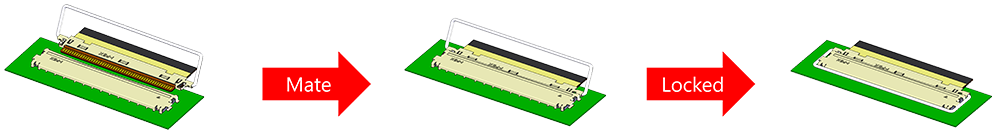

Mechanical locking bar prevents incomplete mating and back-out/unmating

Mechanical locking bar prevents incomplete mating and back-out/unmating

     Unable to lock                                                                                                          Can only be locked when mating is complete

incomplete mating and back-out/unmating

Product Type
Horizontal
Transmission Speed (Reference Only) 32 Gbps/lane NRZ
Contact Pitch
0.4 mm
Mating Type / Direction
Horizontal
Mated Height
Nom. 0.74 +/- 0.16 mm
Available Pin Count Signal: 50
Depth
6.41 mm
Width
5.74 + (0.4 x pin count) mm
FPC / FFC Thickness
Contact Area: 0.25 +0.02/-0.03 mm, Ground Area: 0.37 +0.04/-0.06 mm
FPC Type
Shielded FPC
Current Rating
0.2 A0.26 A
Applicable Standards (Reference Only)
32 Gbps/LaneUSB4 Gen 4 (40 Gbps/Lane PAM3)Thunderbolt 5 (40 Gbps/Lane PAM3)USB4 Gen 3 (20 Gbps/Lane)DisplayPort UHBR20 (20 Gbps/Lane)V-By-One US (16 Gbps/Lane)HDMI 2.1 (12 Gbps/Lane)USB 3.2 Gen 2 (10 Gbps/Lane)DisplayPort UHBR3 (8.1 Gbps/Lane)HDMI 2.0 (6 Gbps/Lane)eDP HBR 2 (5.4 Gbps/Lane)USB 3.1 Gen 1 (5 Gbps/Lane)V-By-One HS 1.4 (4 Gbps/Lane)HDMI 1.3 (3.4 Gbps/Lane)eDP (2.7 Gbps/Lane)MiPi standards
Full EMI Shielding (ZenShield®)
Yes
Mechanical lock
Yes
Board Pitch 0.4 mm

CABLINE-CAL IIF RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-CAL IIF shell assembly 50pin 21088-050T-01 142
CABLINE-CAL IIF receptacle 50pin 21089-050E-01 134



SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg)
SI Test Board for CABLINE-CAL  IIF 91690-050B-001
