CABLINE®-CAF

CABLINE-CAF
Mechanical lock with shielding and multi-point ground, suitable for high-data-rate transfer (32 Gbps/lane), 0.4 mm pitch, horizontal mating type FPC plug connector

    Mechanical locking bar prevents incomplete mating and back-out/unmating

    EMI shielding and multi-point ground design

    High-data-rate transfer, ideal for 32 Gbps/lane applications

*This plug connector mates to CABLINE®-CA receptacle (20525-#**E-02).
Contact Pitch:
0.4 mm
Mating Type / Direction:
Horizontal
Mated Height:
Nom. 1.0 +/- 0.1 mm
Operating Temperature:
-40 to 85℃ (233 to 358 K)
FPC / FFC Thickness:
Contact Area: 0.26 +/-0.02 mmGround Area: 0.40 +/-0.05 mm
Current Rating:
Signal: 0.3 A/pin

Downloads

Mechanical locking bar prevents incomplete mating and back-out/unmating

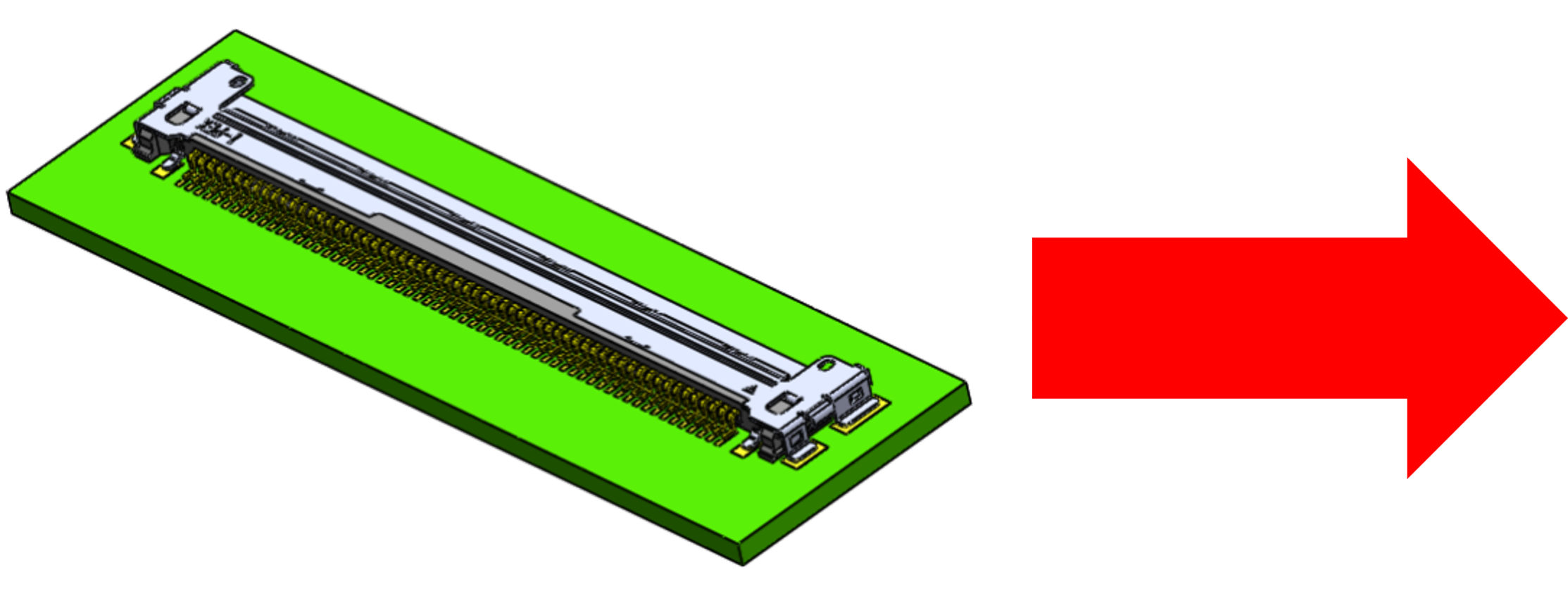

CABLINE-CAF_FAB1-1_ALLMate

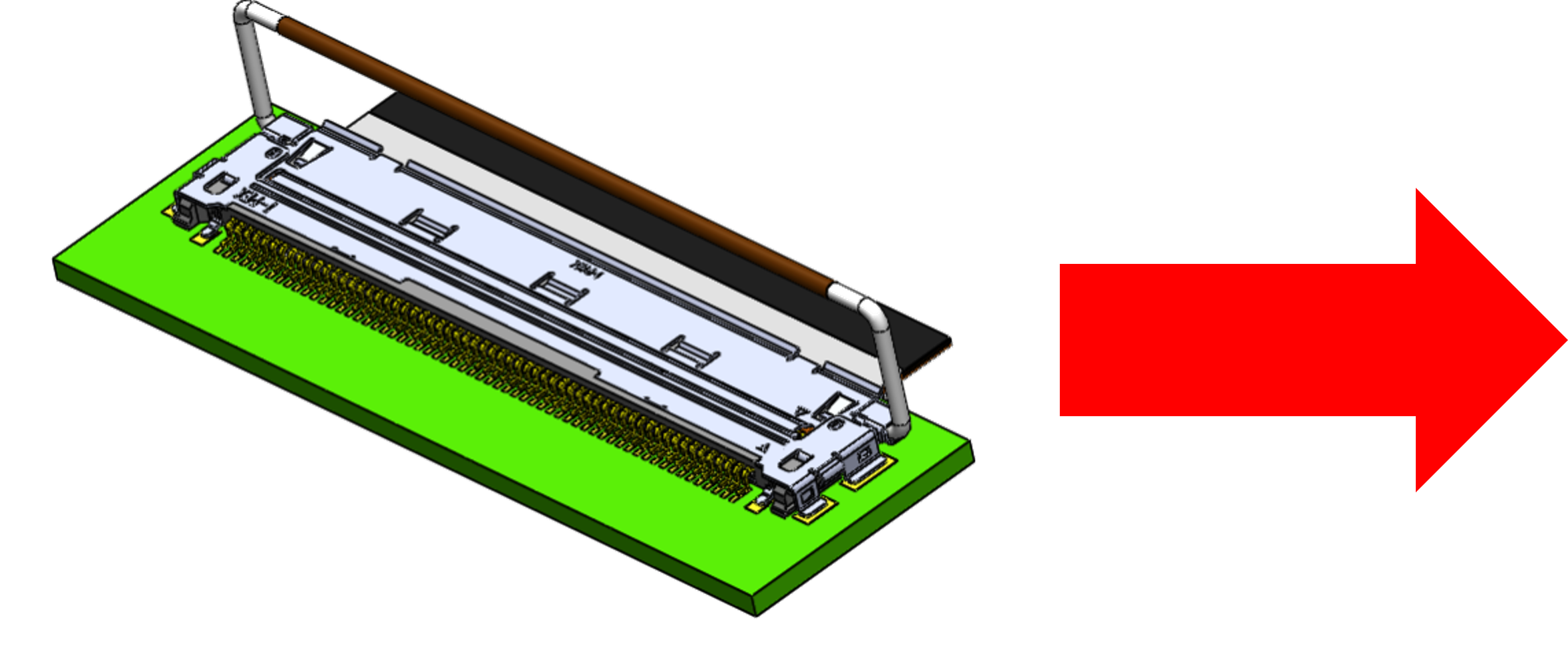

CABLINE-CAF_FAB1-2_ALLLocked

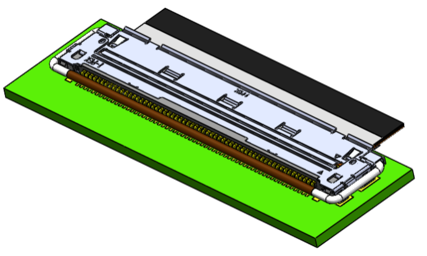

 CABLINE-CAF_FAB1-3_ALL
Mechanical locking bar can be locked only when plug is fully mated to receptacle.

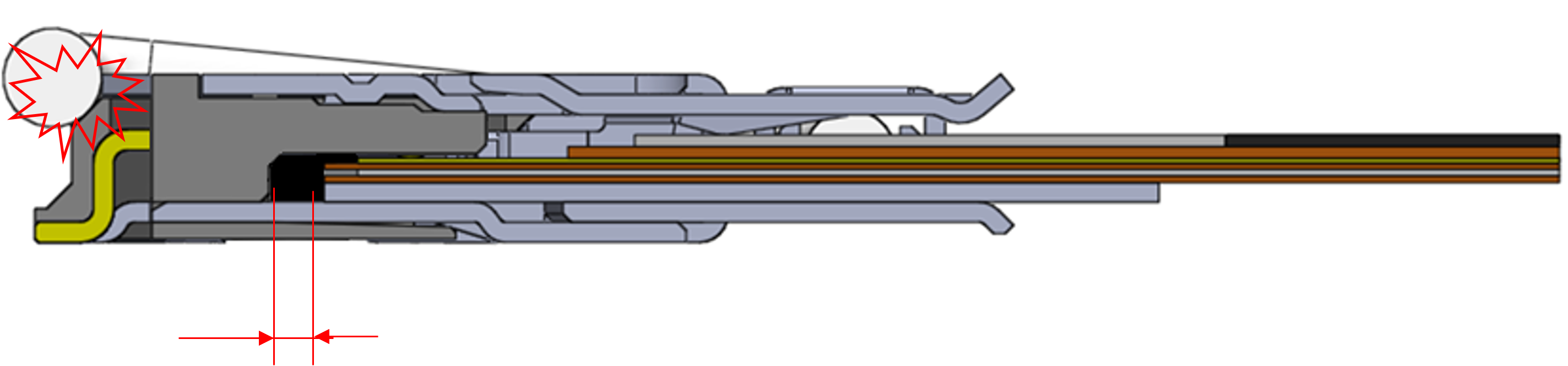

InterferenceCABLINE-CAF_FAB1-4_ALL                                           incomplete mating

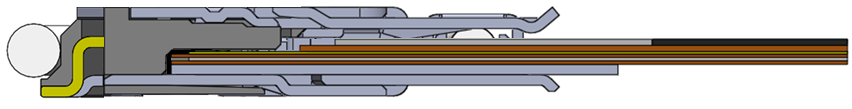

CABLINE-CAF_FAB1-5_ALLcomplete mating

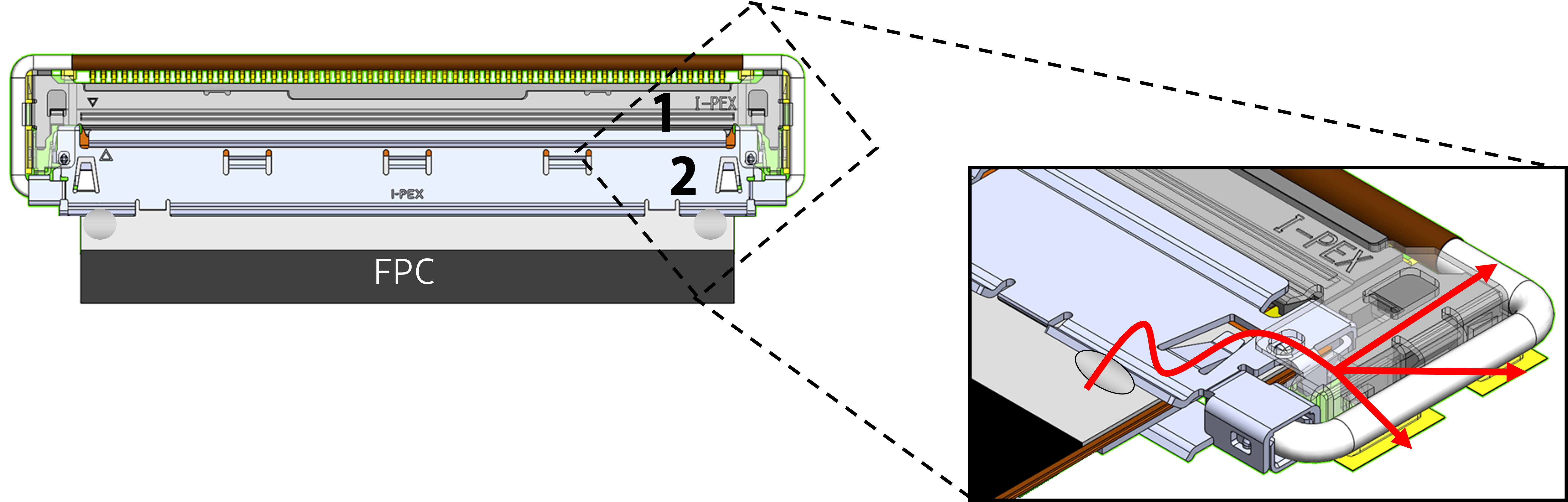

EMI shielding and multi-point ground design

CABLINE-CAF_FAB2_ALL

1.CABLINE-CA RECEPTACLE SHELL　   2. CABLINE-CAF PLUG SHELL



High-data-rate transfer, ideal for 32 Gbps/lane applications

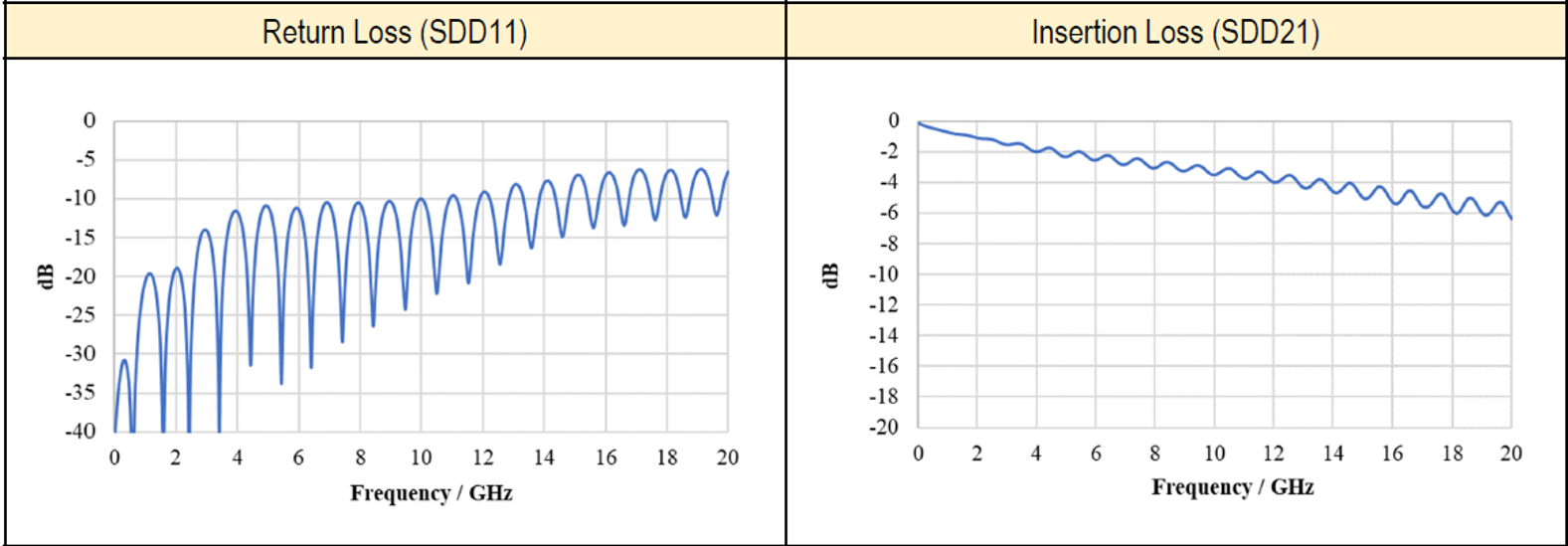

Measurement results

Connector : CABLINE-CAF 40P
FPC : Shielded FPC,
Differential 100 ohm, Length : 100 mm
Pin Assignment : GSSGSSG

 CABLINE-CAF_FAB3_ALL




Transmission Speed (Reference Only) 32 Gbps/lane NRZ
Contact Pitch
0.4 mm
Mating Type / Direction
Horizontal
Mated Height
Nom. 1.0 +/- 0.1 mm
Available Pin Count Signal: 40, 60
Depth
6.06 mm
Width
5.75 + (0.4 x pin count) mm
Operating Temperature
-40 to 85℃ (233 to 358 K)
FPC / FFC Thickness
Contact Area: 0.26 +/-0.02 mmGround Area: 0.40 +/-0.05 mm
FPC Type
Shielded/Non-shielded FPC
Current Rating
Signal: 0.3 A/pin
Applicable Standards (Reference Only)
32 Gbps/LaneUSB4 Gen 4 (40 Gbps/Lane PAM3)Thunderbolt 5 (40 Gbps/Lane PAM3)USB4 Gen 3 (20 Gbps/Lane)DisplayPort UHBR20 (20 Gbps/Lane)V-By-One US (16 Gbps/Lane)HDMI 2.1 (12 Gbps/Lane)USB 3.2 Gen 2 (10 Gbps/Lane)DisplayPort UHBR3 (8.1 Gbps/lane)HDMI 2.0 (6 Gbps/Lane)eDP HBR 2 (5.4 Gbps/Lane)USB 3.1 Gen 1 (5 Gbps/Lane)V-By-One HS 1.4 (4 Gbps/Lane)HDMI 1.3 (3.4 Gbps/Lane)eDP (2.7 Gbps/Lane)MiPi standards
Full EMI Shielding (ZenShield®)
No
Mechanical lock
Yes
Board Pitch 0.4 mm

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



DIAGRAMS_CABLINE-CAF



CABLINE-CAF RECOMMENDED Part Number

Part Number Description Part Number Weight (mg) Note
CABLINE-CAF shell assembly 40pin 20858-040T-01 186 　
CABLINE-CAF shell assembly 60pin 20858-060T-01 246.182 　
CABLINE-CA receptacle 40pin 20525-040E-02 149.684 　
CABLINE-CA receptacle 60pin 20525-060E-02 202.462
