CABLINE®-CA IIF PLUS

CABLINE-CA IIF PLUS
Fully-shielded with mechanical lock, suitable for high-data-rate transfer (32 Gbps/lane),0.4 mm pitch, horizontal mating type FPC plug connector

    ZenShield® fully-shielded with multi-point grounds is ideal for EMC solutions

    Mechanical locking cover prevents incomplete mating and back-out/unmating

    High-data-rate transfer, ideal for 32 Gbps/lane applications

*This plug connector mates to CABLINE®-CA II PLUS receptacle (20790-060E-##).
*Refer to the "How to mate and unmate" video for handling.
Contact Pitch:
0.4 mm
Mating Type / Direction:
Horizontal
Mated Height:
Nom. 0.95 +0.25/-0.1 mm
Operating Temperature:
-40 to 85℃ (233 to 358 K)
FPC / FFC Thickness:
Contact Area: 0.25 +0.02/-0.03 mmGround Area: 0.37 +0.04/-0.06 mm
Current Rating:
Signal: 0.3 A/pin

Downloads

ZenShield® fully-shielded with multi-point grounds is ideal for EMC solutions

    General Connector ZenShield® Connector
CABLINE-CA IIF PLUS FAB1-1 ALL
CABLINE-CA IF PLUS FAB1-2 ALL
 CABLINE-CA IIF PLUS FAB1-3 ALL
CABLINE-CA IIF PLUS FAB1-4 ALLConnectors can be placed
closer to antenna
View From Back
CABLINE-VS_II_FAB1-5.jpgSoldered contacts
1. Wi-Fi Antenna

CABLINE-VS_II_FAB1-6.jpgMechanical contact
2. High-data-rate Signal Transfer

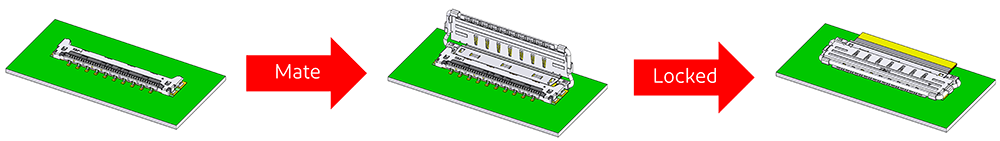

Mechanical locking cover prevents incomplete mating and back-out/unmating

Unable to lock
Can only be locked when mating is complete
CABLINE-CA_IIF_PLUS_FAB3-2_E.png CABLINE-CA_IIF_PLUS_FAB3-3_E.png
incomplete mating
complete mating

High-data-rate transfer, ideal for 32 Gbps/lane applications

Measurement results

Connector : CABLINE-CA IIF 40P
FPC : Shielded FPC, Differential 90 ohm
Length : 100 mm
Pin Assignment : GSSGSSG

 CABLINE-CA IIF PLUS FAB3 ALL




Transmission Speed (Reference Only) 32 Gbps/lane NRZ
Contact Pitch
0.4 mm
Mating Type / Direction
Horizontal
Mated Height
Nom. 0.95 +0.25/-0.1 mm
Available Pin Count Signal: 60
Depth
7.24 mm
Width
30.95 mm
Operating Temperature
-40 to 85℃ (233 to 358 K)
FPC / FFC Thickness
Contact Area: 0.25 +0.02/-0.03 mmGround Area: 0.37 +0.04/-0.06 mm
FPC Type
Shielded FPC
Current Rating
Signal: 0.3 A/pin
Applicable Standards (Reference Only)
32 Gbps/LaneUSB4 Gen 4 (40 Gbps/Lane PAM3)Thunderbolt 5 (40 Gbps/Lane PAM3)USB4 Gen 3 (20 Gbps/Lane)DisplayPort UHBR20 (20 Gbps/Lane)V-By-One US (16 Gbps/Lane)HDMI 2.1 (12 Gbps/Lane)USB 3.2 Gen 2 (10 Gbps/Lane)DisplayPort UHBR3 (8.1 Gbps/Lane)HDMI 2.0 (6 Gbps/Lane)eDP HBR 2 (5.4 Gbps/Lane)USB 3.1 Gen 1 (5 Gbps/Lane)V-By-One HS 1.4 (4 Gbps/Lane)HDMI 1.3 (3.4 Gbps/Lane)eDP (2.7 Gbps/Lane)MiPi standards
Full EMI Shielding (ZenShield®)
Yes
Mechanical lock
Yes

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



CABLINE-CA IIF PLUS RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg)
CABLINE-CA IIF PLUS plug shell assembly 60pin 20901-060T-01 333
CABLINE-CA II PLUS receptacle 60pin 20790-060E-02 161.13



SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg)
SI Test Board for CABLINE-CA IIF PLUS 91548-060B-001 84122.26
