CABLINE®-CA IIP PLUS
Fully-shielded, 64 Gbps/lane PAM4,0.4 mm pitch, horizontal mating type twinaxial & micro-coaxial cable assembly
Supports high-speed transmission 64 Gbps/lane PAM4 using paddle card technology
AWG#34 twinaxial cable is used for long-distance transmission.
Also supports AWG#36 & #38 micro-coaxial cable for routing flexibility
Low profile with a mated height of 1.14mm, ideal for space-constrained applications, fully-shielded with ZenShield® technology
*This cable assembly mates to CABLINE®-CA II PLUS receptacle (20790-060E-01/02).
*Refer to the "How to mate and unmate" video for handling.
*Refer to the "Paddle Card Technology" video for more information on paddle card technology.
Contact Pitch:
0.4
(mm)
Mating Direction:
Horizontal
Mated Height:
1.3
max.
(mm)
Available Pin Count:
60
Micro-Coaxial Cable:
AWG 36
AWG 38
Twinaxial Cable:
AWG 34
Downloads
-
Catalog
-
2D Drawing
-
Receptacles
-
Cable Assemblies
-
-
3D Models
-
STEP
-
Products
-
-
IGES
-
Products
-
-
-
Specs & Test Reports
-
Product Specification
-
Test Reports
-
Packing Standard
-
-
PCB/FPC Data
-
Symbols & Footprints
-
-
SI Test Boards
-
Supports high-speed transmission 64 Gbps/lane PAM4 using paddle card technology
| Offers high signal integrity by using a paddle card in the cable plug. Data rates and cross talk performance of existing CABLINE series products are optimized even further. |
||
 |
 |
 |
| Near End Cross Talk | Far End Cross Talk | |
Technical page of paddle card
White papers : Paddle Card Technology for Micro Coax Cable Harness - Improving SI Performance

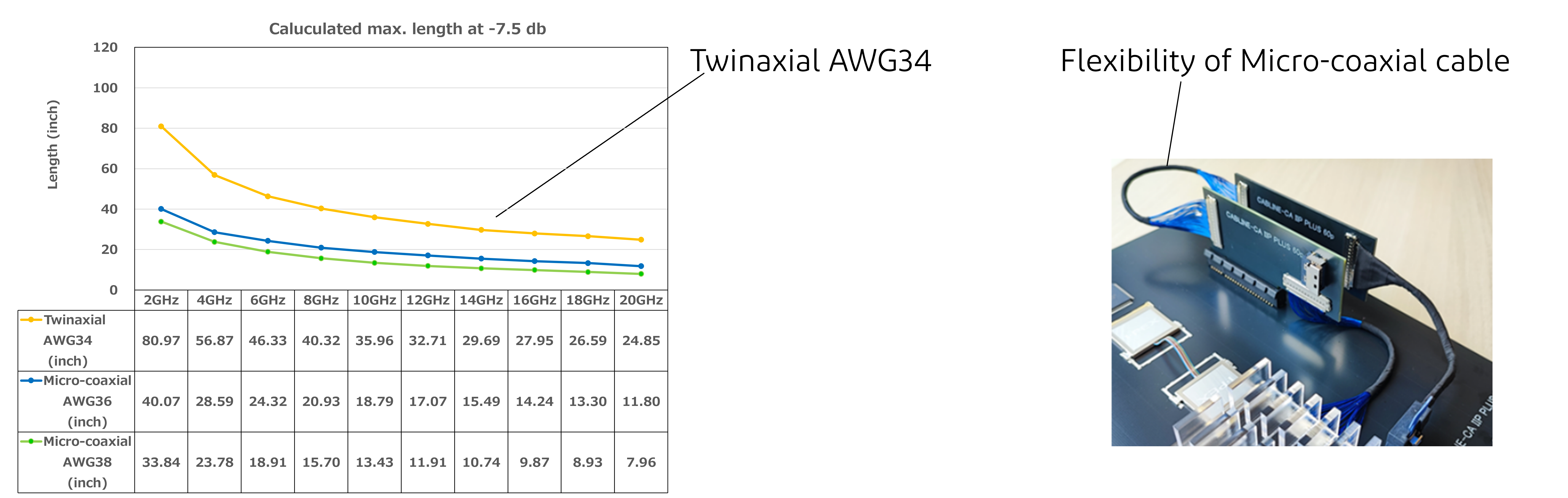

AWG#34 twinaxial cable is used for long-distance transmission.
Also supports AWG#36 & #38 micro-coaxial cable for routing flexibility
Low profile with a mated height of 1.14mm, ideal for space-constrained applications, fully-shielded with ZenShield® technology
 |
 |
| EMC ZenShield® technology |
| Transmission Speed (Reference Only) | 64 Gbps/Lane PAM4 |
| Contact Pitch |
0.4
(mm)
|
| Mating Direction |
Horizontal
|
| Mated Height |
1.3
max.
(mm)
|
| Available Pin Counts |
60
|
| Width Formula |
30.95 (mm)
|
| Micro-Coaxial Cable |
AWG 36
AWG 38
|
| Current rating | |
| Applicable Standards (Reference Only) |
PCIe 6.0 (64Gbps/Lane PAM4)
|
| Full EMI Shielding (ZenShield®) |
Yes
|
| Mechanical lock |
Yes
|
| About Contact Pitch | 1.2mm (differential pair) x 0.4mm (signal contacts) |
RECOMMENDED PART NUMBERS
Please contact us if you cannot find the needed part number(s) from the list below.
CABLINE-CA IIP PLUS RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-CA II PLUS receptacle 60pin | 20790-060E-02 | 161.13 |
CABLINE-CA IIP PLUS SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-CA IIP PLUS harness 60pin twinax 34AWG L=200mm pinassign A | 82065-600B-01 | 5750 |
| CABLINE-CA IIP PLUS harness 60pin twinax 34AWG L=500mm pinassign A | 82065-600B-02 | 13665 |
| CABLINE-CA IIP PLUS harness 60pin twinax 34AWG L=200mm pinassign B | 82065-600B-03 | 6250 |
| CABLINE-CA IIP PLUS harness 60pin twinax 34AWG L=500mm pinassign B | 82065-600B-04 | 13760 |
| CABLINE-CA IIP PLUS harness 60pin micro-coaxial 36AWG L=200mm pinassign A | 82065-400B-01 | 6502 |
| CABLINE-CA IIP PLUS harness 60pin micro-coaxial 36AWG L=500mm pinassign A | 82065-400B-02 | 12600 |
| CABLINE-CA IIP PLUS harness 60pin micro-coaxial 36AWG L=200mm pinassign B | 82065-400B-03 | 7105 |
| CABLINE-CA IIP PLUS harness 60pin micro-coaxial 36AWG L=500mm pinassign B | 82065-400B-04 | 13120 |
| CABLINE-CA IIP PLUS harness 60pin micro-coaxial 38AWG L=200mm pinassign A | 82065-100B-01 | 4102 |
| CABLINE-CA IIP PLUS harness 60pin micro-coaxial 38AWG L=500mm pinassign A | 82065-100B-02 | 8450 |
| CABLINE-CA IIP PLUS harness 60pin micro-coaxial 38AWG L=200mm pinassign B | 82065-100B-03 | 4832 |
| CABLINE-CA IIP PLUS harness 60pin micro-coaxial 38AWG L=500mm pinassign B | 82065-100B-04 | 9118 |
SI Test Board with 2.92mm Adapter
| Part Number | Weight (mg) | ||

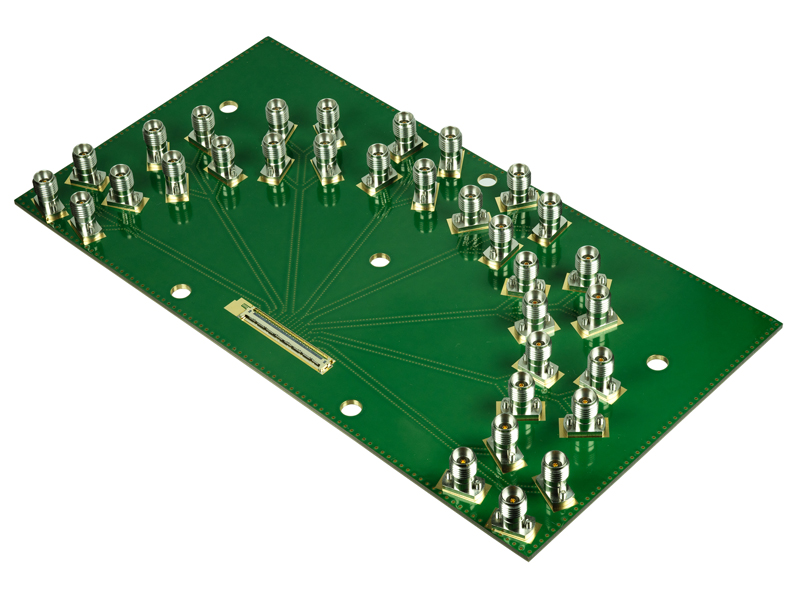

| SI Test Board for CABLINE-CA IIP PLUS main-board A | 91623-060B-001 | 297722.26 |  |

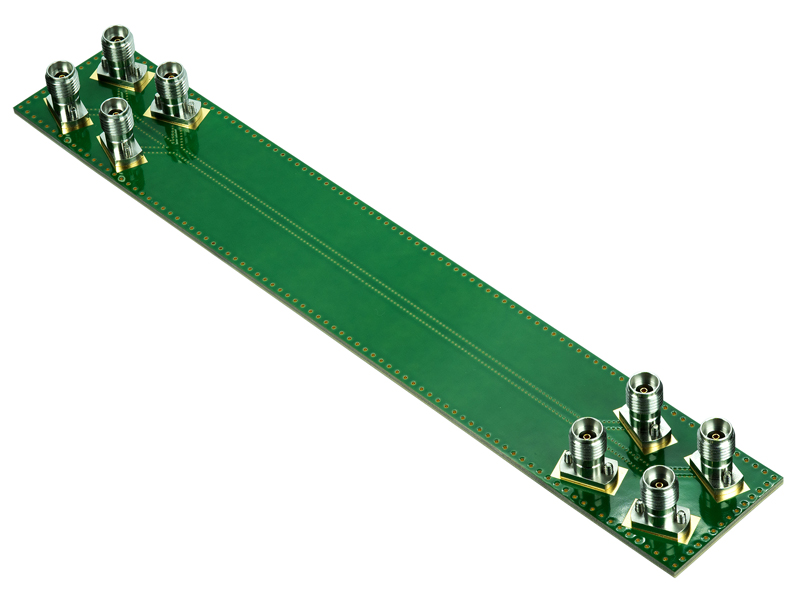

| SI Test Board for CABLINE-CA IIP PLUS main-board B | 91623-060B-002 | 297722.26 |
