CABLINE®-CAP

64 Gbps PAM4, 0.4 mm pitch, horizontal mating type micro-coaxial cable assembly

  • High-speed transmission for 64 Gbps/lane PAM4 with Paddle Card Technology

  • Low profile, ideal for space-constrained applications    H=1.15 mm

  • LEAPWIRE®  jumper solution for micro-coaxial cable

CABLINE®-CAP

CABLINE-CAP

CABLINECAP

CAP
Contact Pitch (mm):
0.400
Height:
1.35 Max (1.15 Nom.) ,
Available Pin Count:
50
Micro-Coaxial Cable (AWG):
#38 45 ohm
Mating Direction:
Horizontal
  • Ipex icon halogen free
  • Ipex icon REACH
  • Ipex icon RoHS

Downloads

  • Catalog

  • 2D Drawing

  • Product Specification

  • 3D Drawing (IGES)

  • 3D Drawing (STEP)

  • Test Reports

  • Manual

  • Packing Standard

  • Certifications

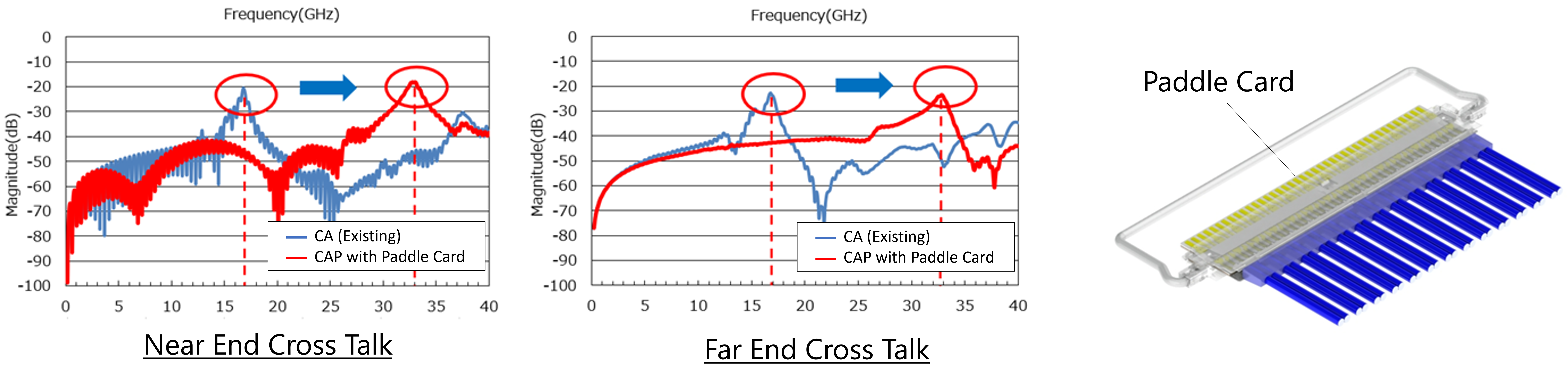

    • High-speed transmission for 64 Gbps/lane PAM4 with Paddle Card Technology

    Signal quality is improved by adopting a paddle card in the cable plug section.
    This enables even faster transmission from the existing CABLINE series.



    CABLINE-CAP_FAB1-1_all CABLINE-CAP_FAB1-2_all CABLINE-CAP_FAB1-3_all
    Near End Cross Talk
                Far End Cross Talk

    Technical page of paddle card: https://www.i-pex.com/library/white-papers/paddle-card-technology

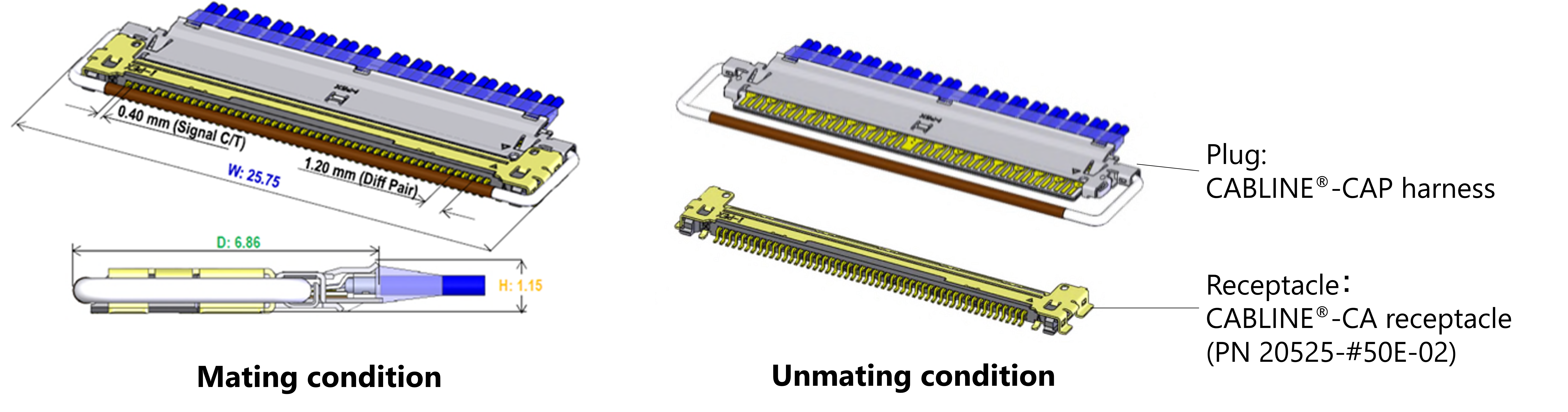

    Low profile, ideal for space-constrained applications    H=1.15 mm
    CABLINE-CAP_FAB2-1_all
    CABLINE-CAP_FAB2-2_all
    Plug: CABLINE®-CAP harness
    CABLINE-CAP_FAB2-3_all
    Receptacle: CABLINE®-CA receptacle
    (PN 20525-#50E-02)
    Mating Condition
    Un-Mating condition



    LEAPWIRE®  jumper solution for micro-coaxial cable

    Cable Jumper Harnesses are more advantageous than PCB in terms of transmission.
    Transmission distance comparison of Low-Loss PCB (Dk3.7) vs CABLINE-CAP® harness (Micro-coaxial cable)
    Micro-coaxial Cable can transmit approximately 2.3 times farther in the 16 GHz band than Low-Loss PCB (Dk3.7)

    CABLINE-CAP_FAB3_all

    CABLINE®-CAP

    CABLINE-CAP

    CABLINECAP

    CAP

    Mating Direction
    Horizontal
    Contact pitch
    0.40 mm
    Height
    1.35 Max (1.15 Nom.) ,
    Depth
    6.86 mm
    Width Formula
    25.75 mm
    Pin count
    50
    Micro-Coaxial Cable (AWG)
    #38 45 ohm
    Current rating
    0.4 A/Signal pin
    Full shielding (ZenShield®)
    No
    Mechanical lock
    Yes

    RECOMMENDED PART NUMBERS

    Please contact us if you cannot find the needed part number(s) from the list below.


    CABLINE®-CAP RECOMMENDED PART NUMBERS 　 　
    Part Number Description Pin count Harness Length Part Number
    PLUG HARNESS ASSEMBLY 50 250mm 81863-100B-01
    50 500mm 81863-100B-02
    RECEPTACLE ASSEMBLY 50 - 20525-050E-02
