EVAFLEX® 5-HD

Fully-shielded, high-speed, auto-locking, horizontal mate, 0.5 mm pitch shielded FFC/FPC connector

    ZenShield® fully-shielded with multi-point grounds to prevent EMI leakage

    Designed for high-speed transmission up to 24 Gbps/lane

    Operator friendly auto-locking design, ideal for hand or robotic assembly

*Refer to the "How to mate and unmate" video for handling.
Contact Pitch :
0.5 mm
Mating Direction:
Horizontal
Height:
2.2 max. (2.0 nom.) mm
Available Pin Counts:
24
Operating Temperature:
-40 to 85℃ (233 to 358 K)
FPC / FFC Thickness:
Contact Area: 0.3 +/- 0.03 mm, Ground Aea: 0.5 +/- 0.03 mm
Current Rating:
Signal: 0.3 A/pin

Downloads

*SI Test Boards data are under 2D Drawings

ZenShield® fully-shielded with multi-point grounds to prevent EMI leakage

360-degree fully-shielded with multi-point grounds prevent EMI leakage

Designed for high-speed transmission up to 24 Gbps/lane

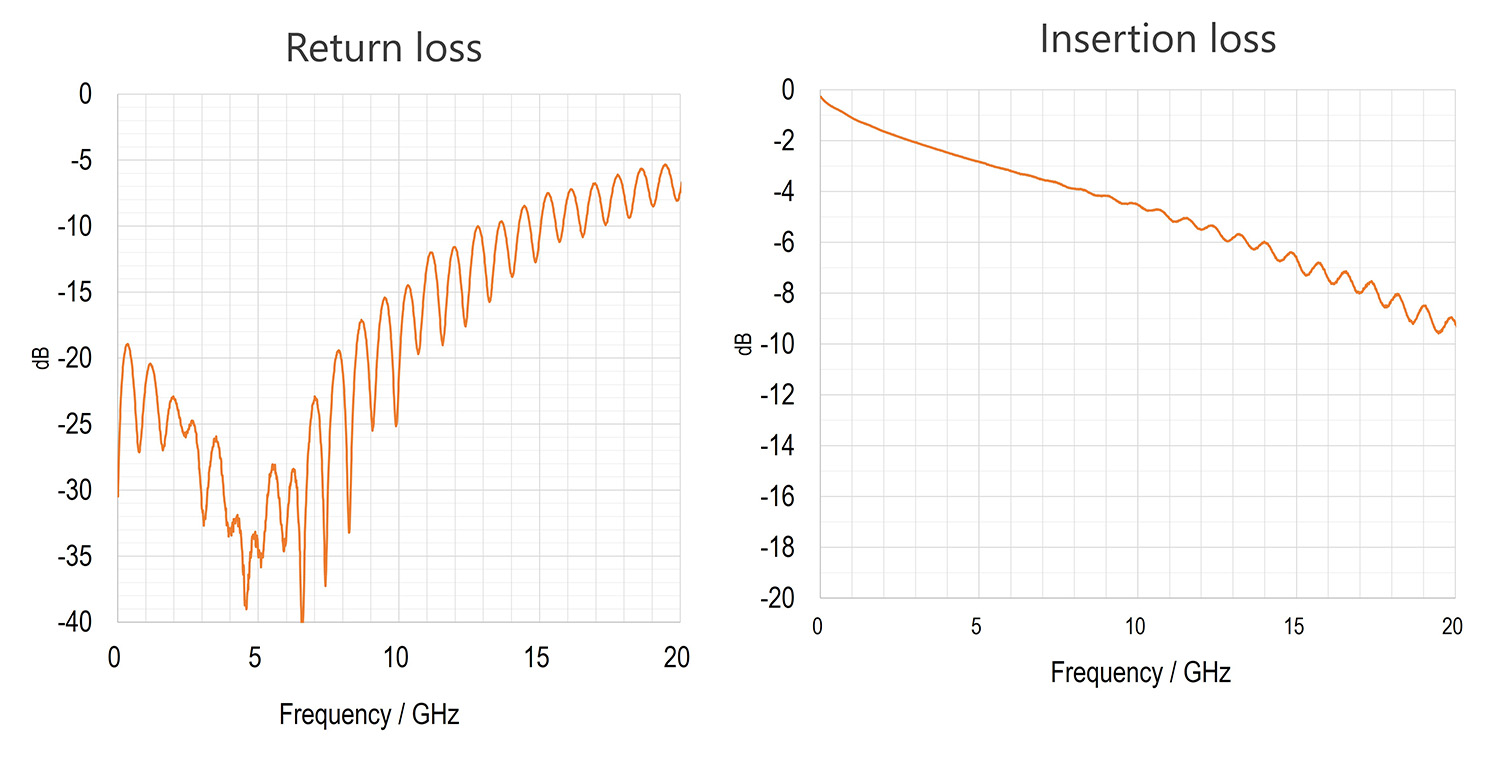

Measurement results

Connector : EVAFLEX 5-HD
Cable :  FPC
                42.5 ohm (Differential 85 ohm)
Length : 100 mm
Pin assignment : GSSG


 EVAFLEX_5-HD_Return loss Insertion loss



Operator friendly auto-locking design, ideal for hand or robotic assembly

EVAFLEX 5-HD_Operator friendly auto-lock design

Product Type
Auto-Lock
Contact Pitch
0.5 mm
Mating Direction
Horizontal
Height
2.2 max. (2.0 nom.) mm
Available Pin Counts
24
Depth
8.43 mm
Width Formula
5.2 + (0.5 x pin count) mm
Operating Temperature
-40 to 85℃ (233 to 358 K)
FPC / FFC Thickness
Contact Area: 0.3 +/- 0.03 mm, Ground Aea: 0.5 +/- 0.03 mm
Shielded FPC / FFC
Yes
Current Rating
Signal: 0.3 A/pin
Applicable Standards (Reference Only)
【FPC】USB4 (20 Gbps/lane)Thunderbolt3 (20 Gbps/lane)【FFC】USB3.2 Gen2 (10 Gbps)USB3.1 Gen1 (5 Gbps)V-By-One HS 1.4 (4 Gbps)
Full EMI Shielding (ZenShield®)
Yes
Mechanical lock
Yes
Board Pitch 0.5 mm

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



EVAFLEX 5-HD RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg) Note
EVAFLEX 5-HD 24pin 20952-024E-02 398
Other Part Numbers



EVAFLEX 5-HD OTHER PART NUMBERS

Part Number Description Part Number Weight (mg) Note
EVAFLEX 5-HD 24pin 20952-024E-01 398

SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg) Image
SI Test Board for EVAFLEX 5-HD 91574-024B-001 85368.86 ​

 CABLINE-VS_SI_TB-772_Main_(C)

Main Board

CABLINE-VS_SI_TB-772_Thru_(C)
Thru Board

​
