EVAFLEX® 5-VS

EVAFLEX 5-VS Product Image
Auto-locking, high temperature option (105℃), high-speed, horizontal mate, 0.5 mm pitch shielded FFC/FPC connector

    Supports 8+ Gbps high-speed signal

    Foot Pattern Compatible with CABLINE®-VS (VESA Standard Notebook PC LCD Connector)

    Scalable EVAFLEX® family : Auto-lock connector with many other options available
Contact Pitch:
0.5 (mm)
Mating Direction:
Horizontal
Height:
2.0 max. (1.9 nom.) (mm)
Available Pin Count:
10 15 20 24 30 40 50
Operating Temperature:
-40℃ - 105℃
FPC/FFC Thickness:
0.33
Current rating:
0.5 A/signal pin

Downloads

Supports 8+ Gbps high-speed signal

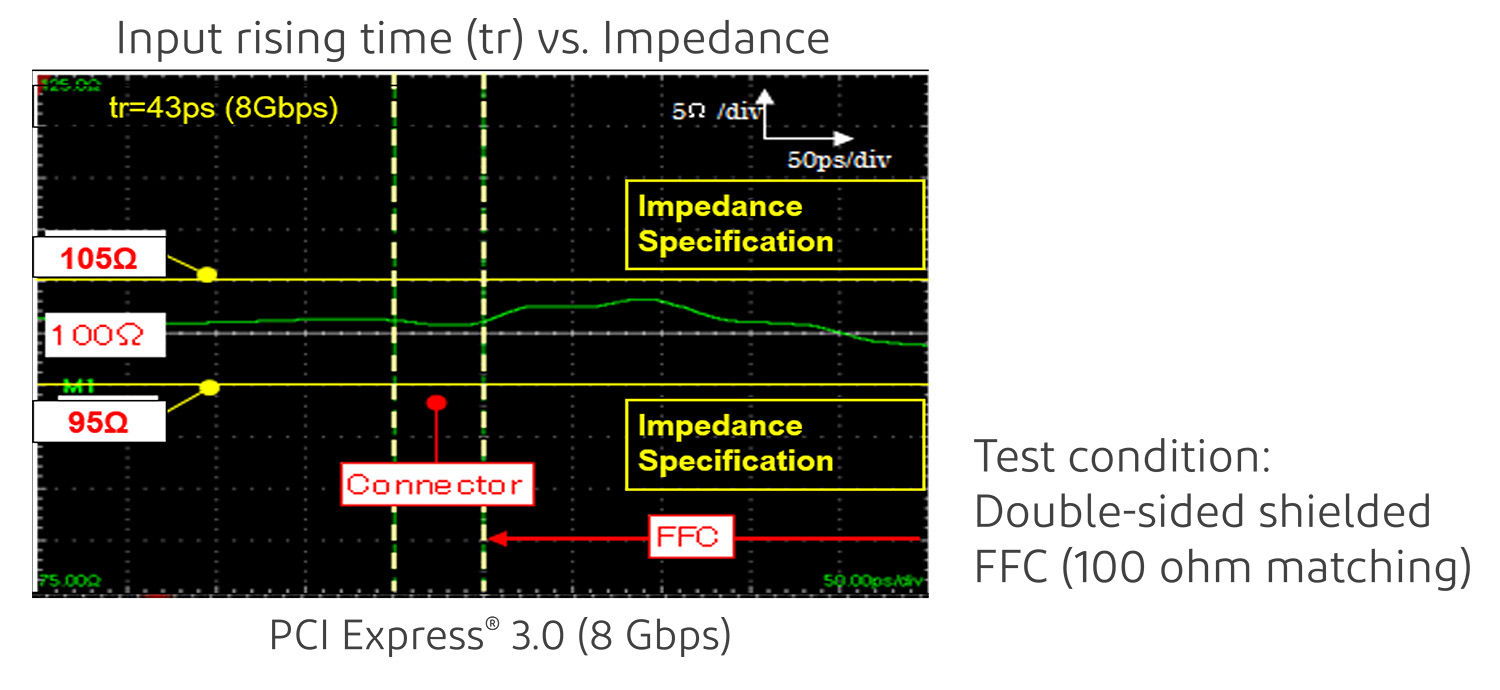

Input rising time (tr) vs. Impedance

Foot Pattern Compatible with CABLINE®-VS (VESA Standard Notebook PC LCD Connector)

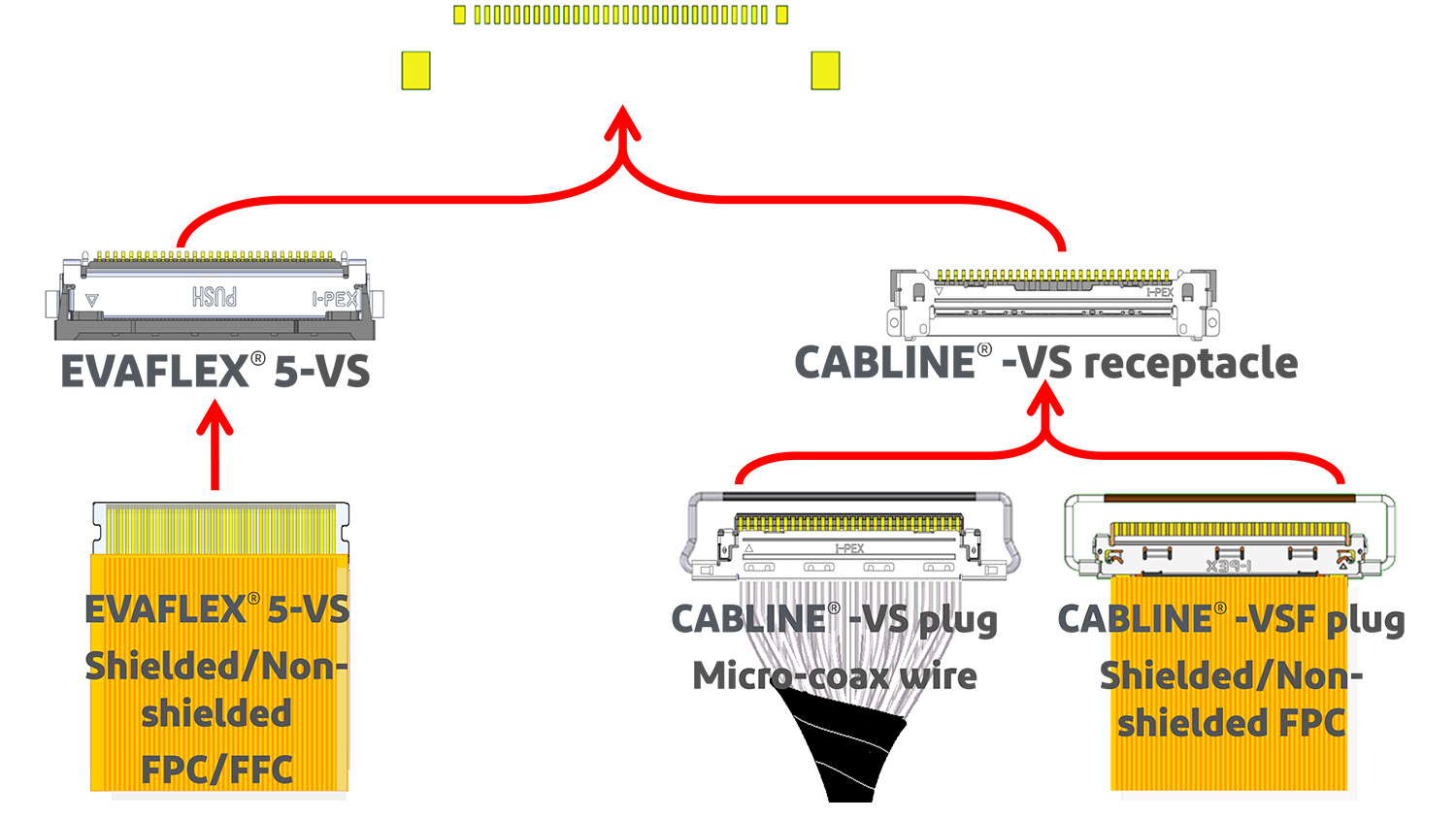

EVAFLEX® 5-VS can be mounted to the same PCB layout with VESA standard CABLINE-VS receptacle
EVAFLEX® 5-VS can be mounted to the same PCB layout with VESA standard CABLINE-VS receptacle



Scalable EVAFLEX® family : Auto-lock connector with many other options available

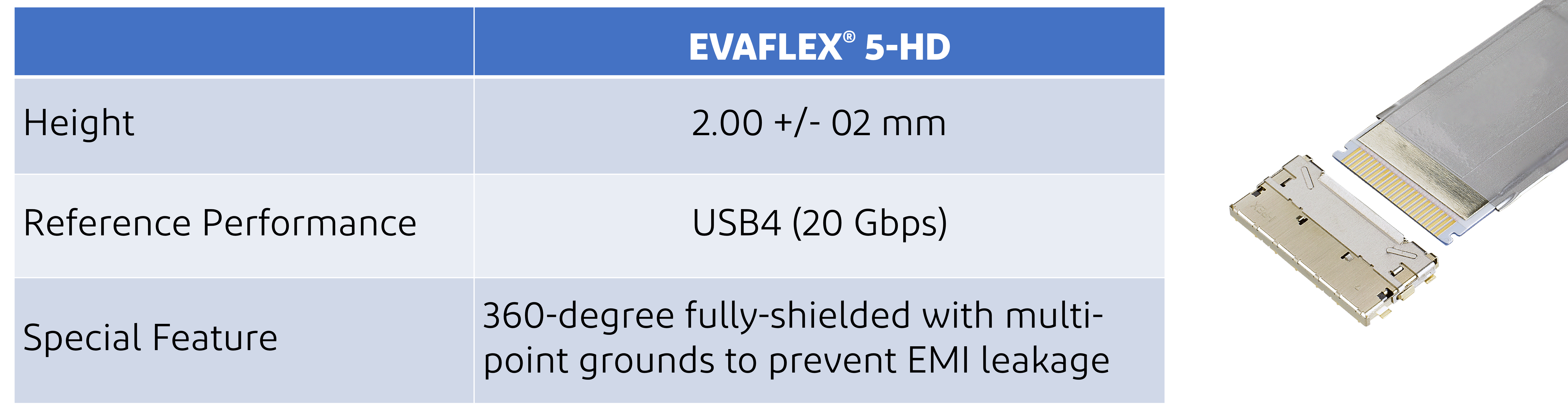

High-speed and full EMI shield : EVAFLEX® 5-HD
High-speed and full EMI shield : EVAFLEX® 5-HD

Product Type
Auto-Lock
Contact Pitch
0.5 (mm)
Mating Direction
Horizontal
Height
2.0 max. (1.9 nom.) (mm)
Available Pin Counts
10 15 20 24 30 40 50
Depth
4.95 (mm)
Width Formula
6.25 + (0.5 x pin count) x 3 (mm)
Operating Temperature
-40℃ - 105℃
FPC/FFC Thickness
0.33
Shielded FPC / FFC
Yes
Current rating
0.5 A/signal pin
Applicable Standards (Reference Only)
USB3 Gen1 (5 Gbps/Lane) eDP HBR3 (8.1 Gbps/Lane) eDP HBR2 (5.4 Gbps/Lane) eDP (2.7 Gbps/Lane) V-By-One HS 1.4 (4 Gbps/Lane) HDMI 2.0 (6 Gbps/Lane) MiPi standards
Full EMI Shielding (ZenShield®)
No
Mechanical lock
Yes
Automotive Standards USCAR-2 (40 pin tested. 5.4.6 (Vibration and Mechanical Shock (V1)) evaluation passed)
Other Part Numbers
Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.



EVAFLEX 5-VS OTHER PART NUMBERS

Part Number Description PART NUMBERS Weight (mg)
EVAFLEX 5-VS standard 10pin 20535-010E-01 145.36
EVAFLEX 5-VS standard 10pin 20535-010E-02 145.36
EVAFLEX 5-VS standard 15pin 20535-015E-01 181.82
EVAFLEX 5-VS standard 15pin 20535-015E-02 181.82
EVAFLEX 5-VS standard 20pin 20535-020E-01 220.59
EVAFLEX 5-VS standard 20pin 20535-020E-02 220.59
EVAFLEX 5-VS standard 24pin 20535-024E-01 249.64
EVAFLEX 5-VS standard 24pin 20535-024E-02 249.64
EVAFLEX 5-VS standard 30pin 20535-030E-01 296.26
EVAFLEX 5-VS standard 30pin 20535-030E-02 296.26
EVAFLEX 5-VS standard 40pin 20535-040E-01 373.64
EVAFLEX 5-VS standard 40pin 20535-040E-02 373.64
EVAFLEX 5-VS Type CH 105℃ 10pin 20720-010E-02 145.360
EVAFLEX 5-VS Type CH 105℃ 15pin 20720-015E-02 181.820
EVAFLEX 5-VS Type CH 105℃ 20pin 20720-020E-02 220.590
EVAFLEX 5-VS Type CH105℃ 24pin 20720-024E-02 249.640
EVAFLEX 5-VS Type CH 105℃ 30pin 20720-030E-02 296.260
EVAFLEX 5-VS Type CH 105℃ 40pin 20720-040E-02 373.640
EVAFLEX 5-VS Robust type 105℃ 30pin 20893-030E-02 -
EVAFLEX 5-VS Robust type 105℃ 40pin 20893-040E-02 352.4
EVAFLEX 5-VS Robust type 105℃ 50pin 20893-050E-02 442.2

SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg)
SI Test Board for EVAFLEX5-VS 10pin 91570-010B-001 84888.78
SI Test Board for EVAFLEX5-VS 15pin 91570-015B-001 84960.44
SI Test Board for EVAFLEX5-VS 20pin 91570-020B-001 85037.54
SI Test Board for EVAFLEX5-VS 24pin 91570-024B-001 85099.08
SI Test Board for EVAFLEX5-VS 30pin 91570-030B-001 85193.3
SI Test Board for EVAFLEX5-VS 40pin 91570-040B-001 85344.7



SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg)
SI Test Board for EVAFLEX 5-VS TYPE CH 10pin 91570-010B-002 84888.76
SI Test Board for EVAFLEX 5-VS TYPE CH 15pin 91570-015B-002 84960.4
SI Test Board for EVAFLEX 5-VS TYPE CH 20pin 91570-020B-002 85037.48
SI Test Board for EVAFLEX 5-VS TYPE CH 24pin 91570-024B-002 85099.02
SI Test Board for EVAFLEX 5-VS TYPE CH 30pin 91570-030B-002 85193.22
SI Test Board for EVAFLEX 5-VS TYPE CH 40pin 91570-040B-002 85344.6



SI Test Board with 2.92mm Adapter

Part Number Description Part Number Weight (mg)
SI Test Board for EVAFLEX 5-VS TYPE R 30pin 91570-030B-003 85190.92
SI Test Board for EVAFLEX 5-VS TYPE R 40pin 91570-040B-003 85341.58
SI Test Board for EVAFLEX 5-VS TYPE R 50pin 91570-040B-003 85341.58
