ISH® HORIZONTAL

ISH Horizontal Product Image
High heat and vibration resistant, horizontal, SMT connector

    High heat and strong vibration resistance for high-reliability applications

    Unique embedded spring terminals for long-term stable electrical connection

    LV214/USCAR-2 compliant options available,
    designed for automotive and industrial grade applications

Contact Pitch:
2.0 mm
Mating Type / Direction:
Horizontal
Mated Height:
Single-row: 7.5 mm max.Double-row: 12.2 mm max.
Operating Temperature:
-40 to 125℃ (233 to 398 K)
Cable Size (Discrete):
AWG 20 (*)AWG 22 (*)* (Insulation Diameter 1.6 mm max.)
Current Rating:
Signal: 4.5 A/pin

Downloads

*SI Test Boards data are under 2D Drawings

High heat and strong vibration resistance for high-reliability applications

ISH Horizontal Type FAB1 E

Unique embedded spring terminals for long-term stable electrical connection

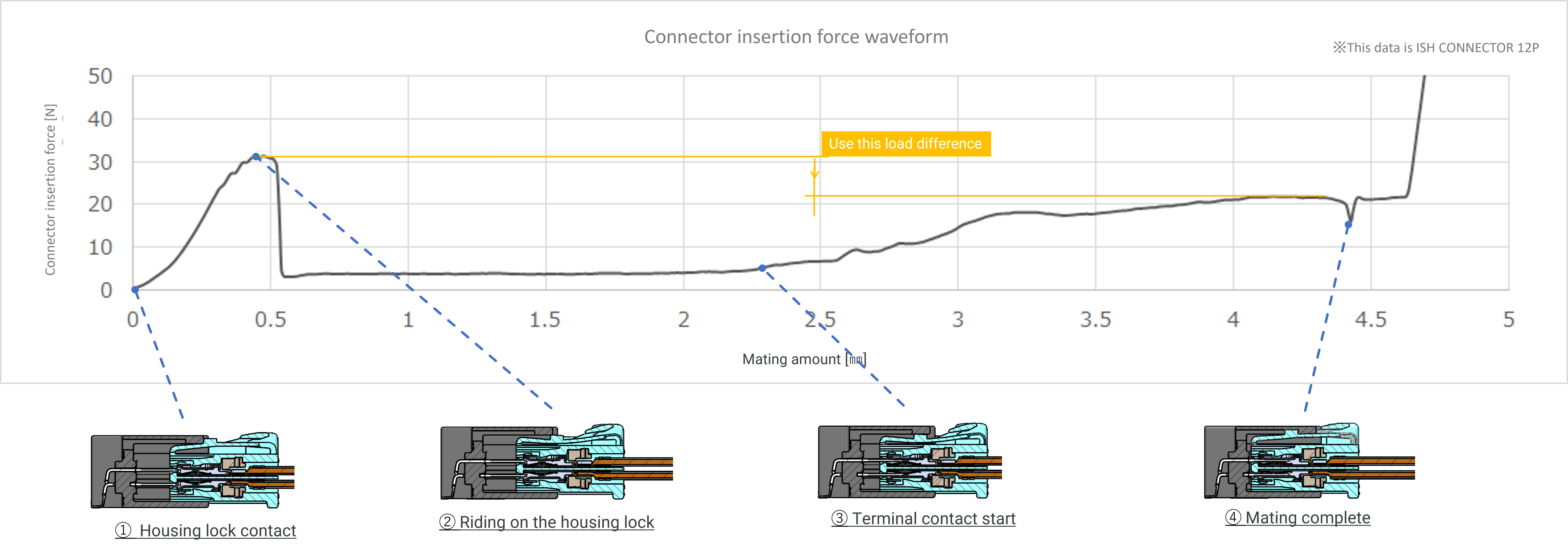

ISH Horizontal Type FAB2 E

LV214/USCAR-2 compliant options available,
designed for automotive and industrial grade applications

For Automotive

For Non-Automotive
For Automotive For Non-Automotive
  • Headlamp & other automotive lamps
  • Inverter & DC/DC converter
  • Battery control module
  • Front/Rear view camera control module
  • Instrument cluster
  • Offroad vehicles (ATV/UTVs, QUADS, Tricycles)
  • Trucks and construction machineries (Excavators, Loaders)
  • Factory automation equipment

For applications that require compliance with LV214/USCAR-2

Please refer to "part number" tab above for LV214/USCAR-2 compliant part numbers.




Product Type
Discrete wire
Contact Pitch
2.0 mm
Mating Type / Direction
Horizontal
Mated Height
Single-row: 7.5 mm max.Double-row: 12.2 mm max.
Available Pin Count Single-row: 3
Double-row: 6, 8, 12 (ISH V is available), 16 (ISH V is available), 20, 32
Width
Single-row: 8.9 + (2.0 x pin count) mmDouble-row: 8.9 + (1.0 x pin count) mmISHV: 10.1 + (1.0 x pin count) mm
Contact Type
signal pins only
Operating Temperature
-40 to 125℃ (233 to 398 K)
Cable Size (Discrete)
AWG 20 (*)AWG 22 (*)* (Insulation Diameter 1.6 mm max.)
Current Rating
Signal: 4.5 A/pin
Full EMI Shielding (ZenShield®)
No
Mechanical lock
Yes
Contact Size 0.5 x 0.4 mm (020)
Vibration Resistance 10 G

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



ISH (Horizontal Type) RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg) Note
ISH HORIZONTAL male assembly 3pin V0111-003E-01 1316 　
ISH HORIZONTAL male assembly 6pin V0114-006E-01 1759.98 　
ISH HORIZONTAL male assembly 8pin coding-A V0114-008E-02 2098.8 USCAR‐2(*)
ISH HORIZONTAL male assembly 12pin coding-C V0114-012E-21 2478.04 USCAR‐2(*)
ISH HORIZONTAL male assembly 16pin  V0114-016E-01 2897.92 　
ISH HORIZONTAL male assembly 20pin  V0114-020E-01 3307.96 　
ISH HORIZONTAL male assembly 32pin  V0114-032E-02 4493.24 　
ISH HORIZONTAL female housing 3pin single V0113-91003-01 502.6 　
ISH female housing  6pin BK V0116-91006-01 698.6 　
ISH HORIZONTAL female housing 8pin double keyA norearcover V0116-91008-02 781.8 USCAR‐2(*), rear cover non-applicable
ISH female housing 12pin coding-C V0116-91012-22 1074.2 USCAR‐2(*)
ISH female housing 16pin V0116-91016-01 1315 　
ISH female housing 20pin V0116-91020-01 1679.6 　
ISH female housing 32pin V0116-91032-02 2997 　
ISH female retainer 6pin V0116-92006-01 74.2 　
ISH_ISH-V female retainer 8pin V0116-92008-01 78.7 USCAR‐2(*)
ISH female retainer 12pin V0116-92012-01 126 USCAR‐2(*)
ISH female retainer 16pin V0116-92016-01 128.1 rear cover non-applicable
ISH female retainer 20pin V0116-92020-01 187.6 　
ISH female retainer 32pin V0116-92032-01 333 　
ISH female cable cover 3pin V0113-93003-01 271.5 　
ISH female cable cover 6pin NAT V0116-93006-01 381.2 　
ISH female rear cover 8pin V0116-94008-01 680 USCAR‐2(*)
ISH female rear cover 12pin V0116-94012-01 940.3 USCAR‐2(*)
ISH female rear cover 16pin V0116-94016-01 898 　
ISH female rear cover 20pin V0116-94020-01 1052.9 　
ISH female terminal 0.5mm SL VT009-02 92.3 Signal Terminal

Note (*):All specifications have been complied with USCAR-2 except for connector retention force.



ISH (Horizontal Type) RECOMMENDED PART NUMBERS (LV214 Complied)

Part Number Description Part Number Weight (mg) Note
ISH-V HORIZONTAL male assembly 3pin Au V0085-003E-001 1420.197 Au plating
ISH-V HORIZONTAL male assembly 12pin V0025-012E-001 2458.5 　
ISH-V HORIZONTAL male assembly 16pin V0025-016E-001 2888.9 　
ISH-V female housing 3pin V0037-91003-211 535 　
ISH-V female housing 8pin V0027-91008-211 783.6 　
ISH-V female housing 12pin V0027-91012-211 1096 　
ISH-V female housing 16pin V0027-91016-211 1349.6 　
ISH female terminal 0.5mm Au VT009-03 88 Signal Terminal





Other Part Numbers
Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.



OTHER ISH (Horizontal Type) PART NUMBERS

Part Number Description Part Number Weight (mg) Note
ISH HORIZONTAL male assembly 6pin V0114-006E-11 1759.98 　
ISH HORIZONTAL male assembly 8pin coding-B V0114-008E-12 2100.72 USCAR‐2(*)
ISH HORIZONTAL male assembly 8pin coding-C V0114-008E-22 2098.8 USCAR‐2(*)
ISH HORIZONTAL male assembly 8pin coding-D V0114-008E-32 2100.72 USCAR‐2(*)
ISH HORIZONTAL male assembly 12pin coding-A V0114-012E-01 2473.66 USCAR‐2(*), normal lock
ISH HORIZONTAL male assembly 12pin coding-B V0114-012E-11 1806.92 USCAR‐2(*), normal lock
ISH HORIZONTAL male assembly 12pin coding-D V0114-012E-31 2478.04 USCAR‐2(*)
ISH HORIZONTAL male assembly 12pin coding-E V0114-012E-12 2474.565 USCAR‐2(*)
ISH female housing  6pin NAT V0116-91006-11 698.6 　
ISH female housing 8pin coding-A cover adaptable V0116-91008-03 781.8 USCAR‐2(*), rear cover applicable
ISH female housing 8pin coding-B V0116-91008-12 778.7 USCAR‐2(*)
ISH female housing 8pin coding-C V0116-91008-22 781.9 USCAR‐2(*)
ISH female housing 12pin coding-A V0116-91012-01 1060.3 USCAR‐2(*), normal lock, rear cover non-applicable
ISH female housing 12pin coding-A V0116-91012-02 1063.1 USCAR‐2(*), normal lock
ISH female housing 12pin coding-B V0116-91012-11 1062 USCAR‐2(*), normal lock, rear cover non-applicable
ISH female housing 12pin coding-B V0116-91012-12 1078.1 USCAR‐2(*)
ISH female housing 12pin coding-C V0116-91012-21 1078.1 USCAR‐2(*)
ISH female housing 12pin coding-D V0116-91012-31 1048.44 USCAR‐2(*)
ISH female housing 16pin V0116-91016-02 1315 　
ISH female cable cover 6pin BK V0116-93006-02 381.2 Color: black
ISH female terminal 1.5mm VT011-01 - 　

Note (*):All specifications have been complied with USCAR-2 except for connector retention force.

ISH (Horizontal Type) ACCESSORIES PART NUMBERS

Part Number Description Part Number Weight (mg) Note
ISH/ISHV releasing JIG for terminal 0.5mm 91691-0001 32844 　
ISH releasing JIG for retainer -1 91695-0001 7455 　
ISH/ISHV releasing JIG for retainer -2 91696-0001 8409 　
ISH/ISHV jumper wire 0.5mm terminal L=100mm 91683-000B-01 644 　
ISH/ISHV jumper wire 0.5mm terminal L=200mm 91683-000B-02 1081 　
ISH/ISHV jumper wire 0.5mm terminal L=300mm 91683-000B-03 1518 　



ISH (Horizontal Type) Products adaptable with the JIG

Part Number Description Part Number Products adaptable with the JIG
ISH releasing JIG for retainer-1 91695-0001 V0116-91012-01
V0116-91012-11
V0116-91012-21
V0116-91012-02
V0116-91012-12
V0116-91012-22
V0116-91012-31
V0116-91016-01
ISH/ISHV  releasing JIG for retainer-2 91696-0001 V0116-91006-01
V0116-91006-11
V0116-91008-02
V0116-91008-12
V0116-91008-22
V0116-91008-32
V0116-91008-03
V0027-91012-211
V0027-91016-211
V0116-91020-01
V0116-91032-02
