ISH® WIRE TO WIRE

ISH W-to-W
High heat and vibration resistance, wire-to-wire relay connector

    High heat and strong vibration resistance for high-reliability applications

    Unique embedded spring terminals for long term stable electrical connection

    USCAR-2 compliant options available, designed for automotive and
    industrial grade applications

Contact Pitch:
2.0 mm
Mating Direction:
Wire-to-Wire
Mated Height:
8.0 max. 11.7 max. mm
Available Pin Count:
38
Discrete Cable:
AWG 20 O.D. 1.6 mm AWG 22 O.D. 1.6 mm
Current rating:
4.5 A/pin

Downloads

*SI Test Boards data are under 2D Drawings

High heat and strong vibration resistance for high-reliability applications

ISH_Wire-to-Wire-Type_FAB1_E

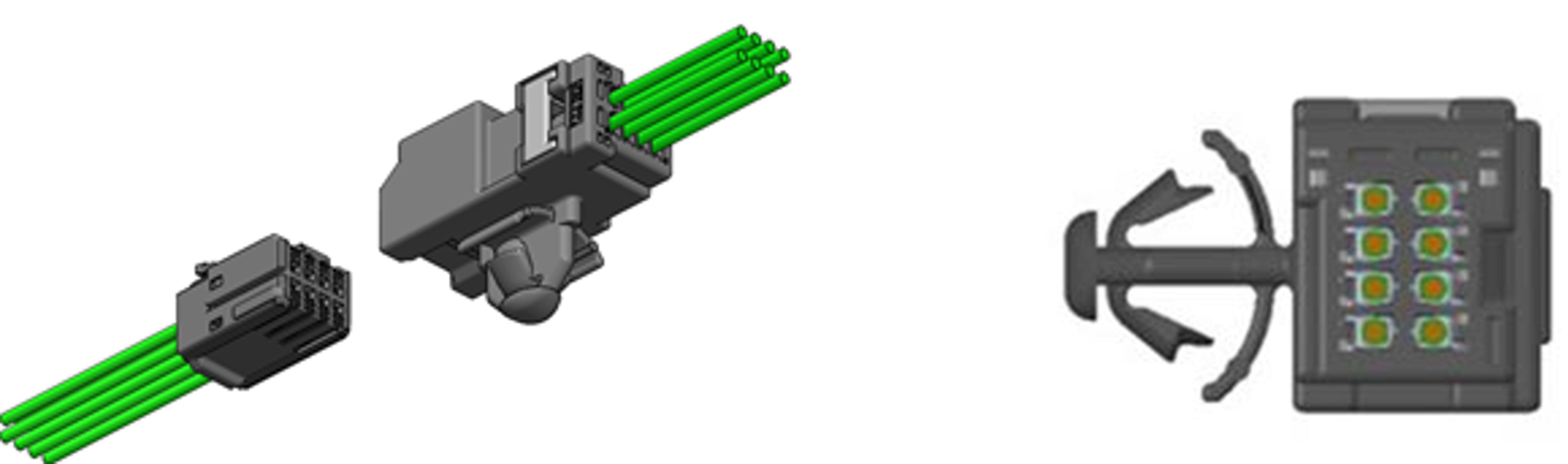

Unique embedded spring terminals for long term stable electrical connection

ISH_Wire-to-Wire-Type_FAB2_E

USCAR-2 compliant options available, designed for automotive and
industrial grade applications

For Automotive

For Non-Automotive
For Automotive For Non-Automotive
  • Headlamp & other automotive lamps
  • Inverter & DC/DC converter
  • Battery control module
  • Front/Rear view camera control module
  • Instrument cluster
  • Offroad vehicles (ATV/UTVs, QUADS, Tricycles)
  • Trucks and construction machineries (Excavators, Loaders)
  • Factory automation equipment

For applications that require compliance with USCAR-2

Please refer to "part number" tab above for USCAR-2 compliant part numbers.




Product Type
Discrete wire
Contact Pitch
2.0 mm
Mating Direction
Wire-to-Wire
Mated Height
8.0 max. 11.7 max. mm
Available Pin Counts
38
Depth
31.95 mm
Width Formula
4.9+2.0*pin counts (excluding unlock button)
Discrete Cable
AWG 20 O.D. 1.6 mm AWG 22 O.D. 1.6 mm
Shielded FPC / FFC
No
Current rating
4.5 A/pin
Full EMI Shielding (ZenShield®)
No
Mechanical lock
Yes
Mated Height (max.) Single Row: 8.00 mm
Double Row: 11.70 mm
Automotive Standards LV214 (8 pin tested)

RECOMMENDED PART NUMBERS

Please contact us if you cannot find the needed part number(s) from the list below.



ISH (Wire-to-Wire Type) RECOMMENDED PART NUMBERS

Part Number Description Part Number Weight (mg) Note
ISH WIRE TO WIRE male housing 3pin V0112-91003-01 1437 　
ISH WIRE TO WIRE male sub-assembly 8pin V0031-008B-201 3400 LV214
ISH female housing 3pin V0113-91003-01 502.6 　
ISH female housing 8pin coding-A V0116-91008-02 781.8 LV214
ISH WIRE-TO-WIRE TYPE female retainer 8pin double V0116-92008-01 78.7 LV214
ISH WIRE TO WIRE male terminal 0.5mm VT010-01 108 Signal Terminal
ISH female terminal 0.5mm SL VT009-02 92.3 Signal Terminal
Other Part Numbers

Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.



OTHER ISH (Wire-to-Wire Type) PART NUMBERS

Part Number Description Part Number Weight (mg) Note
ISH WIRE TO WIRE male sub-assembly 8pin coding-B V0031-008B-202 3400 LV214
ISH WIRE-TO-WIRE TYPE female housing 8pin double keyB V0116-91008-12 778.7 LV214

ISH (Wire-to-Wire Type) ACCESSORIES PART NUMBERS

Part Number Description Part Number Weight (mg) Note
ISH/ISHV releasing JIG for female terminal 0.5mm 91691-0001 - 　
ISH/ISHV releasing JIG for retainer -2 91696-0001 - 　



ISH (Wire-to-Wire Type) Products adaptable with the JIG

Part Number Description Part Number Products adaptable with the JIG
ISH/ISHV  releasing JIG for retainer-2 91696-0001 V0116-91008-02
V0116-91008-12
