MHF®-TI
High retention force (90 N minimum)
Permanent mechanical lock with tactile indication of secure contact/Un-mating tool available
2.8 ~ 3.0 mm O.D. wire available with robust crimping structure
*Refer to the "How to mate and unmate" video for handling.
Downloads
-
Catalogs
-
2D Drawings
-
Receptacles
-
Cable Assemblies
-
O.D. 2.8 mm
-
O.D. 3.0 mm
-
-
Plugs
-
Accessories
-
SI Test Boards
-
-
3D STEP & IGES
-
STEP
-
Products
-
Accessories
-
-
IGES
-
Products
-
Accessories
-
-
-
Specs & Test Reports
-
Product Specification
-
Test Reports
-
-
PCB/FPC Data
-
Symbols & Footprints
-
-
-
Manuals
High retention force (90 N minimum)

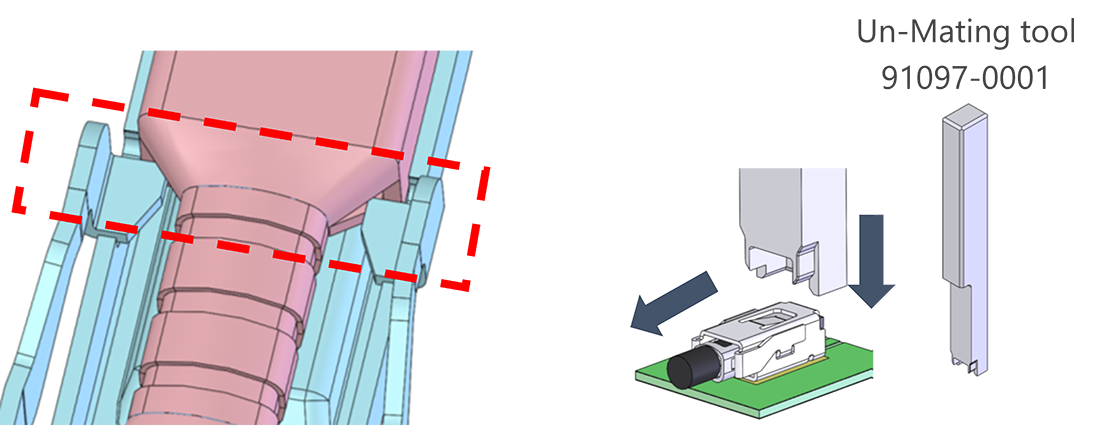

Permanent mechanical lock with tactile indication of secure contact/Un-mating tool available
2.8 ~ 3.0 mm O.D. wire available with robust crimping structure
| Product Type | Coaxial RF Connector
|
| Mated Height | 3.65 mm max.
|
| SMT Size | 9.4 x 5.18 mm
|
| Frequency Range | Up to 6 GHz |
| Operating Temperature | |
| Cable Size (Micro-Coaxial) | AWG 26 O.D. 2.8 mmAWG 25 O.D. 3.0 mm
|
| V.S.W.R (Plug) | DC to 3 GHz: 1.5 max.3 to 6 GHz: 1.5 max.
|
| Applicable Standards (Reference Only) | 5G sub6Wi-FiLTE / LTE-AdvancedLPWABluetoothGPS
|
| Full EMI Shielding (ZenShield®) | No
|
| Mechanical Lock | Yes
|
RECOMMENDED PART NUMBERS
Please contact us if you cannot find the needed part number(s) from the list below.
MHF-TI RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Note |
| MHF-TI harness OD=3.0mm/2.8mm | Offered as harness only | - | *see note below |
| MHF-TI receptacle | 20860-001E-01 | 342.49 |
*The MHF-TI is offered as our MHF-TI harness assembly only.
Please specify harness assembly specification (single-end or double-ended, cable size, length, color).
MHF-TI SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MHF-TI-TI harness OD=2.80mm L=500mm | 8-24-0161 | 6252 |

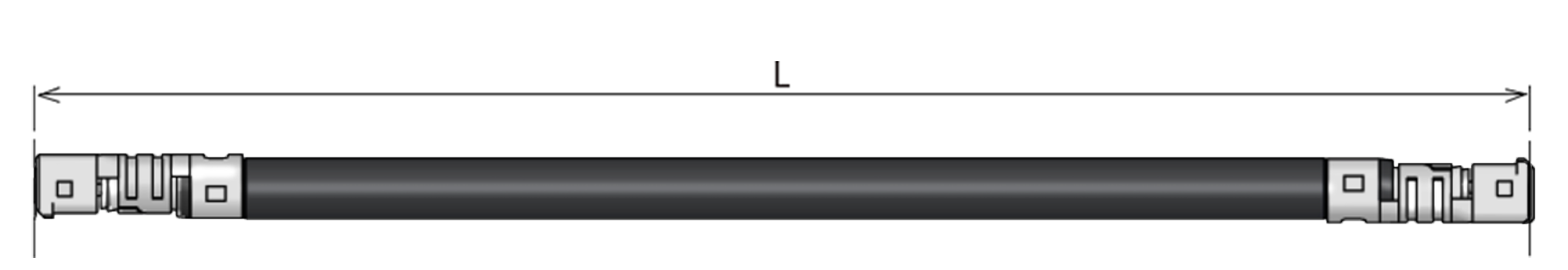

| MHF-TI-TI harness OD=2.80mm L=1,000mm | 8-25-0153 | 15830 |
| MHF-TI-TI harness OD=3.00mm L=500mm | 8-24-0238 | 7695 |
| MHF-TI-TI harness OD=3.00mm L=1,000mm | 8-25-0154 | 18330 |
MHF-TI SAMPLE HARNESS FOR EVALUATION PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MHF-TI-TI harness OD=2.80mm L=500mm 180 degree orientation | 8-26-0061 | 6525 |
| MHF-TI-TI harness OD=2.80mm L=1000mm 180 degree orientation | 8-26-0062 | 12670 |
| MHF-TI-TI harness OD=3.00mm L=500mm 180 degree orientation | 8-26-0063 | 7695 |
| MHF-TI-TI harness OD=3.00mm L=1000mm 180 degree orientation | 8-26-0064 | 15010 |
Other Part Numbers
Please note: This list potentially includes products without available samples and end-of-life items.
For new inquiries, please reference the recommended part numbers listed above.
MHF-TI OTHER PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| MHF-TI receptacle without jig guide | 20860-001E-00 | 342.49 |
MHF-TI ACCESSORIES PART NUMBERS
| Part Number Description | Part Number | Weight (mg) | Image |
| MHF-TI Unlocking tool | 91097-0001 | 19330 |
|
SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) | Image |
| SI Test Board for MHF TI | 91666-001B-001 | 18909 |
Main Board
Thru Boar |
Unlocking tool to handle MHF®-TI
MHF®-TI is a mechanical lock type. A dedicated extraction tool is provided for unlocking.
Push the tool vertically and unlock the mating lock.
Keep unlock condition and pull the cable plug horizontally for unmating.
SI Test board for signal integrity performance measurement
Signal Integrity testing, measures and analyzes the extent to which high-speed signals maintain their integrity when transmitted through a connector.
