CABLINE®-UY
较低嵌合高度（嵌合高度 = 0.82 mm Max.），适用于高速数据传输(32Gbps/lane),较窄间距（0.35 mm pitch）, 90度出线垂直插拔款的极细同轴线连接器
小而低的设计，适用于狭窄的空间
高速率传输, 32Gbps/lane应用的理想之选
适于穿孔的窄小型设计
接点间距(mm):
0.35 mm
Height:
0.82 Max
可提供Pin数:
5
10
极细同轴线(AWG):
#40
#42
Discrete Cable (AWG):
#36
嵌合类型:
垂直
下载
小而低的设计，适用于狭窄的空间
| 连接器组合大小 | 5p 公座和一美分硬币大小比较 | |
 |
 |
 |
高速率传输, 32Gbps/lane应用的理想之选
|
Measurement results |
 |
适于穿孔的窄小型设计
|
|
仿真结果（大于5P）：最小转轴内径(mm) （未做粘接处理） | ||
 |
AWG#42 (45 ohm) |
AWG#42 (50 ohm) |
|

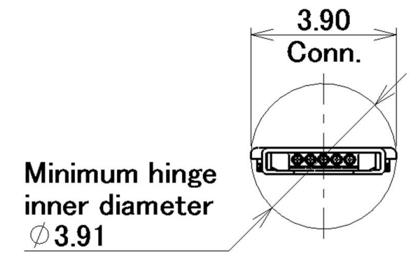

| 仿真结果 （5P）： 不需要弯曲电缆线即可穿越转轴 |
仿真结果（大于5P）：最小转轴内径(mm) （做粘接处理） | ||
|
AWG#42 (45 ohm) |
AWG#42 (50 ohm) |
|
| Contact pitch |
0.35 mm
|
| Height |
0.82 Max
|
| Depth |
3.1 mm
|
| Width Formula |
Wire plug : 2.15 + (0.35 * ?p) SMT plug : 2.02 + (0.35 * ?p) mm
|
| Pin count |
5
10
|
| Applicable Standards (Reference Only) |
USB4 Gen 4(40Gbps/Lane PAM3)
Thunderbolt 5(40Gbps/Lane PAM3)
USB4 Gen 3(20 Gbps/Lane)
DisplayPort UHBR20(20Gbps/Lane）
V-By-One US (16 Gbps/Lane)
HDMI 2.1 (12 Gbps/Lane)
USB 3.1 Gen 2 (10 Gbps/Lane)
HDMI 2.0 (6 Gbps/Lane)
eDP HBR 2 (5.4 Gbps/Lane)
USB 3.1 Gen 1 (5 Gbps/Lane)
V-By-One HS 1.4 (4 Gbps/Lane)
eDP (2.7 Gbps/Lane)
MiPi standards
|
| Full shielding (ZenShield®) |
No
|
推荐料号
若列表中查询不到您要查找的料号，请使用调查表询问。
CABLINE-UY RECOMMENDED PART NUMBERS
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-UY plug cable assembly 5pin | 20857-005T-01 | 24.868 |
| CABLINE-UY plug cable assembly 10pin | 20857-010T-01 | 32.85 |
| CABLINE-UY receptacle 5pin | 20854-005E-02 | 6.3 |
| CABLINE-UY receptacle 10pin | 20854-010E-02 | 9.74 |
SAMPLE HARNESS FOR EVALUATION
| Part Number Description | Part Number |
|
CABLINE-UY harness 5pin micro-coaxial 42AWG L=100mm
|
81426-100B-03-D
|
| CABLINE-UY harness 5pin micro-coaxial 42AWG L=200mm | 81426-100B-02-D |
| CABLINE-UY harness 5pin micro-coaxial 42AWG L=300mm | 81426-100B-01-D |
| CABLINE-UY harness 10pin micro-coaxial 42AWG L=100mm | 81787-100B-03-D |
| CABLINE-UY harness 10pin micro-coaxial 42AWG L=200mm | 81787-100B-02-D |
| CABLINE-UY harness 10pin micro-coaxial 42AWG L=300mm | 81787-100B-01-D |
其他料号
请注意:此列表可能包含了暂时还没有可用样品的产品和不再销售的型号。
如您有新的询价，请参考上述推荐的料号。
SI Test Board with 2.92mm Adapter
| Part Number Description | Part Number | Weight (mg) |
| SI Test Board for CABLINE-UY | 91565-005B-001 | 39708.72 |
| Part Number Description | Part Number | Weight (mg) |
| CABLINE-UY hand tool plug insertion/extraction 5p | 91174-0001 | 440 |
| CABLINE-UY hand tool plug insertion/extraction 10p | 91174-0002 | 600 |
